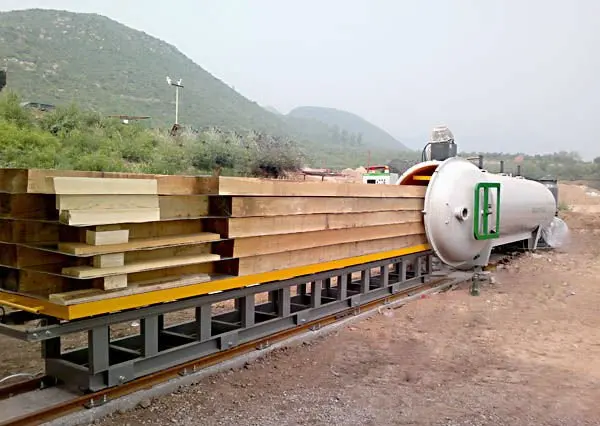

High frequency heating vacuum wood drying machine For Furniture HFVD120 SA HF wooddryers
- Category: Other Woodworking Machinery >>>
- Supplier: Shijiazhuang Saga Machinery Co. Ltd.
Share on (62566493424):
Product Overview
Description
Product Description
Basic Parameter of HFVD120-SA
| Overall Size | High frequency generator | 950*1050*1950mm |
| Tank | 9300*2360*2300mm | |
| Cooling system | 1500*1150*2000mm | |
| Gross Weight | 12Ton | |
| Tank | Inside diameter | 1900mm |
| Stacking timber size | 1300*1300*8000mm | |
| Stacking timber capacity | 12 cubic meters | |
| HF Generator | Input power | 70 Kva |
| Output power | 50 KW | |
| Temperature Testing | Fiber optical temperature sensor | |
| Moisture Testing | Weighing system (PATENT) | |

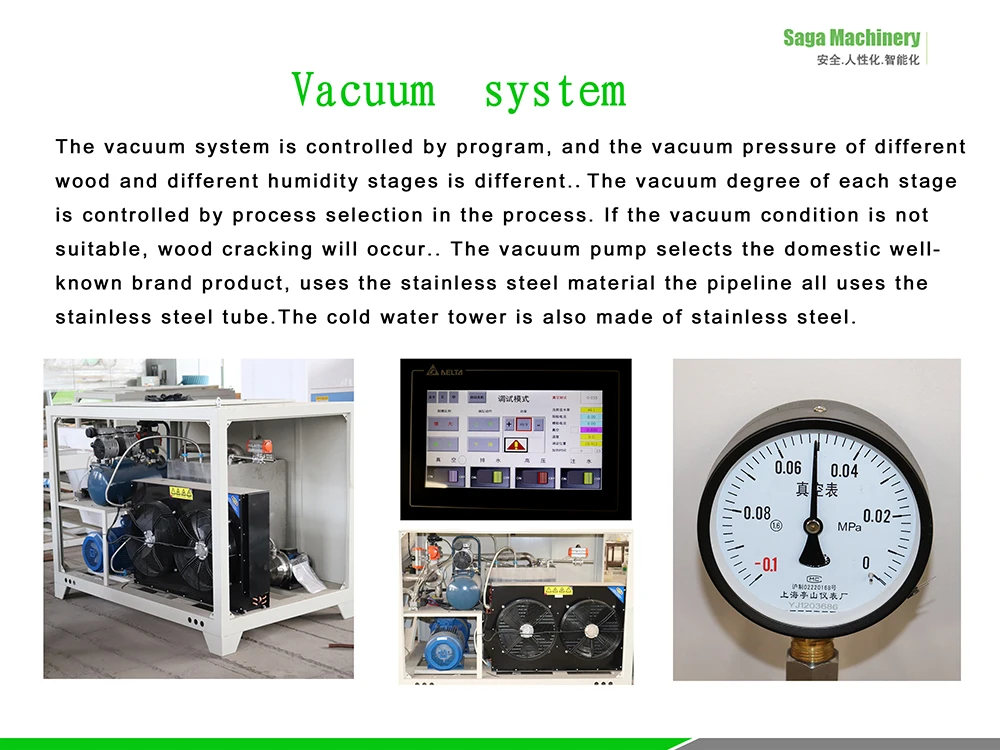

| Cooling System | Stainless steel condenser with stainless steel water-ring vacuum pump | |
| Dewatering | Full automatic type | |

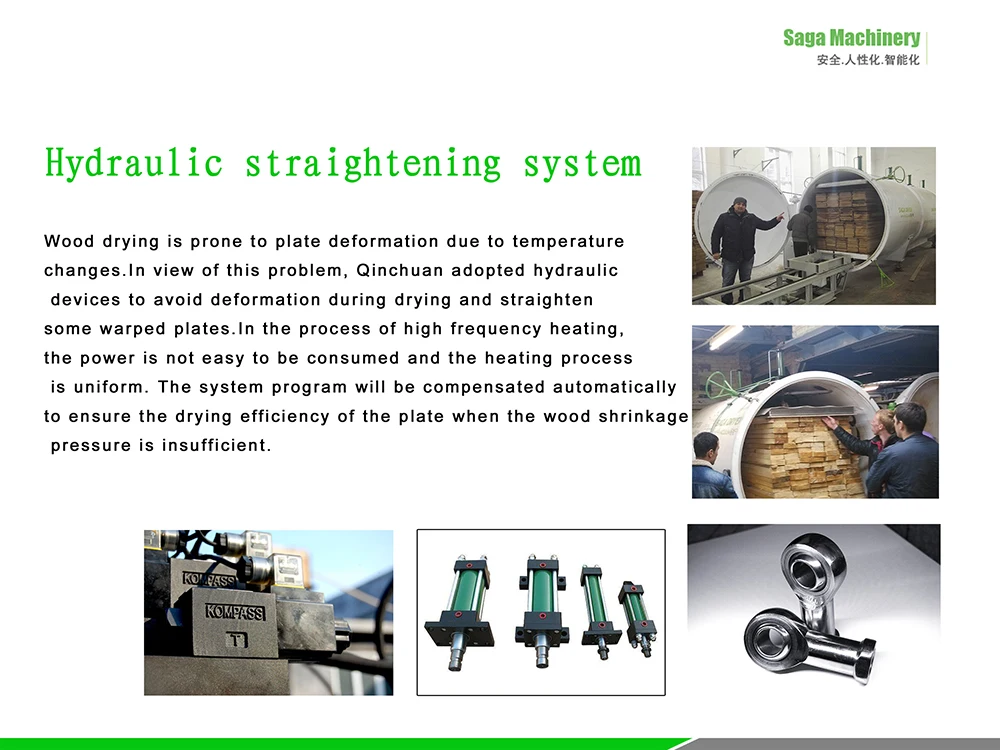

| Hydraulic Cyliners | 6 ton (4 pieces of stainless steel cylinders) | |
| Vacuum Pump | Material | Stainless steel |
| Power | 7.5 Kw | |
| Feeder Type | Automatic Feeder | |
| Tank Door | Ears Door (more safe and powerful) | |

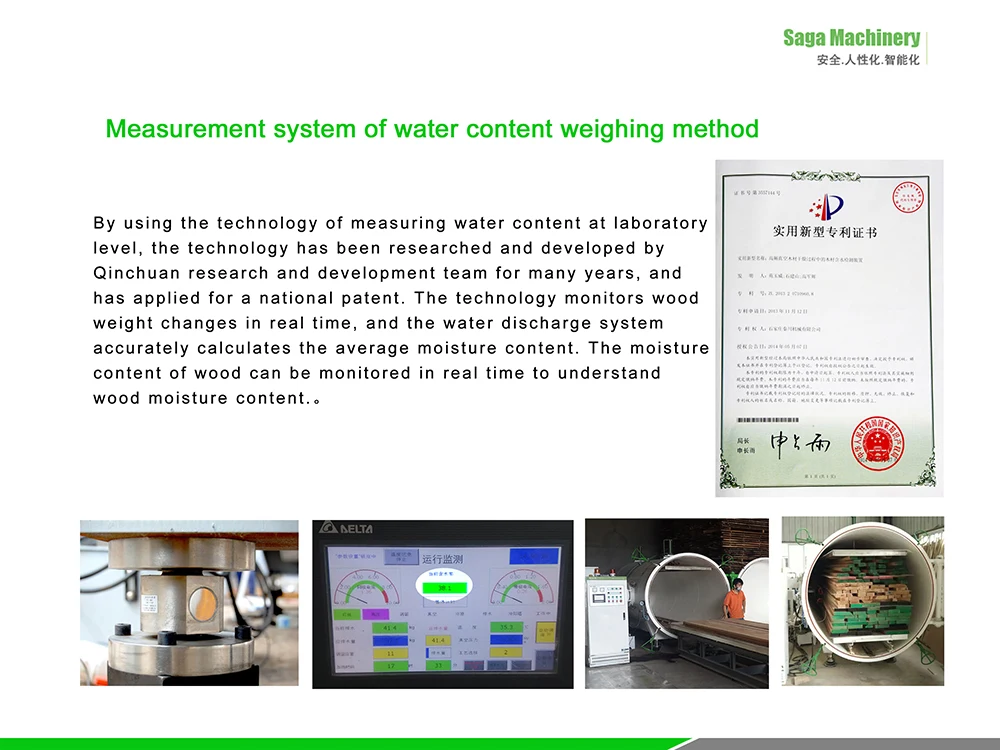

| Weighing System | Weighing sensors under then tank (weighting wood everytime) | |

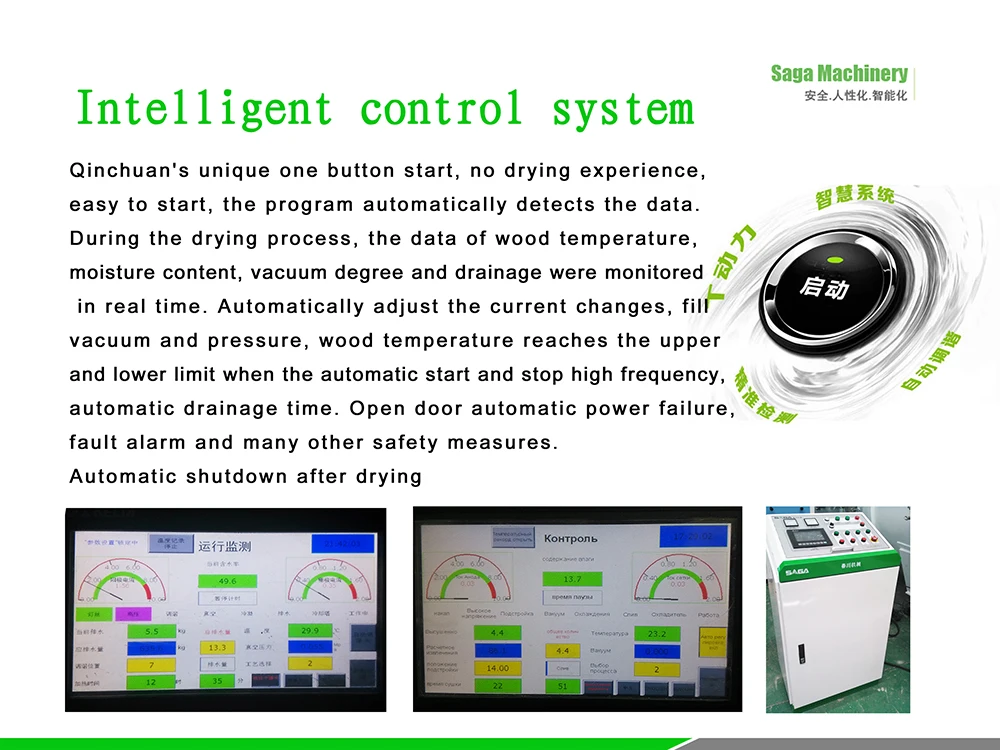

| Control System | Full-auto PLC touch screen | |
Optional Models
| Models | HF Input power | HF Input power | Stacking Timber Size | Stacking Timber Capacity |
| HFVD30-SA | 40kVA | 30KW | 3000*1000*1000mm | 3m³ |
| HFVD45-SA | 40kVA | 30KW | 4500*1000*1000mm | 4.5m³ |
| HFVD100-SA | 70Kva | 50KW | 6000*1250*1250mm | 10m³ |
| HFVD120-SA | 70Kva | 50KW | 8000*1250*1250mm | 12.5m³ |

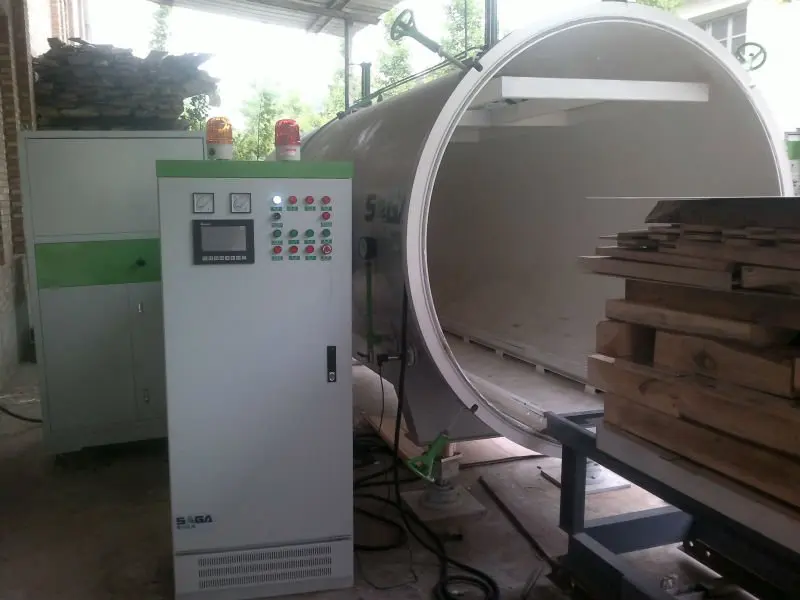

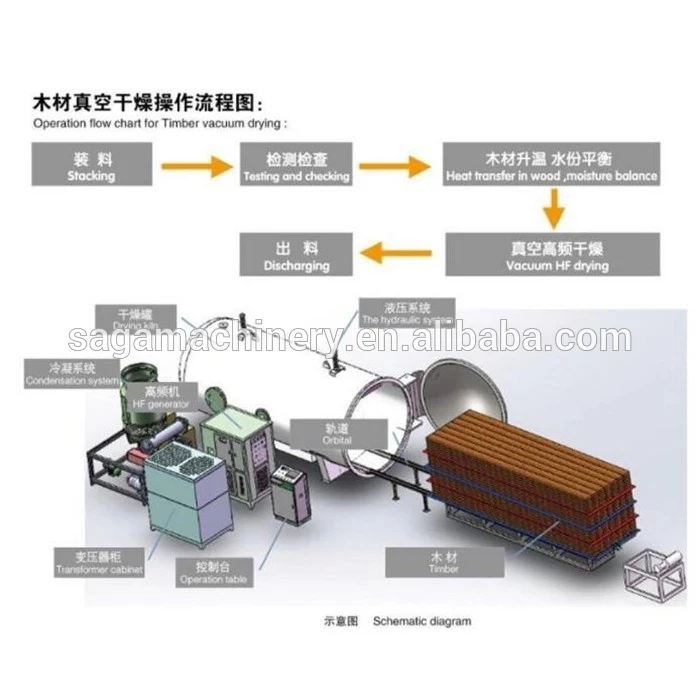

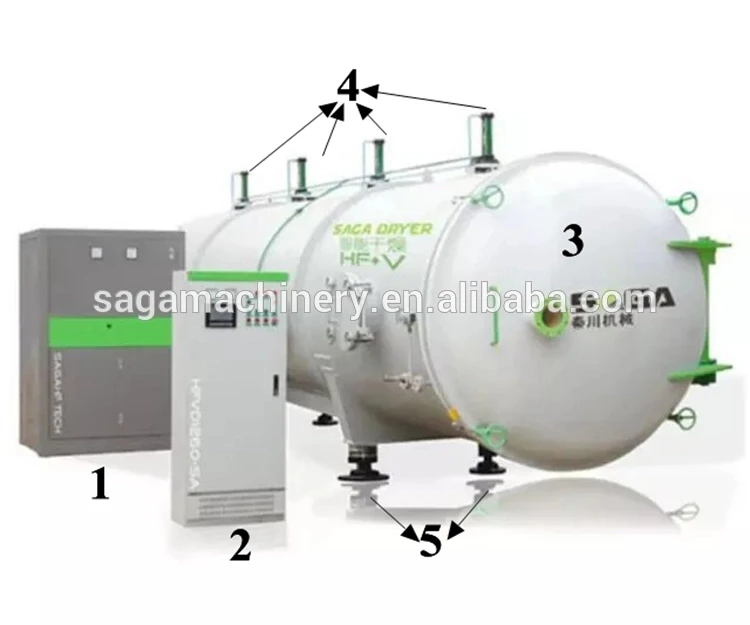

Main Parts
1.High frequency generator
2.Control cabinet
3.Vacuum tank
4.Hydraulic system
5.Weighing system
6.Temperature tesing system
7.Cooling system

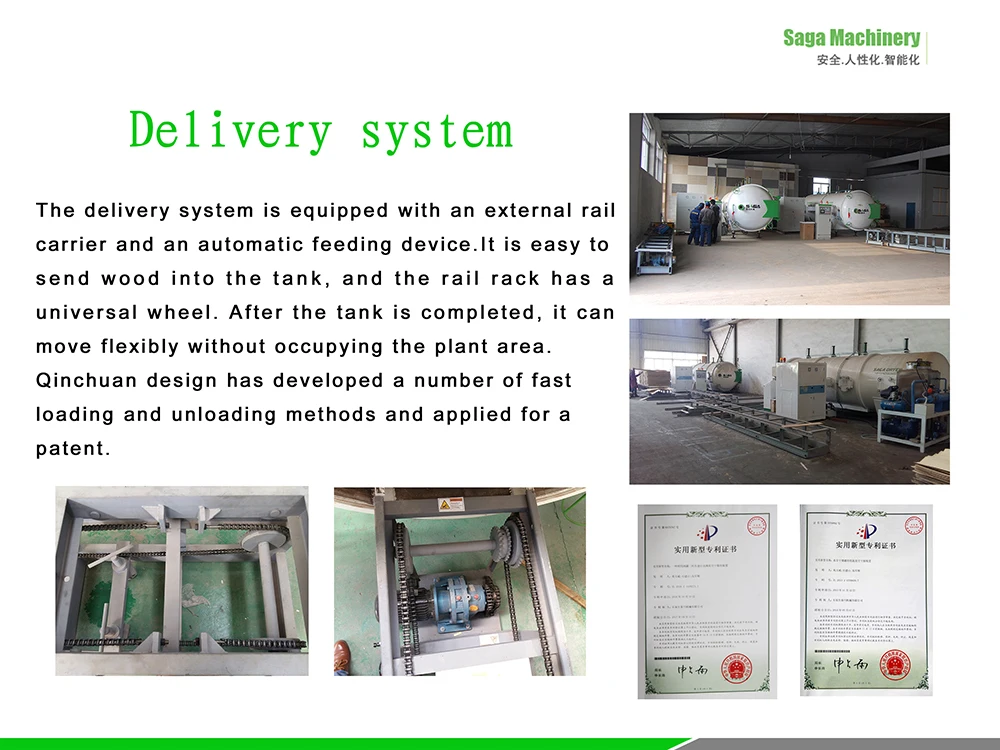

8.Full-auto feeder
