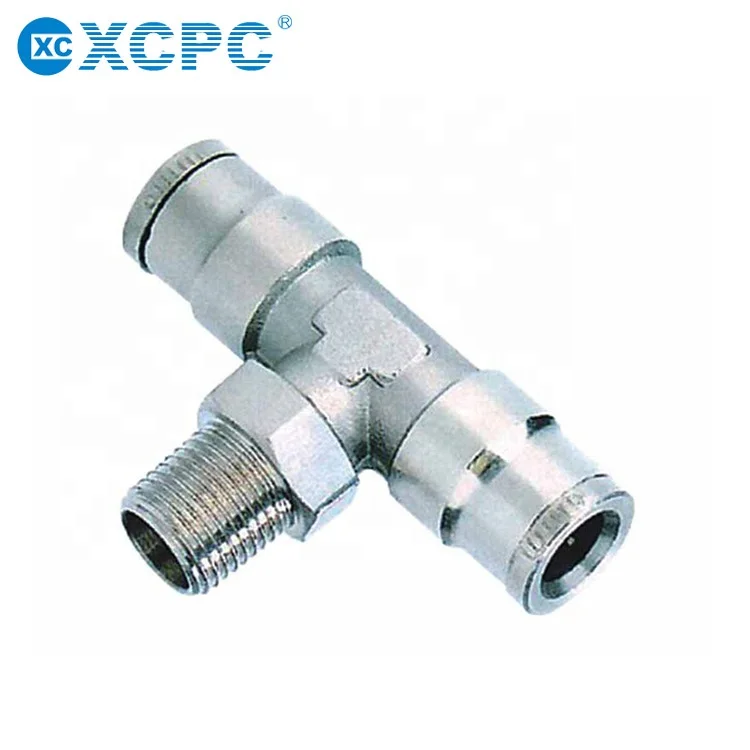

Metal Pneumatic Connectors Push in Fittings One touch fittings Air Fittings (62566521876)

Share on:


Price:$0.15
Price in USD:Details

Quantity:


Product Overview

Description


Pneumatic Connectors





Features:





Pneumatic fittings are waidely used in industry area.


It mainly used as air control element to connect other pneumatic parts like air cylinder,frl,valves and tubing


it is the usefull and neccessay element in pneumatic systems.

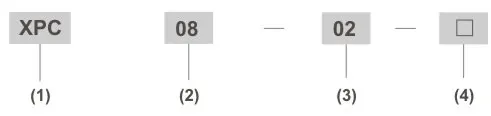

Ordering Code:





1,Ordering Code.jpg







































Fliud Type


Air,Vacuum


Operating Pressure


0~10.2Kgf/cm2(0~1.0Mpa)


Negative Pressure


-750mm Hg(10Torr)


Operating Temperature Range


0~60°C


Tube Material


Nylon and Polyurethane






(1)Model Type
(2)Tube Outer Diameter(ΦD)













































Metric Tube


Inch Tube


Code


04


06


08


10


12


14


16


1/4"


5/16"


3/8"





Φ D


4mm


6mm


8mm


10mm


12mm


14mm


16mm


1/4"


5/16"


3/8"









(3)Thread Type & Size


Metric Size




























Metric Size


Code


M5


M6


M8


Size


M5×0.8


M6×1


M8×1


































R(PT)Thread


Code


01


02


03


04


Size


R1/8"


R1/4"


R3/8"


R1/2"


































G(PF)Thread


Code


G01


G02


G03


G04


Size


G1/8"


G1/4"


G3/8"


G1/2"









Application:







Company Information:


Company Profile_white.jpg





Our Service:





Our Services.jpg





Customized Solutions:


need design.jpg


Customized pneumatic components


XCPC pneumatic is the ideal solution for custom pneumatic components because of its ability to be 100% customizable to your business' processes and operations. XCPC pneumatic specialize in design, custom and manufacture pneumatic components, including all pneumatic products.


If you have any specific needs for your new project, feel free to contact us. We are always here to support you !
