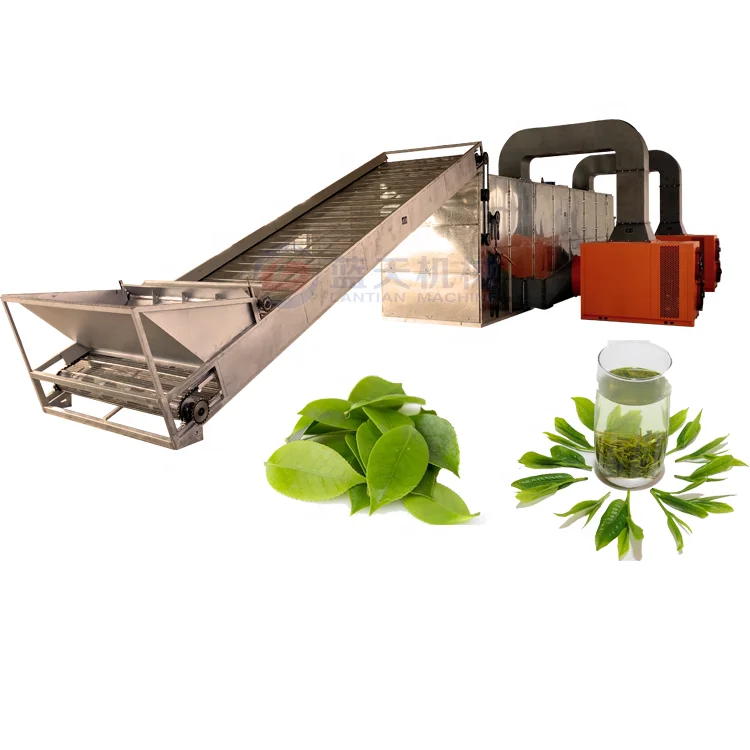

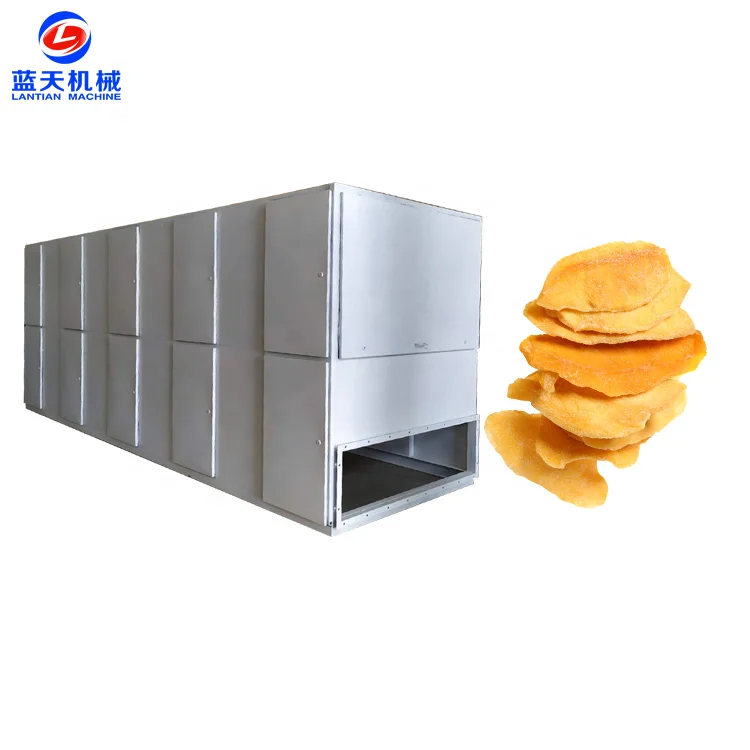

Fruit Washing And Drying Dryer Machine .it is a continuous drying device for batch production. It is used for dehydration and drying of various Chinese herbal medicines, dried fruits, and other flakes, strips, and granules. The temperature of hot air can be controlled between 40 degrees and 160 degrees, and it can be heated and dried simultaneously. Multi-layer drying, cycle flip, layer by layer drying, make full use of hot air, drying and dehydration quickly save energy.
Model
Power
Dimension
Weight
Capacity
LT-12
19.75KW
12*1.5*2.2m
7000kg
300-500kg/h
LT-16
26.75KW
16*2*2.2m
9000kg
500-1000kg/h
We main supply Two type dryer.
First type:Heat pump dryer type. use the electric to heat the raw material.
Second type: heat source to heating dryer
Second type use the stove and burner. you can use wood, coal, gas and other fuel to heating the stove, and then the hot air will blow into the dryer chamber through the draft fan.
Details Images

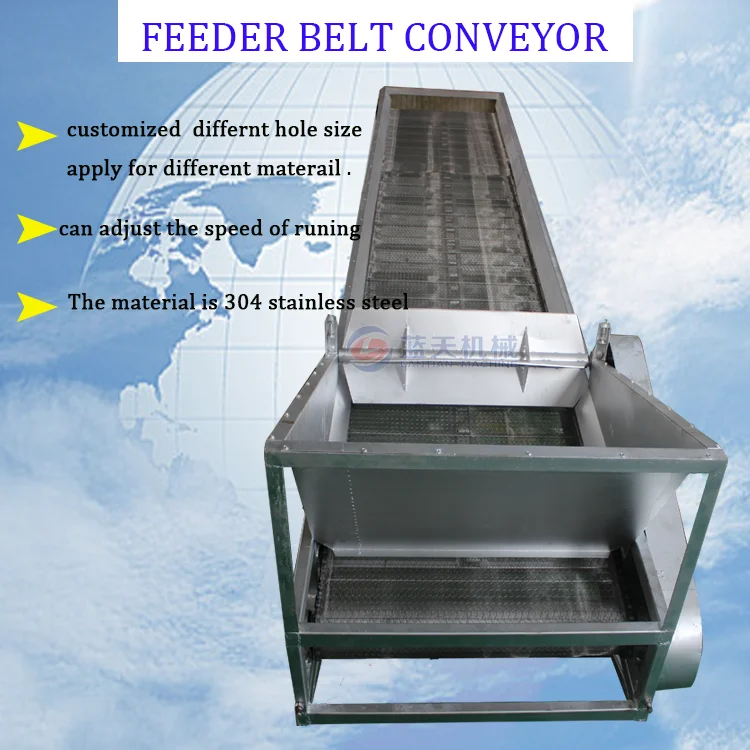

Item1:
Feeder conveyor
Feeding and conveying with laying plate, can make the material uniform into the dryer box, drying more uniform.

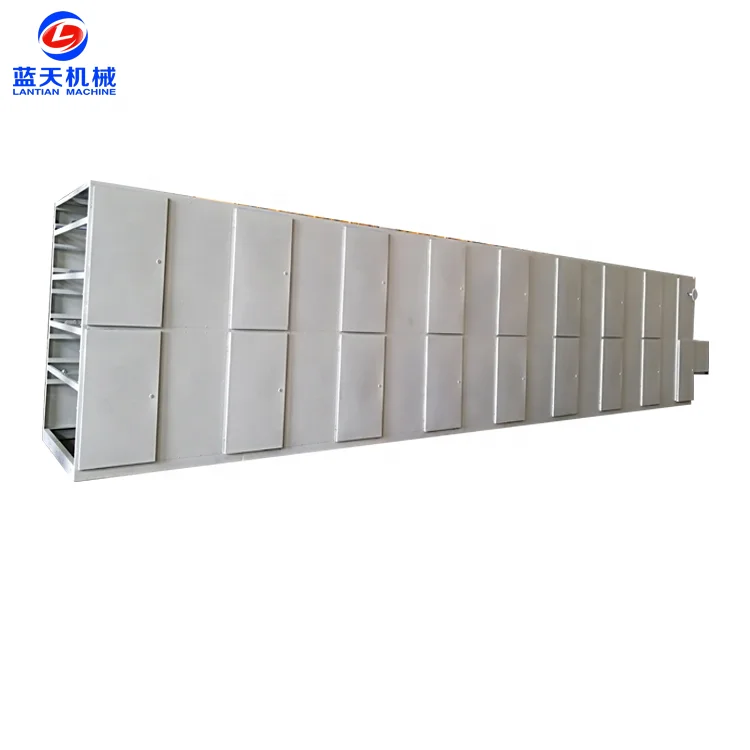

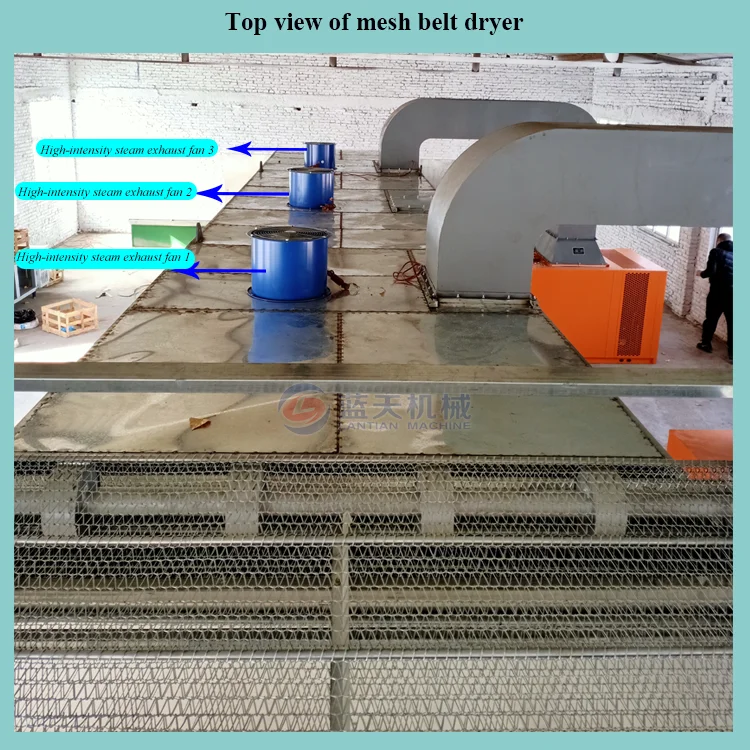

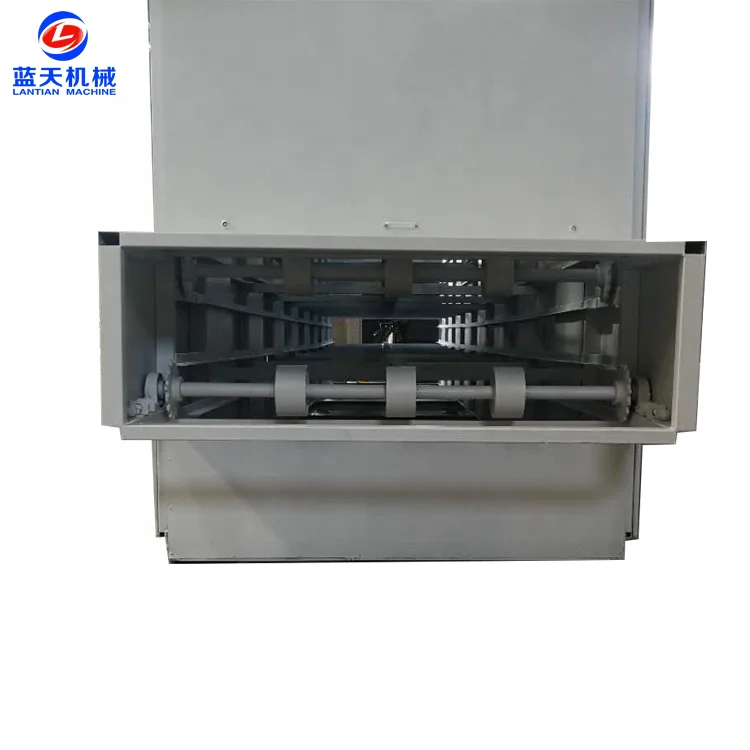

Item2: Belt dryer chamber
The dryer chamber size can be support customized. we can make stainless stell material, usual steel .
The drying chamber is generally divided into 3layers, 4 layers, and 5 layers.
Item3: Heat exchange furnace
Dimension: 2200*1100 *2200 Weight :800kg Heating fuel: Coal, wood, natural gas, propane, water vapor, electric heating.
Heat exchange furnace and the drying chamber are separated. The hot air entering the drying box is pure, non-polluting, non-sticky, and there is no hidden danger.

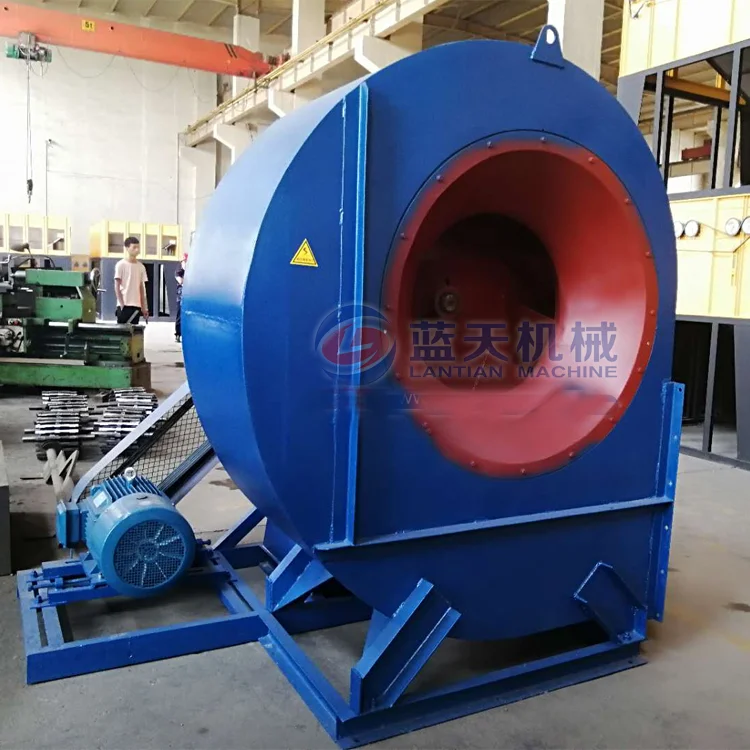

Item4: Draft fan
Dimension:2*1*2.2m Power: 22KW Blow hot air into the dryer room.

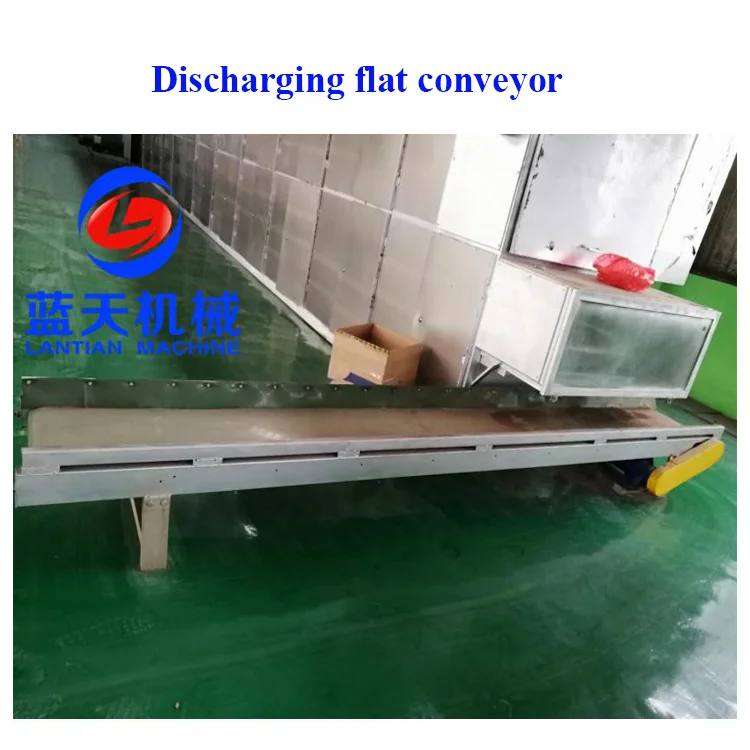

Item5: Discharge conveyor
Weight :100kg Motor: 1.1kw In order to facilitate loading, we support customized conveyor belt to adjust a certain Angle
Item6: PLC control cabinet
Dimension: 4*0.6*0.3 m Equipped with PLC, can be set during drying process,according to the moisture requirements of raw materials, different speeds can be set for drying.
Mesh belt dryer production workshop and the spot
The factory generally has spot accessories, which can be customized by customers at any time, with short production cycle and fast delivery. Welcome to consult and make order.
The suitable raw material :
1>Fruit:Almonds, jujube, peanuts, longans, walnut, papaya tablets, apple, lemon, hawthorn pills, bananas, etc.
2>Vegetable:Asparagus, beans, kidney beans, lentils, eggplant, red pepper, Chinese prickly ash, black fungus, tremella, papaya tablets, pills, bitter melon, radish, cucumber slices, mushrooms, mushrooms, ginger, garlic, etc.
3>Medicinal material:Flos lonicerae, radix scutellariae, salvia miltiorrhiza, burdock, fructus schisandrae, codonopsis, radix rehmanniae, prepared rhizome of rehmannia, mulberries, forsythia, Chinese wolfberry, etc.
4>Others:Lily, rose, peony seed,fennel seeds,etc.
Packing & Delivery

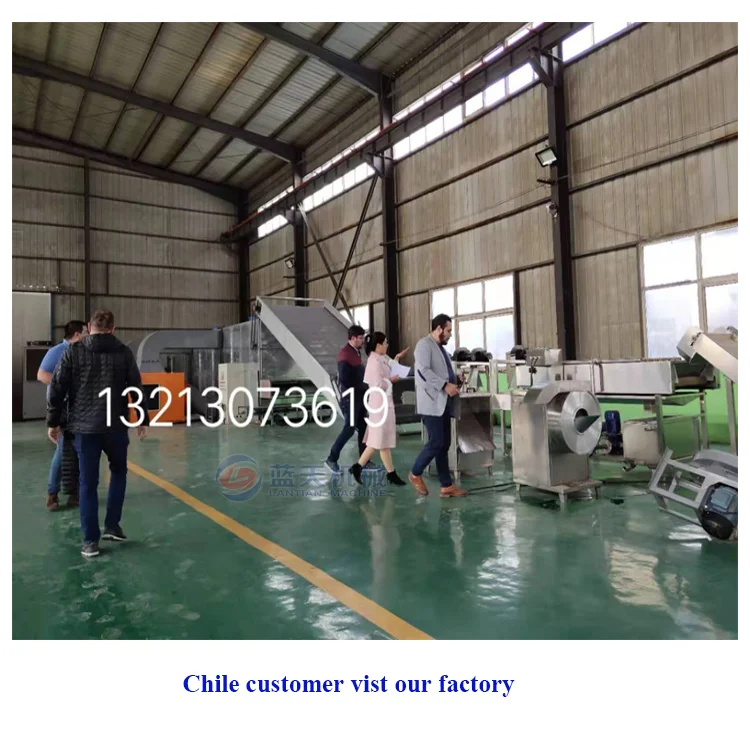

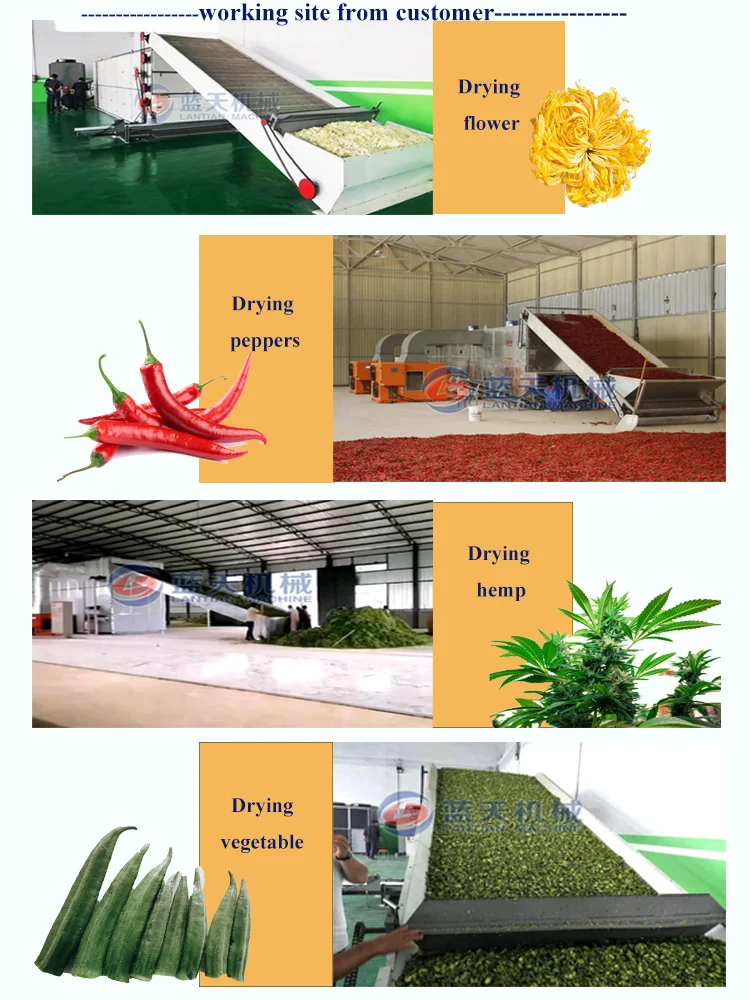

Customer Photos
