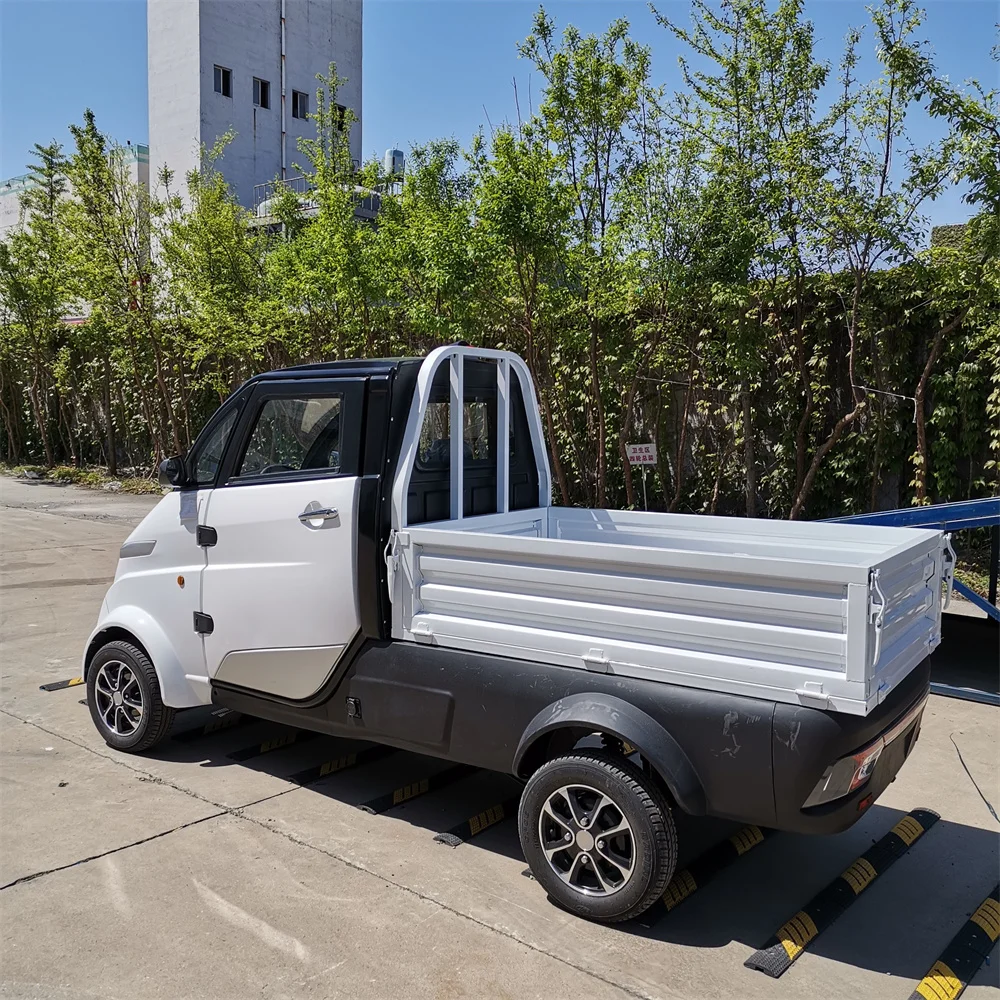

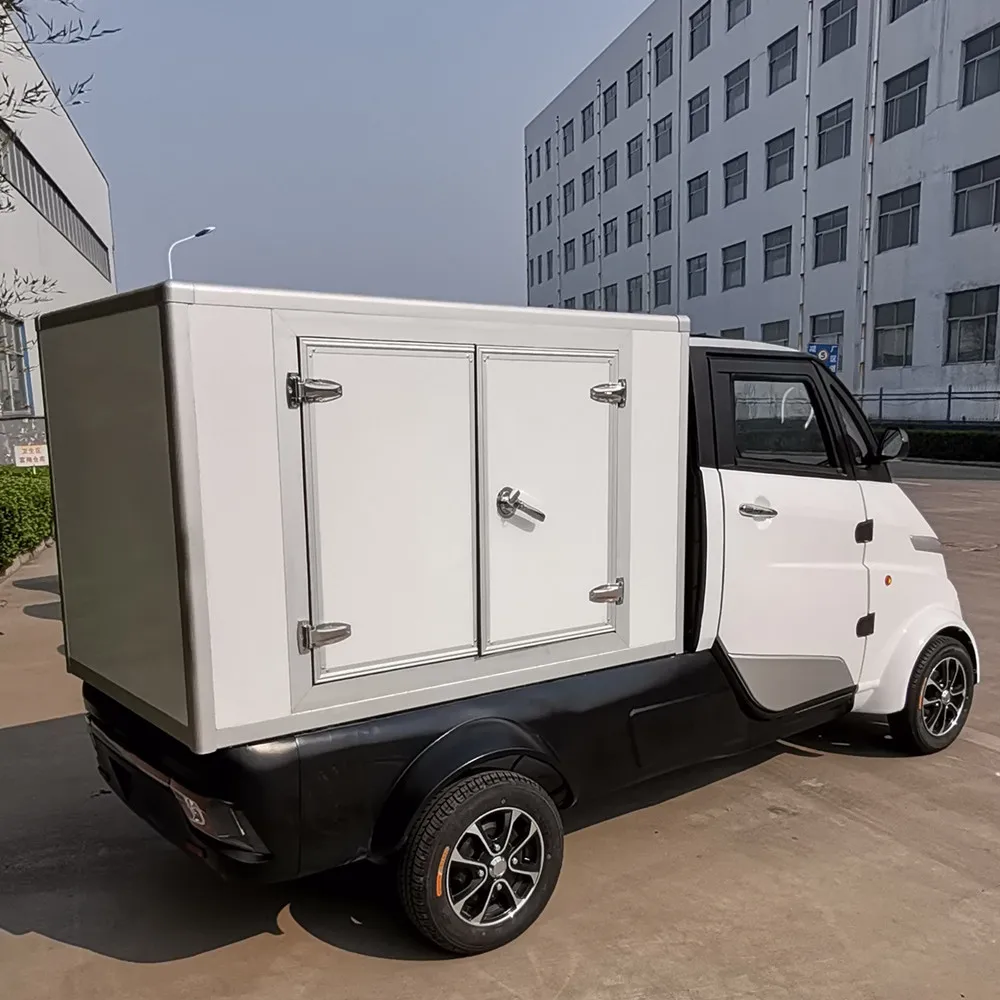

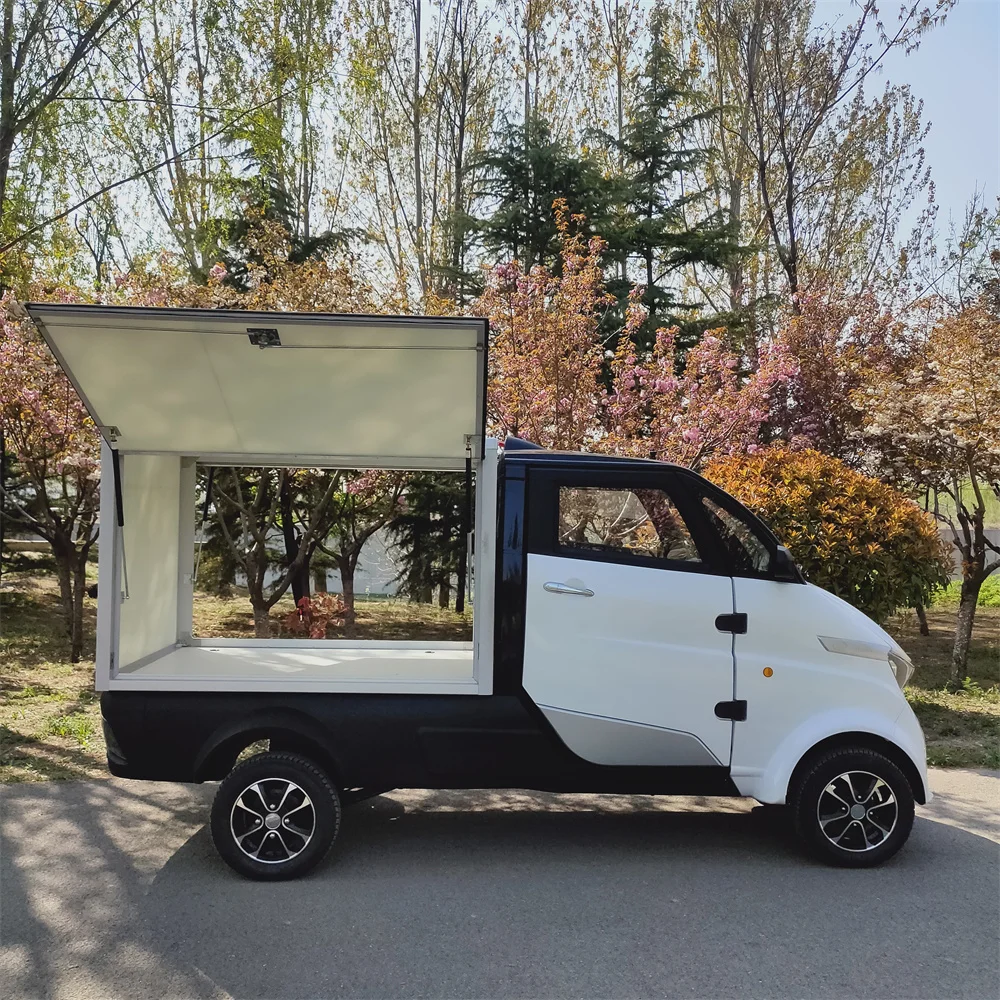

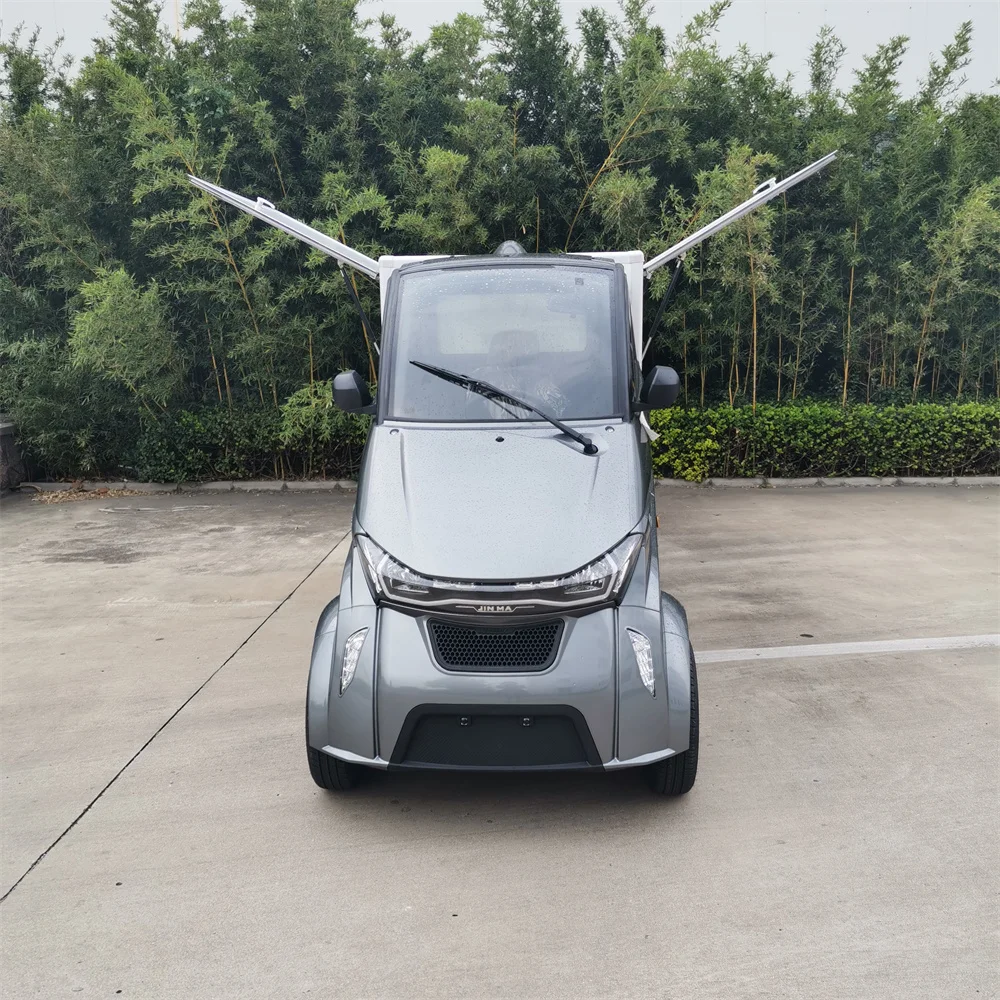

Runhorse EEC L7e electric 4wd mini utility truck

Product Overview

Description



Runhorse EEC L7e electric 4wd mini utility truck

electric food delivery vehicle electric food delivery vehicle electric food delivery vehicle

       ---  Electric Vehicle Description  ---

autos electricos autos electricosautos electricos electricos autos electricos autos electricos

          Parameter



Configuration	Item	J2-P
Parameter	L*W*H (mm)	3600*1345*1765
	Axle base(mm)	2375
	Wheel base(F/R)(mm)	1000/1175
	Max. Speed(km/h)	≥52
	Max.distance (km)	≥130 ≥260
	Capacity(perrson)	1
	Curb weight(kg)	530
	Rate load(kg)	400
	cargo box(inner): L*W*H (mm)	1585*1100*1000
	Steering mode	Middle Steering
Power system	Motor	60V 4000W/5000W
	Lithium battery	100A·h Lithium iron phosphate battery 200A·h Lithium iron phosphate battery
	Charger system	Intelligent faster charger for lithium battery
	Charging time	2-3 hours 4-6 hours
Brake system	Type	Hydraulic system
	Front	Disc
	Rear	Drum
Suspension system	Front	McPherson Independent Suspension
	Rear	Spiral Spring Integral Suspension
Wheel suspension	Tyre	Front 135/70-12 Rear145/70-12
	Wheel hub	Wheel Hub Aluminum Alloy Hub
Function device	Mutil media	MP5+rearview camera
	Electric heater	60V900W
	Central lock	Auto Level
	One Button Start	Auto Level
	Electric door and window	2
	Skylight	Manual Operation
	Air Conditioner	optional
	Seats	Genuine Leather

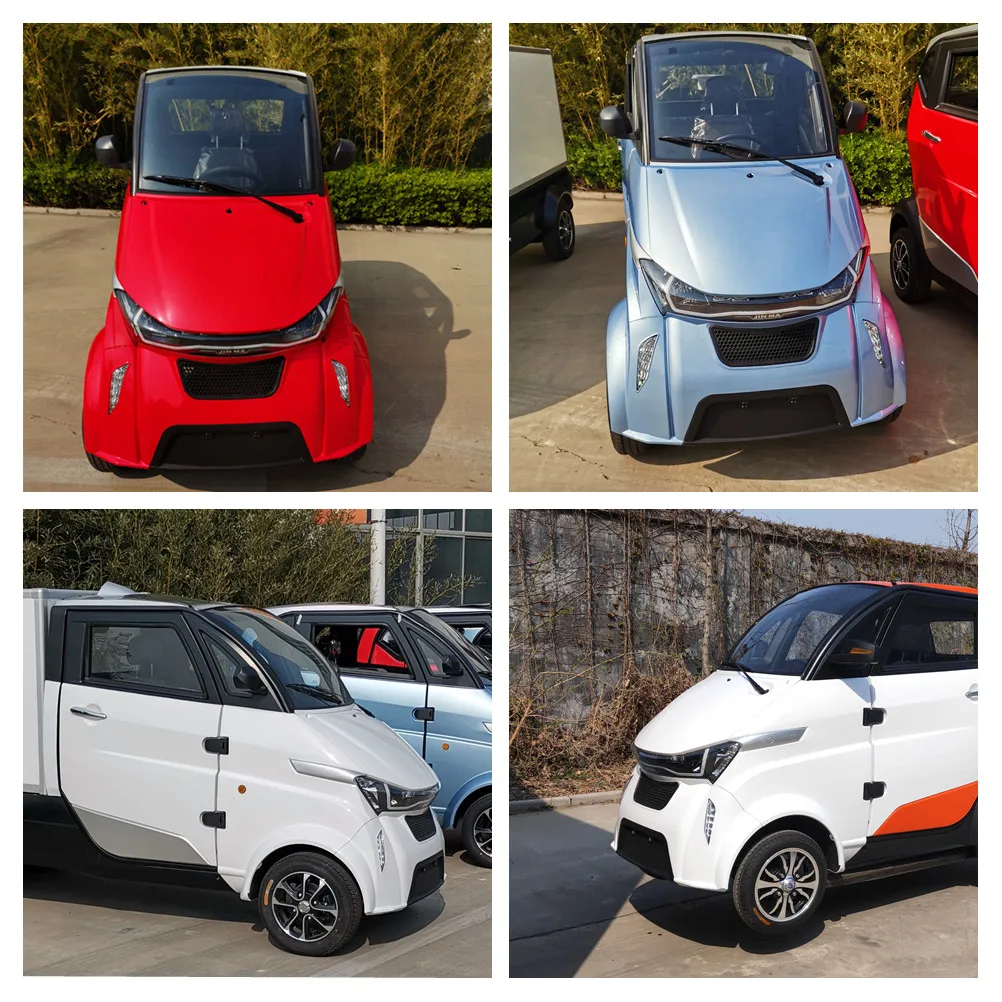

Multy colors for choose, customers OEM is available.



Special design for express post





Front windshield	3C Certificate, Tempered laminated glass

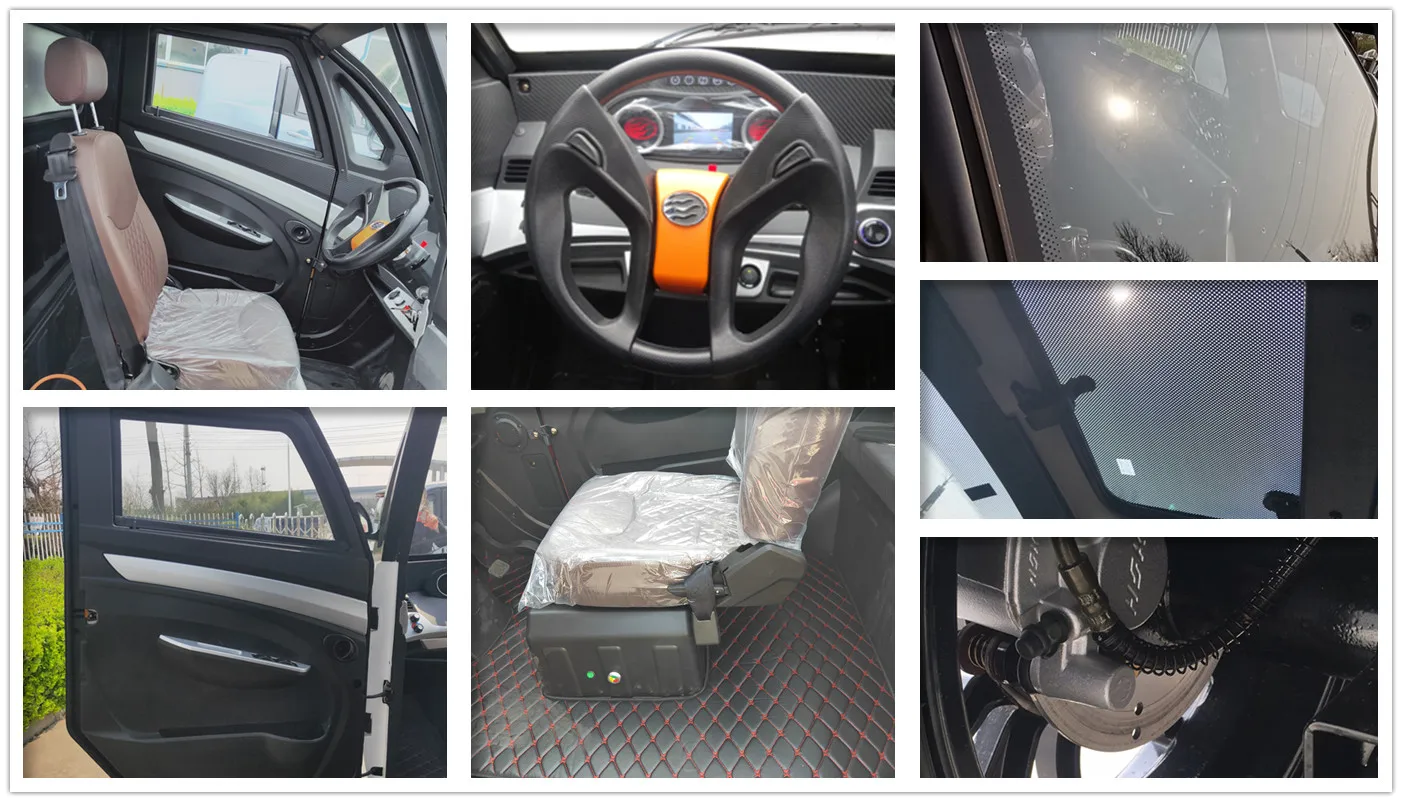

Dashboard	LCD Display, Volt meter, Power meter, Kilometer, Reverse camera, Bluetooth,MP5, USB Connection
Light System	Integral LED Head light,Turn lights, Brake lights, Reverse lights
Plastic cover	ABS resign, Luxury interior with sunroof
Seat	Adjustable seat,Genuine Leather + High Resilience PU
Painting	Automobile-grade,Computer Painting Mixing, Robot-painting.



1, Light weight and wind resistance design, 25% lighter compared with traditional vehicle,

30% distance increased.

2, Humanized configuration( button start, automatic lock, intelligent instruments,

intermediate control door lock system).

3,Modular body design, assemble and dismantling with the screw, easy maintenance.

4,Automotive grade lithium batteries to meet the high-end customers.

5,Heat preservation and insulation increased by 30% compared to iron materials.



Motor	AC motor, auto-hold function, powerful, water proof, lower noise, no carbon brush, maintenance-free, long drive range.
Battery	Lithium Iron Phosphate battery with BMS system,Large-capacity, safety and long using life. 2,000 times charging cycles(8-10 years) under working environment from -20 to 80 °C.  Equipped with a fast charge ,to achieve full charge within 2-3 hours.
Electronic Control System	En-power electric control system , reliable and water-proof, steadily current control makes motor output much stronger and higher efficiency.Adopt the first-class AC motor control algorithm to achieve  accurate control of motor speed.
Brake System	Front-disc Rear-drum,two-circuit hydraulic brake, for the higher safety and stability.
Suspension System	The   front axle and  suspension are  independent  suspensions, simple   structure and excellent stability.The integrated rear axle, axle housing welded by seamless steel tube, lower noise, more durable and reliable.
Steering System	Use double output steering gear box to adjust the gap automatically. There is no dead angle when rotate, Operate will be more lighter.
Ftame & Chassis	GB Standard Steel, the surface under pickling&Photostatting and corrosion-resistant treatment to ensure the excellent drive sense with stationary  and solidity.
Tyre and Rim	Aluminum Wheels Hub, Vacuum Radial Tire.

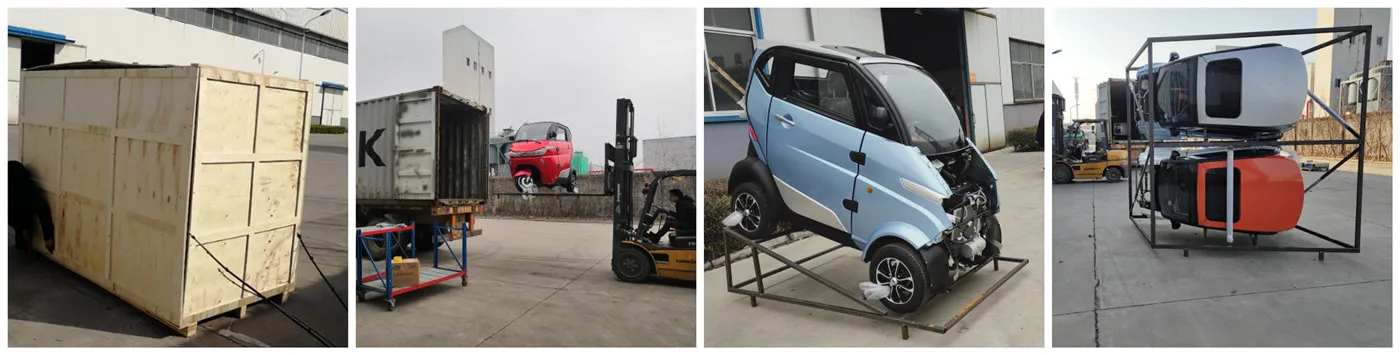

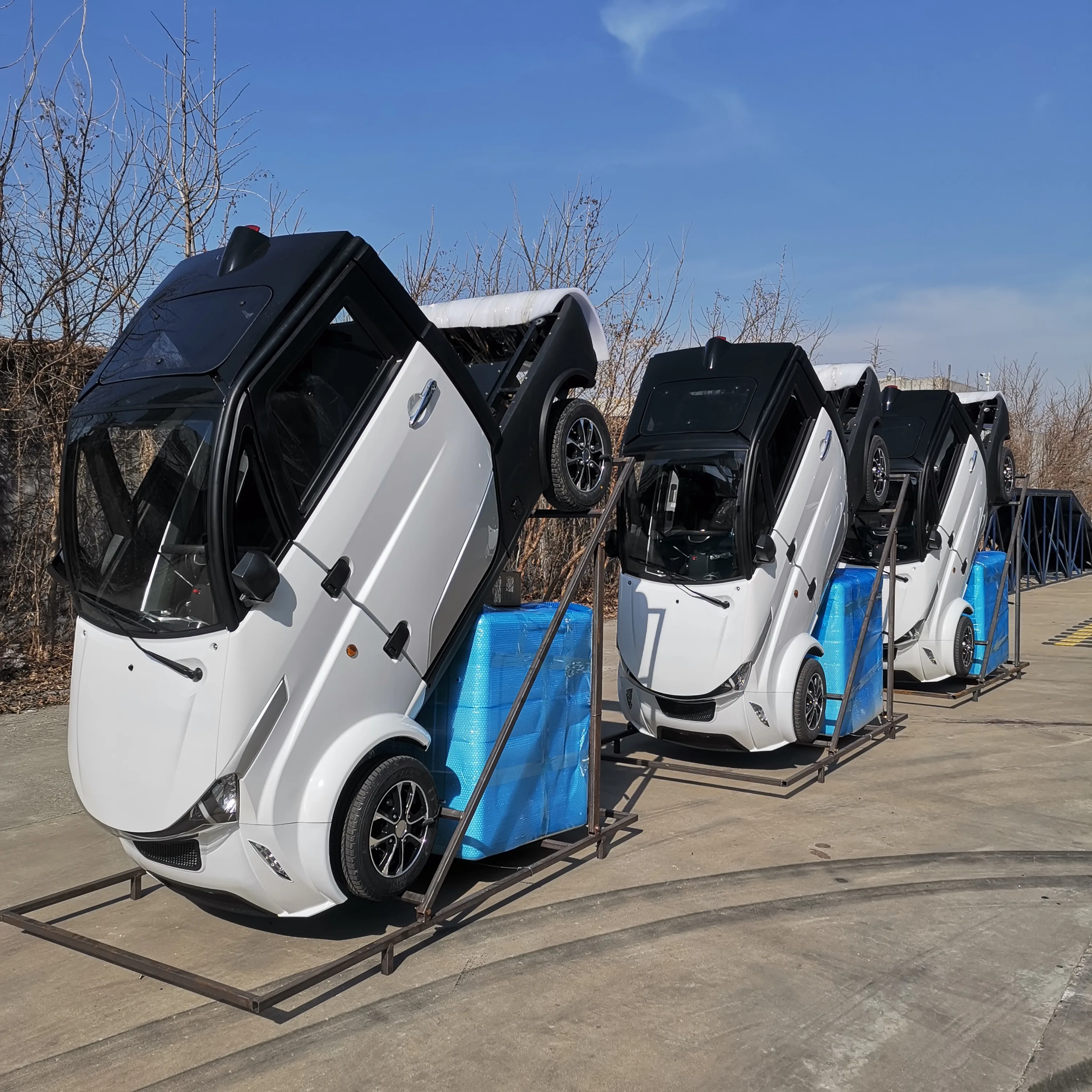

--- Packing & Delivery ---



Container	LCL	20GP	40HQ
Load Quantity	1 set sample (load with wooden box)	1 set	6 Sets (load with iron shelf)



J1	3 wheel	2-3 seats	EEC L2e	Passengers
J2	4 wheel	2-3 seats	EEC L6e	Passengers
J2-C	4 wheel	1 driver seat	EEC L6e	food/ express/ goods last mile delivery

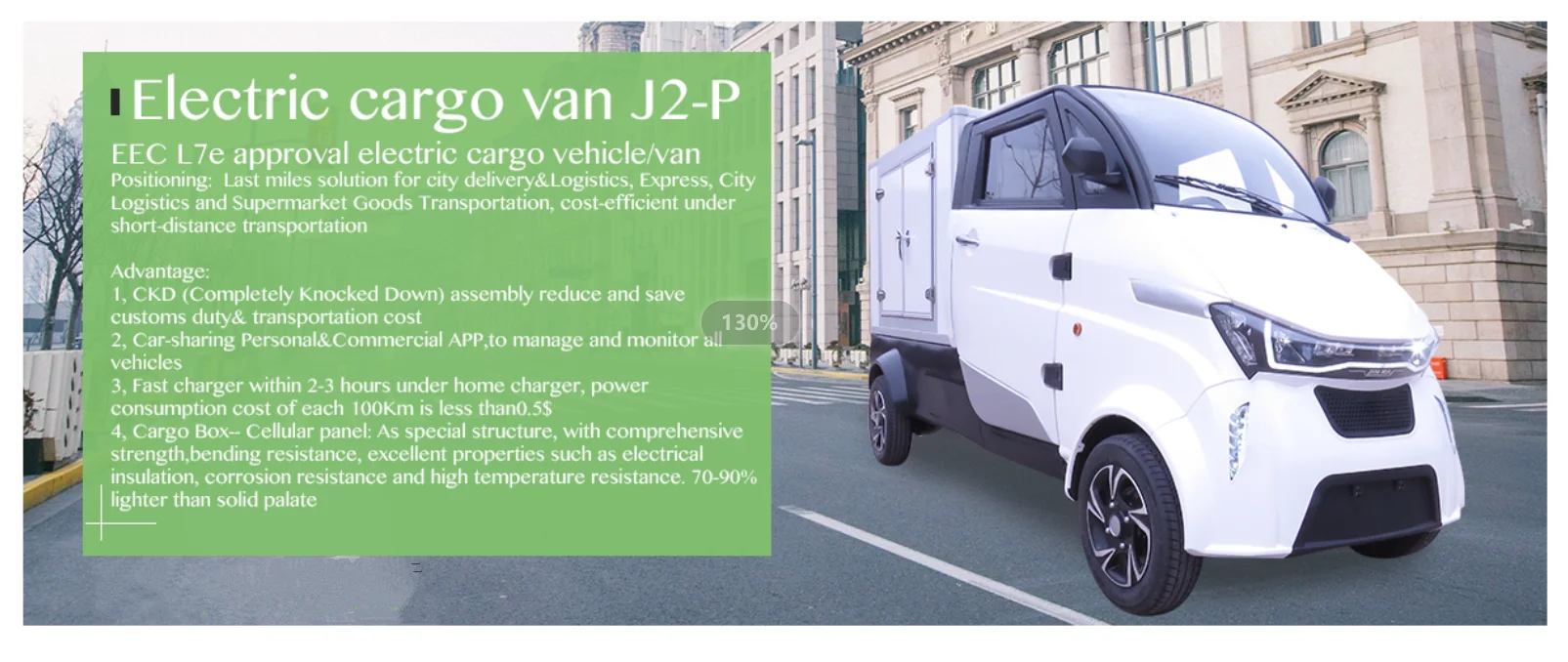

J2-P/F	4 wheel	1 driver seat	EEC L7e	logistics/ transportation

 --- CUSTOMER VISIT ---



   We warmly welcome you come to visit our factory for further business communicate.



--- FAQ ---



Q1. Can I order different models to be one container?
A: Surely, different models can be fixed into one container.
Q2. What are your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. Photos of the products and packages will be sent to you before you pay the balance.
Q3. How about your delivery time?
A: Generally, it takes 10 to 20 days to finish an order. Exact delivery time would be confirmed by further communication.
Q4. Can you produce according to the samples?
A: Yes, we can also produce according to technical drawing.
Q5. What is your sample policy?
A: We can supply the sample according to your requirement, only one time for each customer.
Q6. Do you test all your goods before delivery?
A: Yes, 100% test before delivery is necessary to us.
Q7: What are your terms of packing?
A: Generally, we packing with iron shelf for whole container and wooden box for sample.

1. 24 hours online.

2. 1- year warranty for the whole car, 5- years warranty for the lithium battery.

3. Arrange technical man to training for dealers.
