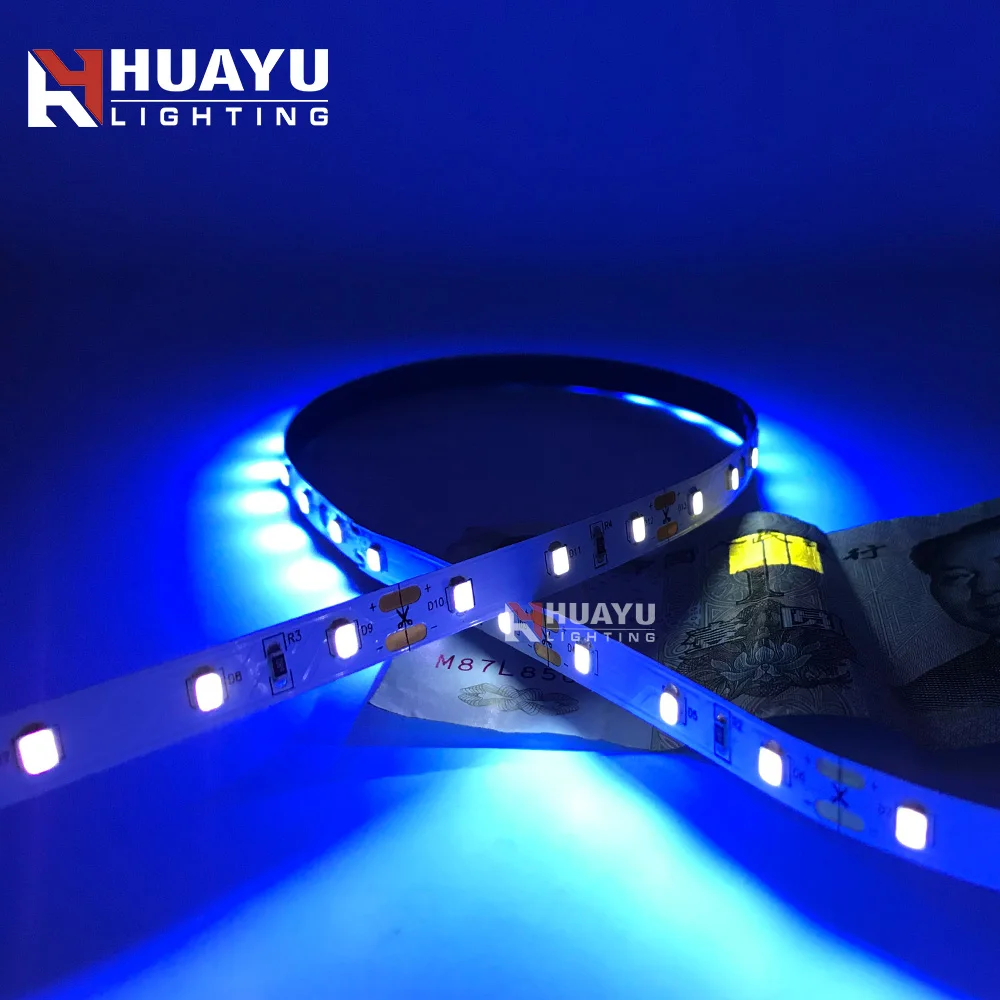

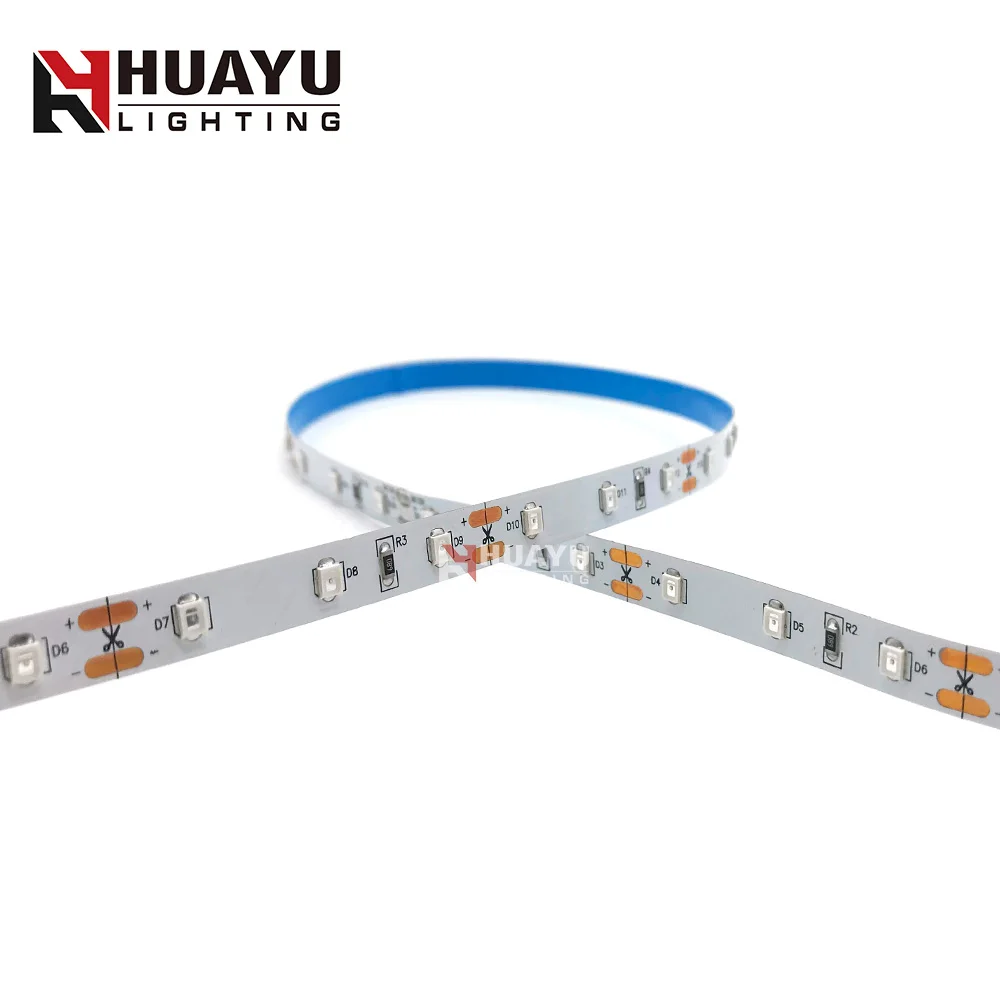

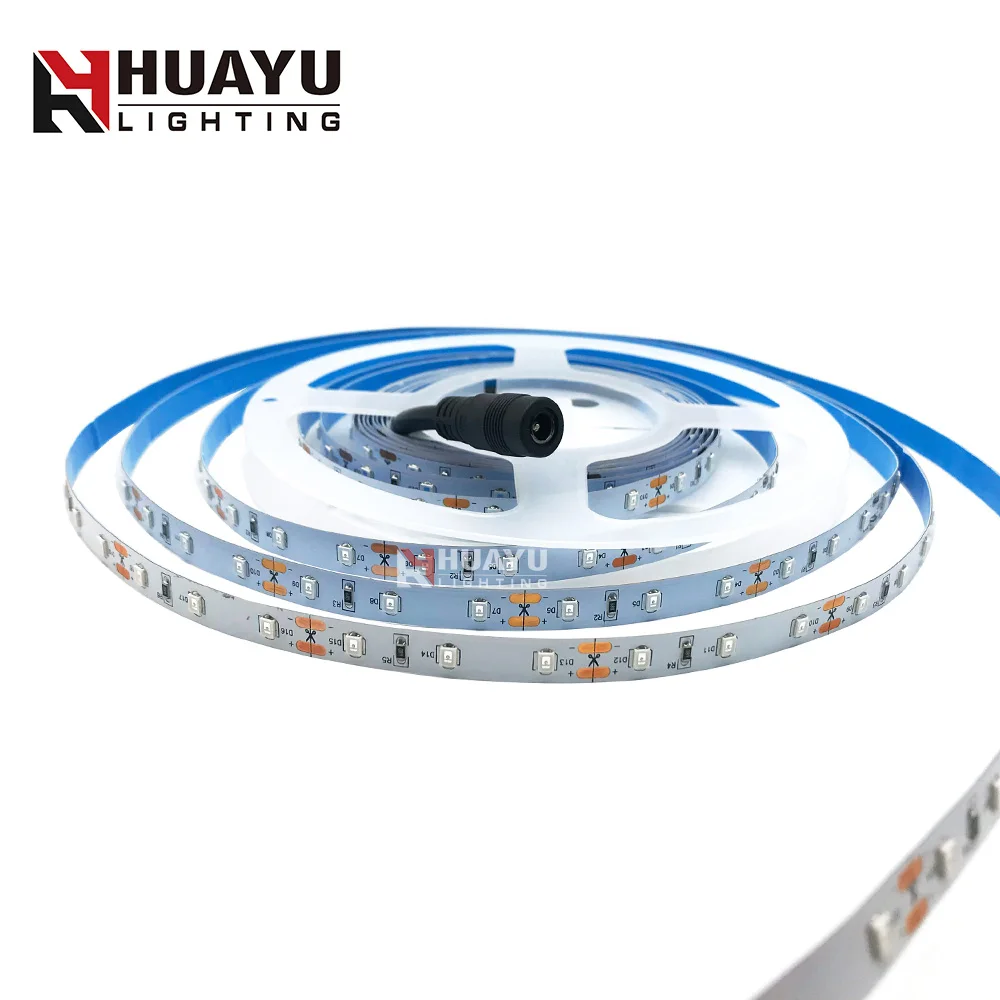

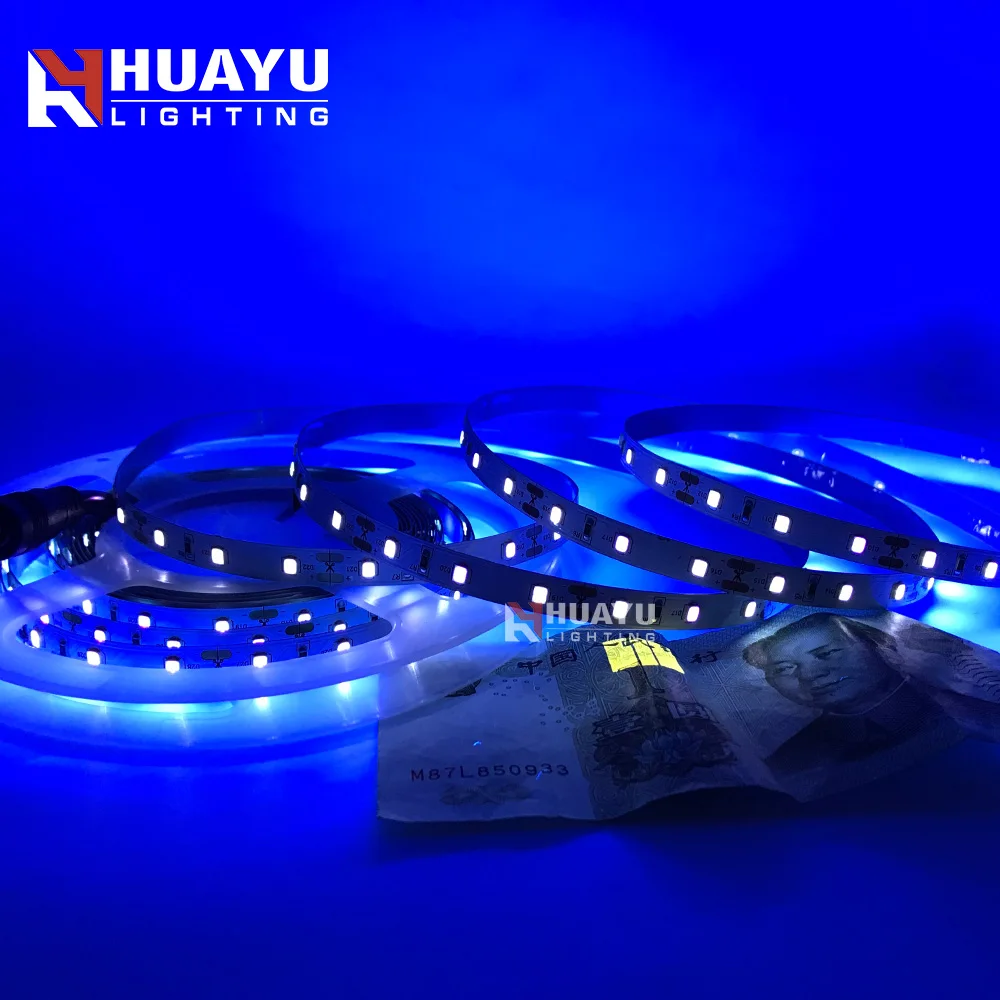

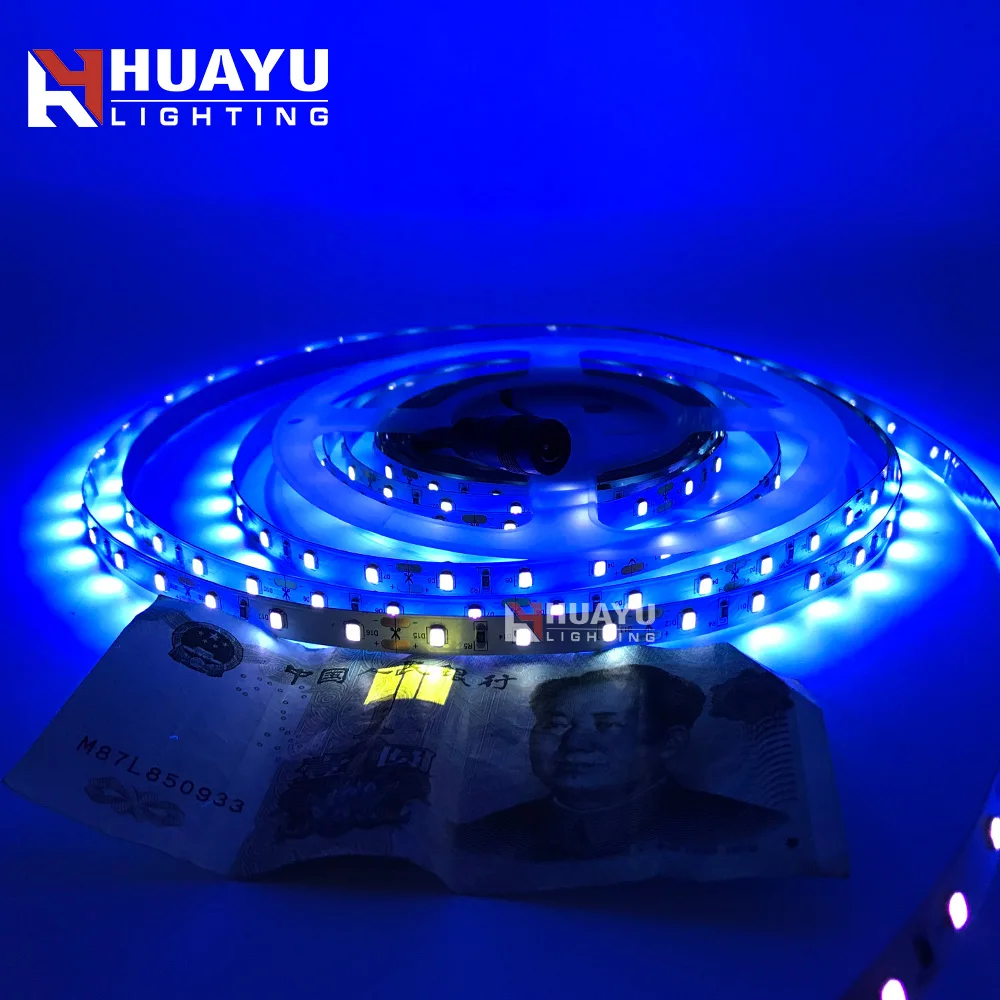

UV Black light LED Strip UV LED 365 nm 600SMD 2835 5050 5630 LED light strip waterproof IP66

Product Overview

Description

HUAYU SMD2835-300leds 12V DC 365nm-395nm UV (Ultraviolet) LED Strip Light Flex White PCB Tape Light for Medical Field, UV Curing, Currency Validation, Mosquito Killer, UV Exposure etc.







• Flexible LED Strip Light with high quality SMD2835 LED diodes.
• With 365nm or 395nm UV (Ultraviolet) wavelength for special application..
• Wide size of 8mm width or 10mm with PCB.
• Accept both DC12V and DC24V saftey operate voltage.
• From 5W to 12W per meter available.
• High quality product with 3 years quality guarantee.



Product Description

HUAYU UV365nm / UV395nm Flexible LED Strip Light produced by SMD2835 60leds/m, 120leds/m, 240leds/m and 264leds/m; SMD5050 30leds/m, 60leds/m, 120leds/m etc., DC12V/DC24V characteristics with high durability and long lifetime, even under difficult conditions. These flexible LED Strip Light can be achieved IP20, IP65, IP66, IP67 even IP68 IP Rating, which can be used in both indoor and outdoor applications.



Warnings and Handling Instrutions



UV-LEDs is a invisible ultraviolet radiation when in operation, which may be harmful to eyes or skin, even for short periods. DO NOT look directly into the UV-LED during operation. Be sure that you and all persons in the vicinity wear adequate ” UV ” Safety protection for eyes and skin. If you incorporate a UV-LED into a product, be sure to provide WARNING labels.





UV LED Lighting Lights are often used in below applications:



1. Industrial Curing Fluorescence disclosing

2. verification Air Purification Medical

3. Biomedical Applications

4. Dermatological Equipment

5. Currency Validation

6. Forensics Equipment

7. Photo Polymerization Spectroscopy

8. Dental Curing and Teeth Whitening Sterilization and Medical

9. DNA Gel

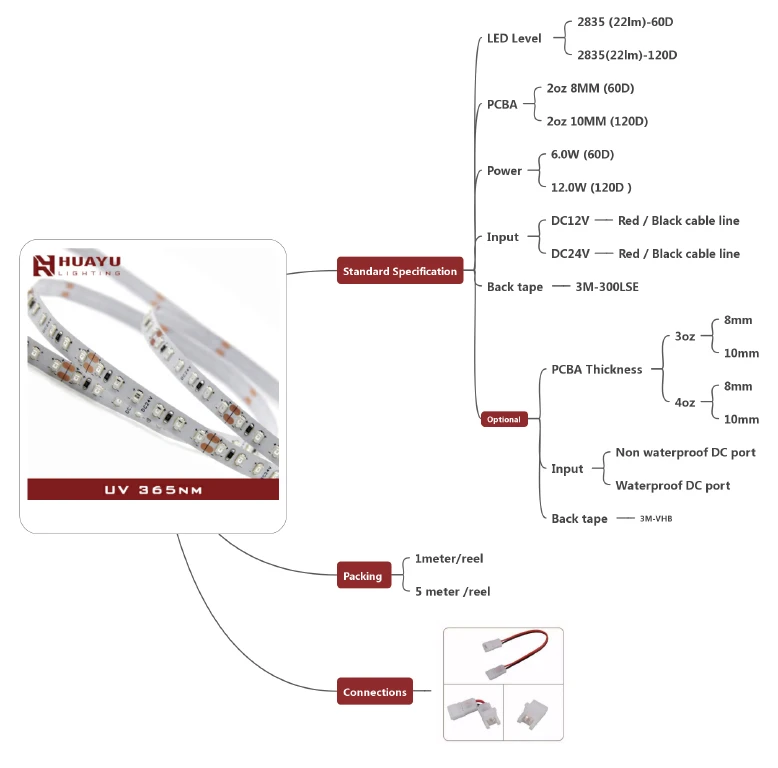

Technical Specification



Item	UV365nm / UV395nm Ultraviolet LED Strip	UV365nm / UV395nm Ultraviolet LED Strip
LEDs/meter	60LEDs/meter	120LEDs/meter
LED Type	SMD2835	SMD2835
Input Voltage	DC12V / DC24V	DC12V / DC24V
Power	7.2W per meter	12 - 14.4W per meter
Segment	50mm / 100mm	25mm / 50mm
PCB	8mm / 10mm, 2oz / 3oz / 4oz copper	8mm / 10mm, 2oz / 3oz / 4oz copper
IP Rating	IP20 / IP65 / IP66 / IP67 / IP68	IP20 / IP65 / IP66 / IP67 / IP68
Color	UV365nm / UV395nm	UV365nm / UV395nm
Back Tape	3M-200MP/300LSE/VHB/Blue 3M	3M-200MP/300LSE/VHB/Blue 3M
Warranty	3  years	3  years
Certification	CE RoHS ETL SABER	CE RoHS ETL SABER
