6025 12 volt 24 volt 48 volt blower 3D printer 2/3/4 wires mute brushless centrifugal blower 60X60X25MM
- Category: >>>
- Supplier: Shenzhen Xinyujie Technology Co. Ltd.
Share on (62566593897):
Product Overview
Description

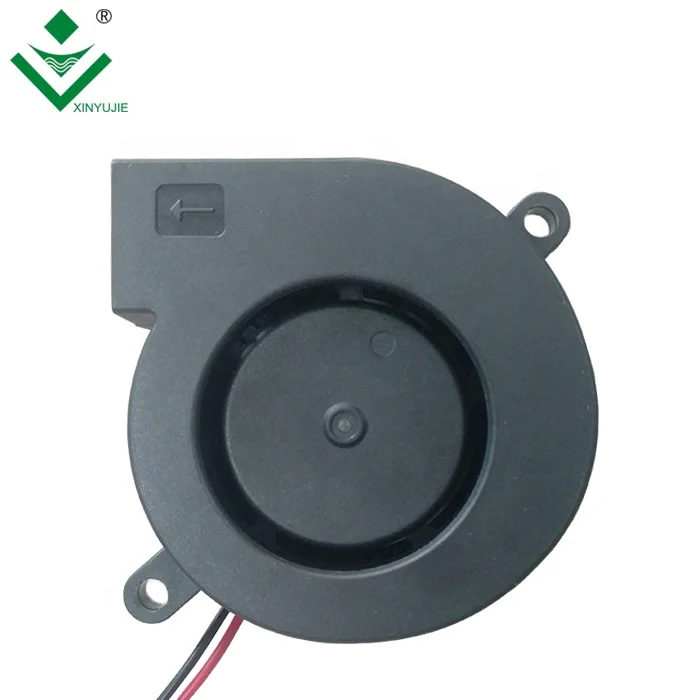

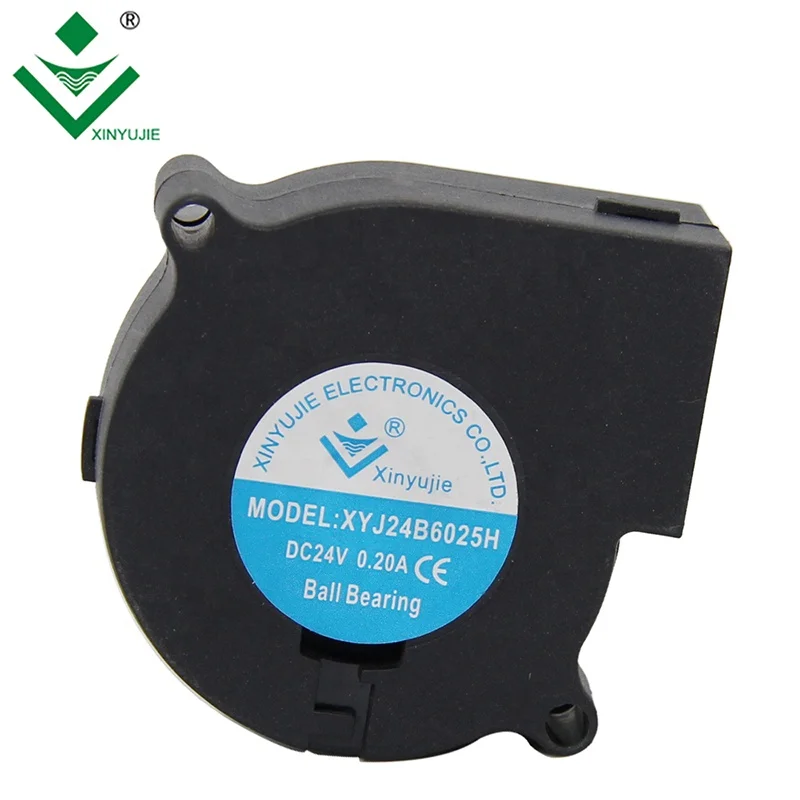

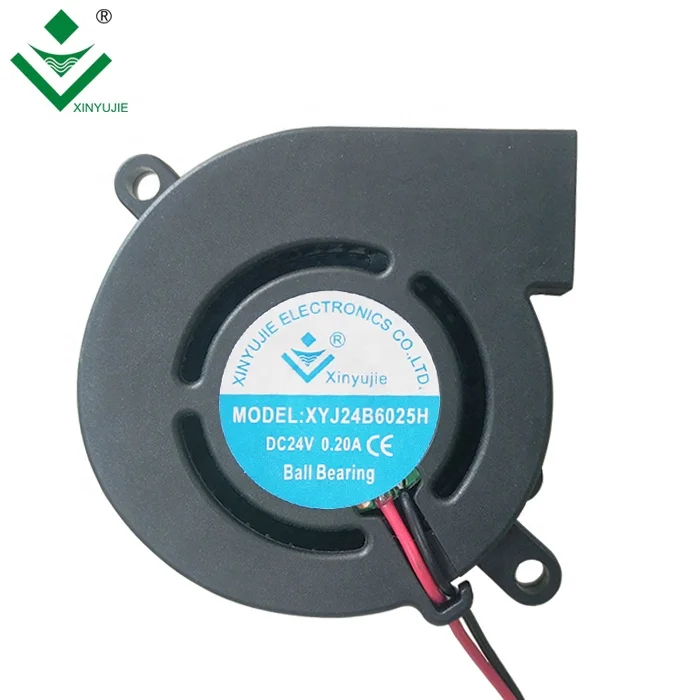

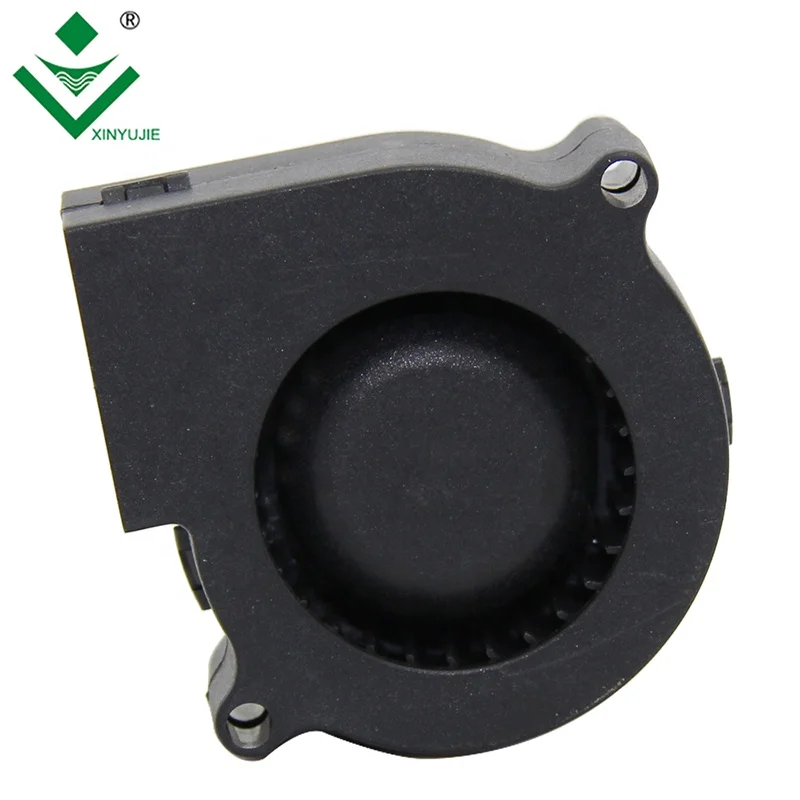

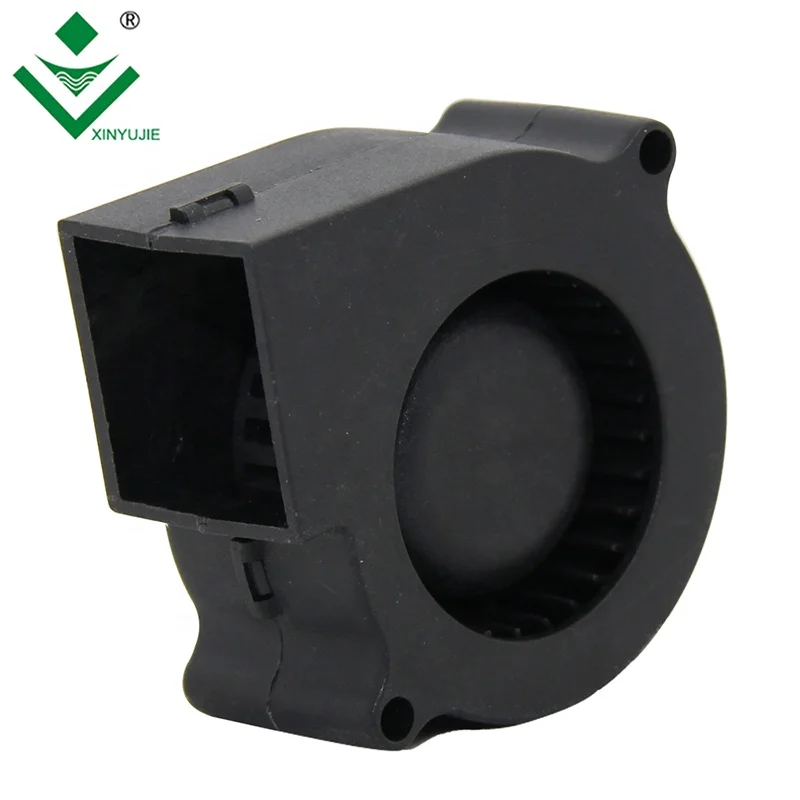

6025 12 volt 24 volt 48 volt blower 3D printer 2/3/4 wires mute brushless centrifugal blower 60X60X25MM
Product Description
Frame | Thermal Plastic , Environmental Protection&Fireproof |
Impeller | Thermal Plastic , Environmental Protection&Fireproof |

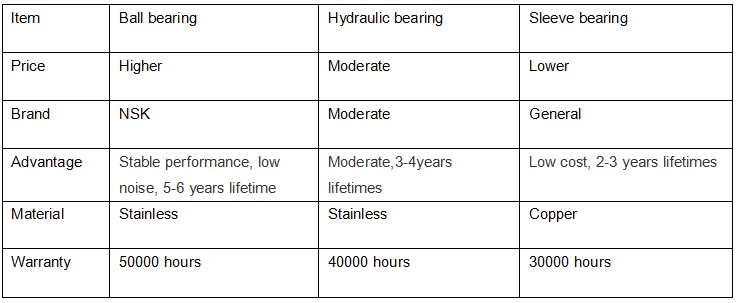

Bearing Type | Ball Bearings & Sleeve Bearing |
Lead Wires | 1571 26AWG Red+Black |
Motor Protection | Impedance protected; Reverse polarity protected; Automatic Restart |
Operating Voltage | 3.5~6.5V 6~13.8V 12~26.5V 35~60V |
Operating Temperature/ Humidity | -10℃~70℃ 35%~85%RH |

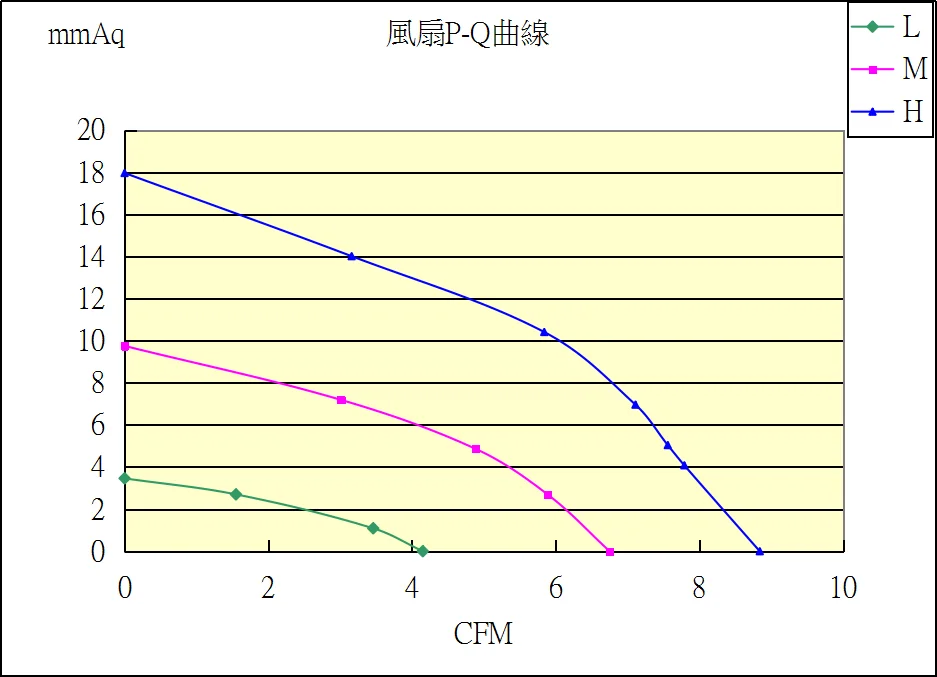

Size | Model | Rated Voltage (VDC) | Startup Voltage (VDC) | Current Amp (A) | Speed (RPM) | Air flow (CFM) | Static Pressure (mmH20) | Noise Level (dB-A) |
60*60*25mm | XYJ05B6025L | 5 | 3.5 | 0.12 | 2500 | 4.15 | 3.16 | 24.7 |
XYJ05B6025M | 5 | 3.5 | 0.30 | 4000 | 6.75 | 9.75 | 37.8 | |
XYJ12B6025L | 12 | 6 | 0.05 | 2500 | 4.15 | 3.16 | 24.7 | |
XYJ12B6025M | 12 | 6 | 0.13 | 4000 | 6.75 | 9.75 | 37.8 | |
XYJ12B6025H | 12 | 6 | 0.35 | 5500 | 8.84 | 17.96 | 47.2 | |
XYJ24B6025L | 24 | 12 | 0.03 | 2500 | 4.15 | 3.16 | 24.7 | |
XYJ24B6025M | 24 | 12 | 0.07 | 4000 | 6.75 | 9.75 | 37.8 | |
XYJ24B6025H | 24 | 12 | 0.20 | 5500 | 8.84 | 17.96 | 47.2 |

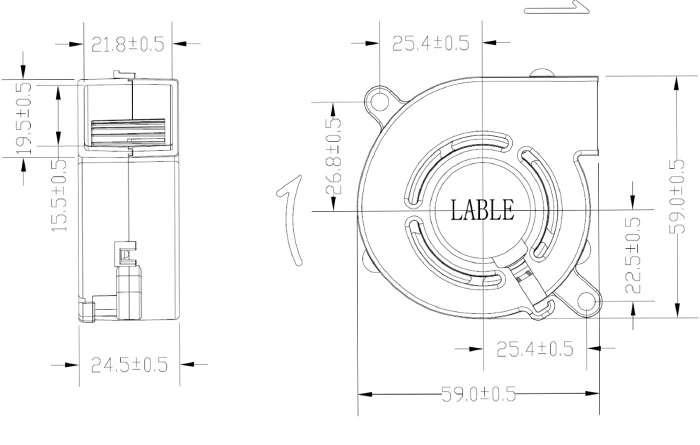

Product details picture
Company Profile
company profile
Xinyujie technology co., LTD., for the development and expansion of domestic trade;Xinyujie technology has been established for
more than 10 years has been specialized in the production of cooling fans.
output is up to 1.2 million units.
blower, ac fan, EC fan, can be customized according to customer requirements fan current, voltage, speed, air volume, bearing,
wire and connector outlet.
other electronic products such as server.
Certificate
Packing&Shipping
FAQ
1.What kinds of products supplied by your factory?
*We provide DC cooling fan,DC blower fan,AC cooling fan and EC cooling fan.
2.What kind of function can we choose for fan?
*Auto-restart ,Speed detection,Stop Alarm,Waterproof(IP20-IP68optional), PWM function etc.
3. How long can your wire length be ?
* The wire length and terminal could be customized as your request.
* Show the picture of connector and rank of wires for confirm.(Default wire length is 200mm)
4. What’s your MOQ and delivery date ?
* MOQ 200PCS
* Sample lead time:5 working days
* Mass production:15 working days
* Waterproof fans need 1 more week
5. What’s your payment terms ?
* We accept Payment by T/T,Western Union, Paypal ,L/C and advocate Credit Insurance Payment on Alibaba
* 100% payment for sample orders ,30% prepayment and Balance before shipment.
6.What kind of transportation can we choose ?
* Express:DHL,EMS,Fedex,UPS,IATA,TNT,China AIR Express,Iceland express etc.
* Sea transportation as you request.
7. What’s your packaging?
* Knife card packing,carton package
* normal carton size 43X28X43CM,different model will lead to carton size different.
8. What information should be provided before place an order?
* Fan dimension
* Rated voltage , such as 5v/12v/24v/48v.
* Speed or current amp
* Sleeve or ball bearing
* Leading wire length(default 200mm)
* 2 wire leading or 3/4 wire leading
* With terminal or not.
