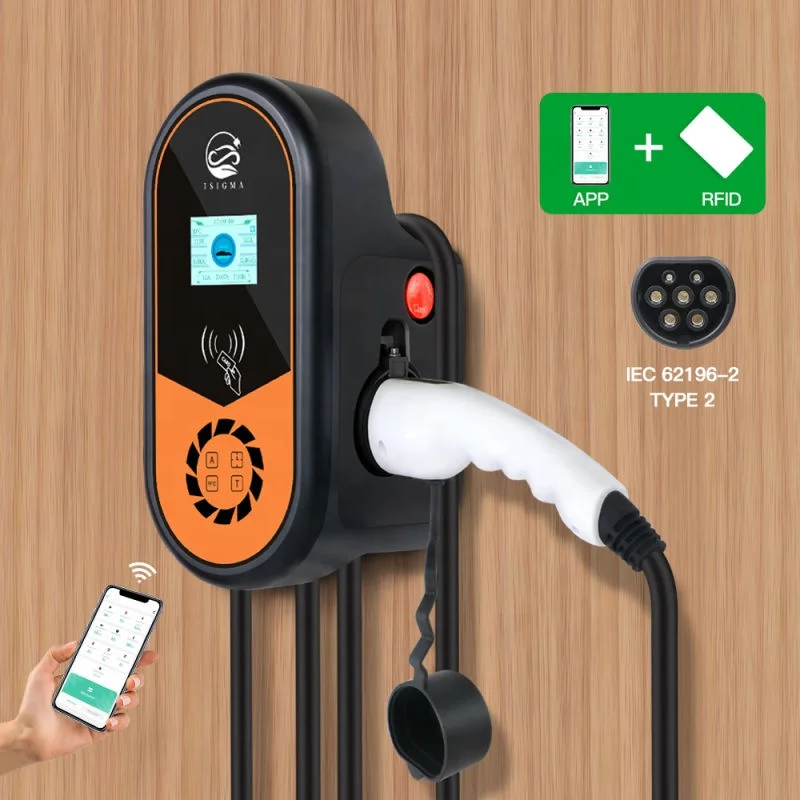

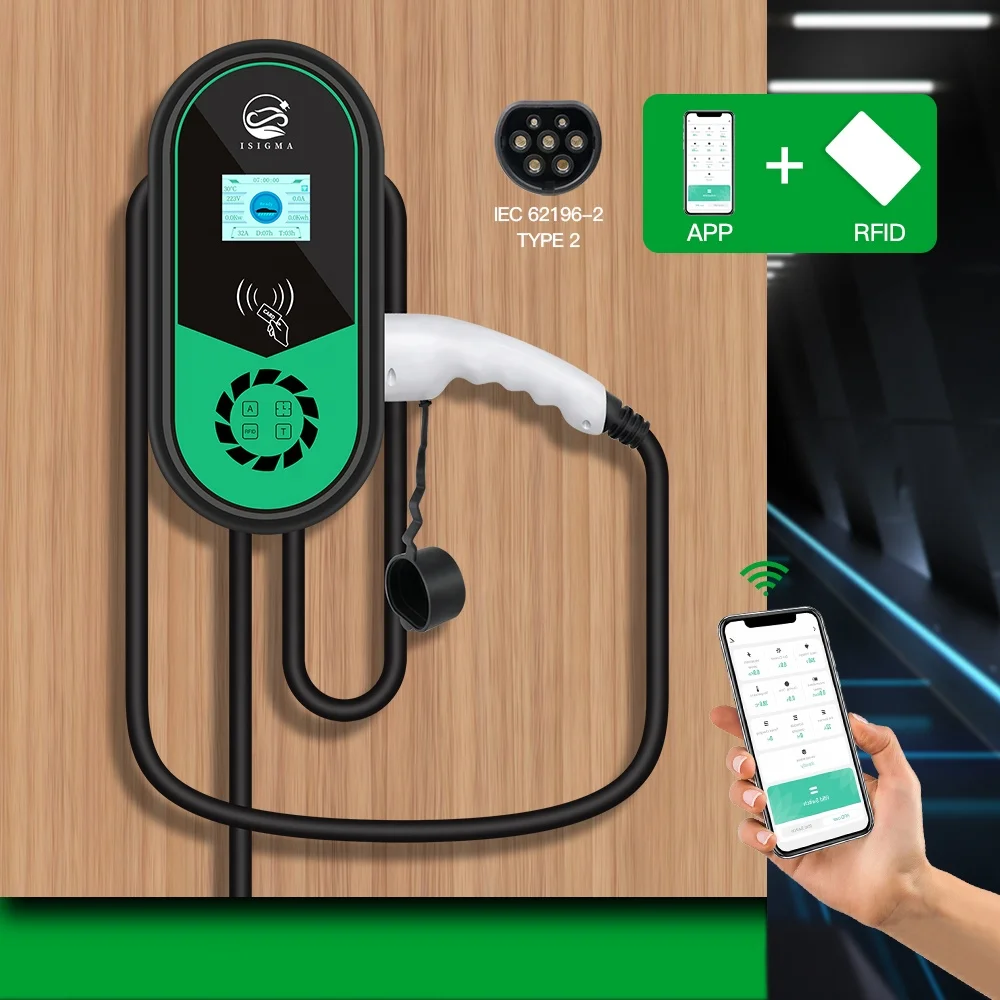

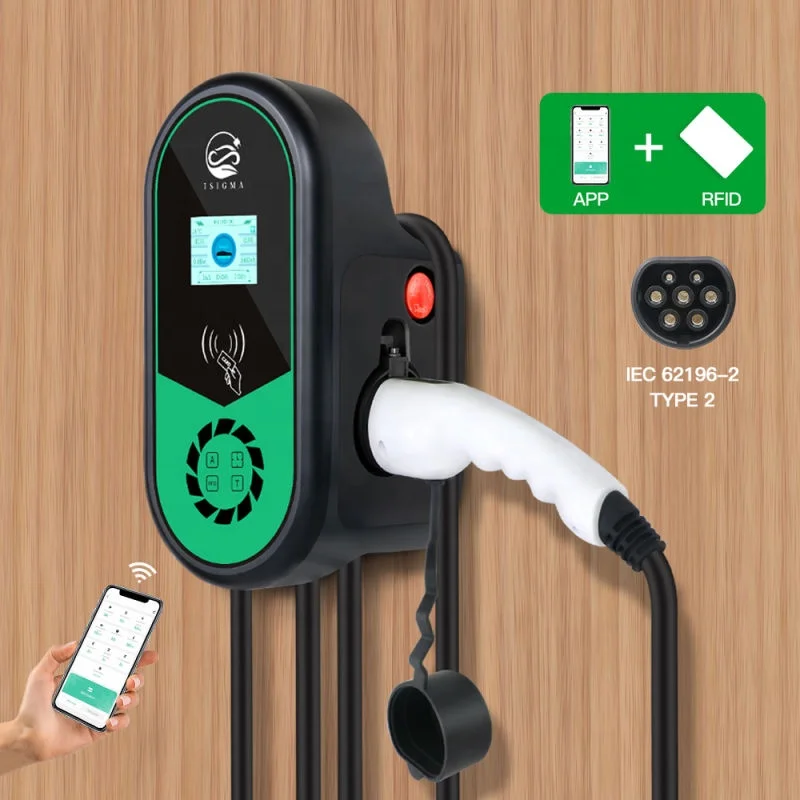

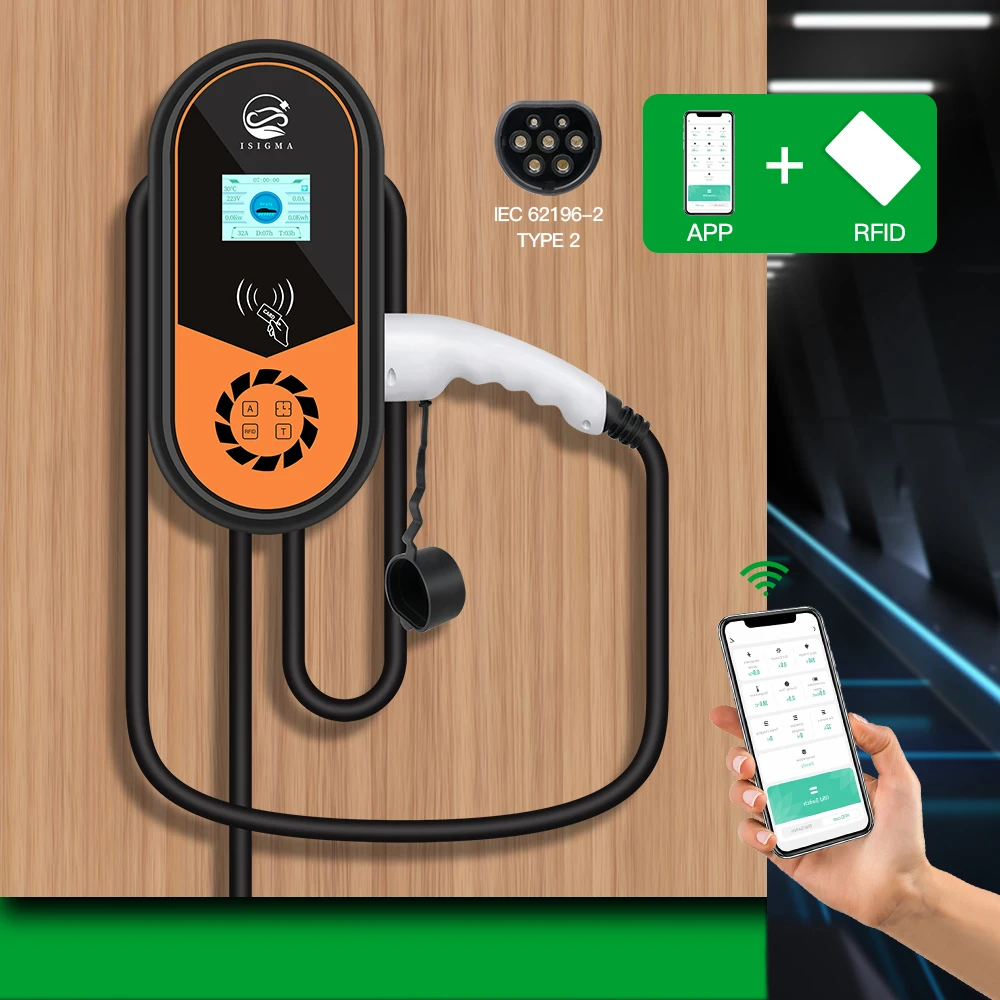

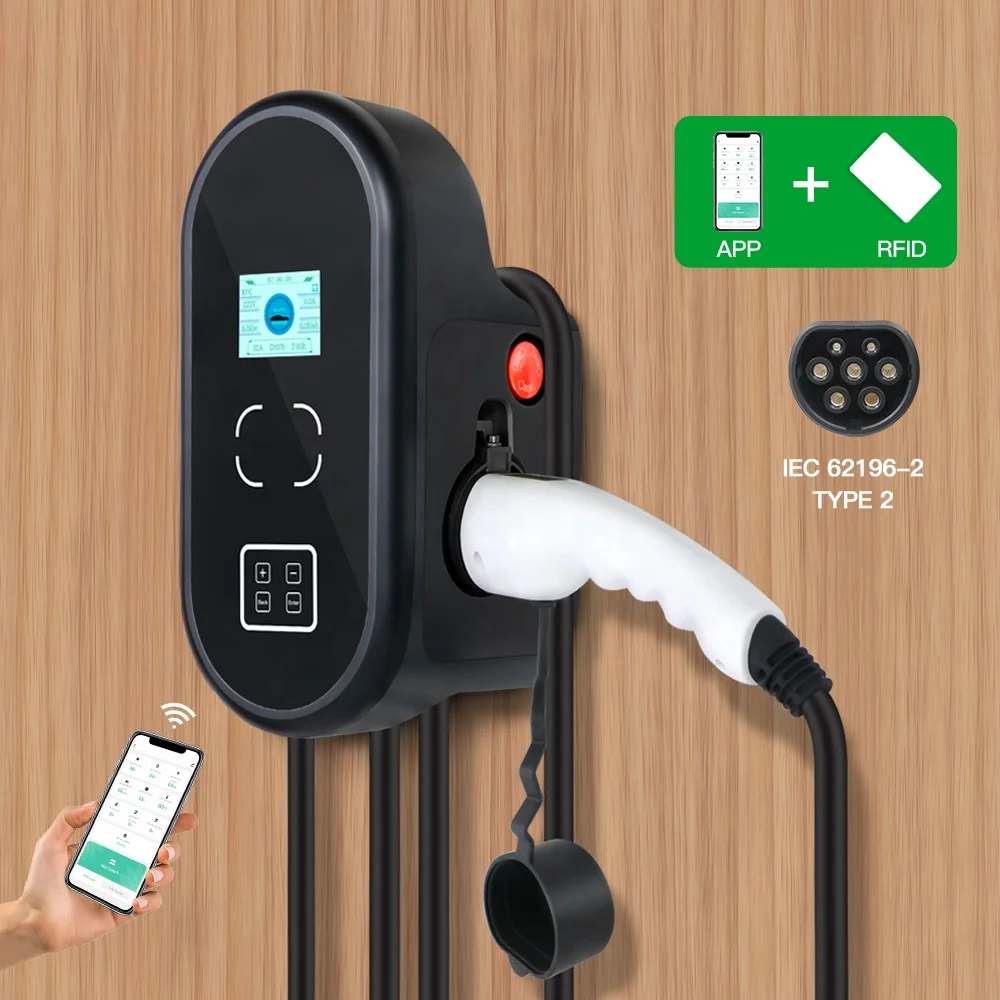

3Phase 32Amp Wall Charging Station 22 KW Electric Car Charging Stations EV Public Fast Charger
- Category: >>>
- Supplier: Henan Sigma Technology CO. LTD
Share on (62566606263):
Product Overview
Description
Product Model | SGEN-EV16-001 | SGEN-EV32-001 | SGEN-EV16-T-001 | SGEN-EV32-T-001 | |||
Plug Standard | Type2 / Type 1 | Type2 / Type 1 | Type 2 | Type2 | |||
Rated Current | 16A 1P /16A | 32A 1P /32A | 16A 3P | 32A 3P | |||
Patch life | ≥ 10000 times | ≥ 10000 times | ≥ 10000 times | ≥ 10000 times | |||
Protection Level | IP65 | IP65 | IP65 | IP65 | |||
Operation Voltage | 200V~250V | 200V~250V | 380V~450V | 380V~450V | |||
Certification | TUV CE | TUV CE | TUV CE | TUV CE | |||
Standard | IEC 61851 | IEC 61851 | IEC 61851 | IEC 61851 | |||
Cable Specification | 3*2.5mm²+2*0.5mm² | 3*2.5mm²+2*0.5mm² | 5*2.5mm²+2*0.5mm² | 5*6mm²+2*0.5mm² | |||

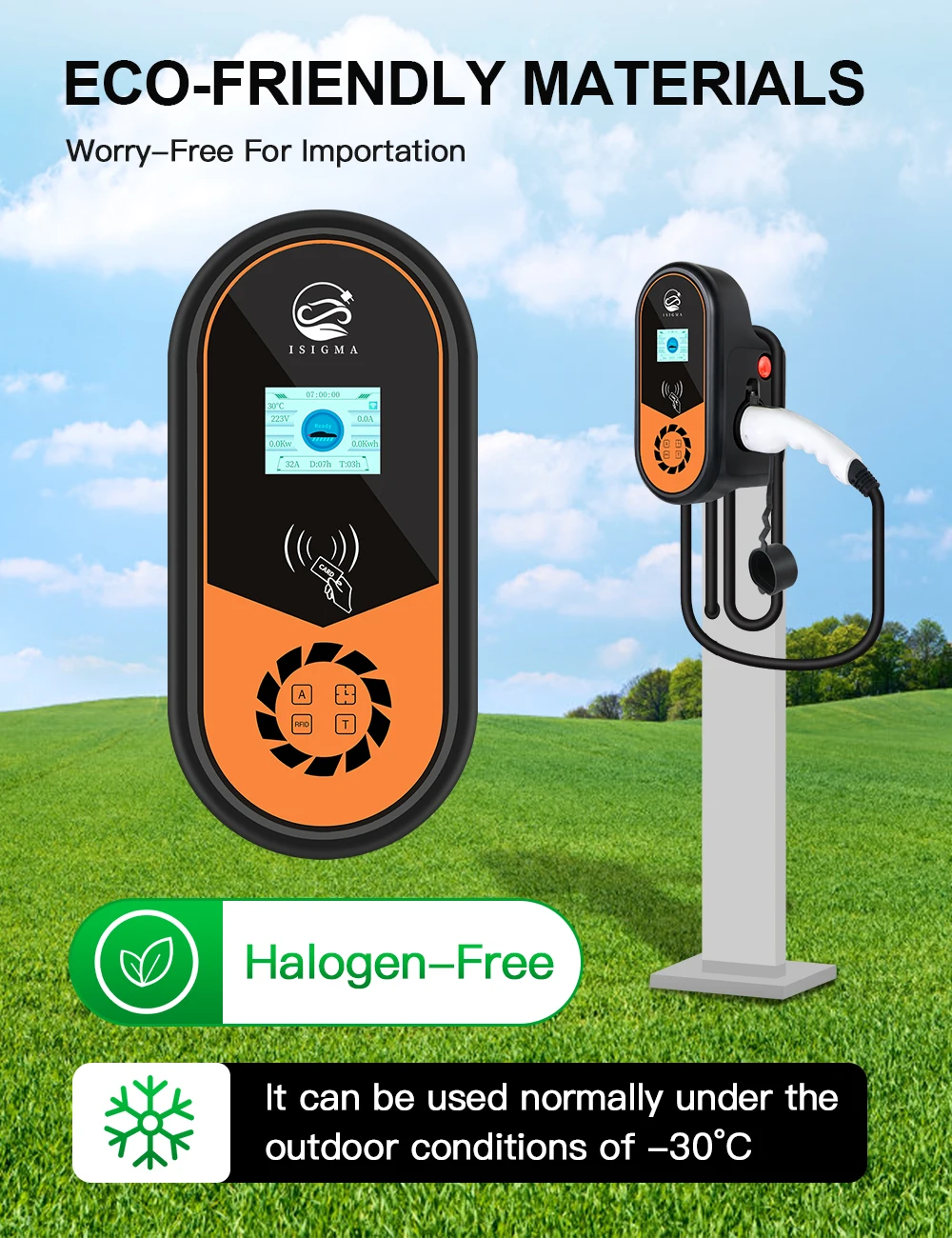

Operating Temperature | -30℃ to +65℃ | ||||||
Function Option | Residential Use: Standard type: Standard type with RFID Card Wiff control by APP(IOS&Android) | ||||||
Dimensions | 340mm (L) × 160mm (W) × 162mm (H) | ||||||

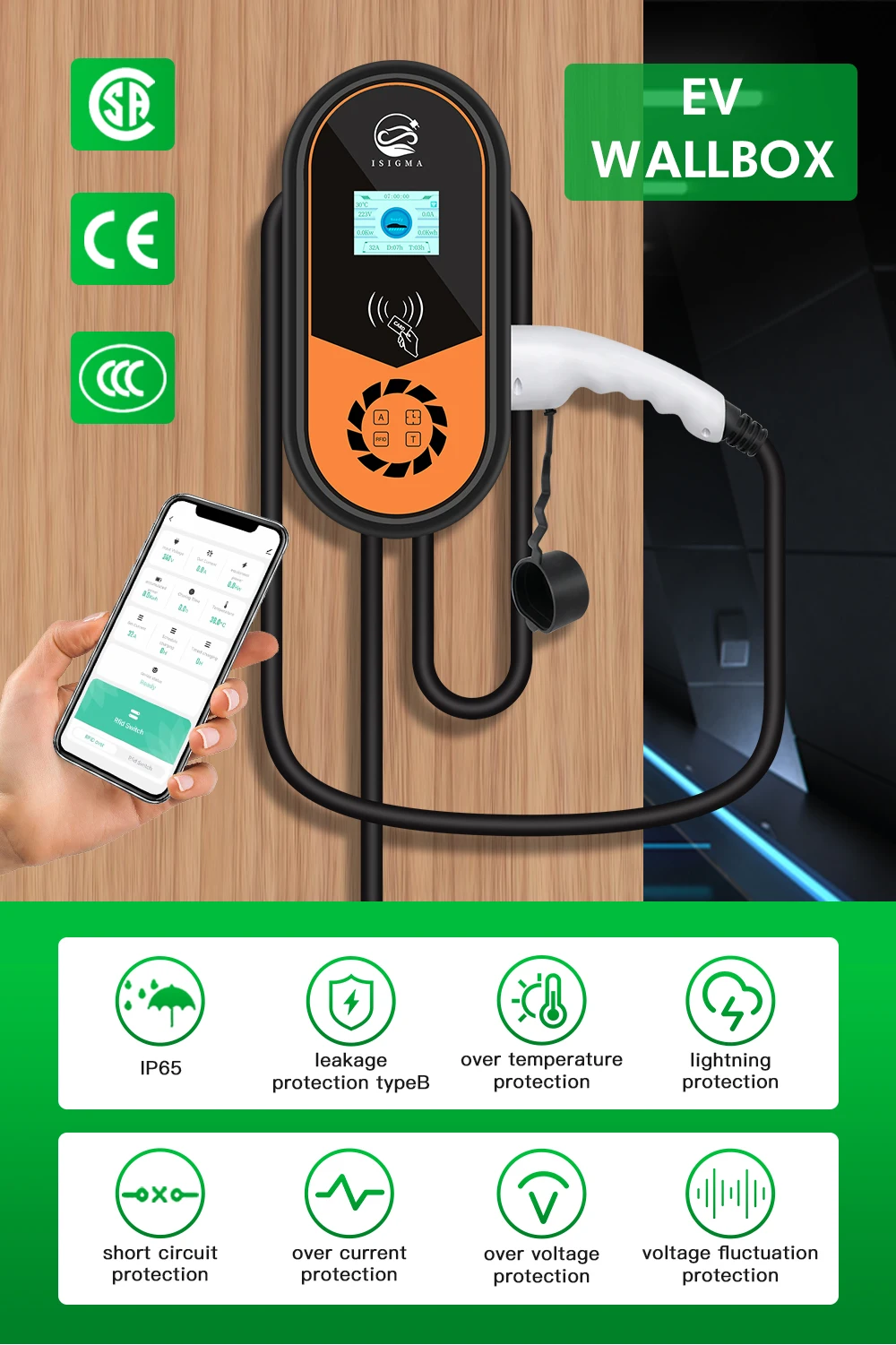

Control Box Function | 1.Over and under frequency protection 2.Over Current Protection 3.Type B Protection 4.Over Temperature Protection 5.Overload protection (self-checking recover) 6.Ground Protection 7.Over voltage and under-voltage protection 8.Lighting Protection | ||||||
FACTORY INTRODUCTION
Henan sigma technology co., ltd. Is mainly produce all kinds of EV components, including all kind of EV plugs , EV sockets ,EV extension cables , EV charging stations, EV Mini MSD,EV high voltage connectors and cables. All of our products have TUV, CE ,UL ,and CQC approval | ||||||||
