Best Selling VMC650 Vertical Machining Center Metal CNC Milling Machines With Price
- Category: Machine Centre & Parts >>>
- Supplier: Taian Taizhuo Machinery Manufacturing Co. Ltd.
Share on (62566740630):
Product Overview
Description
PRODUCT DESCRIPTION

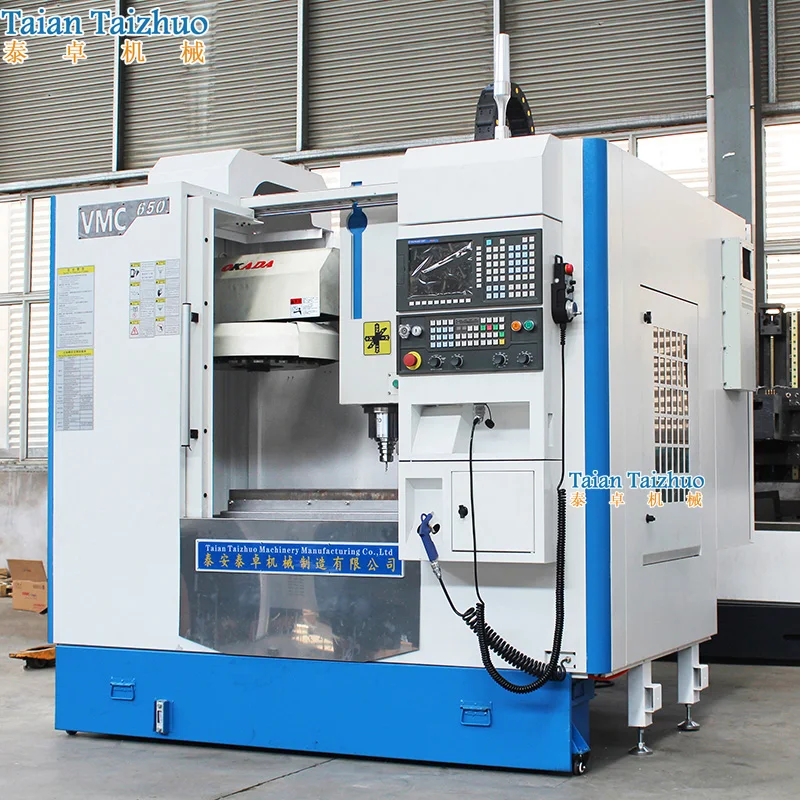

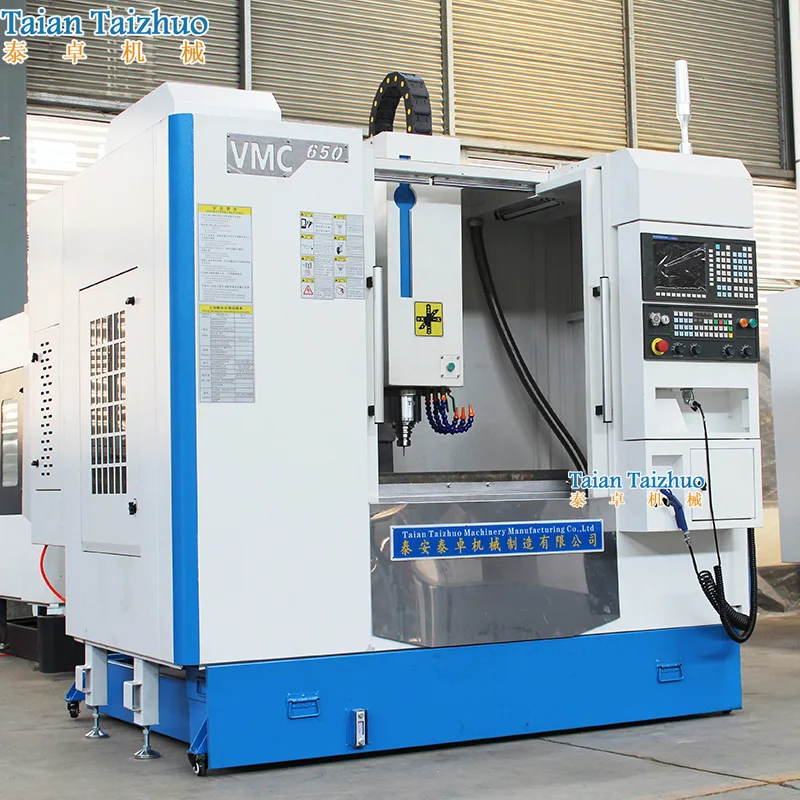

Best Selling VMC650 Vertical Machining Center Metal CNC Milling Machines With Price
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.
Item | Units | VMC300 | VMC550 | VMC650 |
X axis travel | mm | 300 | 550 | 650 |
Y axis travel | mm | 200 | 300 | 400 |
Z axis travel | mm | 300 | 450 | 500 |
Spindle nose to table | mm | 80-380 | 90-540 | 100-600 |
Spindle center to column | mm | 205 | 350 | 460 |
Max. X axis rapid feed | m/min | 12 | 20 | 20 |
Max. Y axis rapid feed | m/min | 12 | 20 | 20 |
Max. Z axis rapid feed | m/min | 12 | 18 | 18 |
Cutting feed | mm/min | 1-3000 | 1-6000 | 1-6000 |

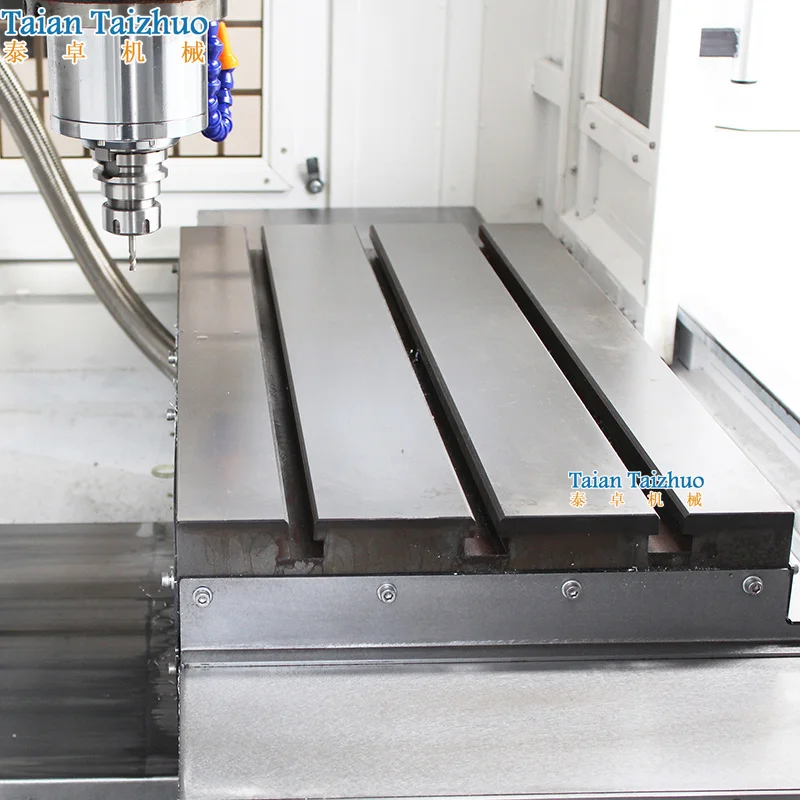

Table size | mm | 600x200 | 800x260 | 800x400 |
Table max. load | kg | 100 | 400 | 500 |
T slot | 3-16-60 | 3-16-80 | 3-16-90 | |
Main spindle | BT30-100 | BT40-120 | BT40-120 | |
Spindle speed | rpm | 100-5000 | 50-8000 | 50-8000 |
Main motor | kw | 2.2/3.7 | 3.7/5.5 | 5.5/7.5 |
Positioning Accuracy | mm | ±0.01/300 | ±0.01/300 | ±0.01/300 |
Repeatibility | mm | ±0.005 | ±0.005 | ±0.005 |
Machine size | mm | 1525x1520x1810 | 2100x1700x2200 | 2250x2000x2300 |
Net weight | kg | 1300 | 2200 | 3000 |
STANDARD CONFIGURATION:
1. GSK25i/ GSK218M CNC Controller.

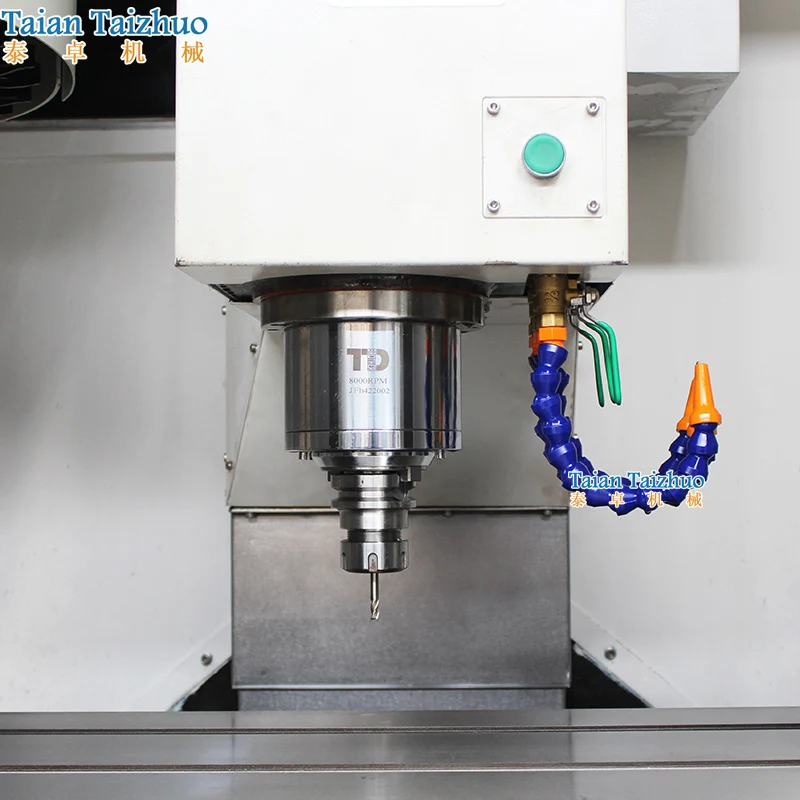

2. Taiwan BT40-120-8000 spindle.

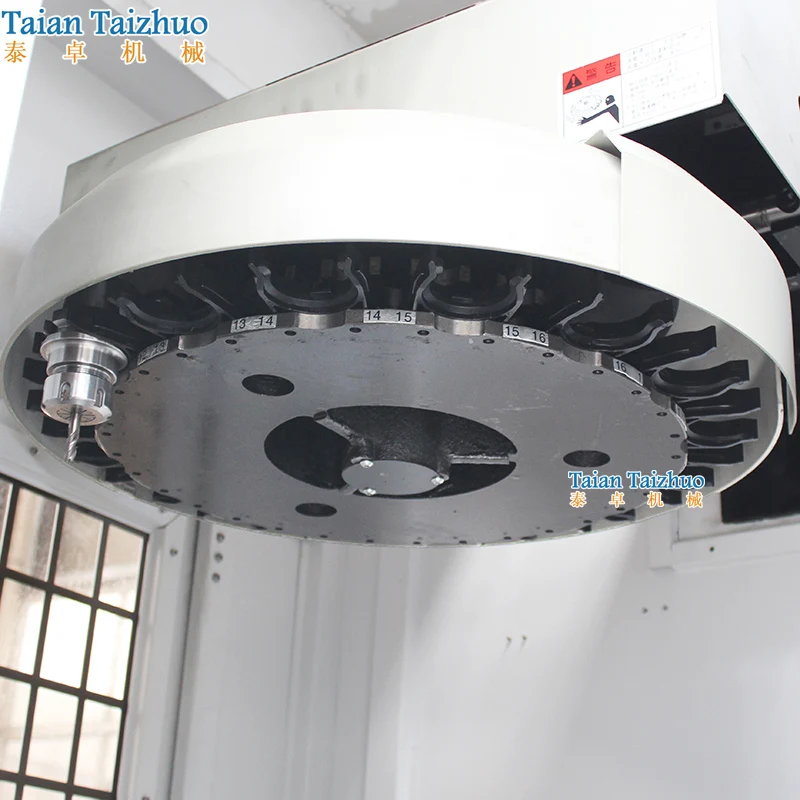

3. Taiwan 16T funnel type tool changer.
4. Taiwan Hiwin linear guideway.
5. Taiwan Hiwin ball screw.
6. Automatic Lubrication System.
7. Work Lamp.
8. Full Enclosure Machine Guard.
2. Taiwan BT40-120-8000 spindle.
3. Taiwan 16T funnel type tool changer.
4. Taiwan Hiwin linear guideway.
5. Taiwan Hiwin ball screw.
6. Automatic Lubrication System.
7. Work Lamp.
8. Full Enclosure Machine Guard.

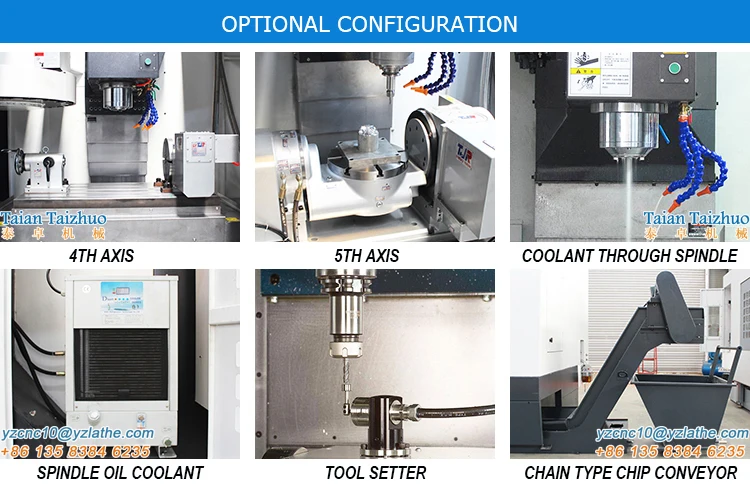

OPTIONAL CONFIGURATION:
1. Siemens Fanuc Syntec KND Mitusbishi GUNT.
2. 16T/ 24T arm type tool changer.
3. Chain type chip conveyor.
4. 4th axis and 5th axis.
5. Spindle oil cooler.
1. Siemens Fanuc Syntec KND Mitusbishi GUNT.
2. 16T/ 24T arm type tool changer.
3. Chain type chip conveyor.
4. 4th axis and 5th axis.
5. Spindle oil cooler.
6. Coolant through spindle.
7. Renishaw probe for workpiece and tool.
8. 10000RPM/ 12000RPM spindle.
7. Renishaw probe for workpiece and tool.
8. 10000RPM/ 12000RPM spindle.
DETAILS DISPLAY
PACKAGING & SHIPPING
OUR COMPANY
Taian Taizhuo Machinery Manufacturing Co., Ltd. is a professional manufacturing enterprise engaged in the research, development, production, sale and service of CNC machines. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
Our main products are Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center. All the above products have passed CE, SGS certificates.
OUR SERVICE
PRE-SALES SERVICE:
1.Customers provide the detailed workpiece size or drawing, our professional engineer will check and recommend suitable machine model for you.
2. Customers can also send us samples by courier, we can machining some samples for your checking. 3. All of our machines can be customized according to the requirements.
4.Welcome to come to our Taian Taizhuo factoy for visiting and checking machine.
AFTER-SALES SERVICE:
1. Our experienced engineers can offer answers to your technical questions, and in many cases, solve your problems effectively over the phone.
2. Engineers are available to service machines or to train how to use machine overseas.
3. Warranty period is one year, with lifelong after sale service.
4. We would provide parts for free during warranty period if it's caused by quality problem.
FAQ
Q1. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
Q2. What's the main products of your company?We specialized in many kinds of CNC machines, such as Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center and so on.
Q3.Delivery timeMachines order takes 20 days after deposit payment received. Please inquiry sales.
Q4. Payment Terms
30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss. Welcome to inquiry sales.
Q5. How long is the warranty for machines?Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing. Please contact your Taian Taizhuo sales representative for details.
Q6. How' s your after-sale service?Our after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.
Q7. Can you engineer come to our place to help with machine installation & commission?Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
Q8. What's the MOQ?A: MOQ is 1 set.
CONTACT US
If any interest about our cnc lathe machine, cnc milling machine and cnc machining center, please just contact us freely.
And we warmly welcome you to visit our factory at any time, thank you.
