Beltwin Heavy Duty Frame Style DSLQ F Belt Vulcanizer With Rapid Cooling System For Rubber Conveyor Belt

Product Overview

Description

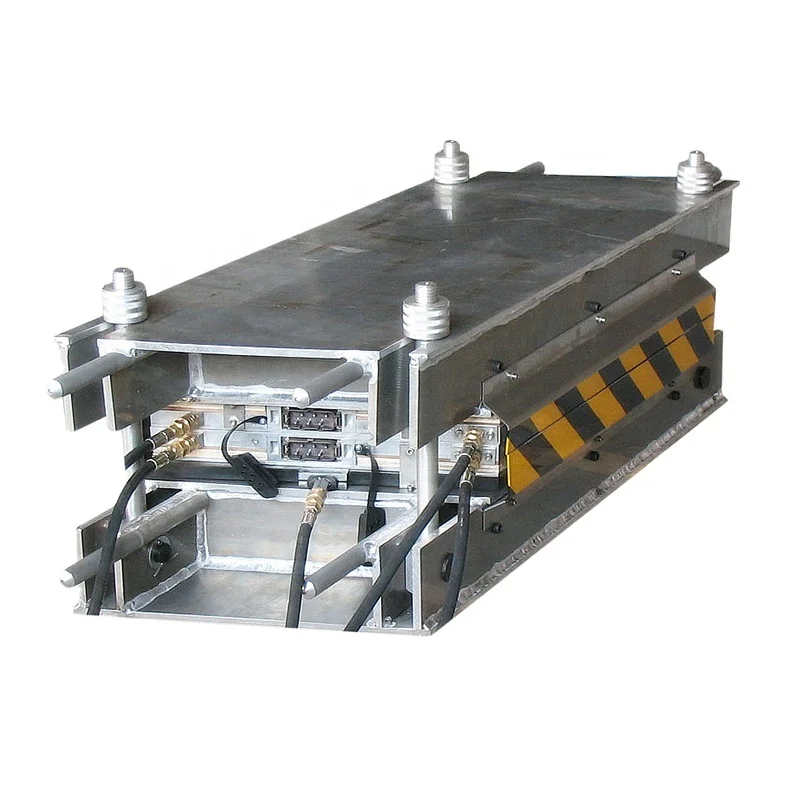

Beltwin Vulcanizing Frame Press DSLQ-F

Vulcanizing Equipment for Rubber Conveyor Belt

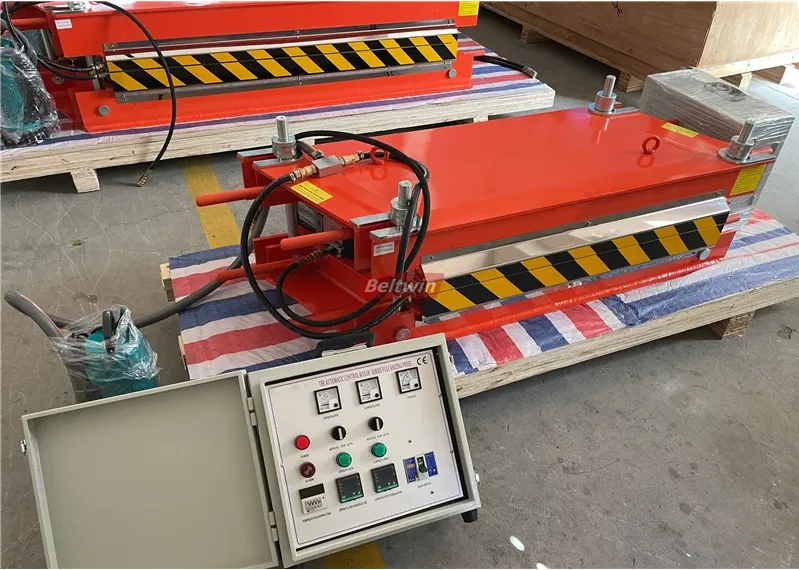

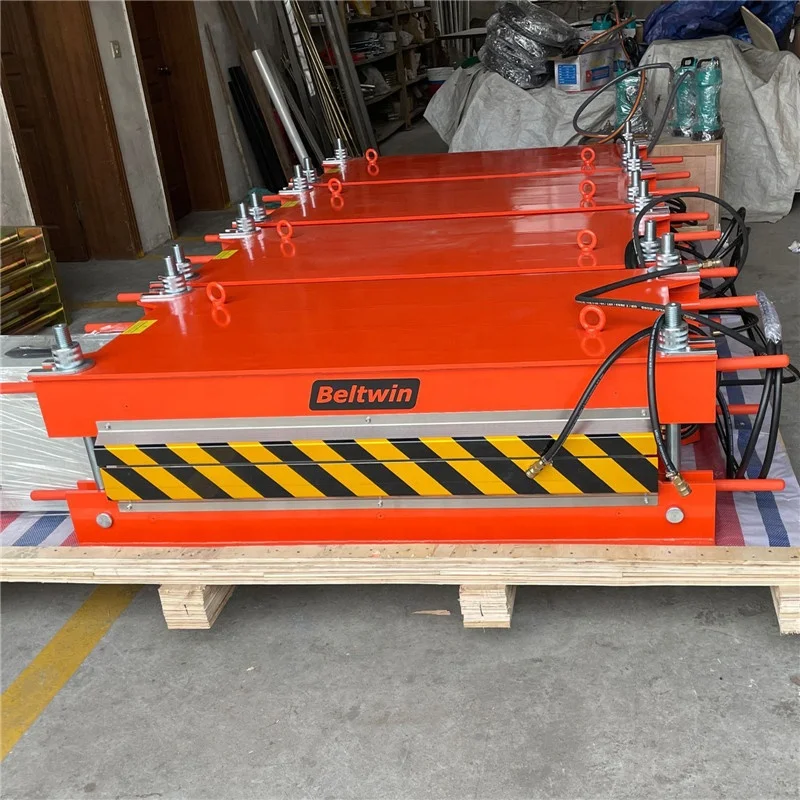

2 Piece designed designed Vulcanizing Frame press, aluminum frame style, designed for quick and easy operation, easy to move to any position, lightweight and high working efficiency. Your nice equipment for rubber conveyor belt.



Conveyor Belt Frame Vulcanizing Equipment DSLQ-F have aluminum frame that allows for quick and easy operations. Offer great hot vulcanized splicing for all fabric ply belts. The frame includes end handles and positioning rings (for larger models), it can easy to maneuver into the desired splice position.



Product Information:

1. Design Style: Frame style.
2. Pressure System: Standard Rubber Bag, air pressure.

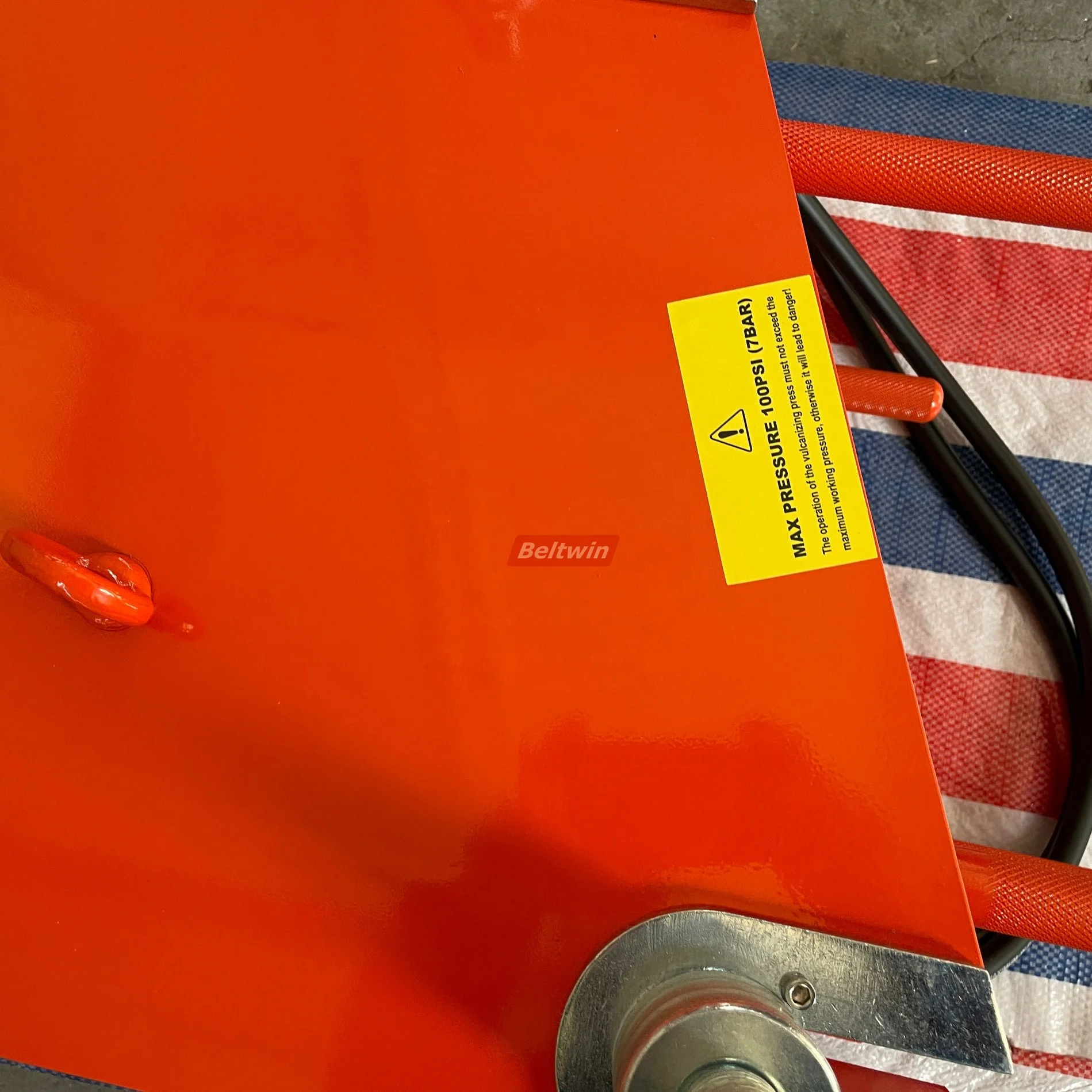

3. Operating Pressures: 7 Bar (100Psi).
4. Splicing Belt type: EP Belt.
5. Cooling: Water cooling.
6. Heating Platen: Electric shielded resistance or silicone elements.



Optional:

1. Silicone Heating element is optional.

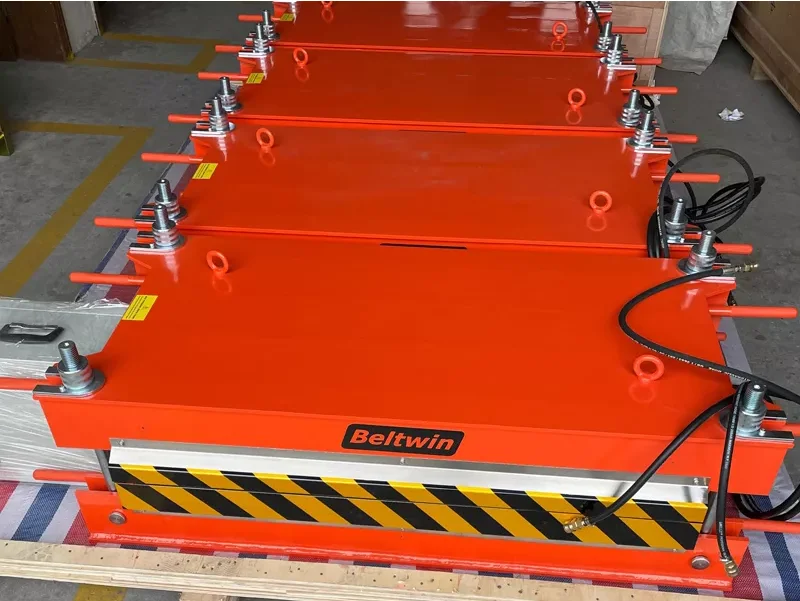

2. Lifting Rings on top frame (easy for lifting).

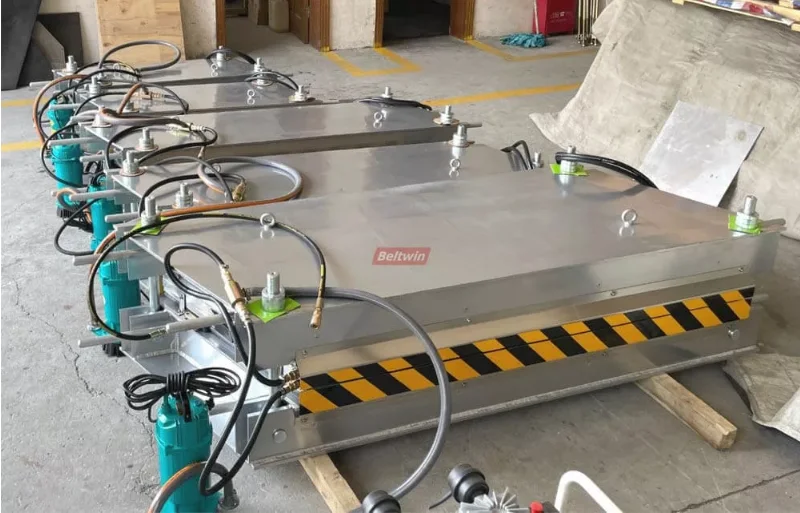

3. Manual Water Pump.



Features:
1. The Vulcanizing Frame press only have two parts, it can be used quickly without assembly.
2. Include water cooling system.
3. Operating pressures up to 7 bar (100psi). If need 14bar (200psi) or special for workshop use, can also produce.
4. Portable design for filed working.
5. Completely automatic process programmed from the control unit (heating, dwell time).

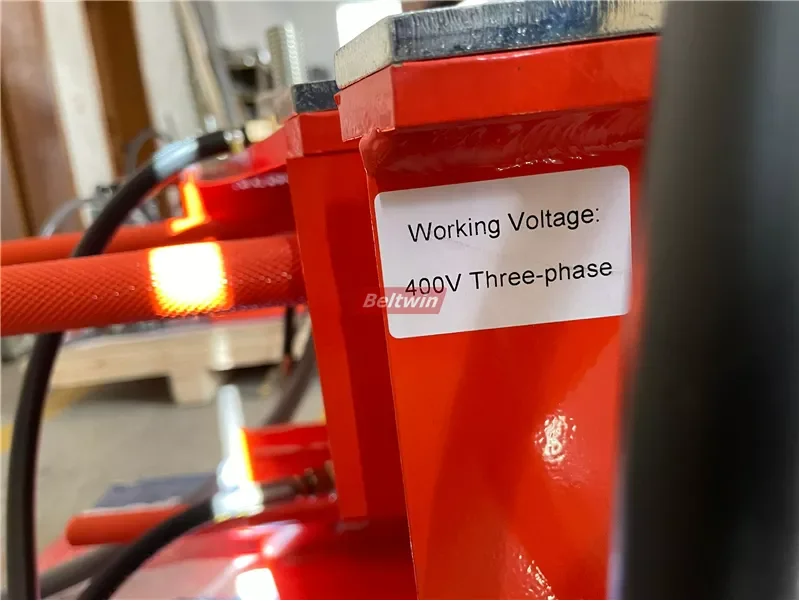

6. Working Voltage: 220V, 380V, 400V, 415V, 440V, 480V, 525V or any other on request.
7. Flexible size of DSLQ-F Vulcanizing Equipment, except standard size, other size you need, also can make.



Specifications:
Heating Platen:

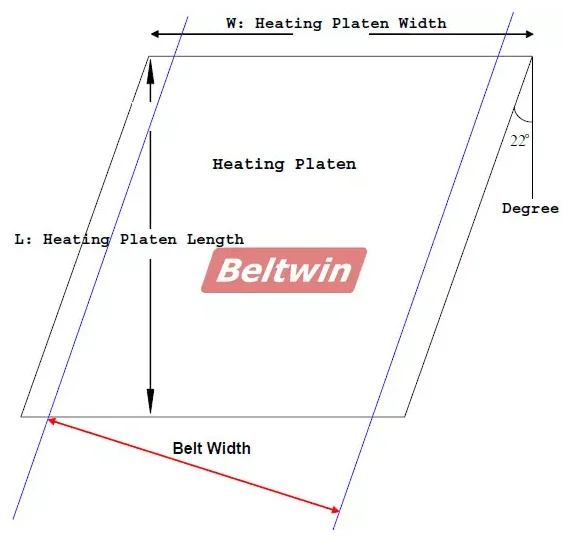

Beltwin platen constructed from extruded plank, heating element and durable composite insulation. Each platen contours to belt irregularities, ensuring for whole splicing area. Platens available, either rhombic or rectangular design. Maximum temperature 325°F(160℃)

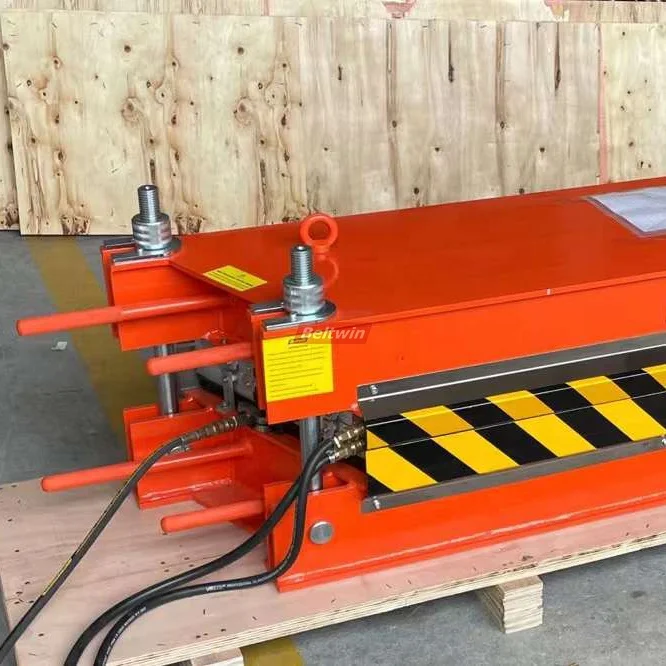

Frame:
Aluminum frame have 2 parts, upper part includes frame and upper heating platen, lower part include lower heating platen, pressure bag and frame. Ends equipped with retractable carrying handles on smaller models.

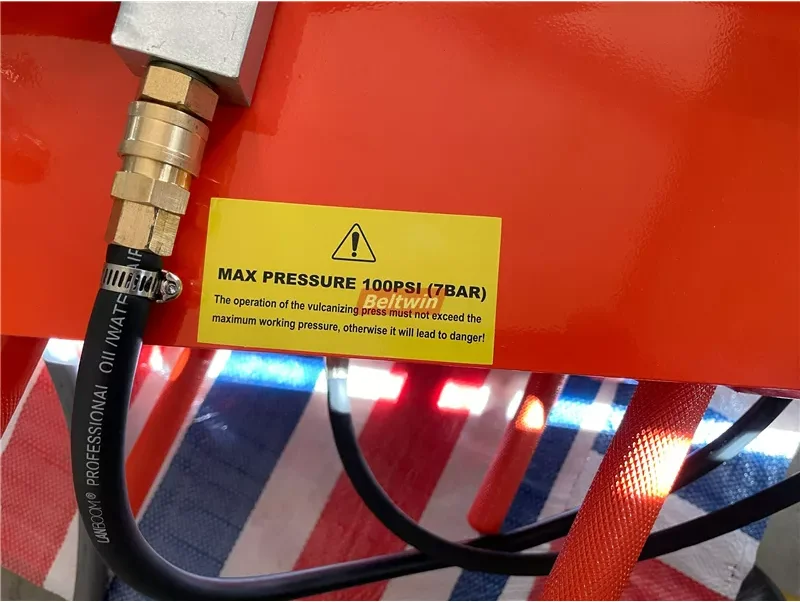

Pressure Bag System:
Can used for both water and air, normally, used air pressure, via air compressor.

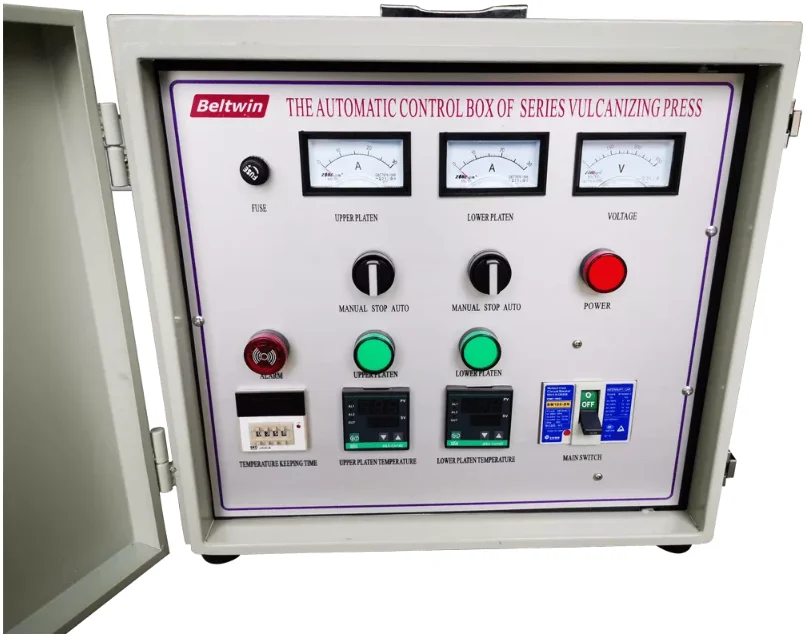

Automatic Control Panel:
With time control and digital temperature control. After heating temperature of both platens, the dwell time, the cooling temperature and the pressure have been set, the whole splicing process will run automatically. All the parts use high quality electric devices with CE certificated. In case of electronic controller failure, manual operation is possible as well.

Heating Platen Dimension: (Other special dimension please contact us).

Splicing angle 22°, rectangle or any other also can customized.

Order Beltwin Vulcanizer DSLQ-S Frame Press:

Maximum operation pressure 100Psi, if need 200Psi also can produce.

(Rectangular Models)

Platen Size		Max Belt Width
IN	MM	IN	MM
14x20	355x510	18	450
14x26	355x660	24	600
14x34	355x865	30	750
18x42	455x1065	38	950
14x46	355x1170	42	1050
18x46	455x1170	42	1050
26x46	660x1170	42	1050
18x52	455x1320	48	1200
14x54	355x1370	50	1250
18x64	455x1625	60	1500



(Rhomboid Models - All Platens Built On A 22° Bia With A'' Left Hand" Lead).

19x24	480x610	20	500
19x30	480x760	24	600
28x30	710x760	24	600
19x37	480x940	32	800
28x37	710x940	32	800
19x43	480x1090	36	900
22x43	560x1090	36	900
28x43	710x1090	36	900
19x50	480x1270	42	1050
28x50	710x1270	42	1050
19x56	480x1420	48	1200
28x56	710x1420	48	1200
19x62	480x1575	54	1350
28x62	710x1575	54	1350
19x70	480x1780	60	1500
