Shale Shaker is the first stage solids control equipment in drilling fluids recycling system; it is also the most important equipment. To a large extent, the performance of shale shaker decides the working efficiencies of whole solids control system. Besides single shale shaker, we also could offer tandem shakers and triplicate shakers on single skid according to customers’ requirements and also the connecting manifold and mud distributor.
Direction for use
使用说明

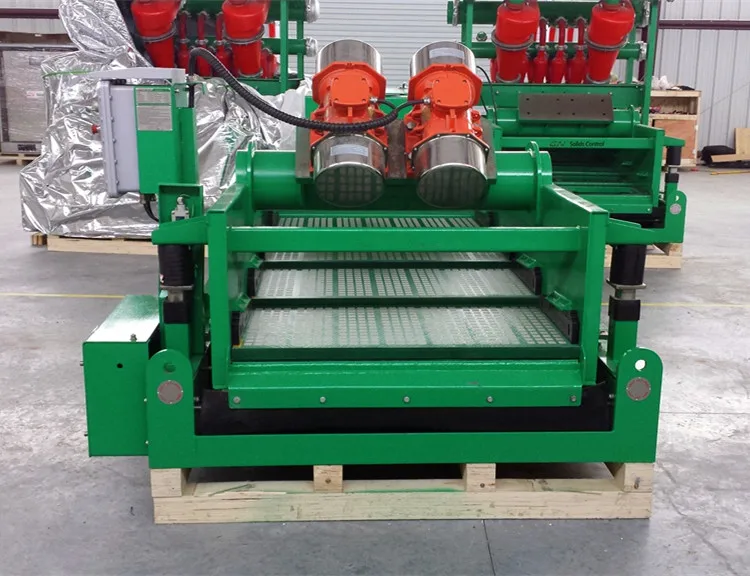

Linear motion shale shaker are widely used for drilling mud solids control of oil & gas well drilling. In a complete mud recycling system, shale shaker is the first stage equipment for both solids control and mud cleaning. Shale shaker for solids control are devices that remove drill cuttings from the drilling fluid while circulating and drilling. By using different wire mesh screen, linear motion shaker could maximally remove the drilling cuttings and recover the valuable drilling mud back into the mud system for subsequent treatment. Besides Solids Control, linear motion shale shaker with High G force and large shaker screen area could be used as dryer shaker in drilling waste management project. After treated by Hi G dryer shaker, more drilling mud will be recovered and less volume solid waste discharged.
ZS Linear Motion Shale Shaker Features & Benefits:
1. Ajustable High G force for primary solids control or cuttings drying.
6. Wedge type design for easy and quick screen replacement 7. Electric Shaker Deck angle adjustable while working

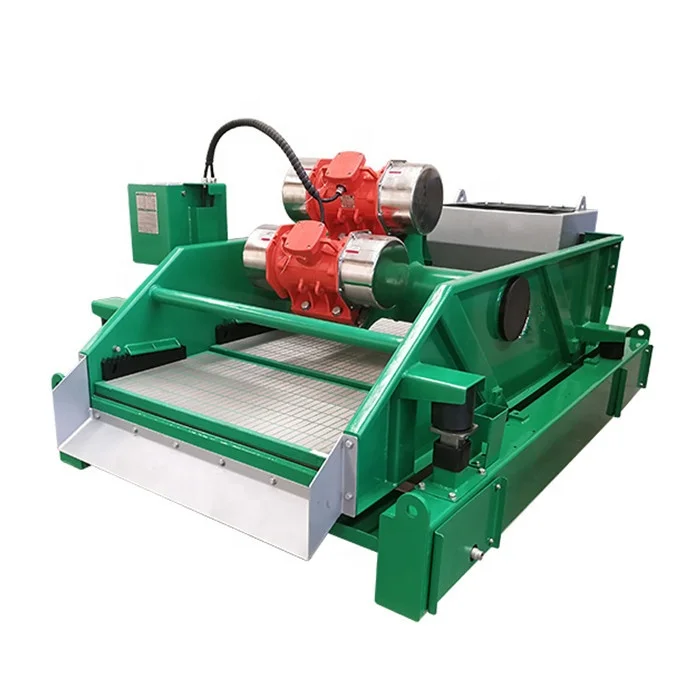

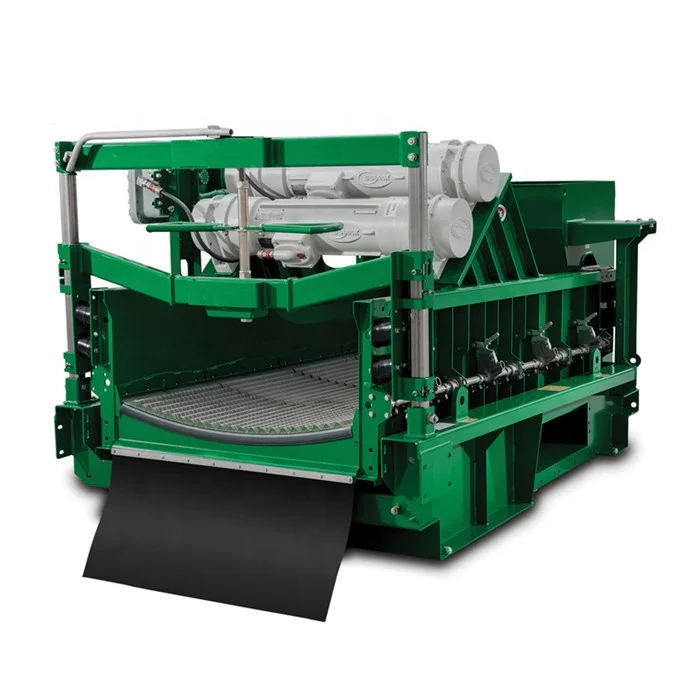

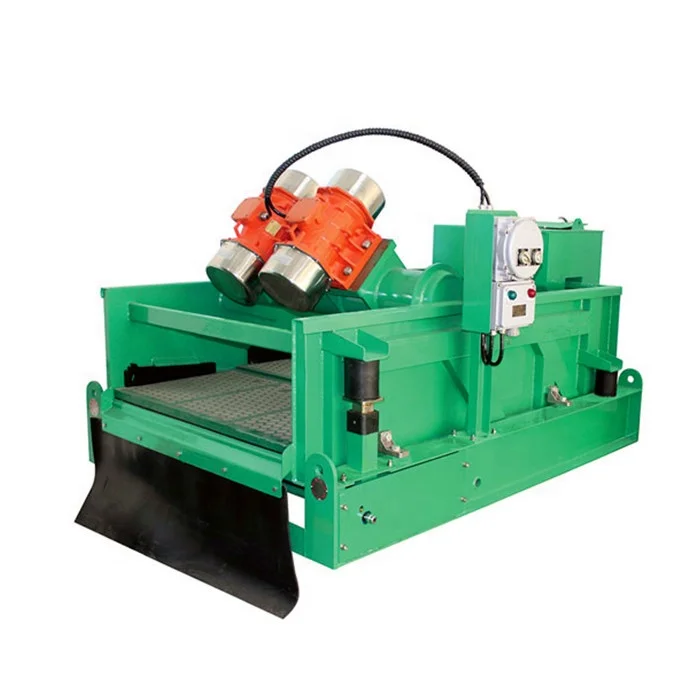

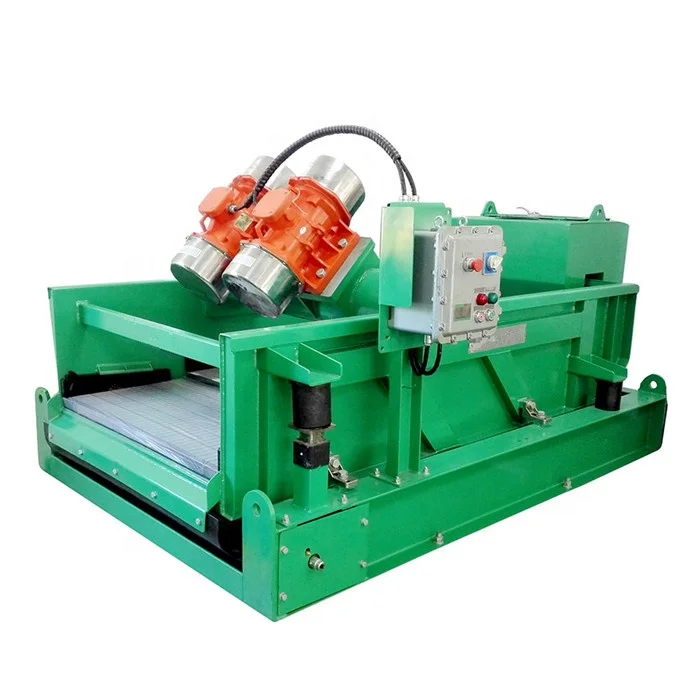

Model

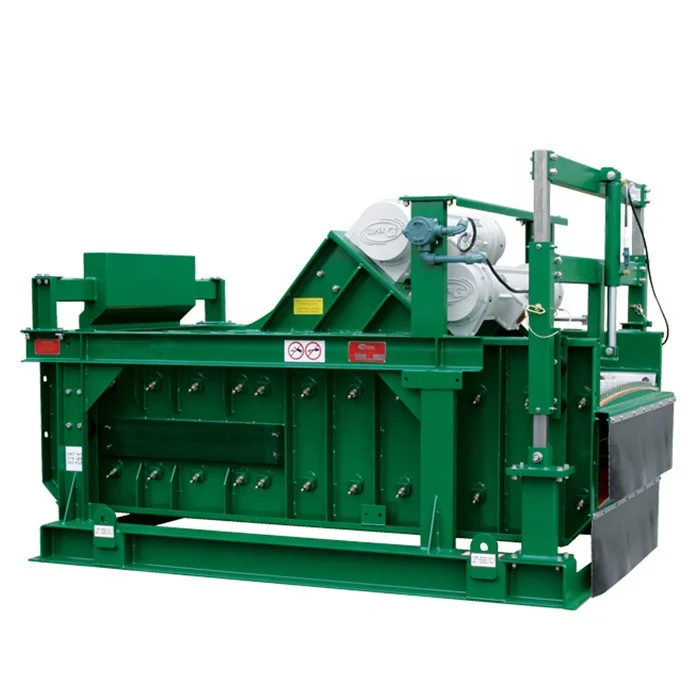

ZS752F-MDZF
Vibration Mode
Linear Motion
Capacity
45m3/h(200GPM)
Vibration Motor
2x0.75Kw
Screen Qty
2pcs
Screen Size: LxW
750x900mm
Screen Area
1.35m2
Adjustable G Force
≤7.1G
Vibration Amplitude
3.92~5.62mm
Deck Angle Range
+2°
Feeding Type
Box Feeder
Weir Height
710mm
EX Standard
ExdIIBt4 / IEC EX/ ATEX
Weight (Kg)
893
Dimension: LxWxH(mm)
1676x1689x1062
Remarks:
Low Weir Feeding Shale Shaker ZS703F-SLWF weir height 500mm is available for option
As the optimized design and stable performance, linear motion shale shaker now is the most popular model applied by the drilling contractors. Easy method to replace the screens greatly shortens the downtime. Shale shaker deck angle adjustable while running enable to achieve the proper solids conveyance and fluid end point. High G force and large screen area make sure the stable performance when treating the large flow drilling mud.
Packing&Shipping

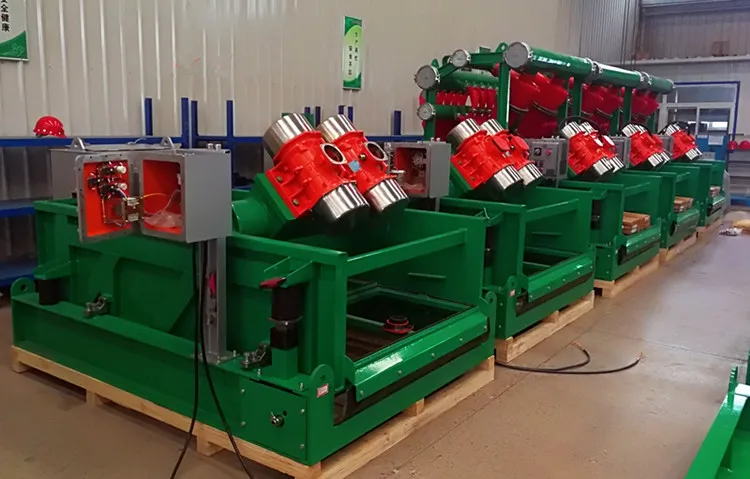

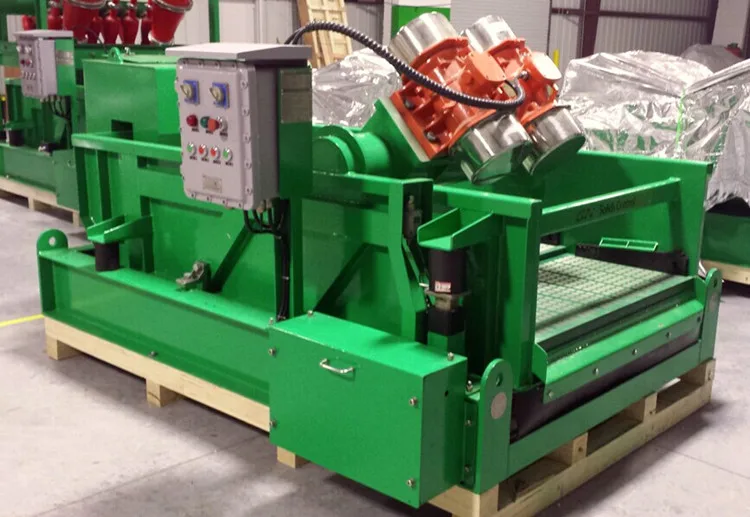

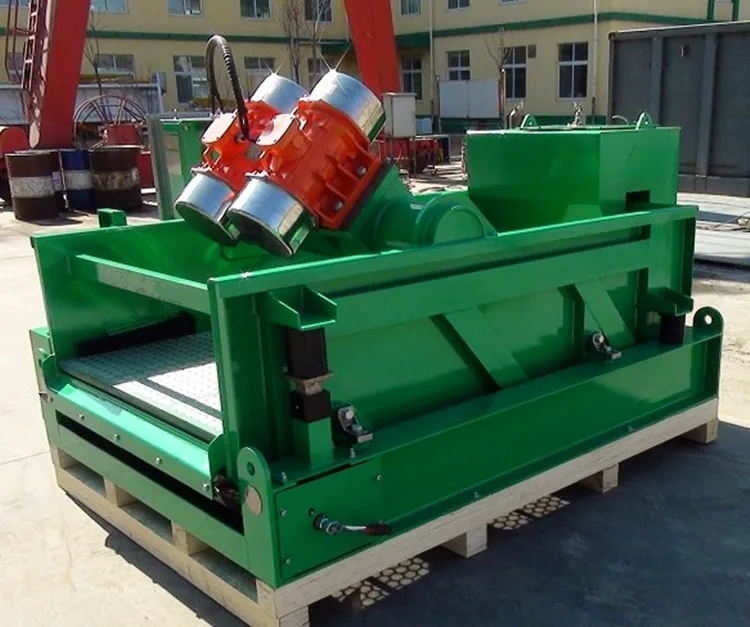

The shale shaker will be packed in plywood wooden box or on pallet.
Goods will be delivered by sea, train, truck, etc.
Company Introduction
Our scope of business covers solid-liquid separation industries, such as petroleum drilling solid control system, trenchless mud purification system, gas coal seam exploration mud purification system, shield mud purification system, desilting purification system, pilework solid-liquid separation, environmental protection industry, etc. Company produces and deals in mud purification system, drilling fluid vibrating screen, mud cleaner, desander, desilter, vacuum degasser, centrifuge, shear pump, sand pump, gas-liquid separator, electronic ignition device, mud mixer, jet mud mixer, mud gun, mud tank, submerged slurry pump, solid control equipment accessories, etc.
Our production management strictly complies with the quality requirements of ISO9001 to provide reliable quality assurance from in-factory of raw material to ex-factory of finished products, which guarantee to provide customer-satisfied products.
Our Services & Strength
XRR regards continuous learning ability as one of the company’s core competitiveness and provides regular training to employees to enhance their comprehensive abilities and skills.
We are committed to focusing on the challenges and pressures of customers' attention, providing competitive solutions and continuously creating the maximum value for customers. Safety and environmental and social responsibility are at the core of all our business activities.
FAQ
1. Are the shale shakers in stock? A: Some are in stock, but some need to be produced by orders.
2. Can I request to change the form of packaging and transportation? A: Yes, We can change the form of the packaging and transportation according to your request.
3. Can I have my own Logo on the product? A: Yes, but the logo need to be sent to us when signing the contract.
4. Can you produce the shale shakers according to my requirements? A: Yes, we can produce shale shakers as per your requirements, but all need to be discussed before signing the contract.
5. Can we visit your company before placing order? Welcome to our company any time you like.
