High Quality China Manufacture Automatic Coil Automatic Winding machines

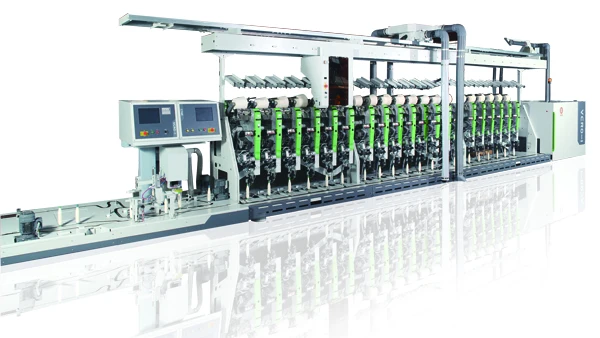

The new generation of auto-winder with linking is developed as per latest needs of end users, which is a new model based on SMARO-I auto winder with linking system and could link with any spinning machines with longest length to 1800 spindles. The new auto-winder can meet the requirements of customers from Ne.6 to the highest count of yarn. It's featured with improvements in stable and reliable performance, winding into perfect package and easier to be operated. Its brightest spot is the spinning quality tracking system, by using RFID ie. radio-frequency technique, the faulty bobbins can be traced back to the spindle of the spinning machine, thereby to solve the spinning problem and improve the quality of yarn.

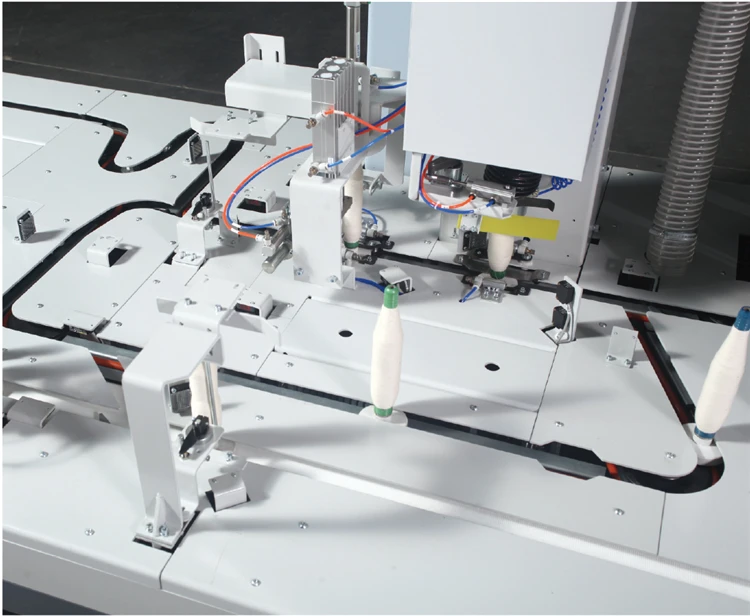

COMPLETELY AUTOMATIC YARN SPPLY

• Bobbin supply from spinning frame to auto-winder is completely automatic, free of manual feed. Behind single spindle it is designed with spare bobbin convey channel;



• Bobbin conveyor increase logic judgment to make following actions such as ful bobbin, empty bobbin, picking, re-piecing, waste yarn treament, stop, pass in CBF not interfered with each other;



• Bobbin change is automatically detected and feed;



• Empty bobbin is automatically transported back to spinning frame by loop belt;



• Bobbin is transported by support disc that eliminate bobbin yarn surface damage and reduce pilling increment.

TOP LEVEL ELECTRONIC YARN CLEARER,

WHOLE PROCESS CONTROL OF YARN QUALITY

Electronic clearers control yarn quality, including yarn joint quality, during the coplete winding process. Two different yarn clearer setting are adopted for normal yarn winding and yarn joint respectively. The most advanced electoronic yarn clearer models can be equipped. Foreign fiber detectng function can be chosen as optional.

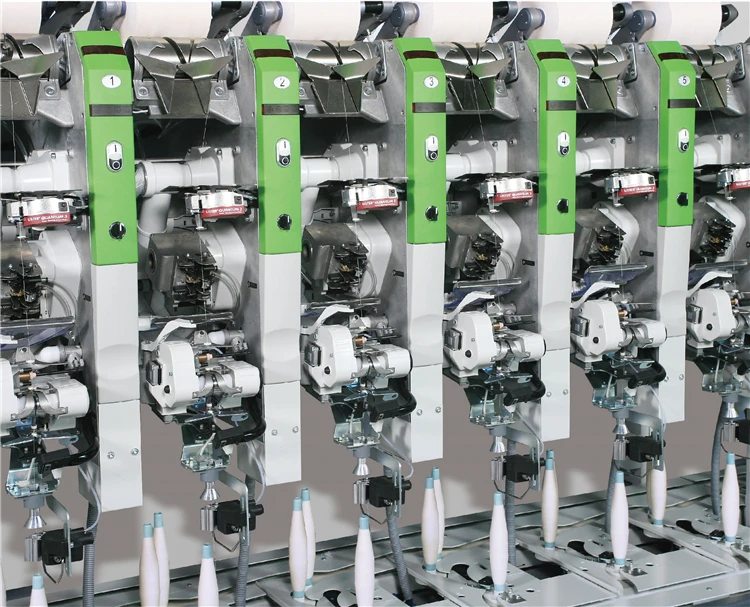

HIGH EFFICIENT AND HIGH QUALITY PIECING UNIT

• Special photoelectric sensor for monitoring yarn picking status in real-time;


• Upper and lower air door control to enhance picking rate and efficiently control air consumption efficiently;



• Vertical liner suction cylinder moves up and down to enhance motion precision;



• Reasonable suction clip and vertex blowing system can greatly enhance picking rate.

HIGH EFFICIENT AND INTELLIGENT DOFFING UNIT

• High efficient automatic doffing and doffing circle;



• Traverse speed 60m/min;



• Doffing package diameter max ∅320mm;



• Intellectualized single spindle automatic re-start;



• Brife automatic picking action and piecing yarn fixing position is adjustable;



• Smartjudgement of bobbin and package yarn in existence to ensure favoring doffing;



• Manual and automatic is optional for convenient doffing adjustment;



• Automatic package transportation.

HIGH QUALITY

Automatic bobbin feeding from spinning frame to auto-winder improves yarn cleanness and avoids yarn contact damage.

HIGH EFFICIENCY

To solve the friction between package of spinning frame and speed so as to enhance the spindle of spinning frame and increase productivity.

ENHANCING AUTOMATIC LEVEL SAVING MANPOWER

To transport yarn package and feed bobbin automatically so as to save labor and connect the two labor-intensive procedures directly not only to realize automation and continuous production but also to improve quality and enchnce productivity.

MAIN TECHNICAL SPECIFICATION

Q: How's the after-sale service?

A: We offer engineers available to service overseas under merchandiser's supervision and translation.

Q: Are you available for on-the-spot invitation?

A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.

Q: Is the price offered changeable?

A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.

Q: How about the quality?

A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.

Q: Are you a manufacturer or Trade Company?

A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.

Q: Product /Quality Guarantee and After Sale Service?

A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
