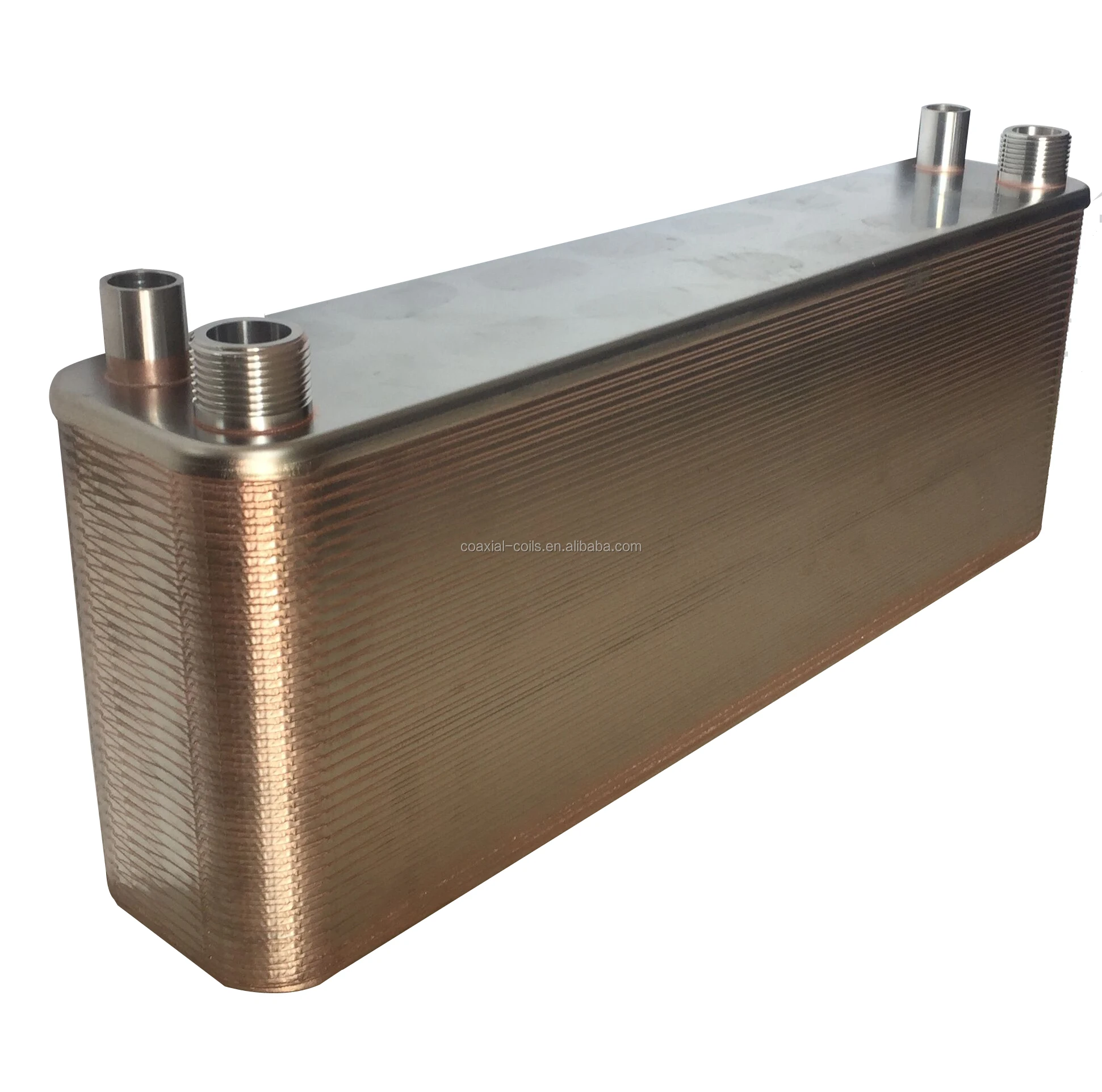

Plate Heat Exchanger
Product Profile
Plate heat exchangers are ideal equipment for liquid-liquid and liquid-vapor heat exchange. It has the characteristics of high heat exchange efficiency, small heat loss, compact and light structure, small footprint, easy installation and cleaning, wide application and long service life. Under the same pressure loss, its heat transfer coefficient is 3-5 times higher than that of tube-and-tube heat exchangers, covering an area of one-third of the tube-type heat exchanger, and the heat recovery rate can be as high as 90%.
Technical Parameter
Technical parameter | |
Product name | Condenser, Evaporator, Subcooler |
Product model | B3-52A |
Unit heat exchanging area | 0.052m2 |
Maximum flowrate | 12m3/h |
Plate material | 316L or 304 stainless steel |
Welding material | 99.9% copper |
Thickness of plate | 0.4mm |
Volume per channel | 0.094L |
Maximum number of plate | 120 |
Design pressure | 3.0MPa or 4.5MPa |
Test pressure | 4.5MPa or 6.0MPa |
Design temperature | -195 ~+220 |
Connections | the biggest screw thread pipe for water: 5/4", the biggest welded pipe for liquid: 13/8"
|
Capacity | 10-70KW |
Basic flow disposition | F1 -> F3 F4 -> F2 |
Application scope | Heat pump system, household type central air conditioning, afterheatrecycling, refrigeration equipment, industry cold water machine,cooleroil and so on |
Product Features
1.High heat exchange efficiency,
2.Small heat loss,
3.Compact and light structure,
4.Small footprint,
5.Easy installation and cleaning,
5.Wide application and long service life.
Application
This is an extremely popular unit for wood burning furnaces, radiant floor systems, refrigerant systems, straight vegetable oil conversions, beer chilling, air conditioning system and solar water heating systems. It will work for any application in which the desired result is for two fluids (liquid or gas) to exchange heat.
Application
This is an extremely popular unit for wood burning furnaces, radiant floor systems, refrigerant systems, straight vegetable oil conversions, beer chilling, air conditioning system and solar water heating systems. It will work for any application in which the desired result is for two fluids (liquid or gas) to exchange heat.
Related Products
FAQs
1.How to choose a match heat exchanger?
Pls fill in our Techology Selection Sheet, our engineer will recommend a match model to you.
2.If possible to customize?How to do?
Yes, We can supply OMD service.
We can maufacture heat exchanger according to customer's drawings.
Or we draw papers based on customer's requirements, manufacture after client confirm.
3.How long is the delivery time?
10 to 15 days for regular models, or 25 to 30 days for customized models.
4.How to packing?
Paper box and plywood pallet, or plywood case for heavy weight products.
Individual or multiple pieces per package base on weight and dimension.
5.How to pay?
In general by T/T and L/C at sight, OA is available for large quantity purchase order and long-term cooperation.
6.How to get sample?Anything while the sample cost and freight is paid.
7.How many is MOQ?
Over 20 pieces.
8.How long is warranty?
The warranty is 1 year, but lifelong technical support and service.
