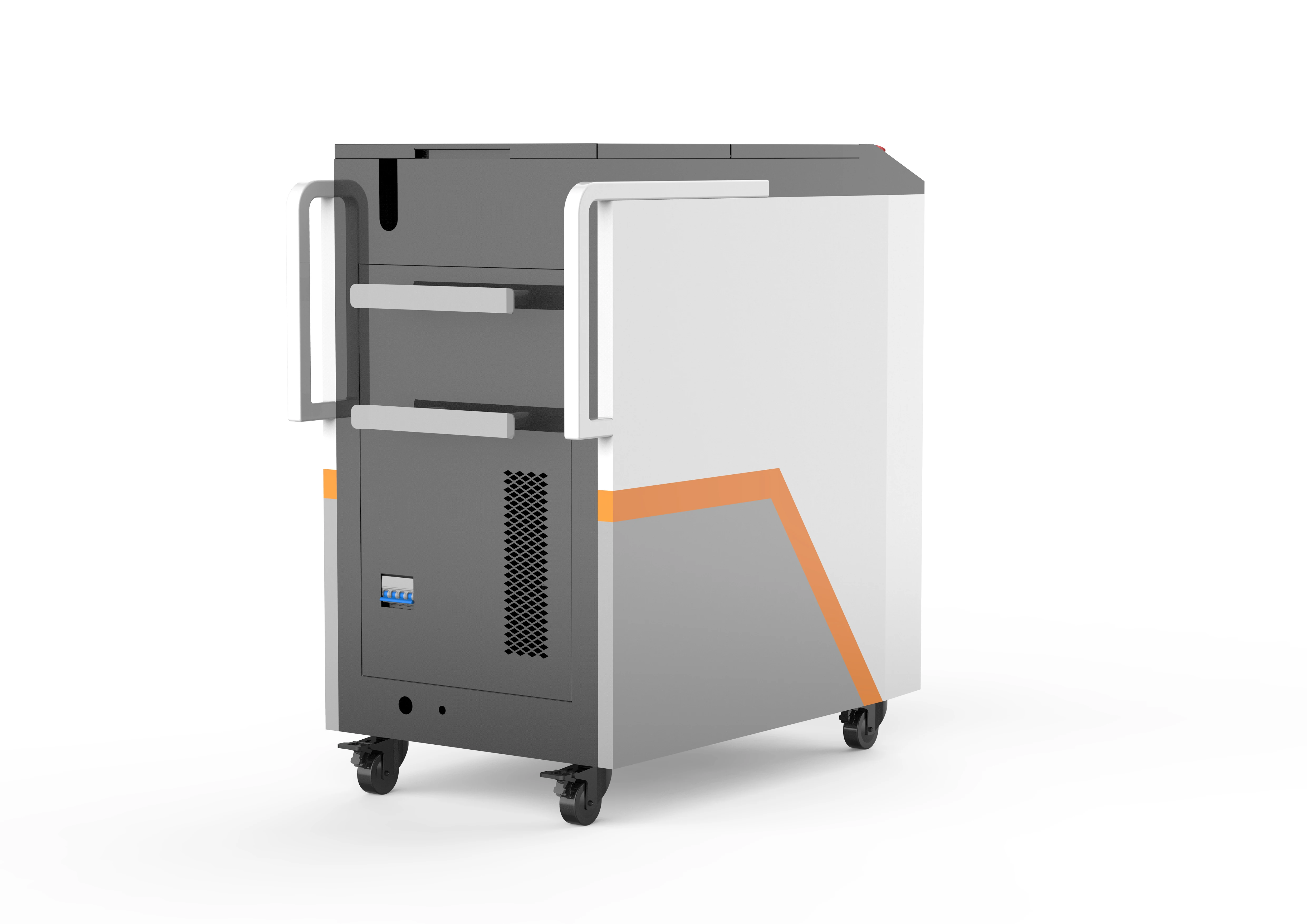

Handheld Portable Fiber Laser Cleaner for Metal Rust,Paint,Oil Removal
- Category: >>>
- Supplier: Jinan Xintian Technology Co. Ltd.
Share on (62567337680):
Product Overview
Description
Product Description
Product Application
Hot selling items CNC factory rust removal laser cleaning machine is new generation high-tech product for surface cleaning. Easy to install and operate. It can be automation. Simple handle with electricity. It can be used without any chemicals, medium and water when use. Auto-focusing, hook cleaning and high cleanliness are its advantages. It can clear the grease , oil fouling, blot, dirt, rust , clad layer, paint, dust, coating residuum in the surface of the products.
Model | XTC-50W | XTC-70W | XTC-100 W | XTC-200W | XTC-300W | XTC-500W | |||||
Laser work media | YB Fiber\t | ||||||||||
Laser power | 50W | 70W\t | 100W | 200W | 300W | 500W | |||||
Laser wavelength | 1064nm\t | ||||||||||
Pulse frequency | 20-100KHz | 20-200KHz | 20-50KHz | ||||||||
Type of cooling | Air-Cooling | Water-Cooling | |||||||||
Cooling water | ---------------- | Deionized water | |||||||||
Water Temperature | ---------------- | 19℃\t | |||||||||

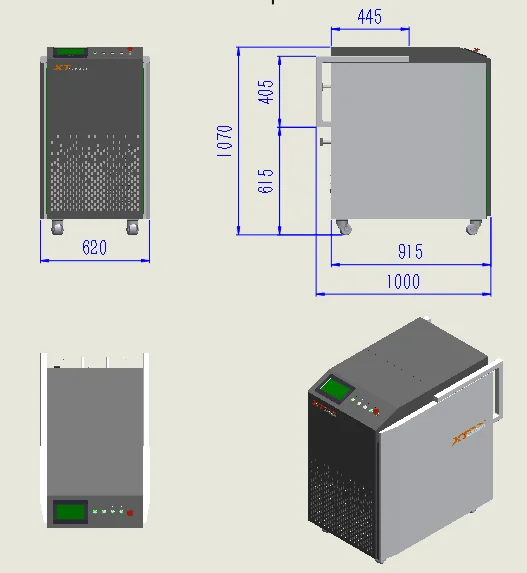

Dimensions | 760mmX780X790mm | 820*1280*1390mm | 820*1280*1390mm | 1100x1250x1300mm | |||||||
Total weight | 56kg | 60kg | 65kg\t | 220kg | 230kg | 350kg | |||||
Total power | 400W | 600W | 800W\t | 2200W | 3200W\t | 6000W | |||||
Scan width | 10-80mm/10-200mm | 10-80mm | |||||||||
Operation Method | Handheld/Automatic\t | ||||||||||
Work Temperature | 5-40℃ | ||||||||||
Superiority of Hot selling items CNC factory rust removal laser cleaning machine
1.The domestic first high power fiber laser cleaning Machine
2.Non-Contact cleaning , no-hurt to materials
3.Accurate cleaning, position and size, alternative cleaning
4.Safe and environmental, no any cleanout fluid and consumable when use
5.Simple operation, With electricity, handheld or automation cleaning with robot .
6.Efficient cleaning and save time.
7.Stable laser cleaning system . Almost no maintain.
Application Area
A.The metal surface rust removal
B. The surface of paint removing
C. Oil fouling, blot and dirt of object cleaning.
D. Clad layer and coating removal
E. Solder Side ad coating surface preprocess
F. Dust and attachments of statues surface
G. Residuum of rubber mold cleaning

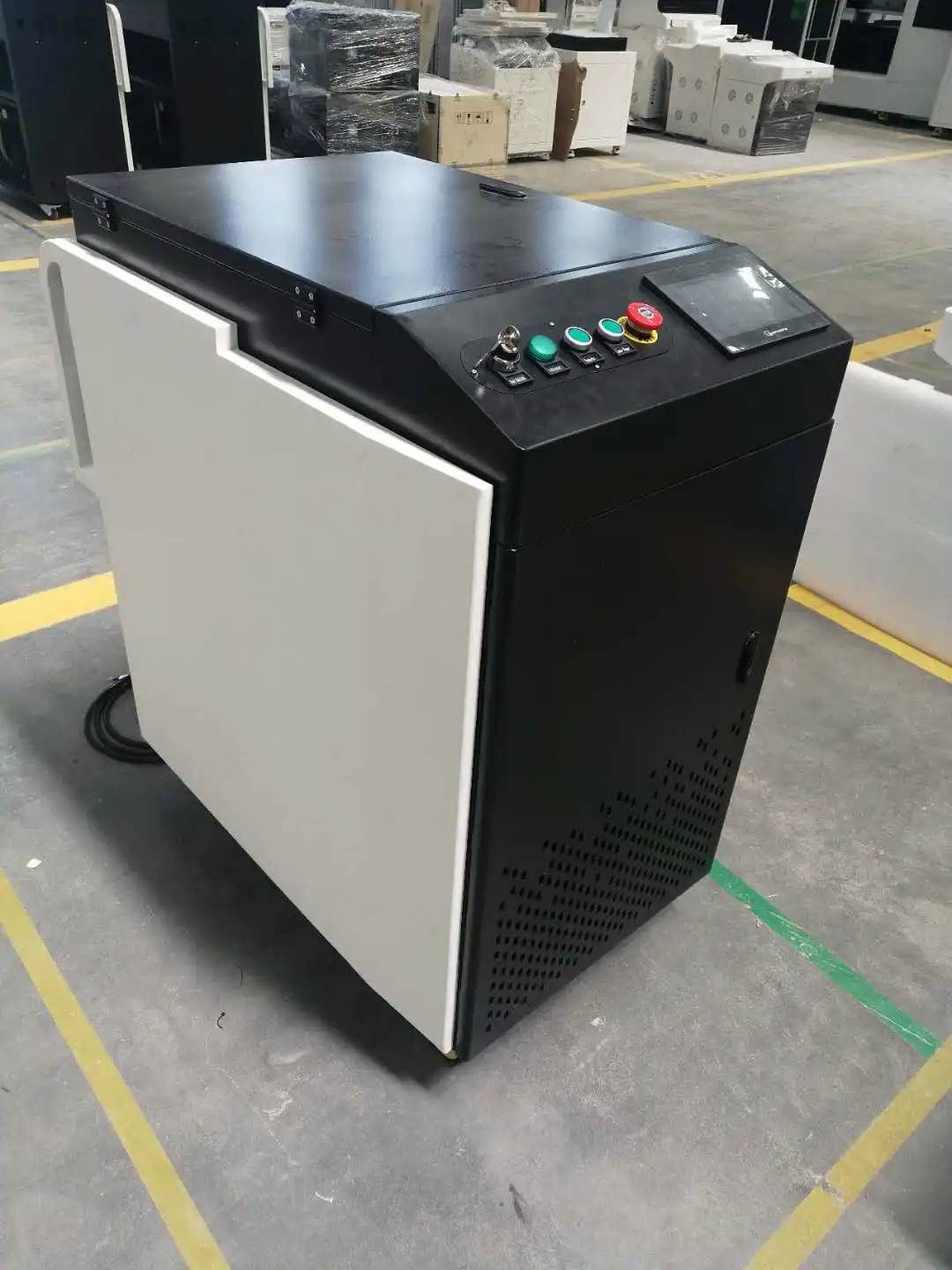

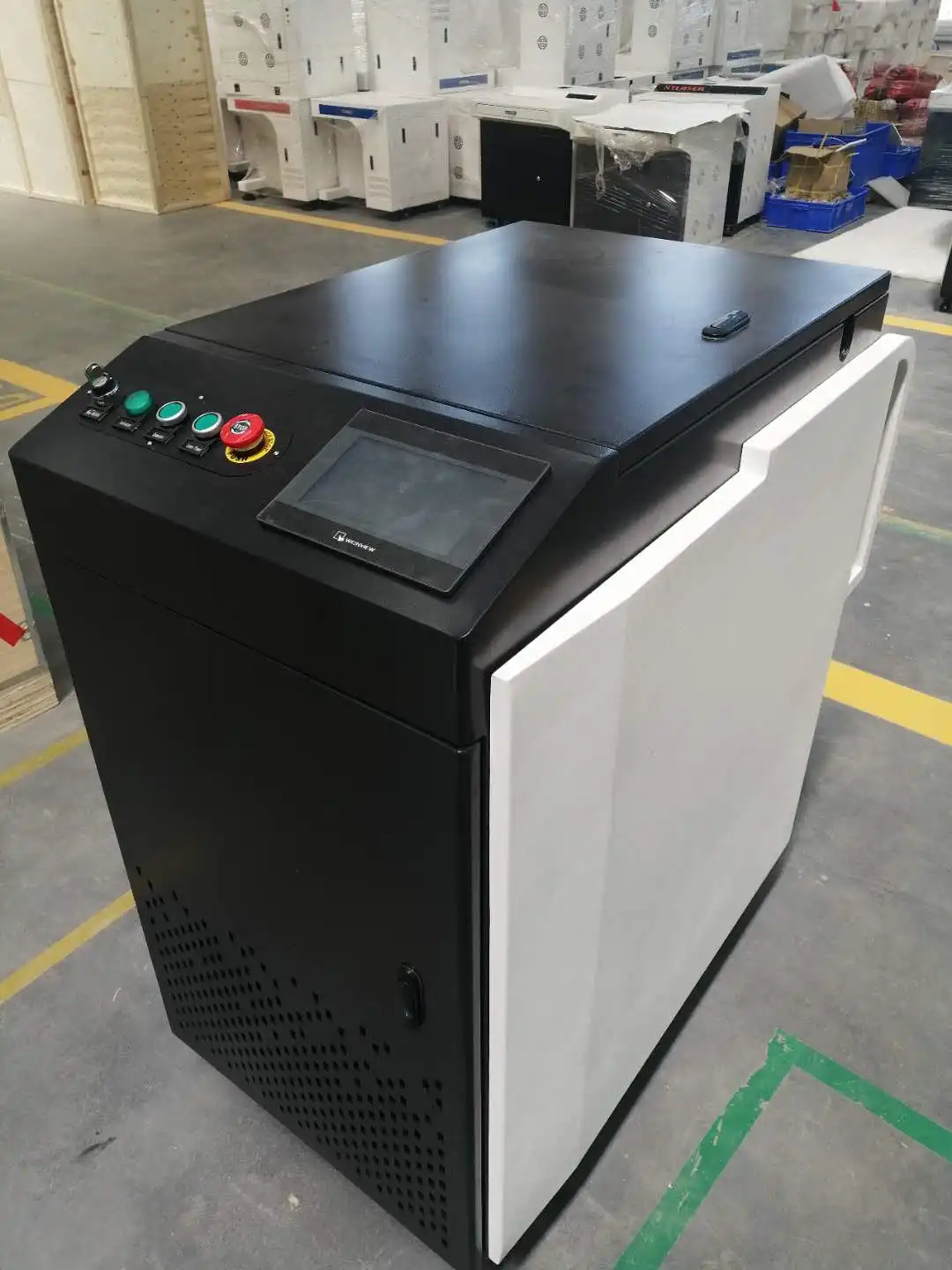

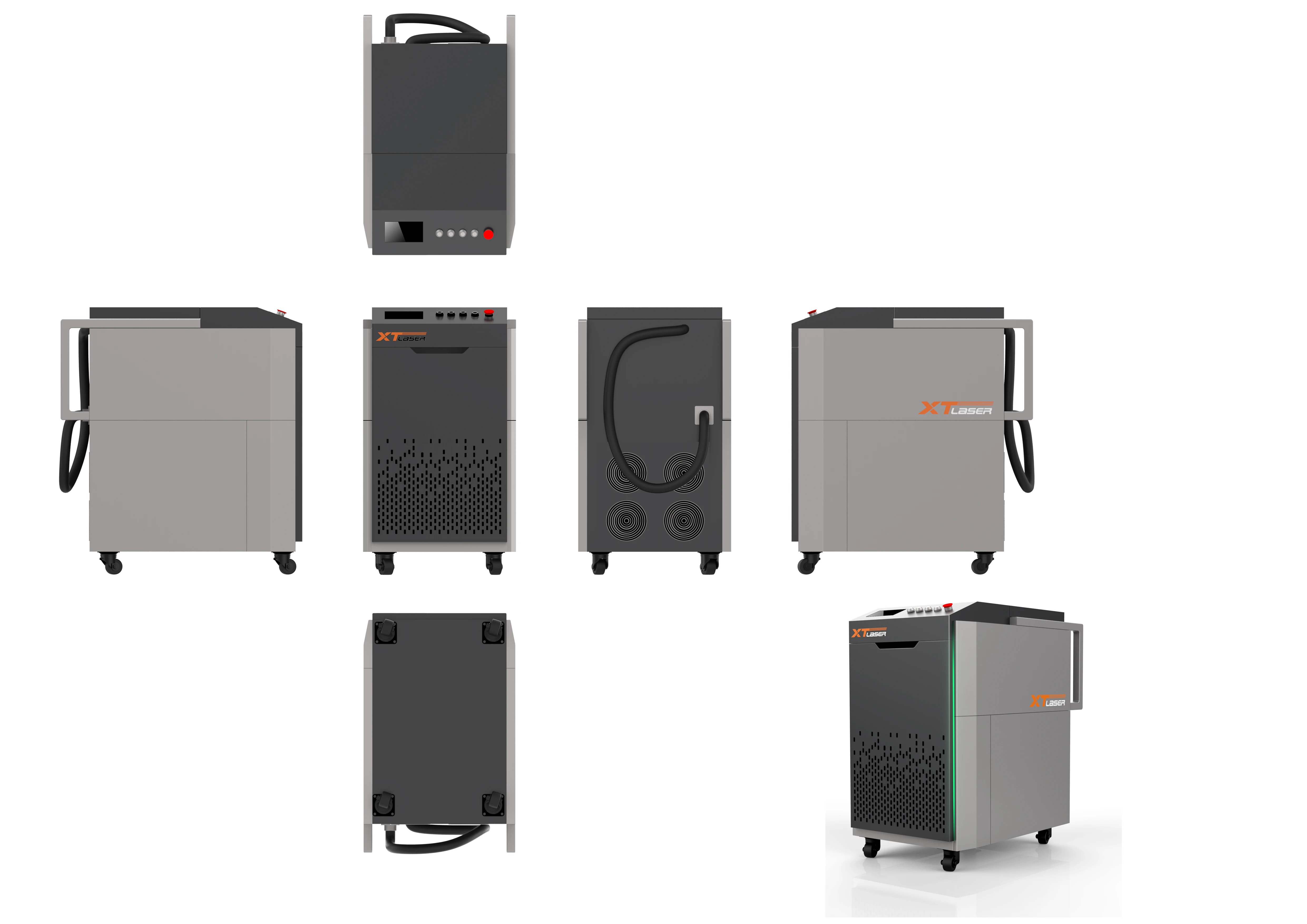

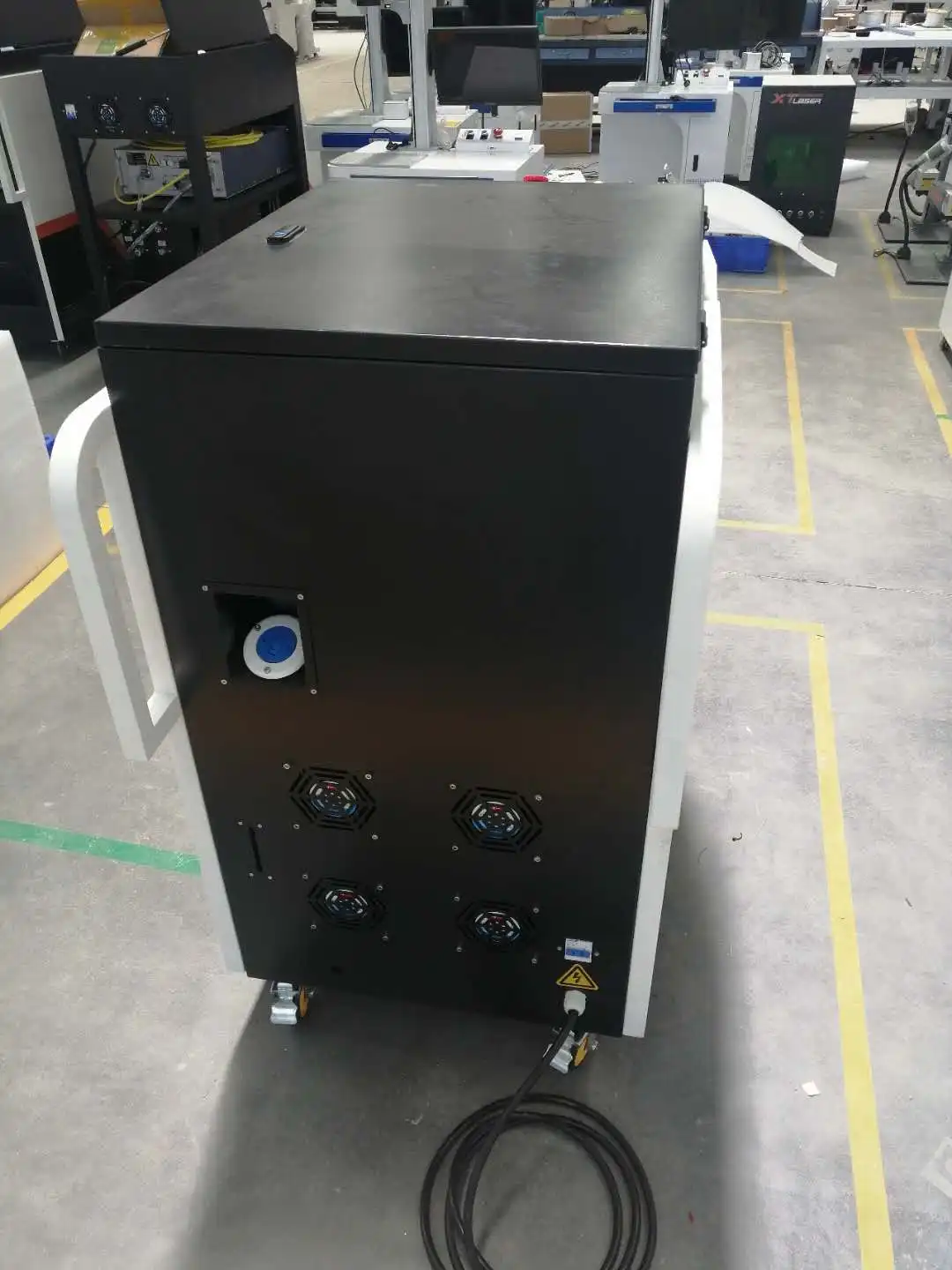

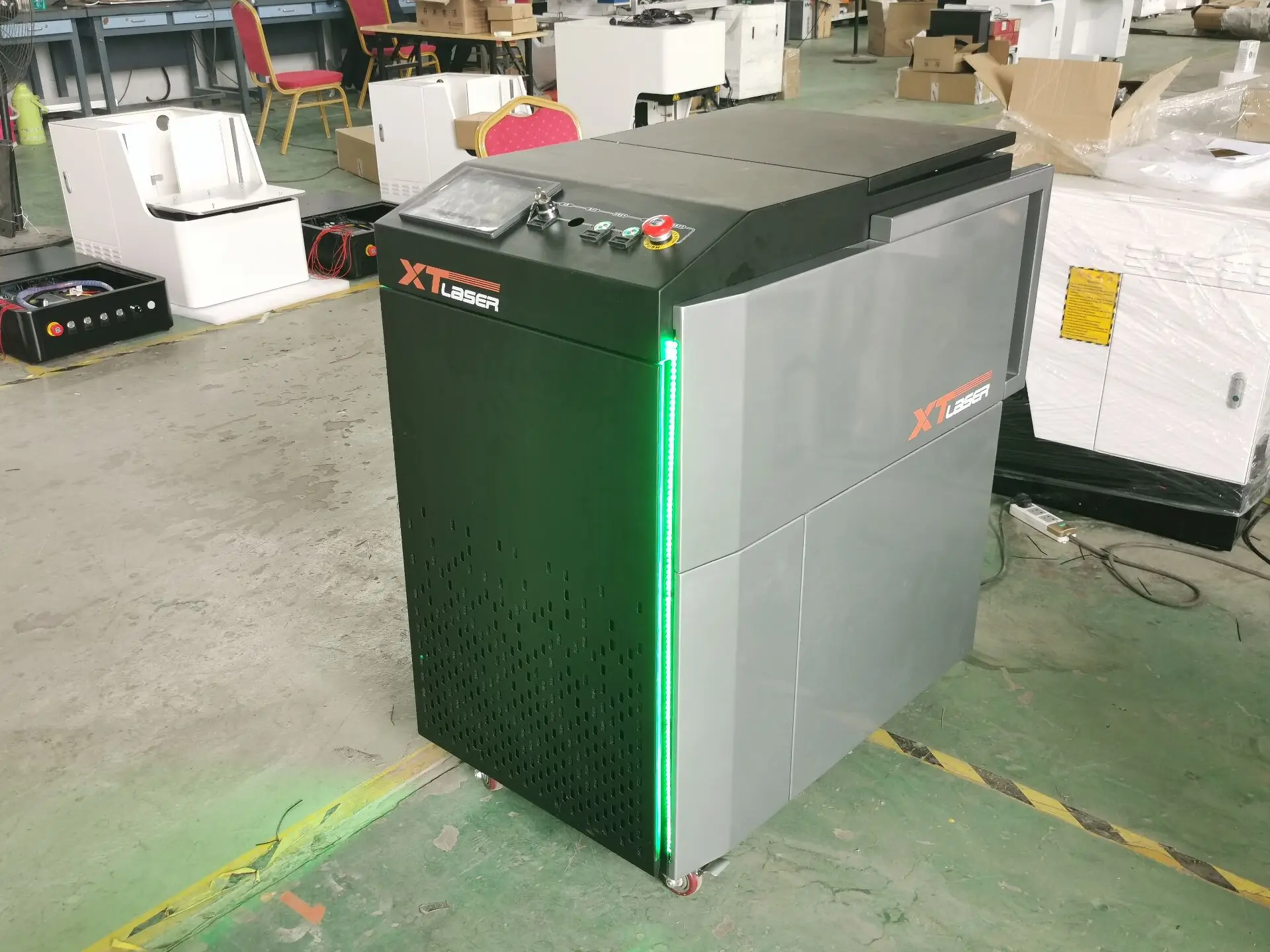

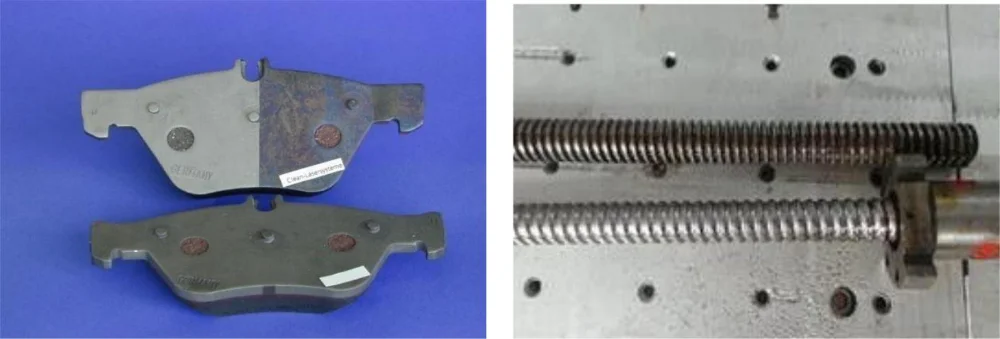

Detailed Images

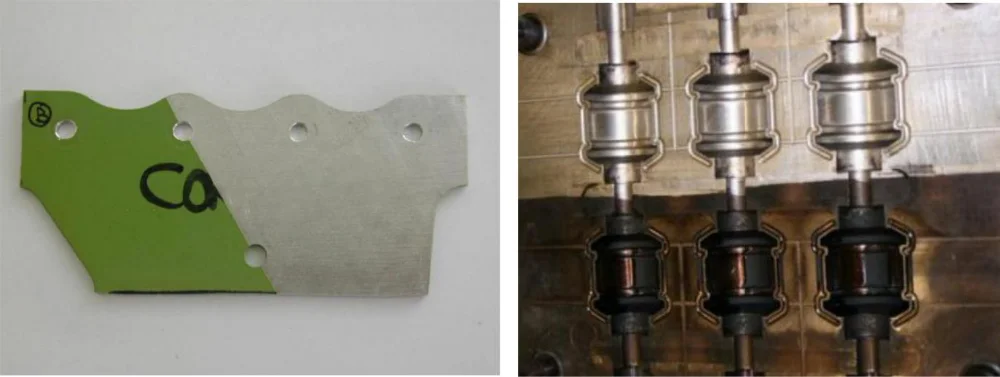

To remove paint
To remove oil fouling
To remove oxide layer
To clean screw

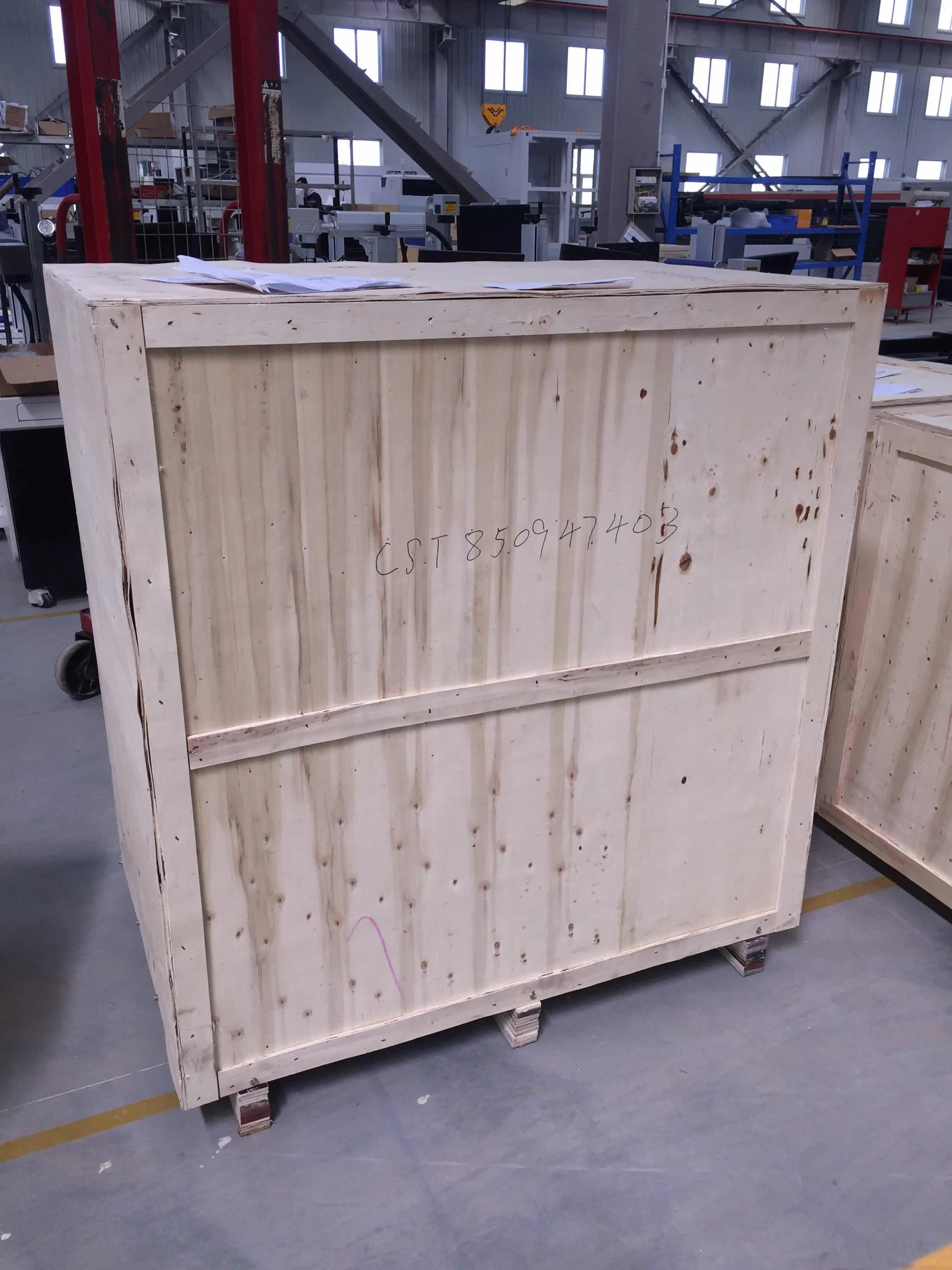

Package and shipment
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
