Helical Suspension Set for ADSS

Product Description

Helical Suspension Set for ADSS is mainly used for hanging and supporting optical cable on straight tower/pole, to transfer axial load and divert axial pressure and provide well protection for optical cable, it also protect ADSS from emergencies caused by too small bending radius or stress concentration. Grip strength of the Suspension Set is larger than 15%-20% of ADSS rated tensile strength; it is fatigue resistance and can serve as vibration reduction.

Applications

• Short Span Suspension Set for ADSS cable is mainly used for span length within 100m; Single layer Suspension Set is mainly used for span length between 100m and 200m.

• If Suspension Set for ADSS is adopted double layers helical rods designing, generally it is used for 200m span length ADSS installation.

• Double Suspension Sets for ADSS cable is mainly used for ADSS installation on pole/tower with large falling head, and span length is larger than 800 meters or line corner is more than 30° .

Characteristics

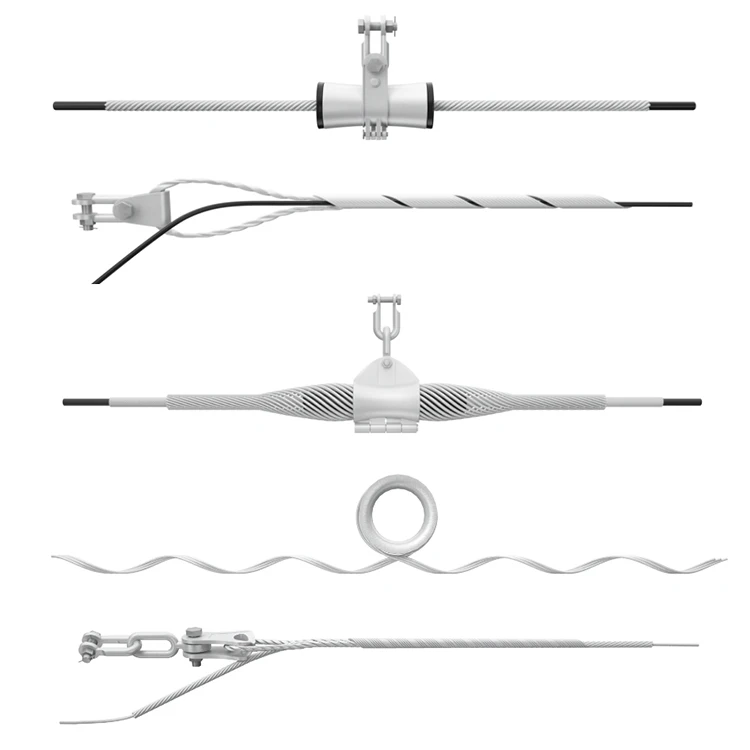

Helical Suspension Set for ADSS is divided into several kinds in according to ADSS span length, includes Short Span Suspension Set, Single Layer Suspension Set, Double Layers Single Point Suspension Set (abbreviation is Single Suspension), and Dual Point Suspension Set (abbreviation is Double Suspension).

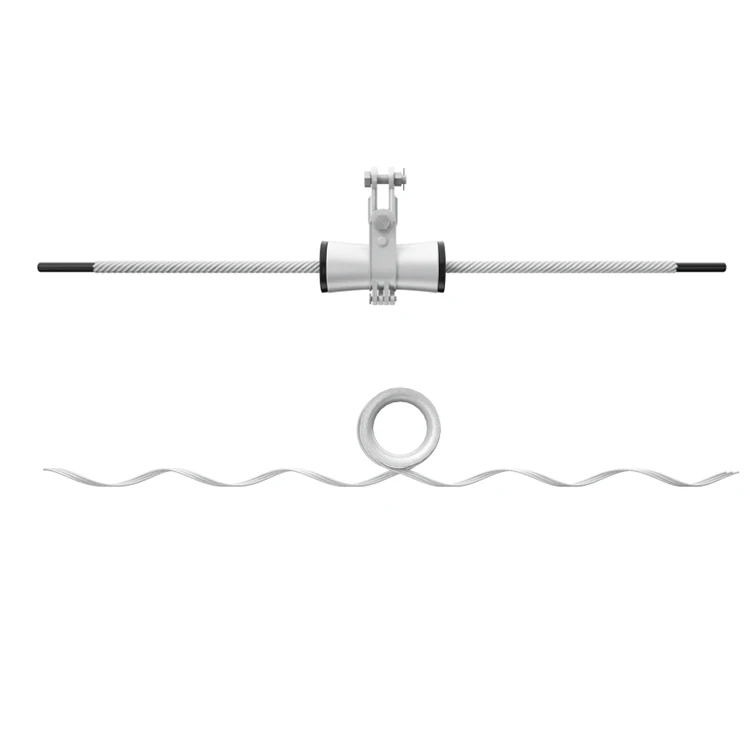

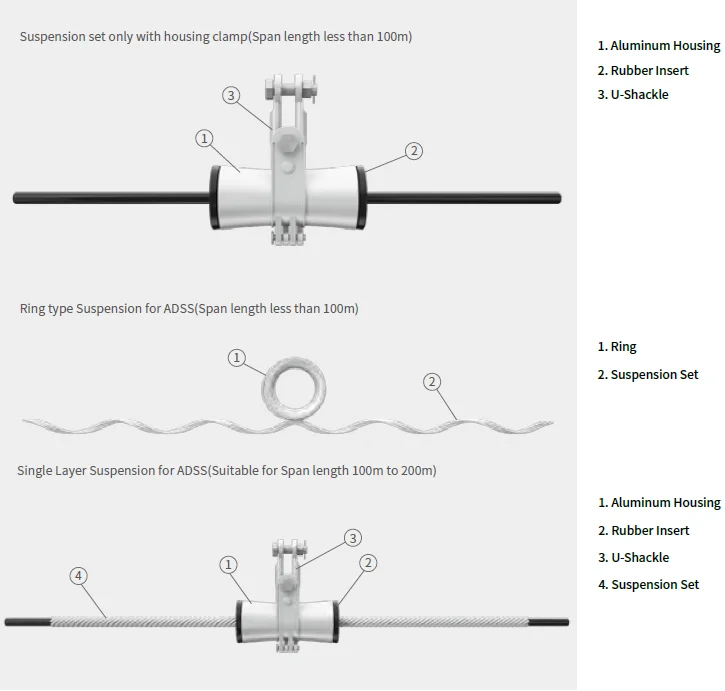

Short Span Suspension Set and Single Layer Suspension Set

Specification

Note:

· The symbols of‘XQA’are: X-suspension set, Q-tangent clamp, A-apply to ADSS cable

· The symbols of‘XJBA’are: X-suspension set, J-helical rods, B-ring type suspension, A-apply to ADSS cable

· The symbols of‘XDA’are: X-suspension set, D-single layer preformed rods, A-apply to ADSS cable

· The products are beyond the schedule, if need more please contact our company freely.

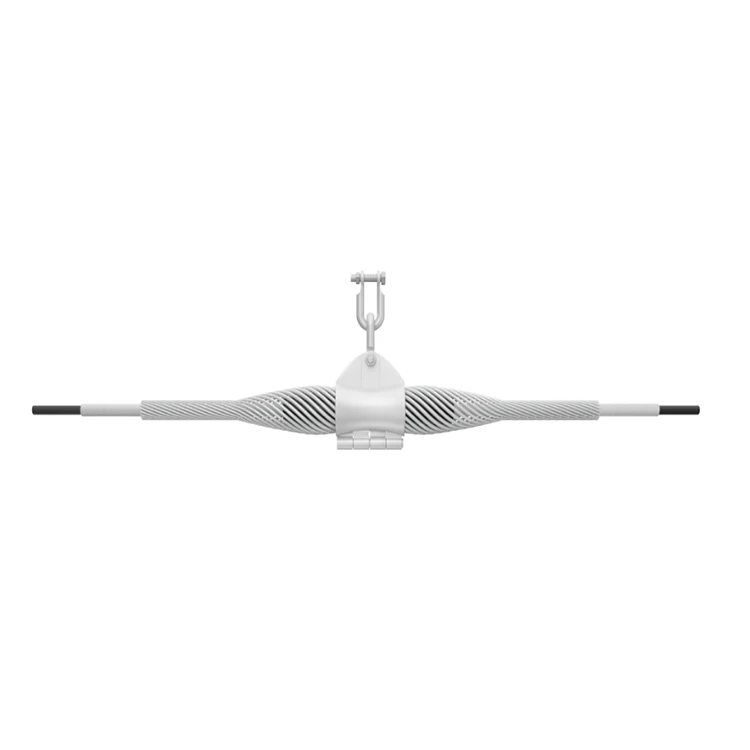

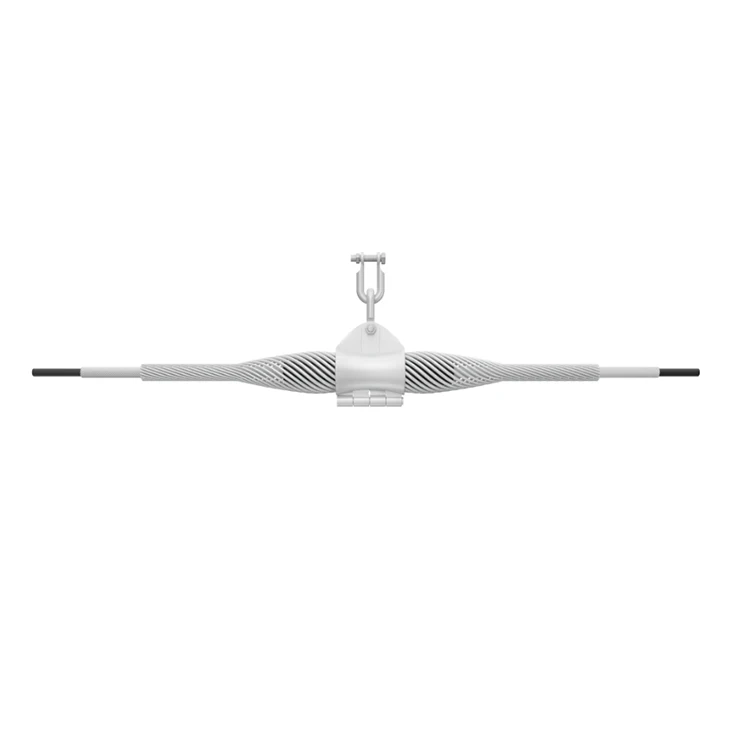

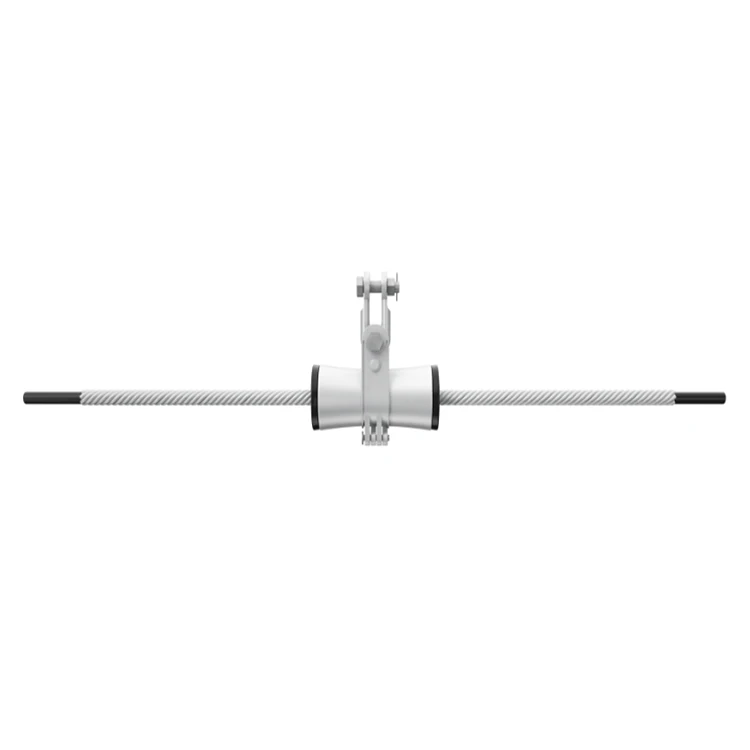

Single Suspension Set for ADSS

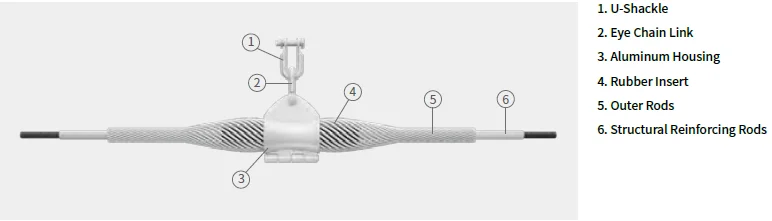

Suspension set for ADSS is composed by aluminum alloy helical rods, Aluminum housing and other link fittings.

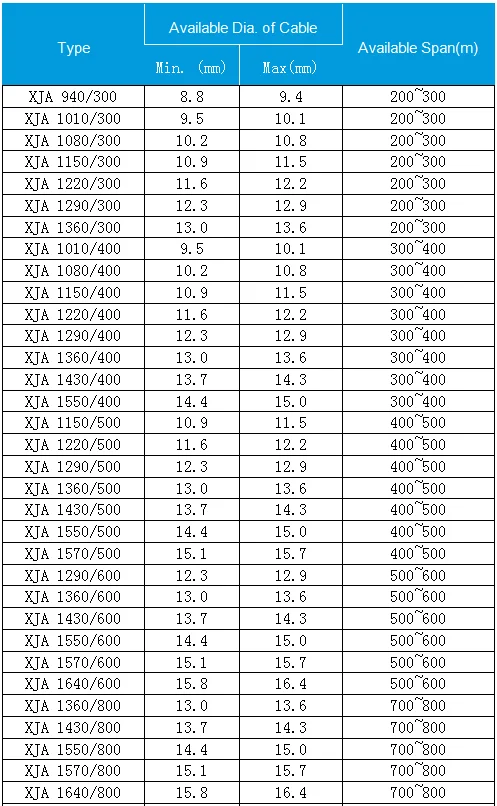

Specification

Note:

·         The symbols of‘NJA’are: N-tension set, J-helical rods, A-apply to ADSS cable.

·         The products are beyond the schedule, if need more please contact our company freely.

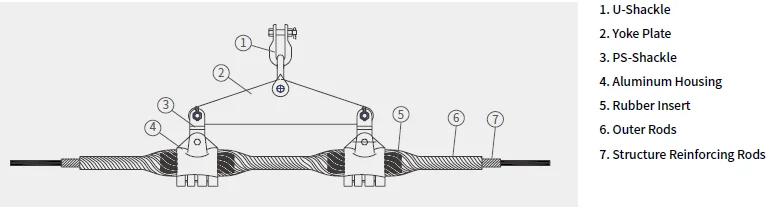

Double Suspension Sets for ADSS

Specification

Note:

·         The symbols of‘NJA’are: N-tension set, J-helical rods, A-apply to ADSS cable.

·         The products are beyond the schedule, if need more please contact our company freely.

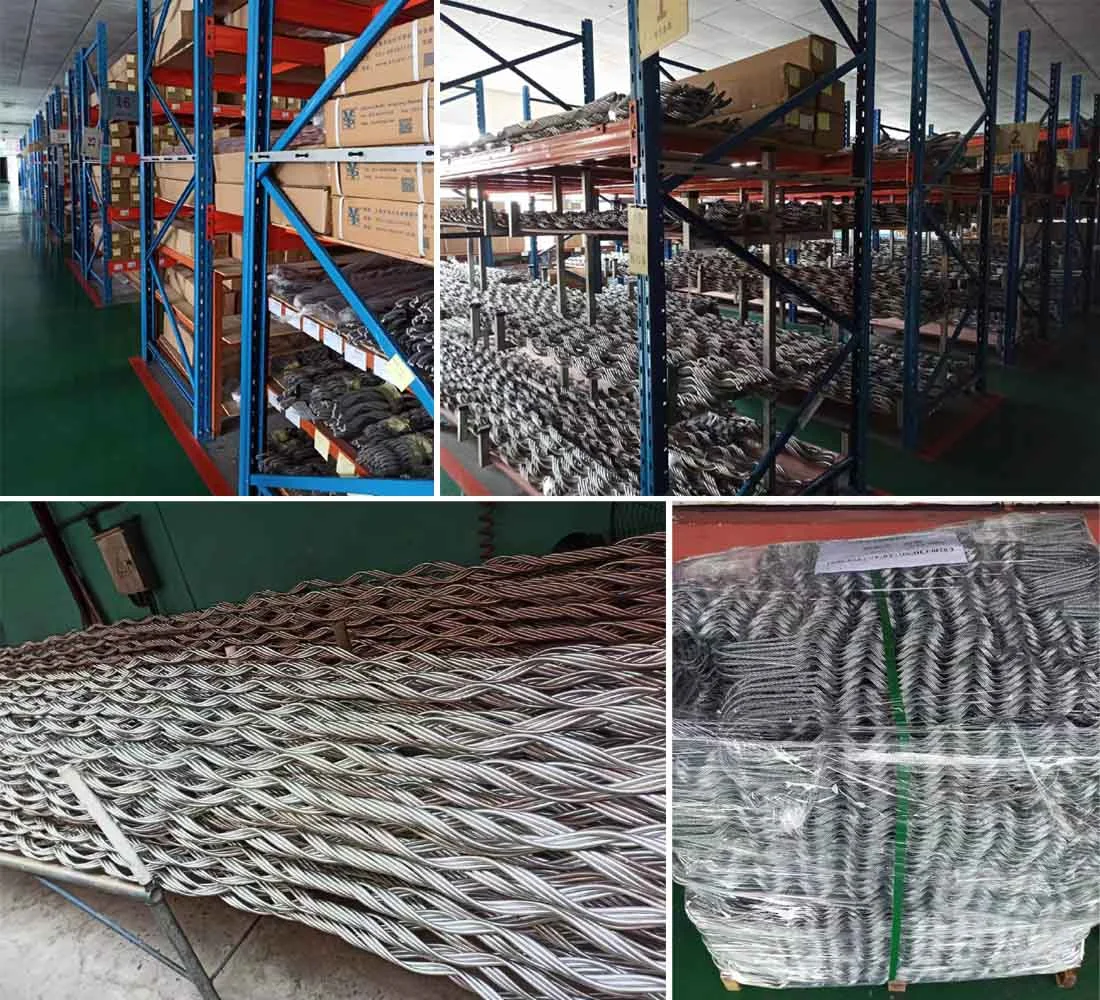

The products are packed in carton.

During transportation, right tools should be used to avoid damaging the package and to handle with ease. Products should be protected from moisture; kept away from high temperature and fire sparks; protected from over bending and crushing; protected from mechanical stress and damage.
