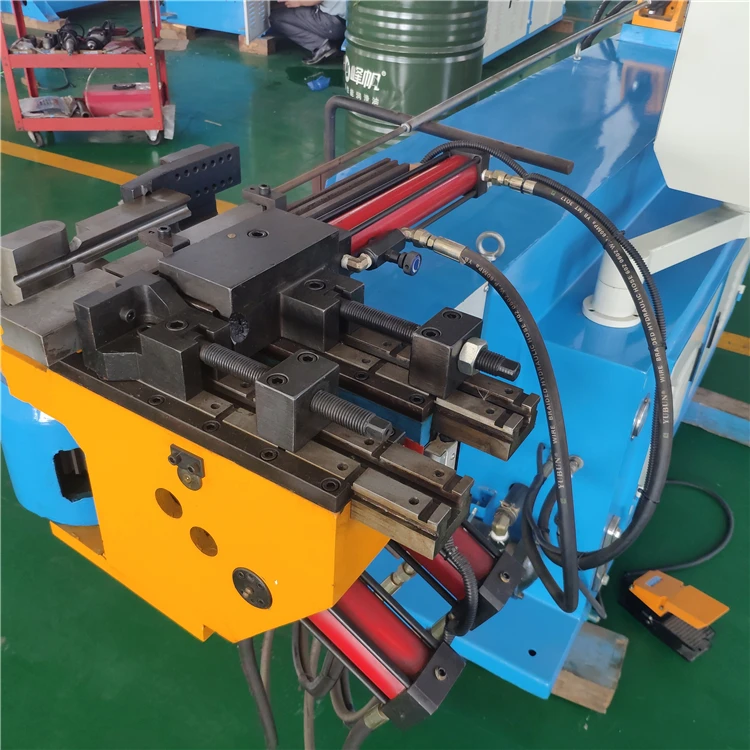

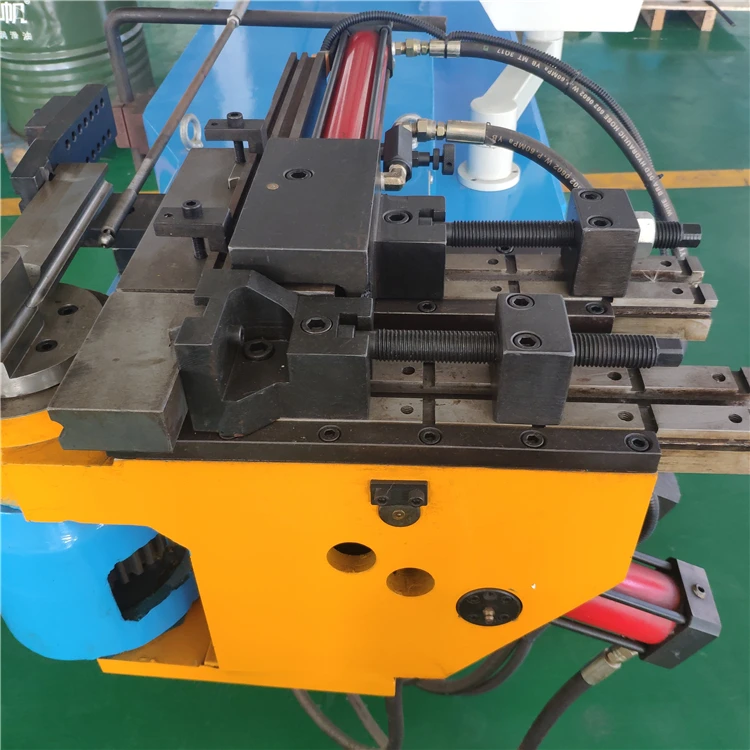

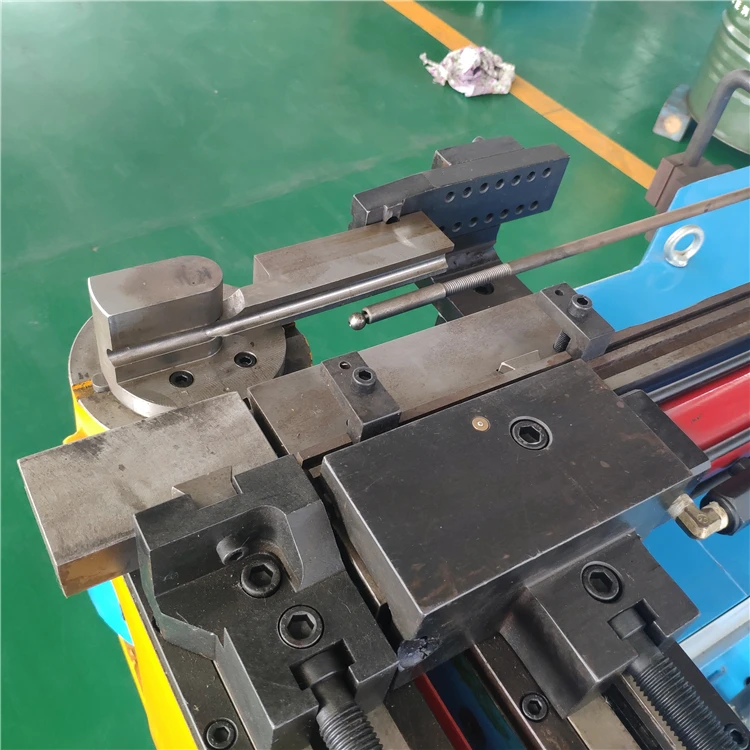

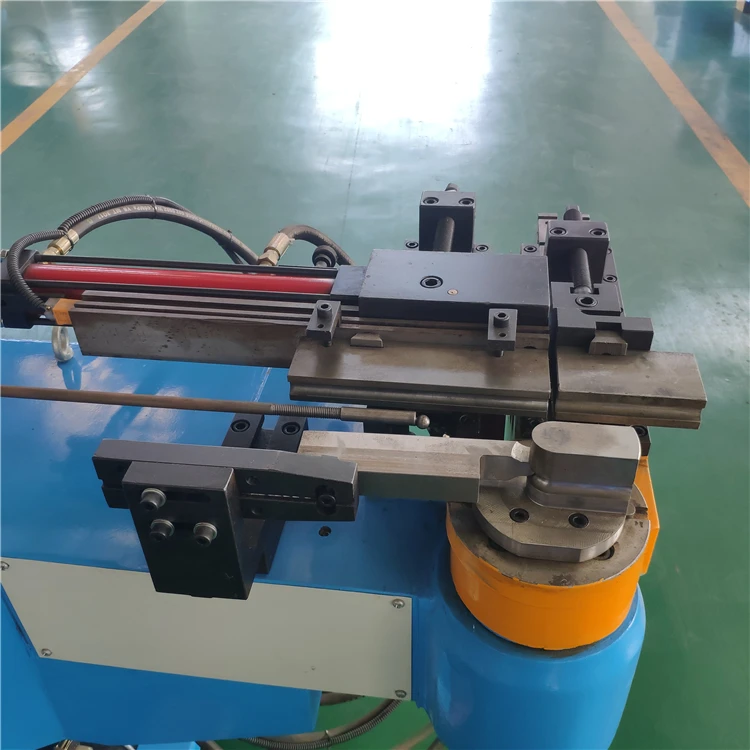

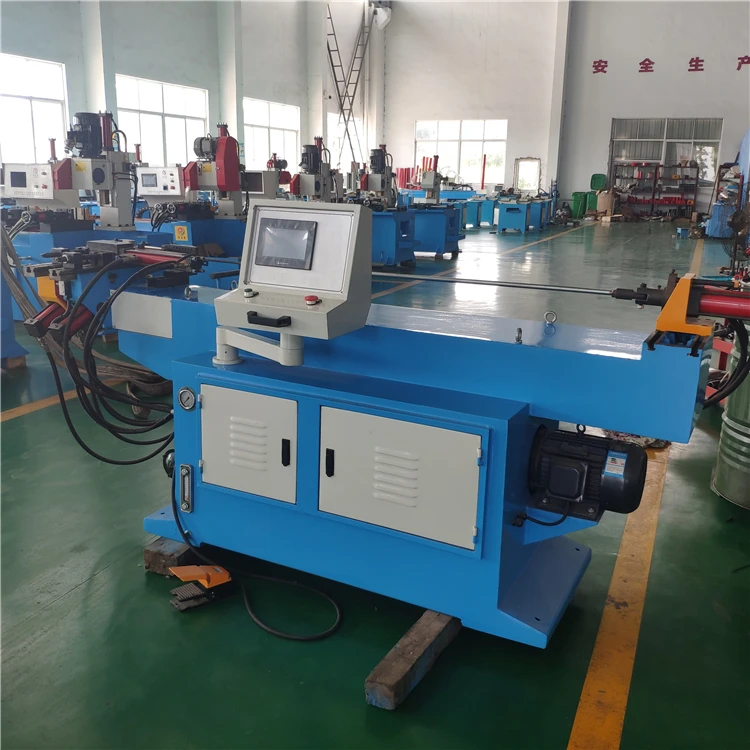

DW38NC hydraulic bending machine specification

Model DW38NC
Maximum bending pipe diameter x thickness Φ38mm×2mm
Maximum bending radius R260
Minimum bending radius According to the pipediameter
The largest bending angle 190°
Motor power 4kw
Number of elbow bending pipe 16
Number of storable parts 16x16
Standard core length 1600
Control System NC control
Hydraulic system control The electromagnetic valve
Max hydraulic pressure 12MPa
Weight of machine 750Kg
Measurement size of machine 2600×600×1000mm
Fuel tank capacity 110


FEATURES

-This machine adopts NC control ,hydraulic drive,with a variety of different prefabricated angle

-Chinese &English subtitles display ,Human-machine dialogue types operation ,can choose manual,semi-automatic coperation mode

-Mobile foot switch with both start and stop functions

-With a large-capacity cooling system,effectively control of operating temperature

-The whole machine has the characteristics of convenient operation equipment for the tube processing industry
