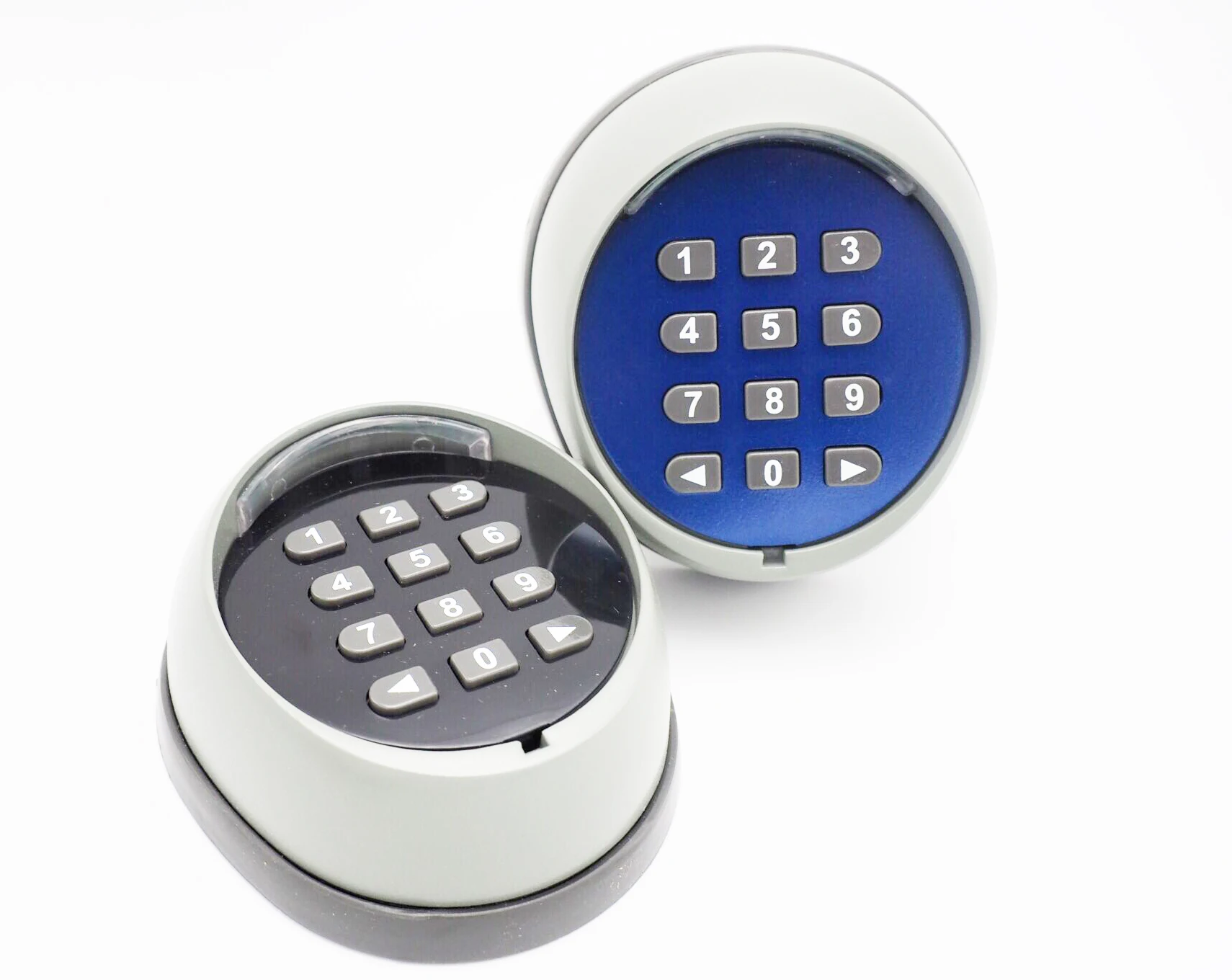

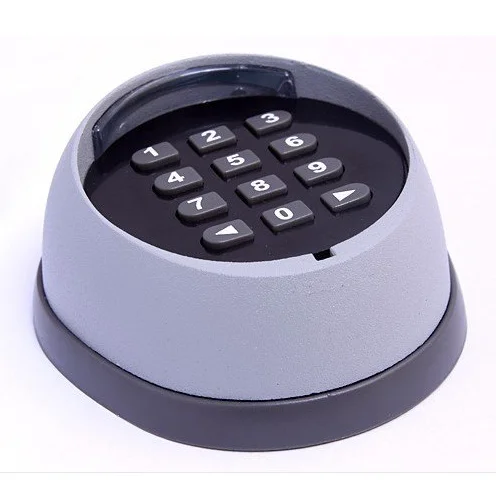

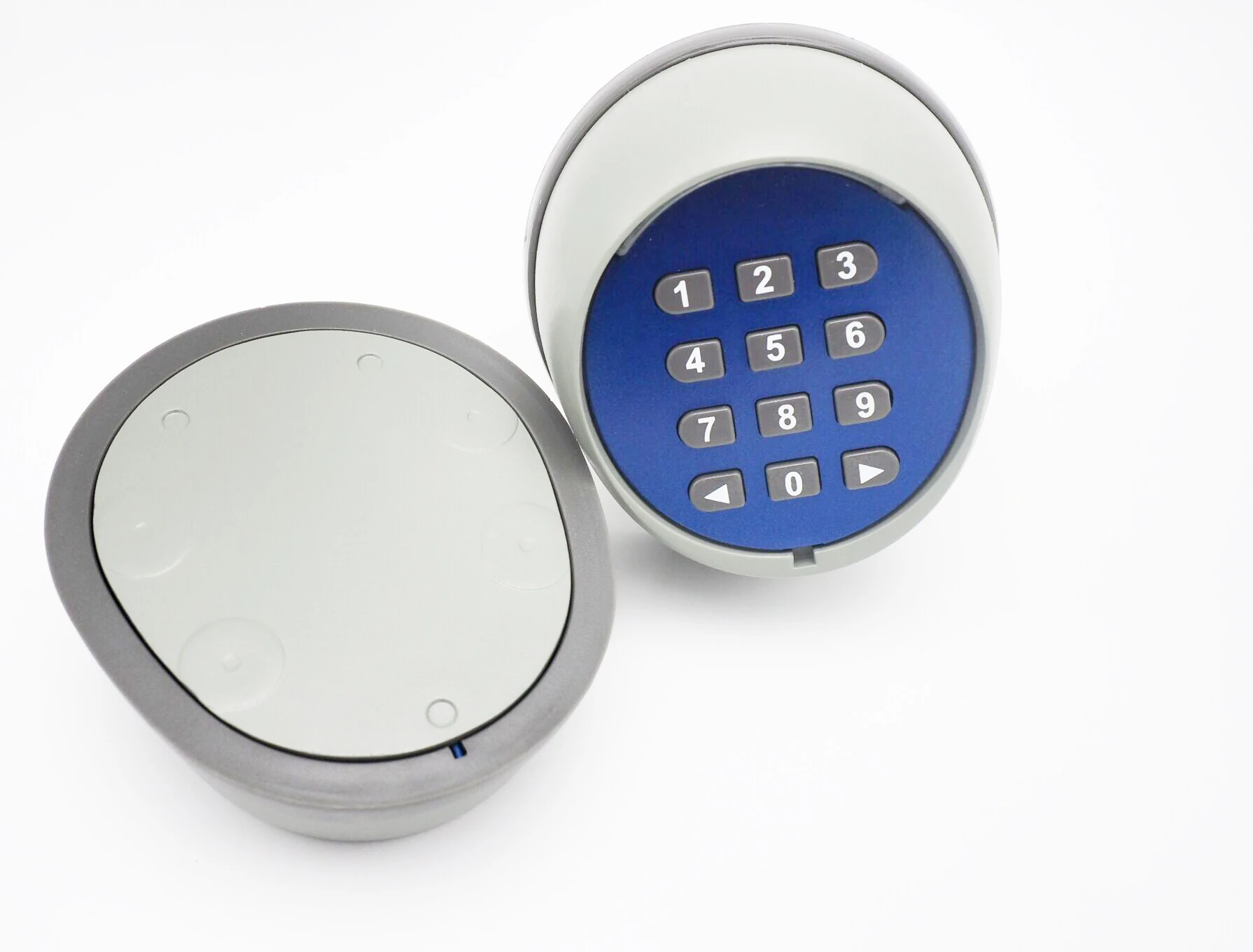

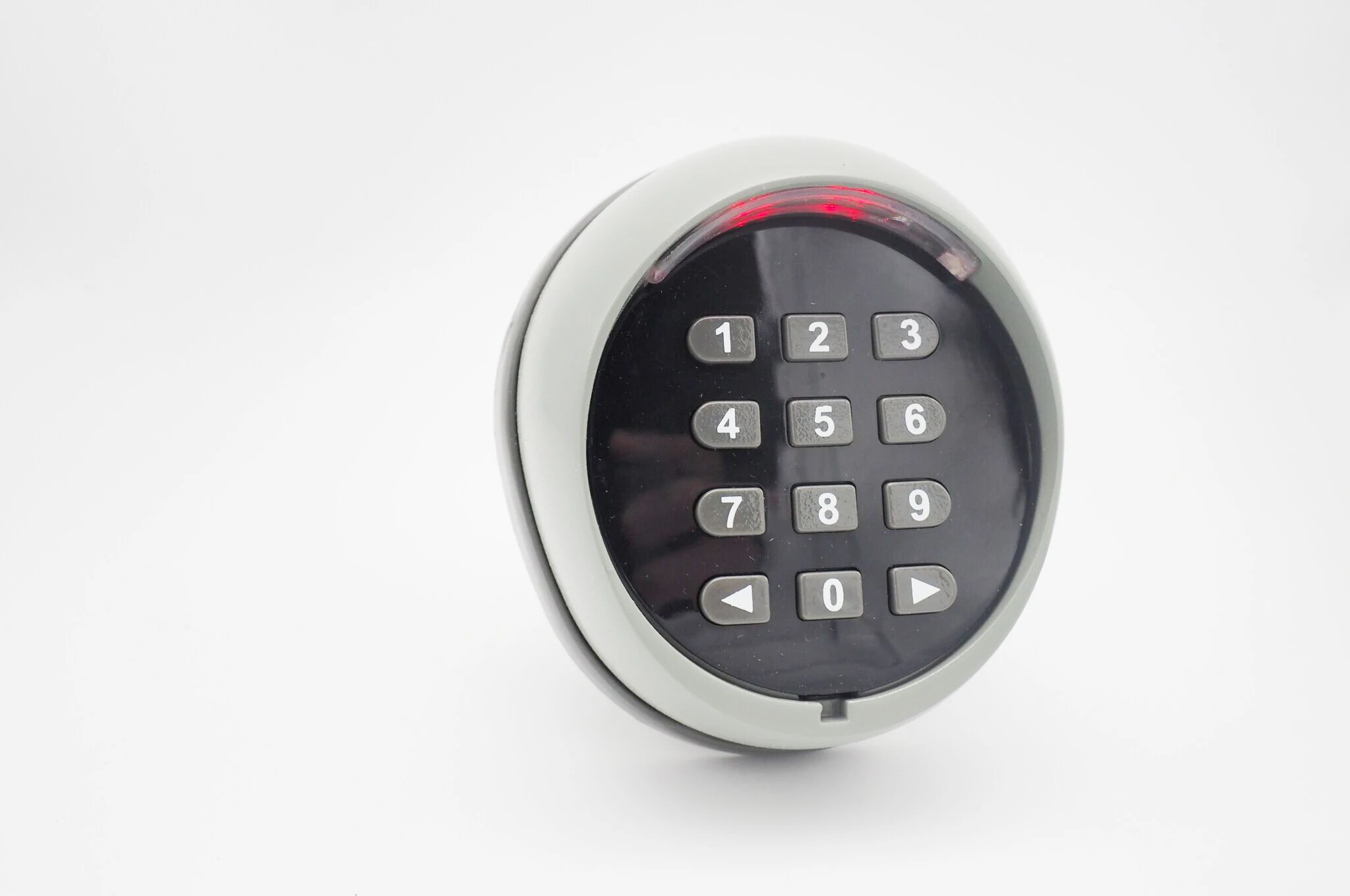

433Mhz remote control keypads for doors wireless numeric keypad outdoor keypad door lock  KP-01

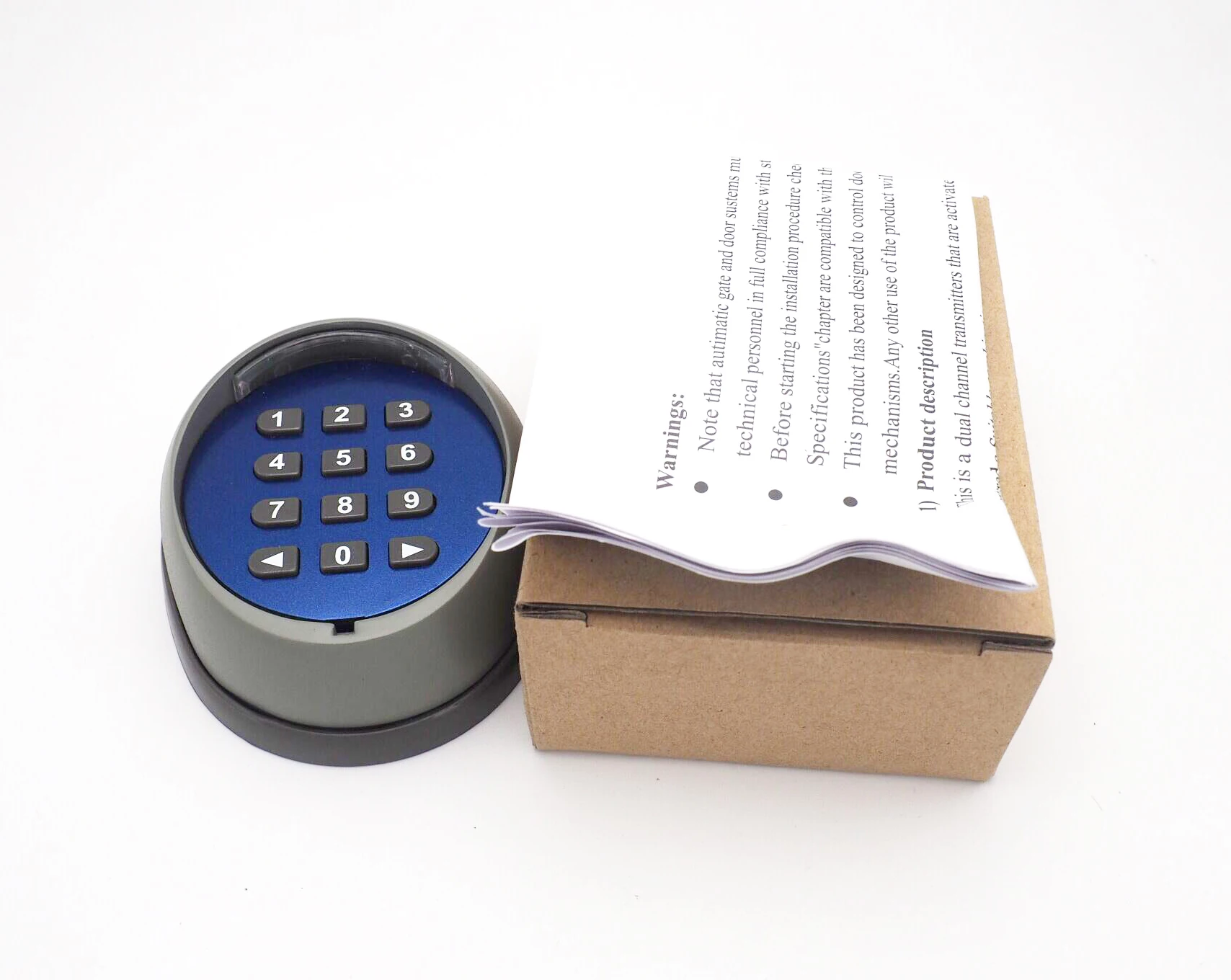

Warnings:

l  Note that autimatic gate and door sustems must be installed exclusively by qualified

    technical personnel in full compliance with statutory legislation.

l  Before starting the installation procedure check that the values given in the "Technical

    Specifications"chapter are compatible with the application.

l  This product has been designed to control door openers, gate openers and similar

    mechanisms.Any other use of the product will be considered improper.

1) Product description

This is a dual channel transmitters that are activated only after having

entered a Suitable combination.

The units are designed for installation in indoor or outdoor locations.

that ensures the utmost security because the transmitted code is changed at each

transmission session.

The estimated transmission range is 200 m in open space and 35 m indoors

The units are designed to ensure battery life equivalent to an estimated 2 years of oper-

ation considering 10 transmissions/day

Audible signal                            status

2) Installation

Before physically installing the it in their mouning position it is good practice to perform a practical test to assess their functionality and effective range.

Consider that range may be up to 25 or 30% less when battery power is low .

2.1) positioning

Apart from the distance from the receiver, the units should not be positioned in the vicinity of or-worsestill-in contact with metal structures, which could otherwise exert a signal shielding effect. Thanks to the enclosure protection rating of IP 54, the digital selectors can be installed outdoors if required.

3) Method of use

The use of the keypad is based on "combinations", i.e. numbers of from 1 to 9 digits that

the user is required to key in by means of the keys.Once the combination has been

Entered the user then presses confirm key 3or 4 to transmit the activation command

to, respectively.

-receiver channel 1 if the user presses 3

-receiver channel 2 if the user presses 4.

The command will be transmitted only when a valid combination has been entered - if an

incorrect combination has been entered the selector will emit an error, warning signal

when the confirom key is pressed . The combination entered must be exact,if, for exam-

ple ,the correct combination is 0422, the following attempts will be interpreted as errors:

422, 10422, 04222. Therefore, if the user inadvertently presses the wrong key when

entering a combination, combination key3or 4should be pressed immedliately to gen-

erate the error tone , after which the correct combination can be entered starting from the

beginning again.

While entering the combination no more than 6 seconds can be allowed to elapse

between keystrokes,after which interval the combination must be re-entered starting from

the beginning.

The units are factory programmed with a standard combination to activate channel one

and a standar combination for channel two.

The factory set combinations are as follows:

1ª combination to transmit the code associated with the 3key.

When the unit is used for the first time this combination is 11

2ª combination to transmit the code associated with the4 key.

When the unit is used for the first time this combination is 22.

 carton,100pcs per case,carton size:48*38*26cm GW=NW+1.8KG

Shipping

1) Express: DHL, FedEx, UPS, TNT, EMS, etc.

2) By air

3) By sea

4) By special line

5)Depends on buyer's requirement.

 1. Accept OEM, ODM &silk-screen printing you logo on the shell.

2. Response in 2 hours.

3. Experienced R&D staff.

4. Professional SMT equipments.

5. Accept payment via T/T, Paypal, Western Union

6. Delivery by DHL,UPS,FEDEX,TNT or by sea as your requirments.

For order

1).Accept OEM.

2).Print logo on the case.PCB board and pakage

3).Payment Details :30% deposite,70% balance before shipment. Payment accept T/T, Western union, PayPal, optional)

4).Minimum Order:100 pcs (accept trial order)

5).Delivery Details: within 2-5 days depends on order quantity.
