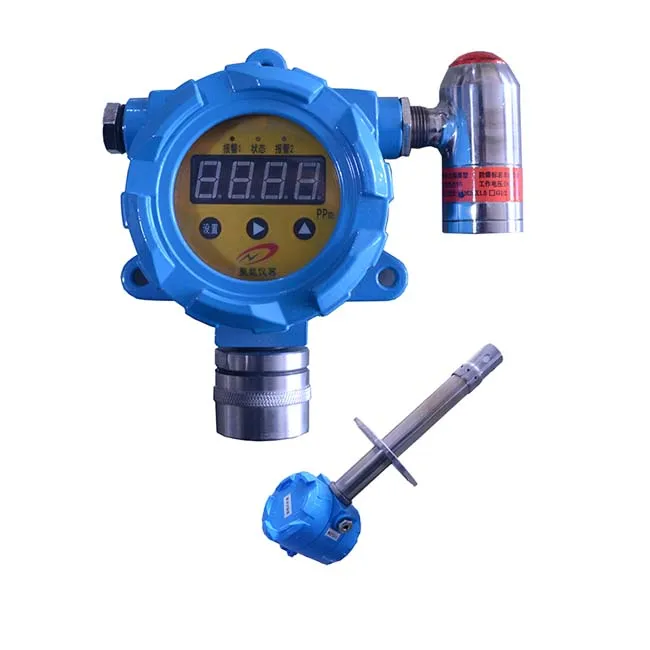

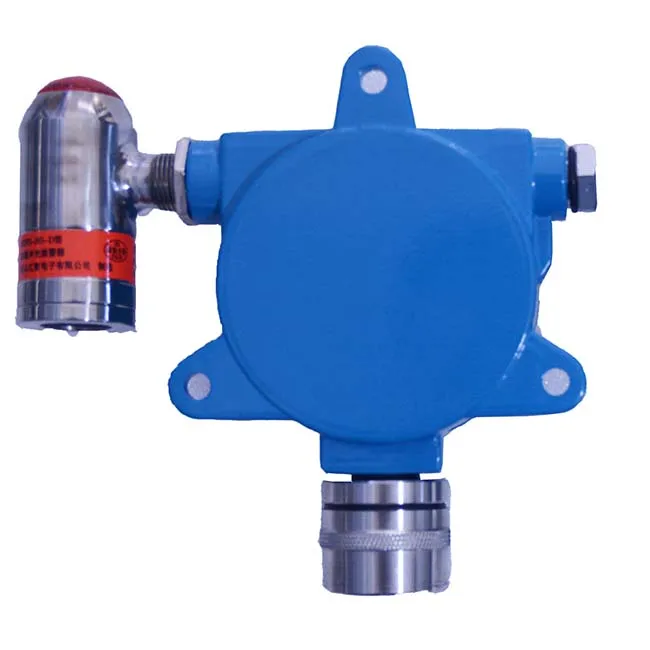

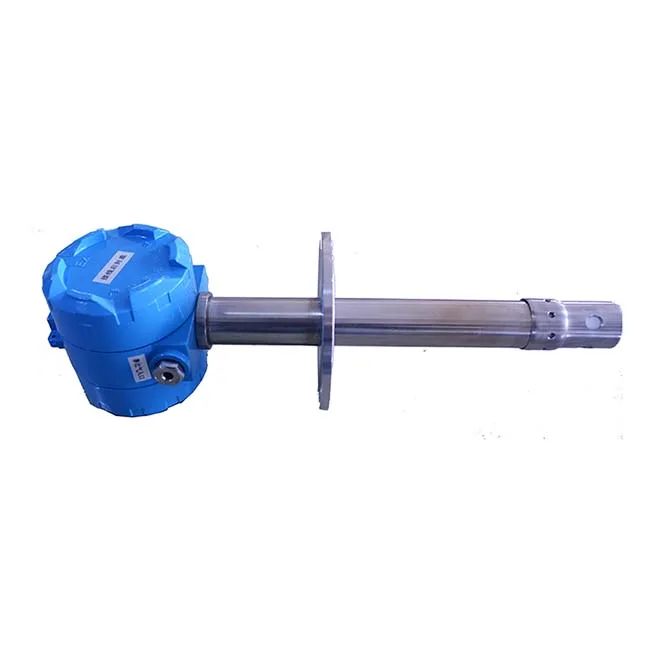

TR 1000 Professional Chemical Plant Ammonia Gas Meter

Features

Resistance to sulfide, silicones, chloride (excellent resistance to toxic)

CT sensor, long lifetime up to 3years

Standard signal output 4-20mA, long-distance signal transmission

Stationary explosion-proof housing, safe & reliable

Intelligent monitoring circuit with microcontrollers

Highly sensitive sensor, quick response, easy adjustment, work stablely

Technical Parameter

Test Principle:

Electro-chemistry, catalytic combustion

Test Method:

Diffussion

Signal Output:

Three-wire 4~20mA

Compatibility:

Match to all our gas alarm controllor, directly access into DCS or PLC as well

Signal Cable Size:

Three-core shielded cable, RVVP3*1.0mm² (choose 0.75~2.5mm² based on transmission distance)

Transmission Distance:

1000m

Work Voltage:

18VDC ~ 24VDC

Work Type:

Online

Response Time:

≤30s (T90)

Lifetime of sensor:

3 Years

Repeatability:

±1% LEL

Linearity:

1% F.S

Explosion-Proof Class:

ExdIICT6

IP Class:

IP66

Housing Materlal:

Anti-corrosion, anti-explosion cast aluminium housing

N.W:

1.45Kg

Work Condition

Temperature:

-20℃ ~ 70℃ (-4℉ ~ -94 ℉)

Humidity:

5~95% RH (Non-condensation state)

Application

Production area & storage area ETC,. Such as petroleum, petrochemical, chemical, coal mine, metallurgy, electricity, papermaking, fire control, municipal, medicine industry.

Model

Detecting Gas

Measuring Range

Accuracy

Principle

TR-1000

CO

0~1000 μmol/mol

≤±5% F.S

Electrochemical

C7H8

0~10 μmol/mol

NH3

0~10 μmol/mol

HCHO

0~10 μmol/mol

H2S

0~1000 μmol/mol

CL2

0~20 μmol/mol

H2

0~100 μmol/mol

HCL

0~50 μmol/mol

C2H4

0~20 μmol/mol

O3

0~1000 μmol/mol

HCN

0~100 μmol/mol

SO2

0~1000 μmol/mol

NO

0~1000 μmol/mol

NO2

0~1000 μmol/mol

HF

0~10 μmol/mol

F2

0~10 μmol/mol

PH3

0~1000 μmol/mol

C2H5OH

0~100 μmol/mol

CLO2

0~10 μmol/mol

CH3COOC2H5

0~1000 μmol/mol

TR-1022

Flammable Gas

0~100%LEL

Catalytic Combustion

TR-23

O2

0~25%

Electrochemical

Temperature:

-5℃~ 45℃

Humidity:

≤90% RH

Power Supply:

220VAC ± 10%, 50Hz ± 5%
