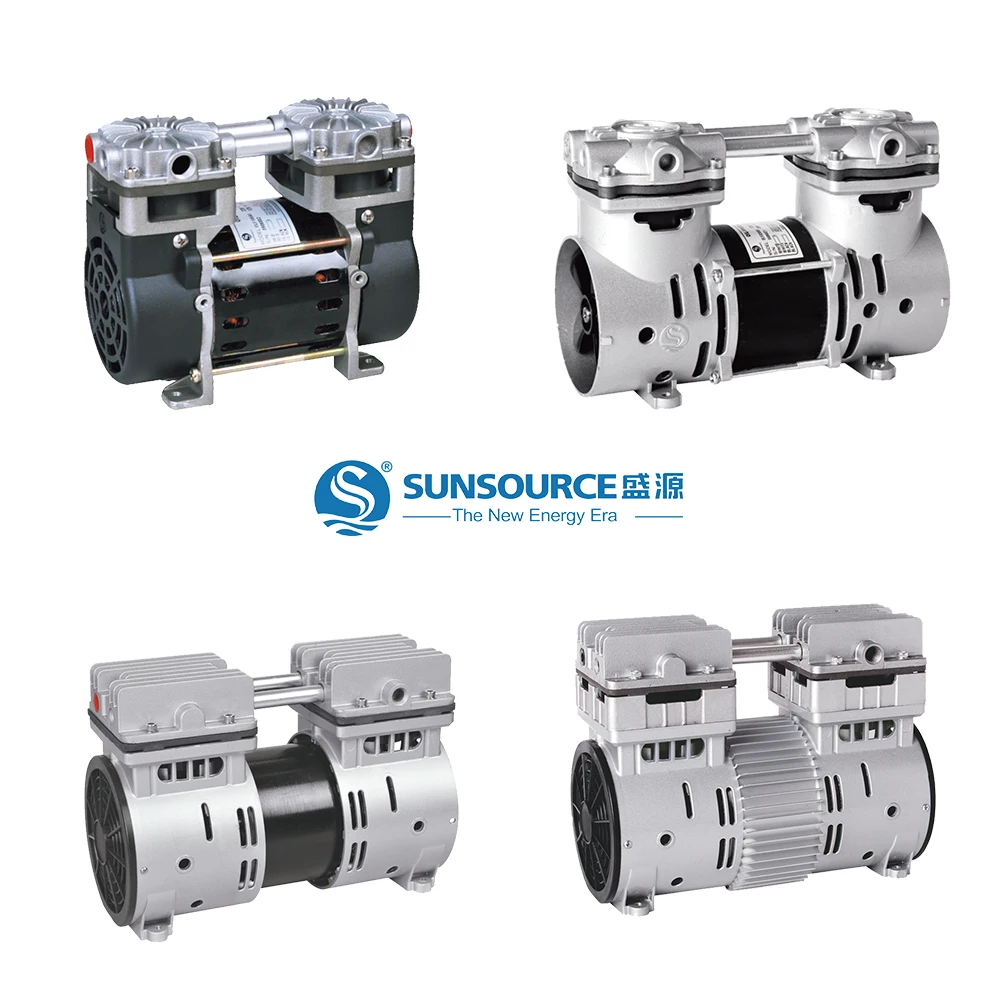

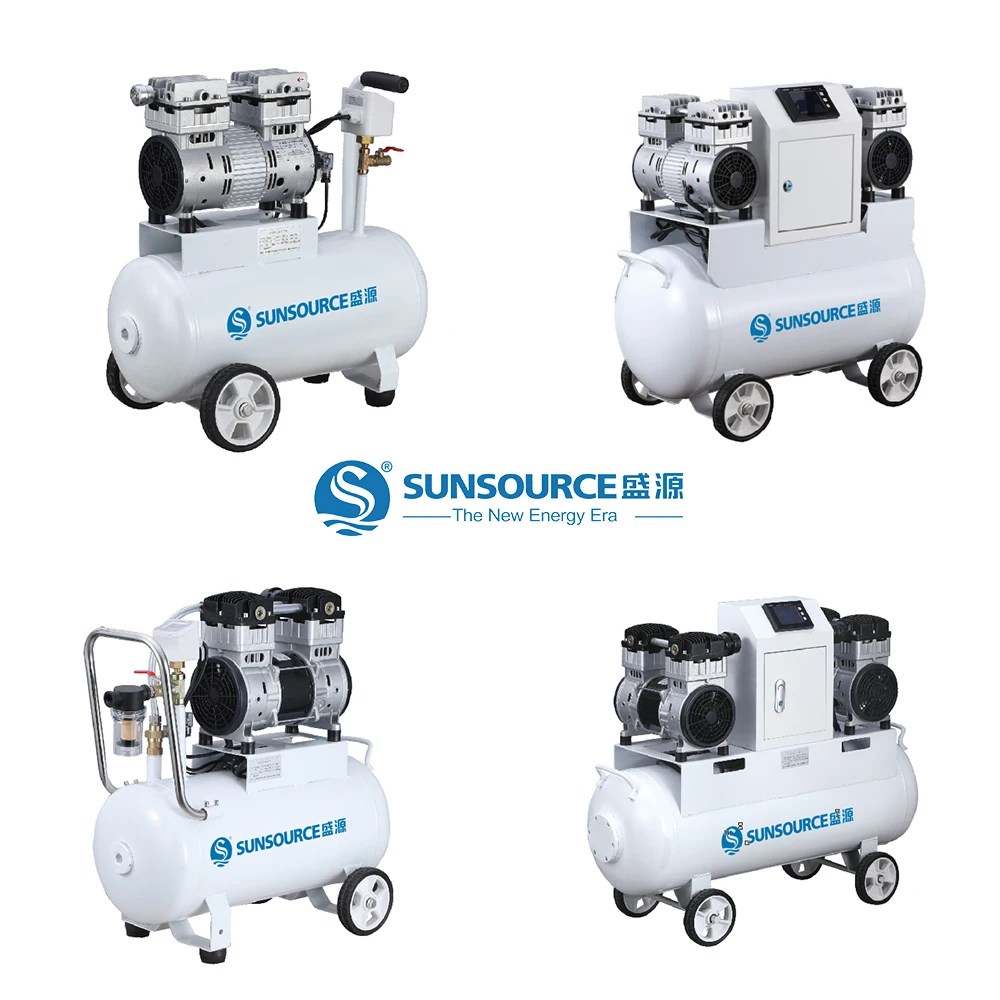

China High Pressure Compressor Silent Portable 750W 1Hp 40L 930 mBar Mini Oil free Vacuum Air Compressors
- Category: >>>
- Supplier: Zhejiang Shengyuan Compressor Manufacturing Co. Ltd.
Share on (62567734128):
Product Overview
Description
Product Display
Product Parameter
Model # | VCM-1500V-40W | VCM-1500T-40W | ||
product type | Oil-free Vaccum Equipment | Oil-free Vaccum Equipment | ||
Rated voltage (V/Hz) | AC-220V/50Hz | AC-220V/50Hz | ||
Rated current (A) | 7.0A | 7.0A | ||
input power(W) | 750W | 750W | ||
Ultimate vacuum pressure (Pa) | 5.0x10³ | 1.0x10³ | ||
Pumping speed(L/MIN) | 260L/min (9.2CFM) | 130L/min (4.6CFM) | ||
Rated speed (RPM) | 1450RPM | 1450RPM | ||
Noise Level dB(A) | 60dB(A) | 60dB(A) | ||
Ambient Air Temp (V) | MIN（℃） | -5℃ | -5℃ | |
MAX（℃） | 40℃ | 40℃ | ||
vacuum (MBAFR) (Bar) | Maximum | -930 mbar | -990 mbar | |
Restart | 0 | 0 | ||
0 mBAR | 280 Ltr/min | 140 Ltr/min | ||
*-200 mBAR | 154 Ltr/min | 77 Ltr/min | ||
*-400 mBAR | 84.6 Ltr/min | 42.3 Ltr/min | ||
*-600 mBAR | 46.6 Ltr/min | 23.3 Ltr/min | ||
*-800 mBAR | 25.6 Ltr/min | 12.8 Ltr/min | ||
Tank | Capacity | 40L (8.8Gal) | 40L (8.8Gal) | |
Material | Q235 | Q235 | ||
Thickness | t=2.3mm | t=2.3mm | ||
Electric Motor | Wire material | Copper | Copper | |
Stator Size | 170 tablets | 170 tablets | ||
Stator & Rotator Sheets | Silicon steel sheet | Silicon steel sheet | ||
Standard Equipment | Thermal Protector | Yes | Yes | |
Inlet & Exhaust Specification | G1/2 | G1/2 | ||
Size & Weight | Net Weight (Kg) | 37Kg | 37Kg | |
Machine Size (mm) | 690x320x720mm | 690x320x720mm | ||
Packaging | Carton | Carton | ||
Gross Weight(Kg) | 39Kg | 39Kg | ||
Packaging Dimensions( mm) | 710x340x740mm | 710x340x740mm | ||
Product Advantage
