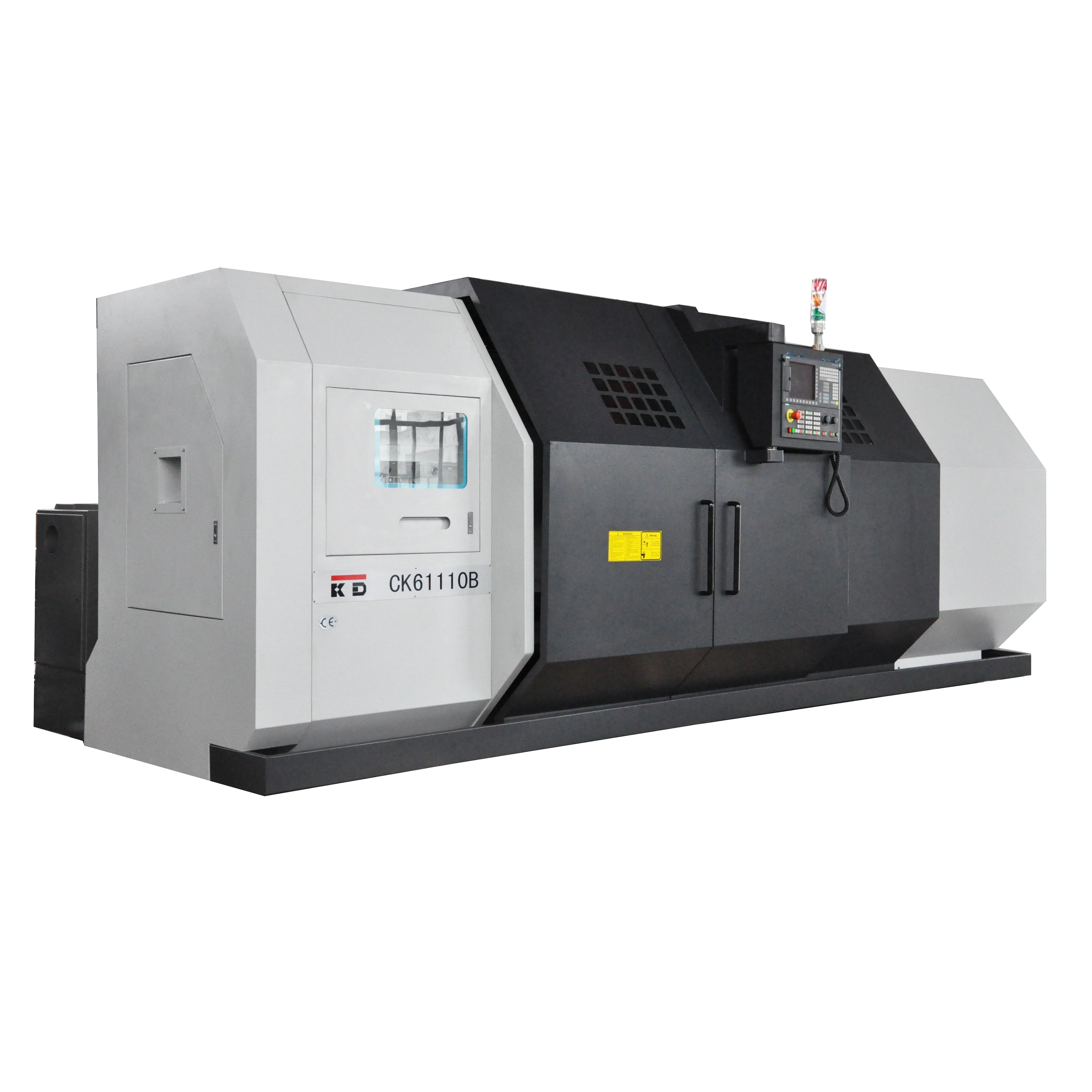

CK6191B fanuc used cnc lathe machine japan
- Category: >>>
- Supplier: Zhejiang Kaida Machine Tool Co. Ltd.
Share on (62568249874):
Product Overview
Description

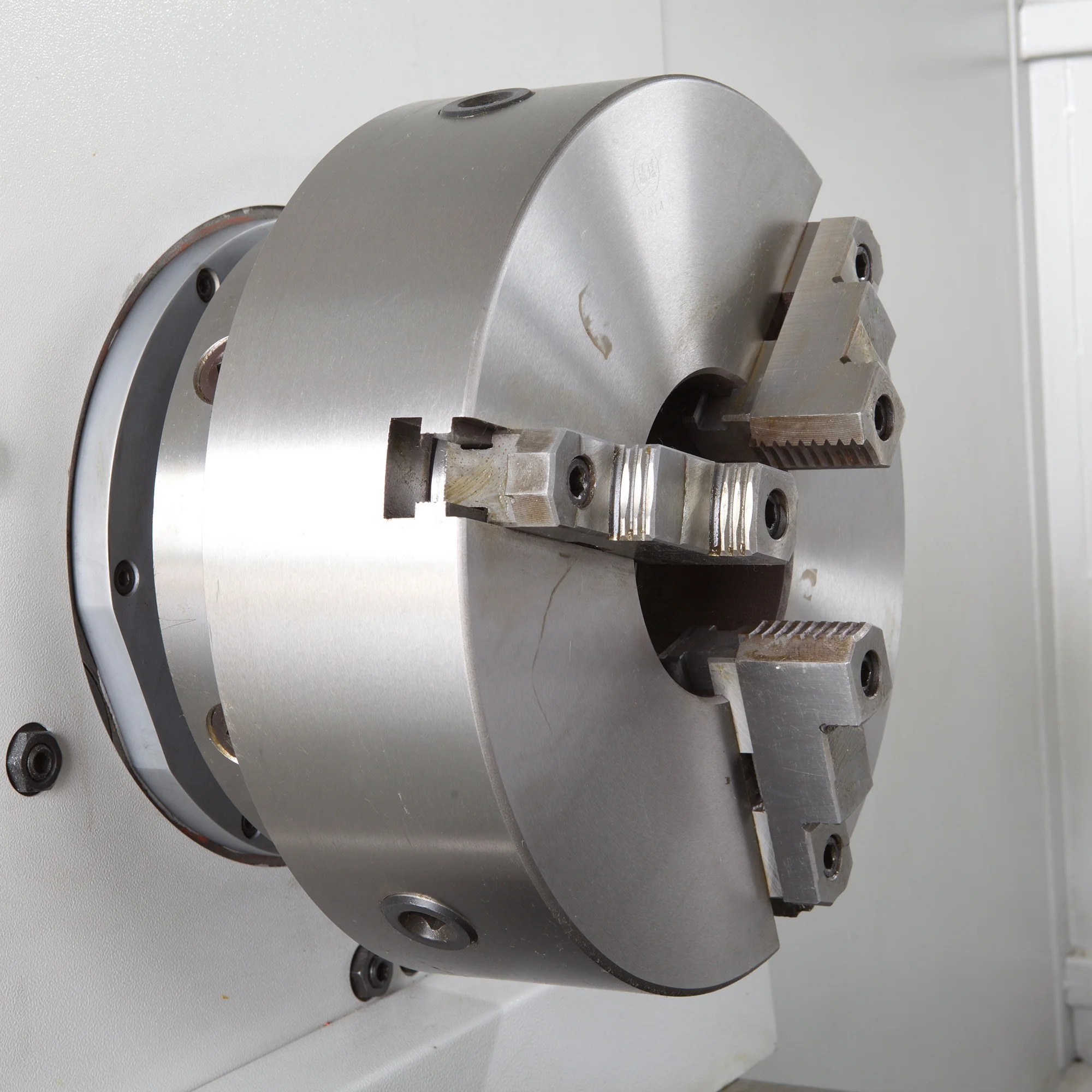

Chuck
a. Standard with manual chuck
b. Open or closed hydraulic chuck is optional
b. Open or closed hydraulic chuck is optional

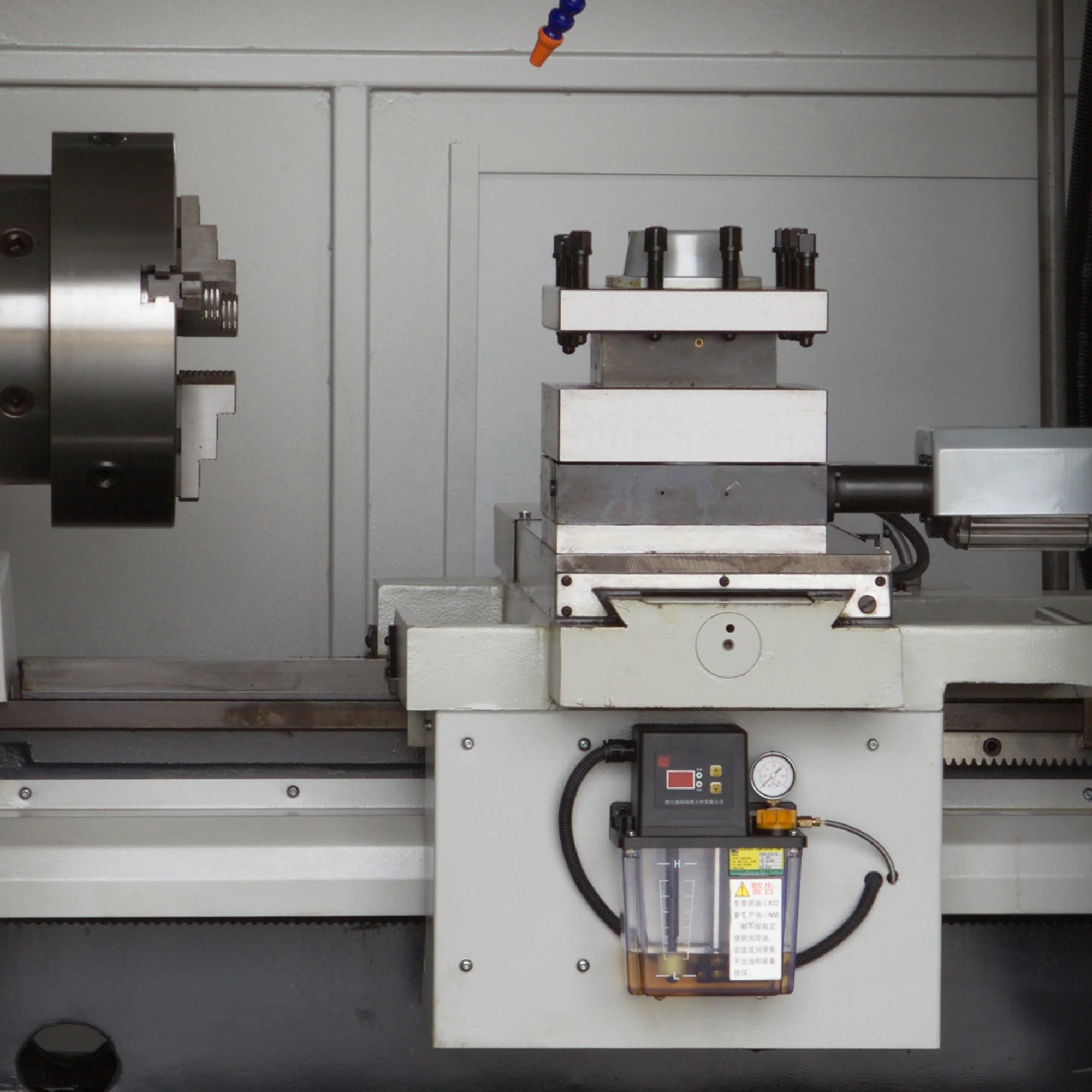

Turret

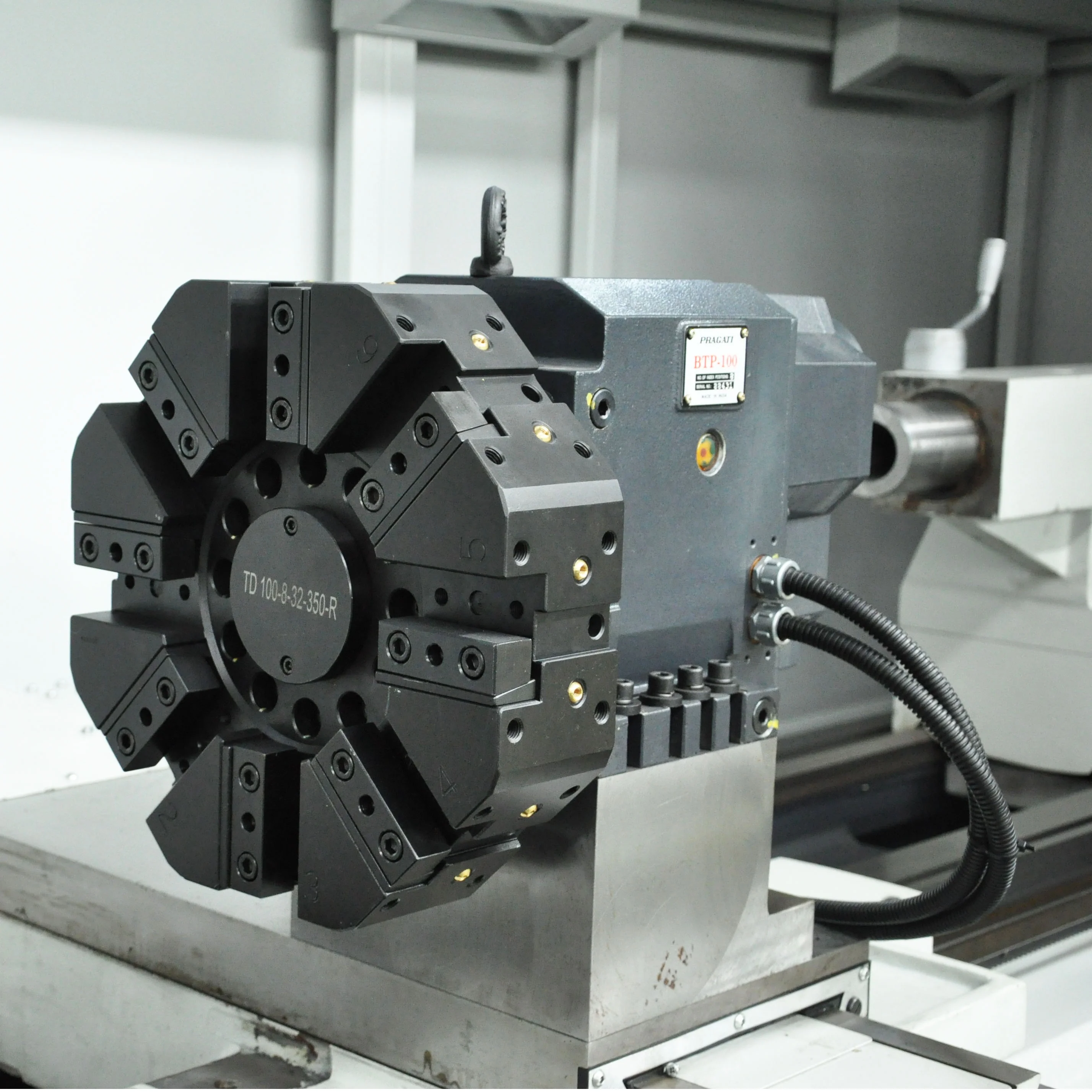

a. Adopting 4-station electrical tool post. And 6-station, 8 -station turret or Germany live turret is optional.
b. The optional turret features a robust casting and large coupling face. The extra rigidity results in higer metal removal rates, extended tool life, super finished, and ensures long term accuracy.
Tailstock
a. Heavy duty type tailstock is fitted on the guide way of bed. The heavy casting, large diameter quill and precision morse taper center provide outstanding rigidity.
b. hydraulic tailstock is optional.
b. hydraulic tailstock is optional.
Sheet cover
a. High quality castings
b. Half and full sheet cover for your selection.
Bar feeder and chip conveyor
a. Automatic bar feeder and chip conveyor is optional.
Steady rest
a. Steady rest is optional..
Specification
MODELS | CK6191B | CK61100B | CK61110B | |||
CAPACITY | ||||||
Max.swing over bed | Ф910 mm | Ф1000 mm | Ф1100 mm | |||
Max.swing over carriage | Ф530 mm | Ф600 mm | Ф720 mm | |||
Width of bed | 600 mm | |||||
Max. length of workpiece | 1500/ 2000/ 3000/ 4000 mm | |||||
Max.turning length | 1350/ 1850/ 2850/ 3850 mm | |||||
Max.weight between centers | 2000 kg | |||||
Max.swing over gap | Ф1100 mm | Ф1200 mm | Ф1300 mm | |||
SPINDLE | ||||||
Spindle nose | D11 | |||||
Spindle bore | Ф104 mm | |||||
Spindle tapper | Ф120 1:20 | |||||
Steps of spindle speed(manual) | 4 steps (variable within each step) | |||||
Range of spindle speed | 10~90, 20~180, 40~320, 80~630 rpm | |||||
FEED | ||||||
Rapid feed for axis Z | 10 m/min | |||||
Rapid feed for axis X | 8 m/min | |||||
TRAVEL | ||||||
Max.travel of X axis | 520 mm | |||||
Max travel of Z axis | 1500/ 2000/ 3000/ 4000 mm | |||||
TOOL POST | ||||||
Tool post stations | 4 | |||||
Tool cross section | 40×40 mm | |||||
TAILSTOCK | ||||||
Tailstock sleeve outer dia. | Ф100 mm | |||||
Tailstock sleeve taper bore | M.T.NO.5 | |||||
Tailstock sleeve travel | 250 mm | |||||
OTHERS | ||||||
Min.input | 0.001 mm | |||||
Main motor power | 15 kW | |||||
Coolant pump power | 370 W | |||||
Overall dimensions 3 meter machine (L×W×H) | 4200×2000×1930 mm | 4200×2000×1980 mm | 4200×2000×2030 mm | |||
Net weight | 6600 kg | 6770 kg | 6940 kg | |||
Company Profile
FAQ
1. Are you a factory or trading company ?
RE: Kaida was founded in 1952 and has a history of more than 60 years in manufacturing lathes. Through reformation in 1997, we have been changed from a state-owned enterprise to a joint-stock private enterprise. In 1992, we began to explore overseas market step by step. Gradually, our partners from around the world become more and more. We believe that a brighter further is waiting for us.
2. What's your advantage?
RE: We have strong R&D ability which can support us to offer "Turnkey Engineering Service"
-Technology Assessment;
- Process Analysis
- Jigs planning
- Production process
- Trial cut processing
- Education & Training
3. Question : Where is your factory located ? How can I visit there ?
RE: We are located in Zhuji City. Which is only 2 hours' away from Shanghai by train, and 20 mintues' from Hangzhou. Also you can fly to Hangzhou Airport, it is only 45 minutes and we will pick up you.
