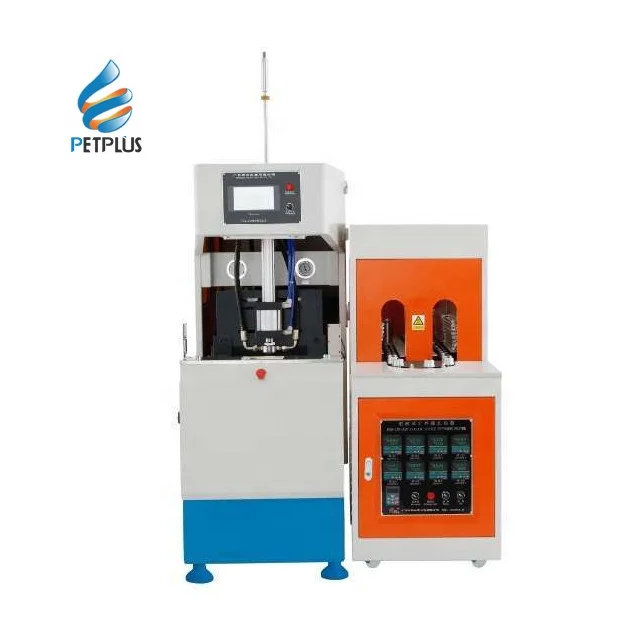

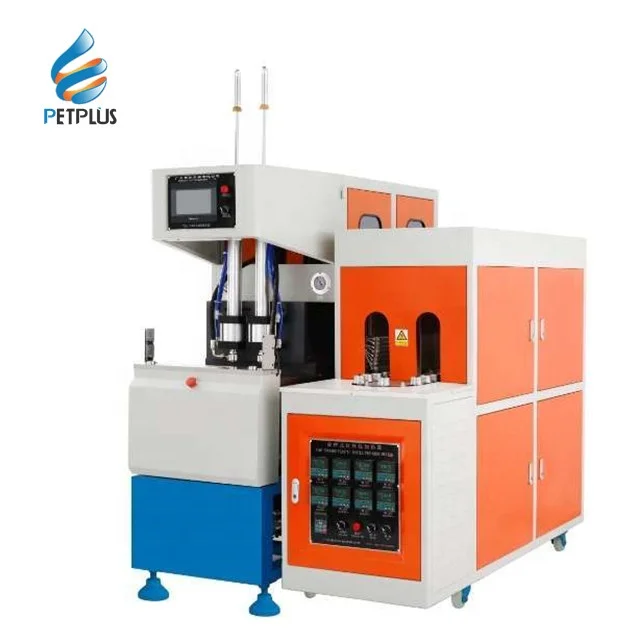

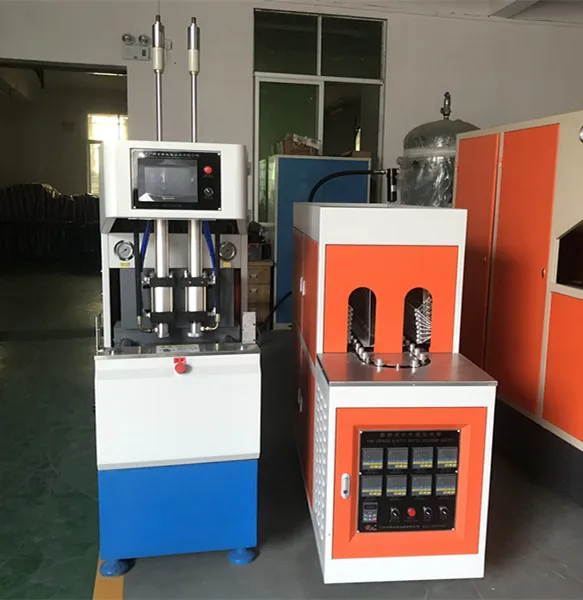

Semi-Automatic PET Bottle Blowing Machine is suitable for producing PET plastic containers and bottles in all shapes Manual bottle blowing machine is suitable for edible oil, water, beverage, food jar, cosmetic, pharmaceutical industry.
Capacity
200-1000BPH
Bottle volume
100ml-5L
Neck size
16-55mm
Blow pressure
2-3Mpa
Working Pressure
0.8-1Mpa
Mold Stroke
230mm
Stretch stroke
380mm
Max mold size
320*350*230mm
Bottle diameter
20-130mm
Machine size
1800*700*1650mm
Heater size
1700*650*1450mm
Detailed Images
Double Protect Sensor
Which increase the safety operation during operation for engineer
Aluminum material for preform holder
Which extend the usage working life of preform holder, more strong and durable
Touch screen for control panel
Which is more easy and simple to operate and set the machine parameter
USA Parker brand for High pressure valve
Which make sure the stable control for high pressure
Japan Mitsubishi PLC control system
Which make sure the stable control system, the time control precision can be accurate as 0.01 second
Germany Semikorn for heating control
Which make sure the stable heating temp and high heating control accuracy
Related Products
Company Introduction
Guangzhou Rifeng Electromechanical Equipment Co., Ltd is a professional manufacturer of blow moulding machines.Our factory has gathered experts with decades of experience in this area. We not only keep researching of blow moulding machine technology,but also constantly exploring in blowing process and packaging solutions.We aim to provide more comprehensive services to customers.
Our company mainly manufactures bottle blowing machines and can provide auxiliary equipment and bottle molds, which can blow bottles with various specification and designs.The products are widely used in various beverage bottle, edible oil bottle,cosmetic bottles.pharmaceutical packaging and plastic products industries. we can also design for customers according to their special requirements.
"Customer Firstly, Quality First" is the consistent insistence of our company,Therefore many customers around the world build partnership with us. Our machines have been exported to Europe,Southeast Asia, Middle East. Africa and other countries.
It has always been our aim to innovate and create valve for our customers on the way forward. we hope to work hand in hand with you to create brilliance.
Our Advantage
1.Fast delivery time：most of semi automatic bottle blowing machines are in stock, Quantity below 5sets can be delivered within 3-5 working days.
2.Professional R&D center:Engineers have more than 10 years for bottle blowing machine and bottle mold design experience
3.Complete Turnkey solution:We can supply the full set bottle blowing machine system solution,which included pet preform, bottle blowing machine, bottle mold, chiller, air compressor system. We also can supply the pet preform making machine and bottle cap making machine.
4.Suitable Cosmetic packaging solution:We have more than 60 cosmetic packaging customers in domestic market, which can supply the suitable cosmetic packaging solution.
5.Fast pet bottle samples supply: we can supply the pet bottle samples without making bottle mold, low cost and fast supplying the samples
Exhibition
Complast Kenya 2019
Dubai Gulfood Manufacturing 2018
Vinetnam Plas 2018
Packing&Shipping
Semi-Automatic PET Bottle Blowing Machine Bottle is packed by wooden box, which is suitable for sea and long distance transportation
After Sales Service
Installation and commissioning
We can arrange the technician to install and debug the bottle blowing machine on site and train your engineer.
Warranty period
1 year guaranty after shipping
Spare part supply
Supply the good quality spare parts in time
FAQ
1.Can we make different design bottle in one machine?
Yes.It can. Just change the bottle mold. If the preform neck size is different, the preform holders also need to be changed.

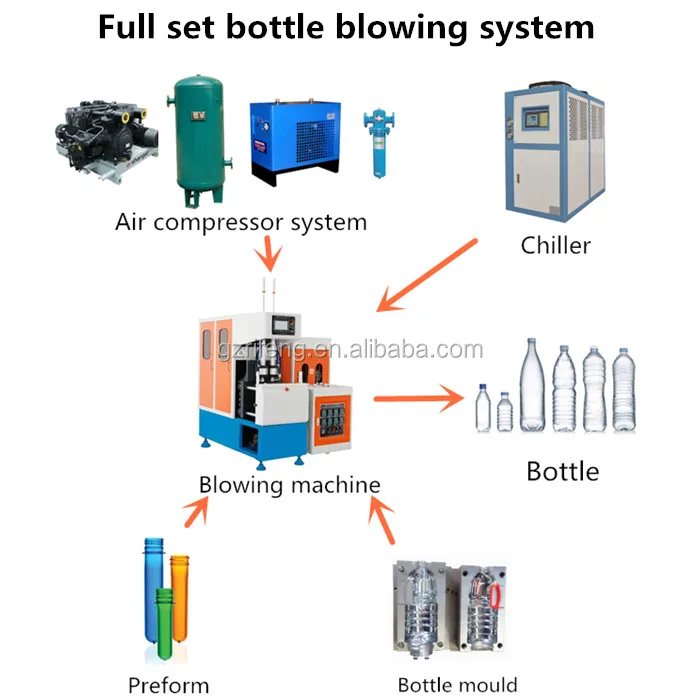

2.What are the full sets machines and related product to make bottles?
Bottle blowing machine, bottle mold, pet preform, chiller, air compressor system
3.Can you supply the on-site installation,commissioning,training service for bottle blower?
Yes. We can. But this service cost will be extra cost based on which location.
4.How long is your bottle blowing machine warranty time?
1 year
5.Would you supply the spare parts for bottle making machine?
That is for sure. We will supply some commonly used spare parts. And be shipping with the machine together.
6.Can we blow the bottle from `00ml to 5L in one machine?
Yes. Can do. But normally we will suggest that one machine for small bottle. one machine for big bottle.It will be more easy to adjust and set the parameters.
