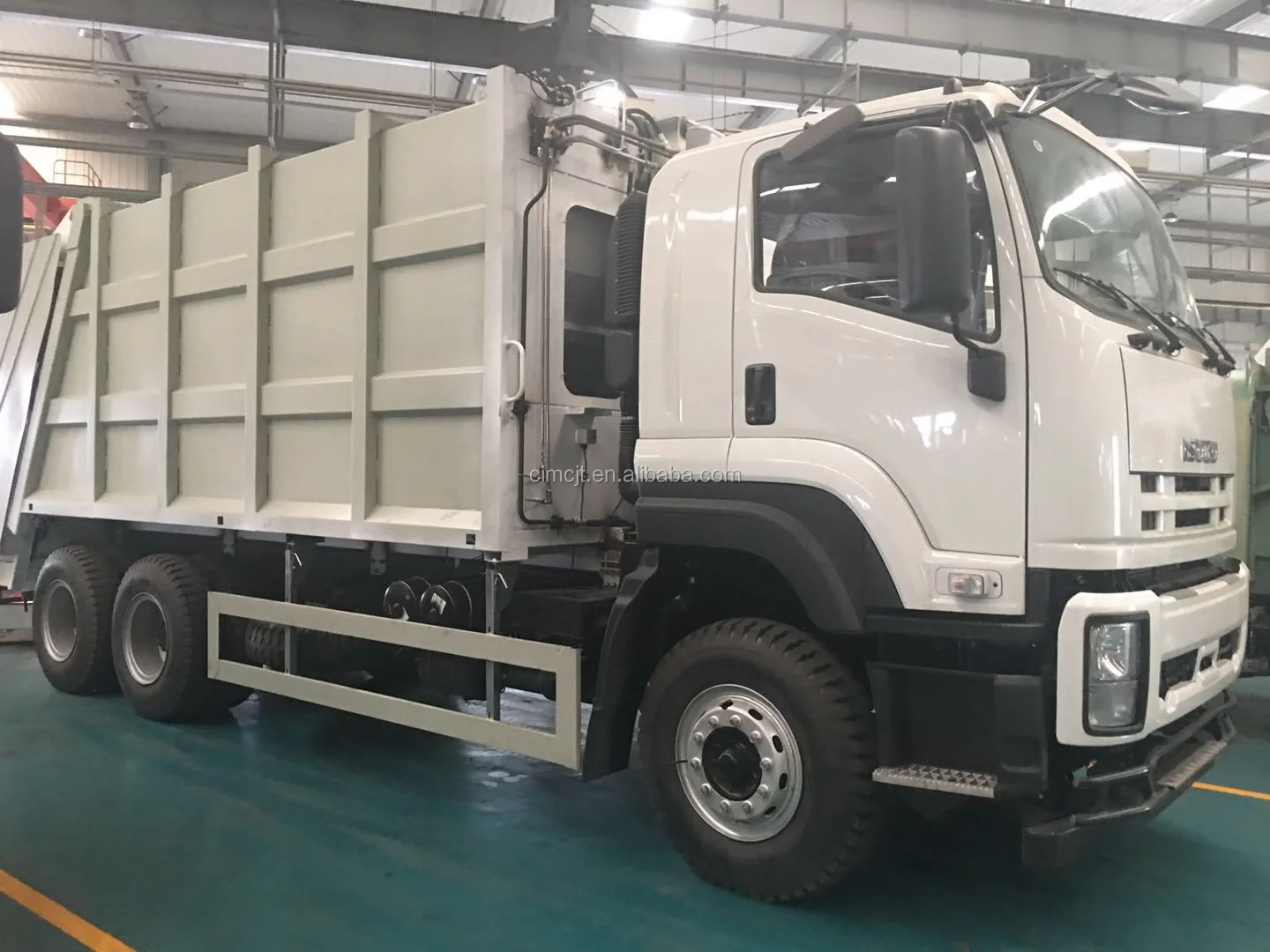

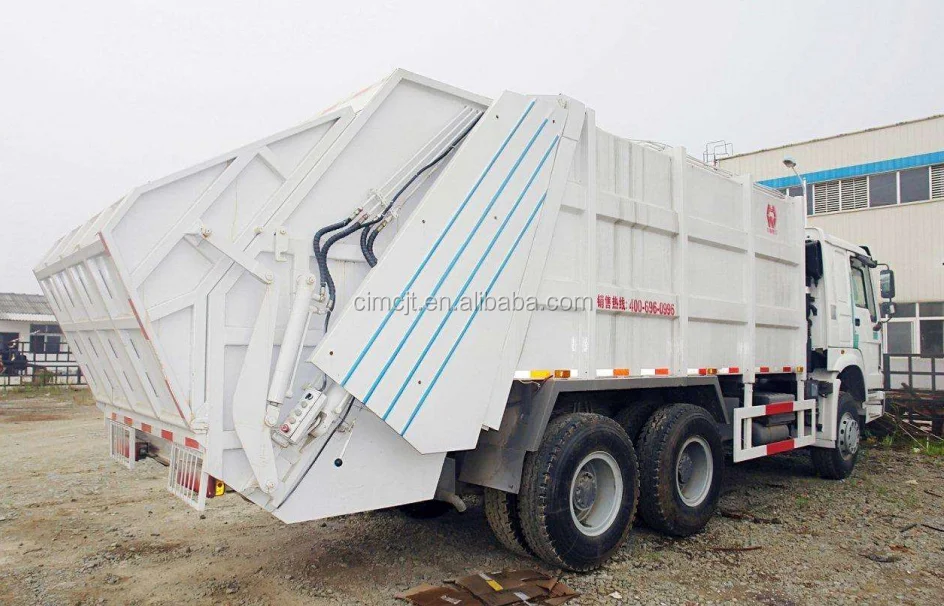

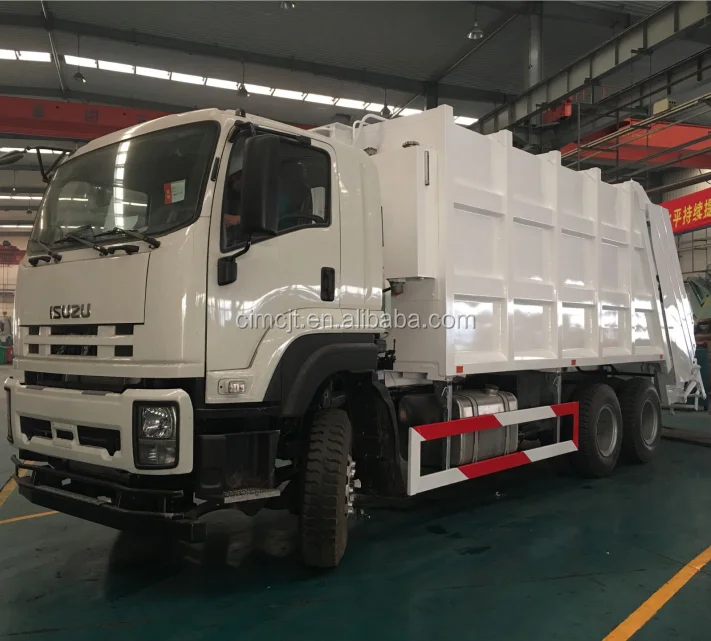

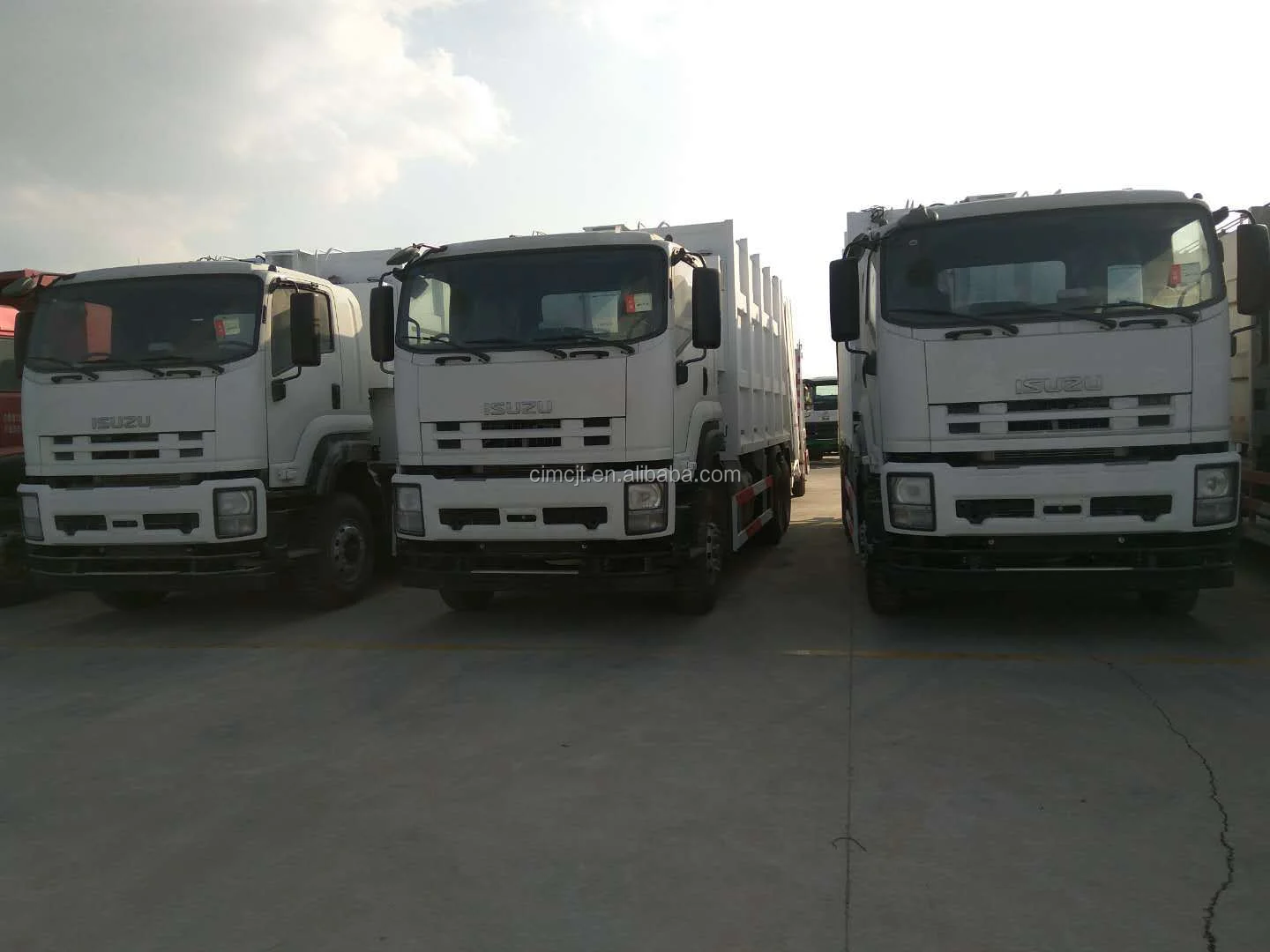

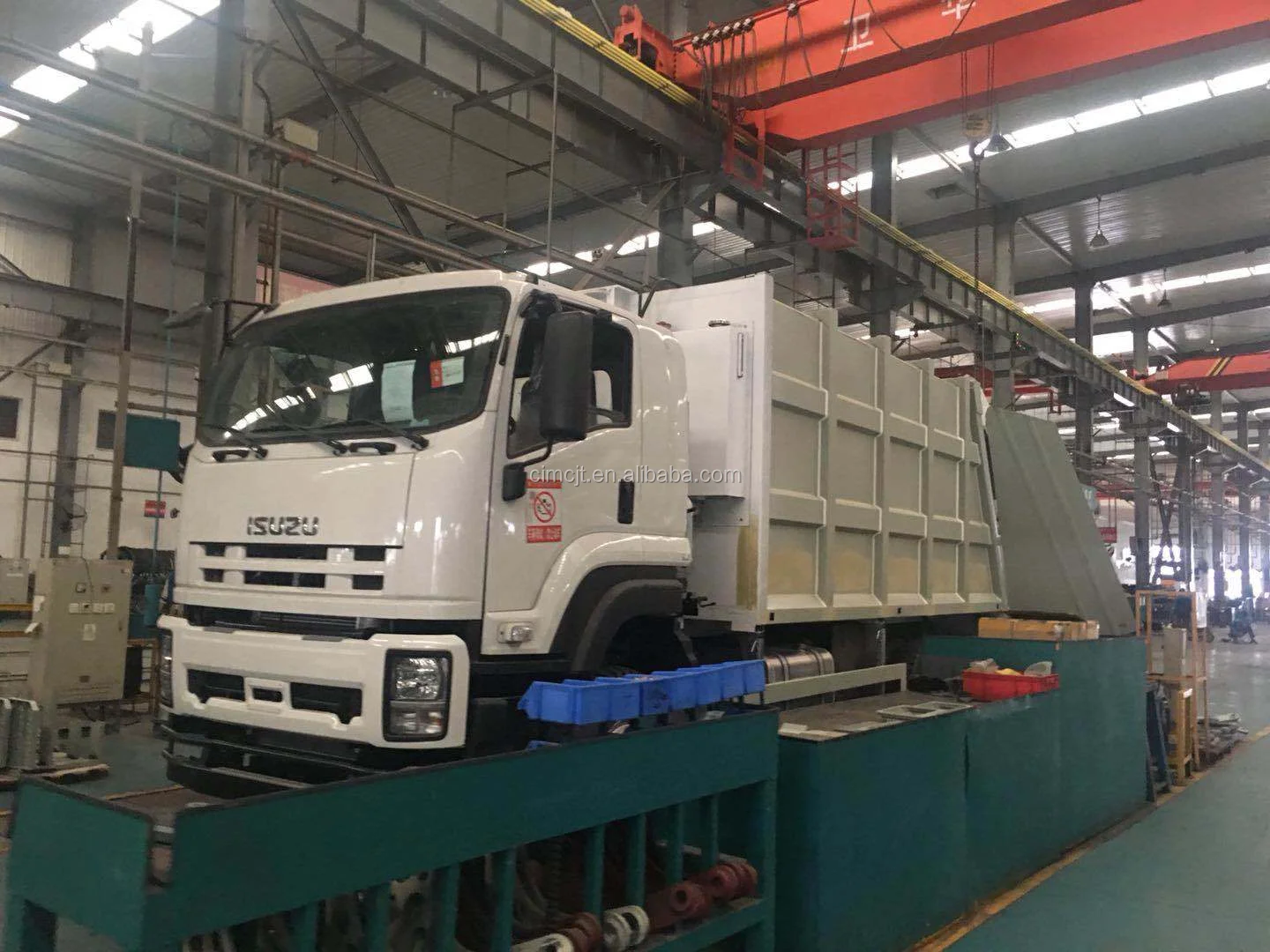

ISUZU Garbage Compressed Truck

ISUZU 6*4 18-22 m³garbage compactor truck / garbage compressed truck / compressed garbage truck

Brand

ISUZU

Driving mode

6*4

Oversize(mm)

7600*2500*3025

GVW

25000kgs

Approach/departure angle (°)

13/10

Rated loading capacity

16500kgs

Curb weight

8500kgs

Colour

white, green, blue

Emission standard

Euro 3 / 4 / 5

Fuel

Diesel

colour

White, green

Seats

2

Tires

10+1, 12.00R20

Garbage tanker volume

18-22 m³

Tanker material

carbon steel Q235

Time of one filling cycle(s)

≤25

Lifting time of filler (s)

8-10

Time of discharge (s)

≤40

Pressure of fluid system (Mpa)

20

Max compression force (kg)

>35000
