Product Overview

Description

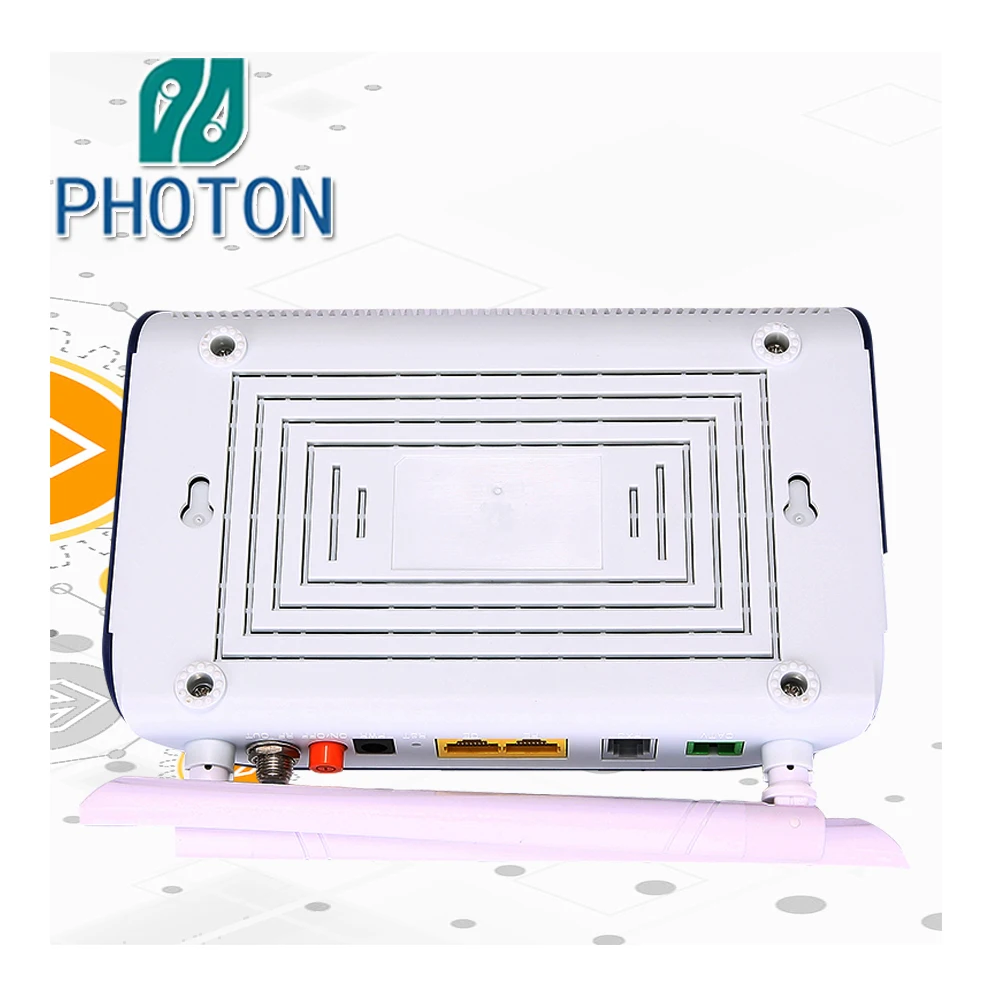

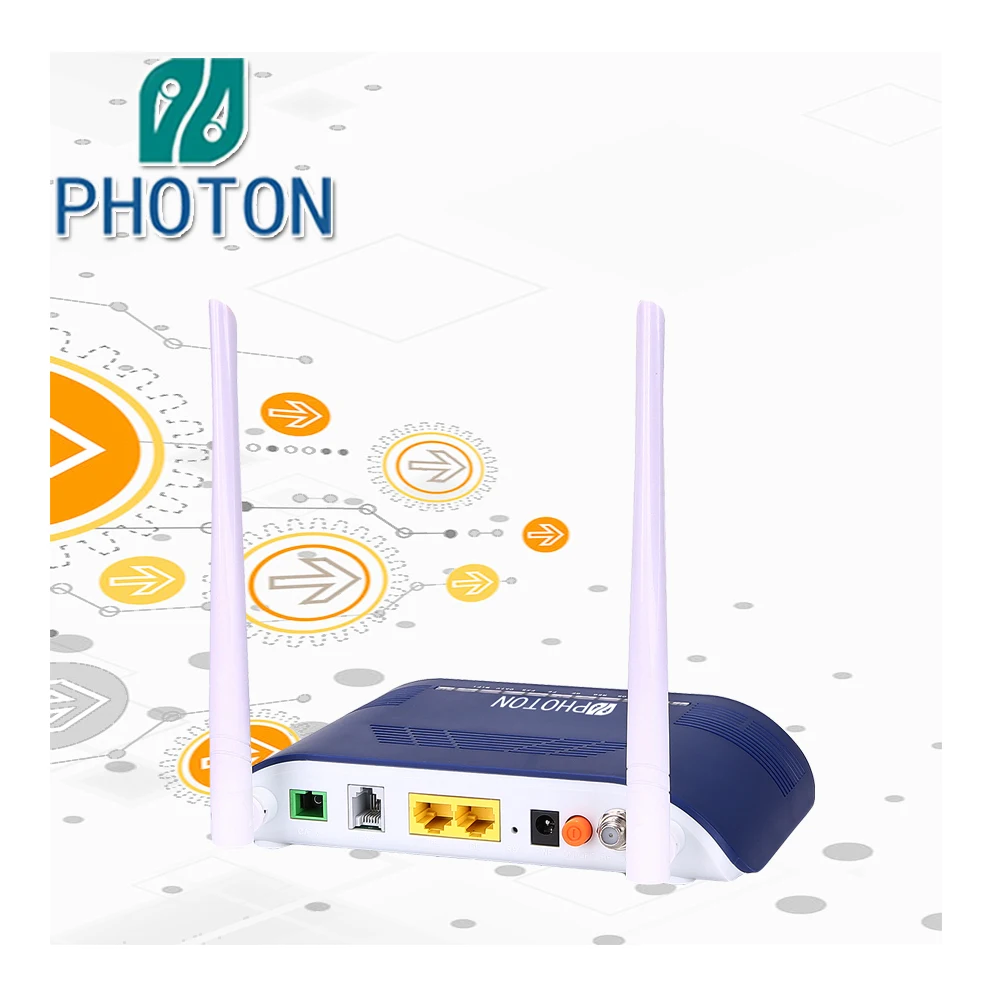

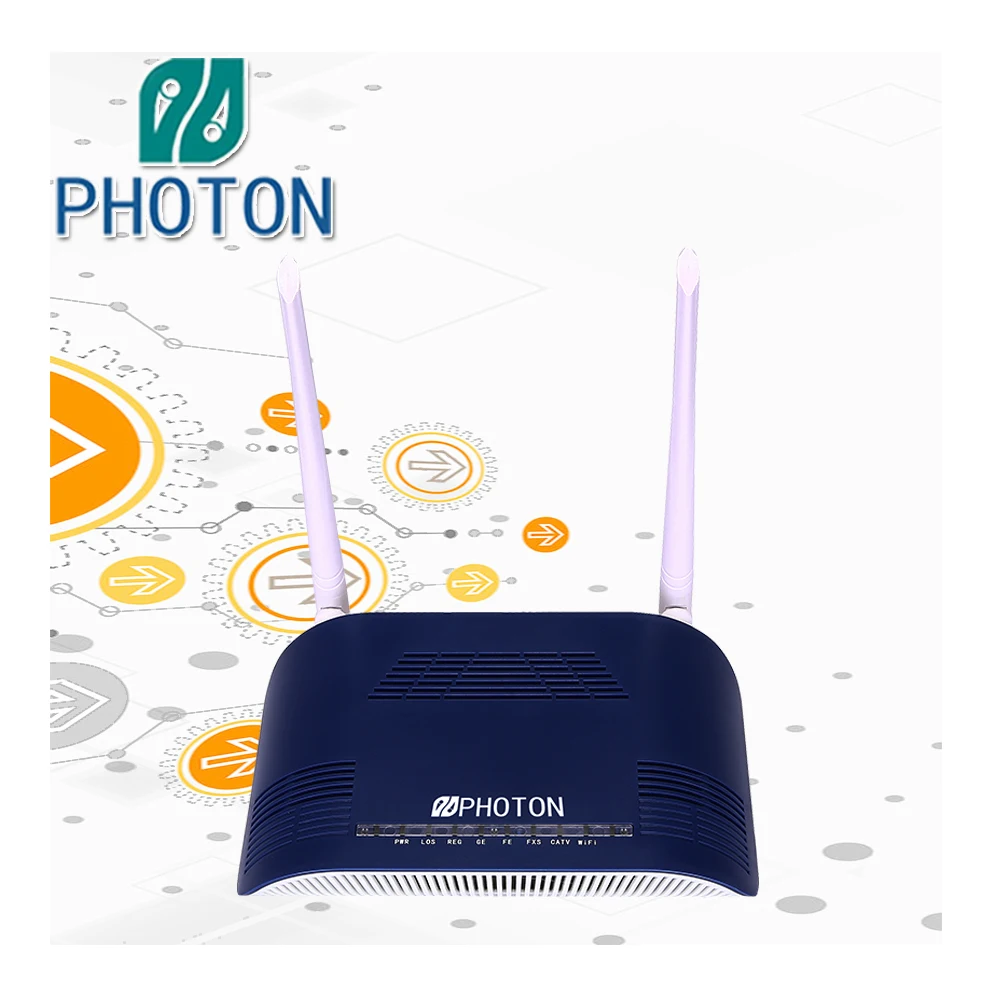

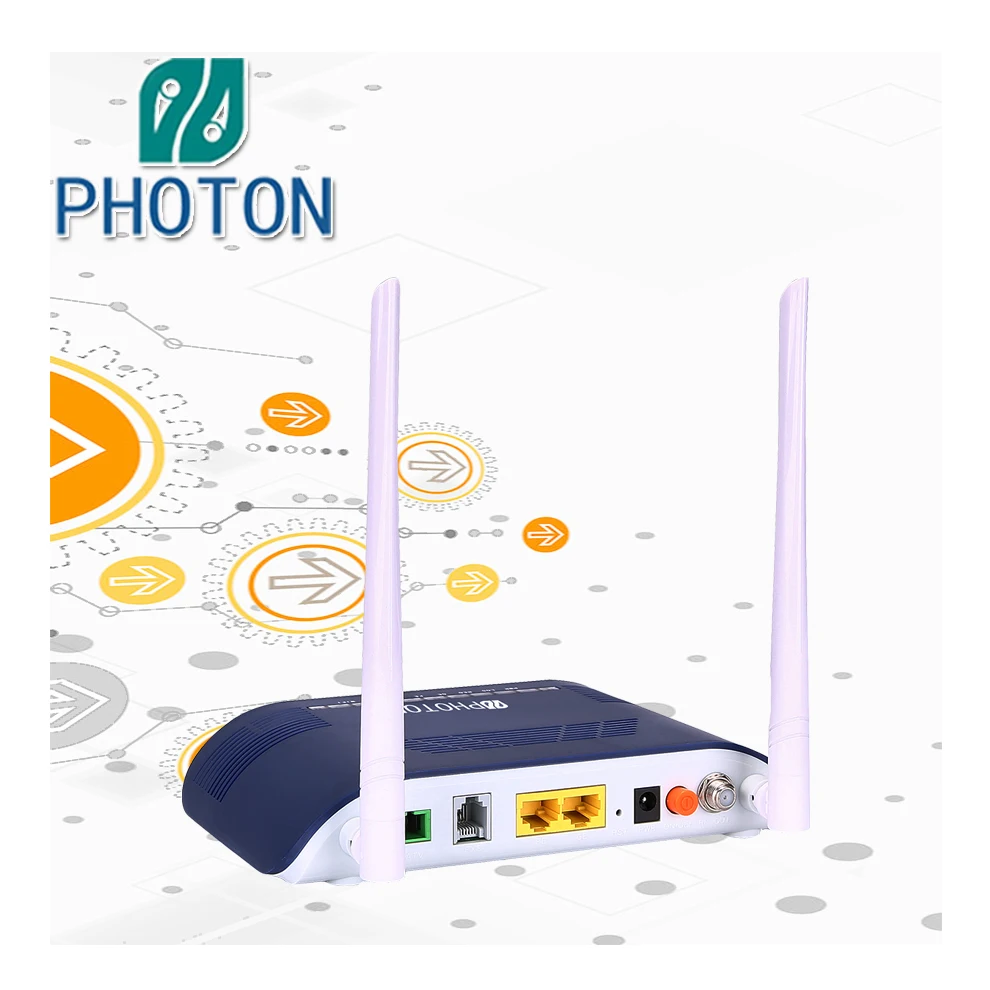

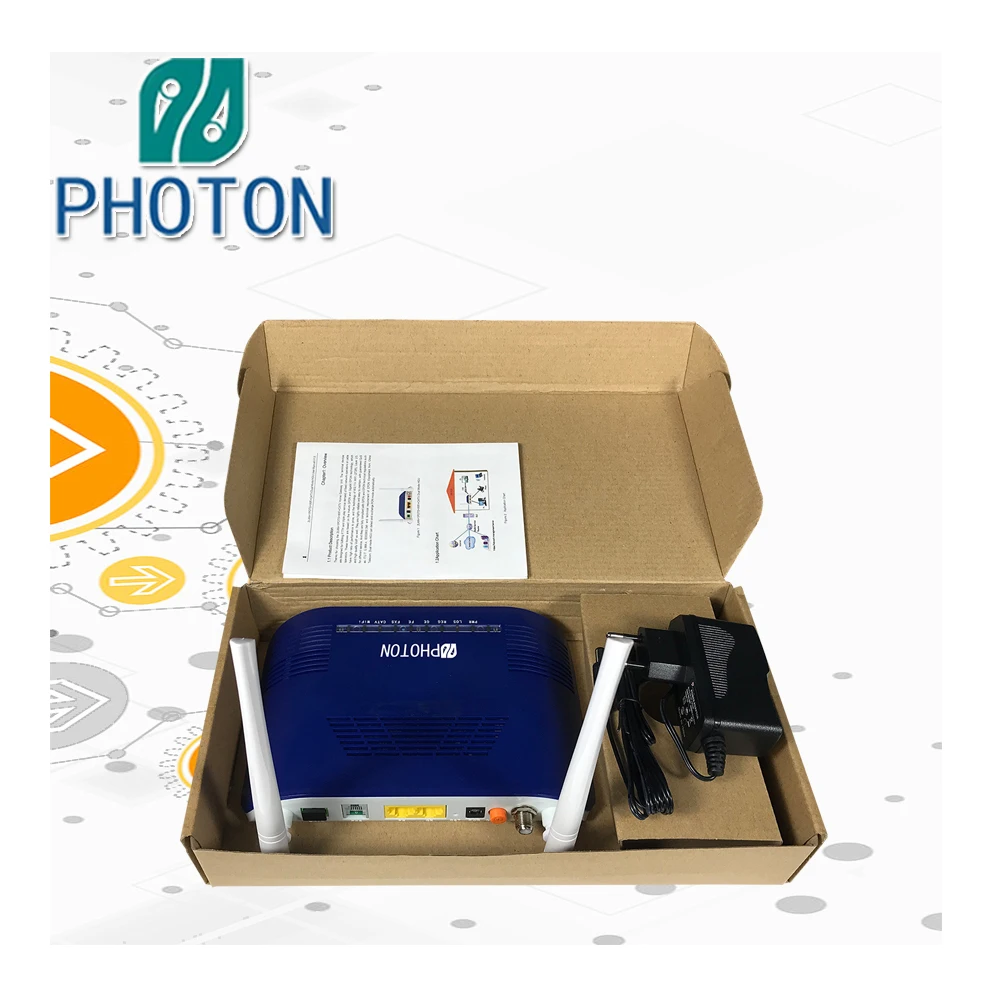

Fibra optica 1GE+1FE+1POTS+WIFI  ONU catv  gpon ont PTF2562B



 1. Product Description:

Fibra optica 1GE+1FE+1POTS+WIFI  ONU catv  gpon ont PTF2562B is designed for meeting the multi-services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access and CATV ,video surveillance and other requirements. It is based on mature GPON and Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of GPON/EPON Equipment from China Telecom. Small size dual mode ONU can automatically detect OLT and switch PON mode, it can be used as GPON or EPON.

It can also be applied to a wide temperature environment, and also has a firewall function.

  2.Features:Fibra optica 1GE+1FE+1POTS+WIFI  ONU catv  gpon ont PTF2562B

Ø HGU ONU, bridging and routing modes can be set

Ø Dual mode ONU compatible with popular EPON and GPON OLT

Ø Support loop detection, IGMP, IGMP snooping

Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service

Ø Support port speed, support for storm suppression

Ø Support 802.11n 2T2R speed up to 300Mbps

Ø Support No-auth, WEP, WPA-PSK and WPA2-PSK

Ø Triple Solution Data, Voip and Cable TV(RF bandwidth:45~1000MHz, AGC function)

Ø Support Telnet, CLI, OMCI/OAM and Web management

Ø Support NAT, Firewall function

Ø Support remote software upgrade

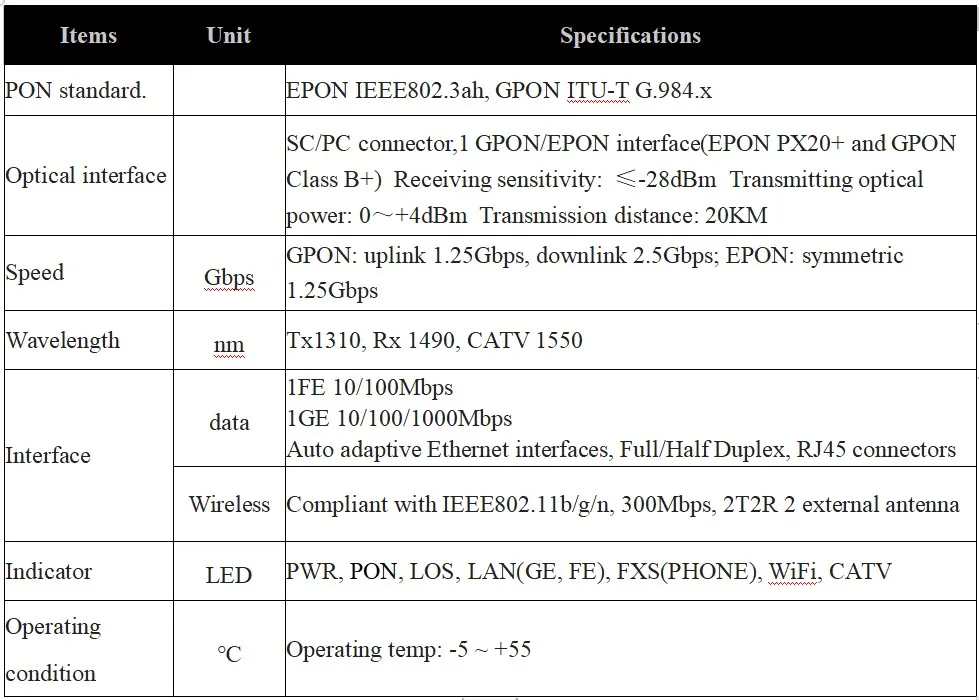

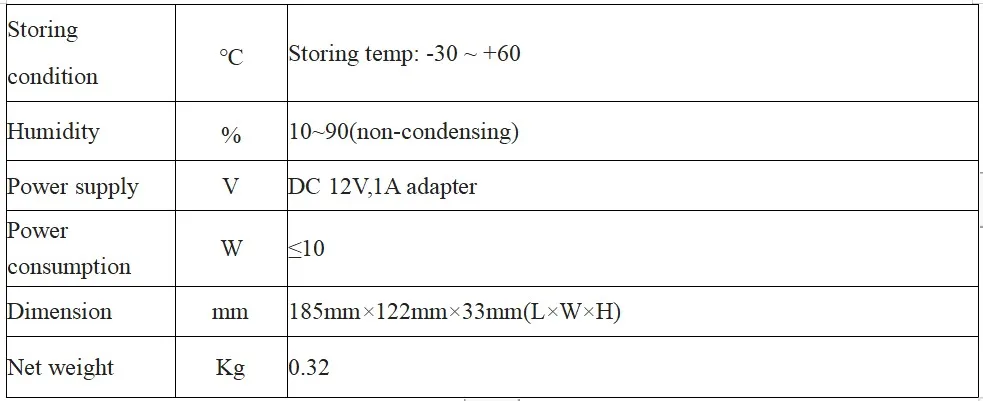

  3. Technical parameters:





CATV

Items	Unit	Specifications
Optical Connector Type		SC/APC
Input optical power range	dBm	-18~ +2
Optical return loss	dB	≥45
Wavelength	nm	1550 ±10
RF Output Connector	F	Imperial or metric
RF Bandwidth	MHz	47~1000
Slope	dB	0~2 (47~1003MHz)
RF impedance	Ω	75
RF output return loss	dB	≥14
RF output level	dBuV	76±2(@-15~0dBm)
AGC Range	dBm	0 ~ -15
C/N	dB	≥47    @-7dBm
CTB	dB	≥60    @-7dBm
CSO	dB	≥60    @-7dBm
MER	dB	≥35    @-10dBm

  4.Shipping packaging:
