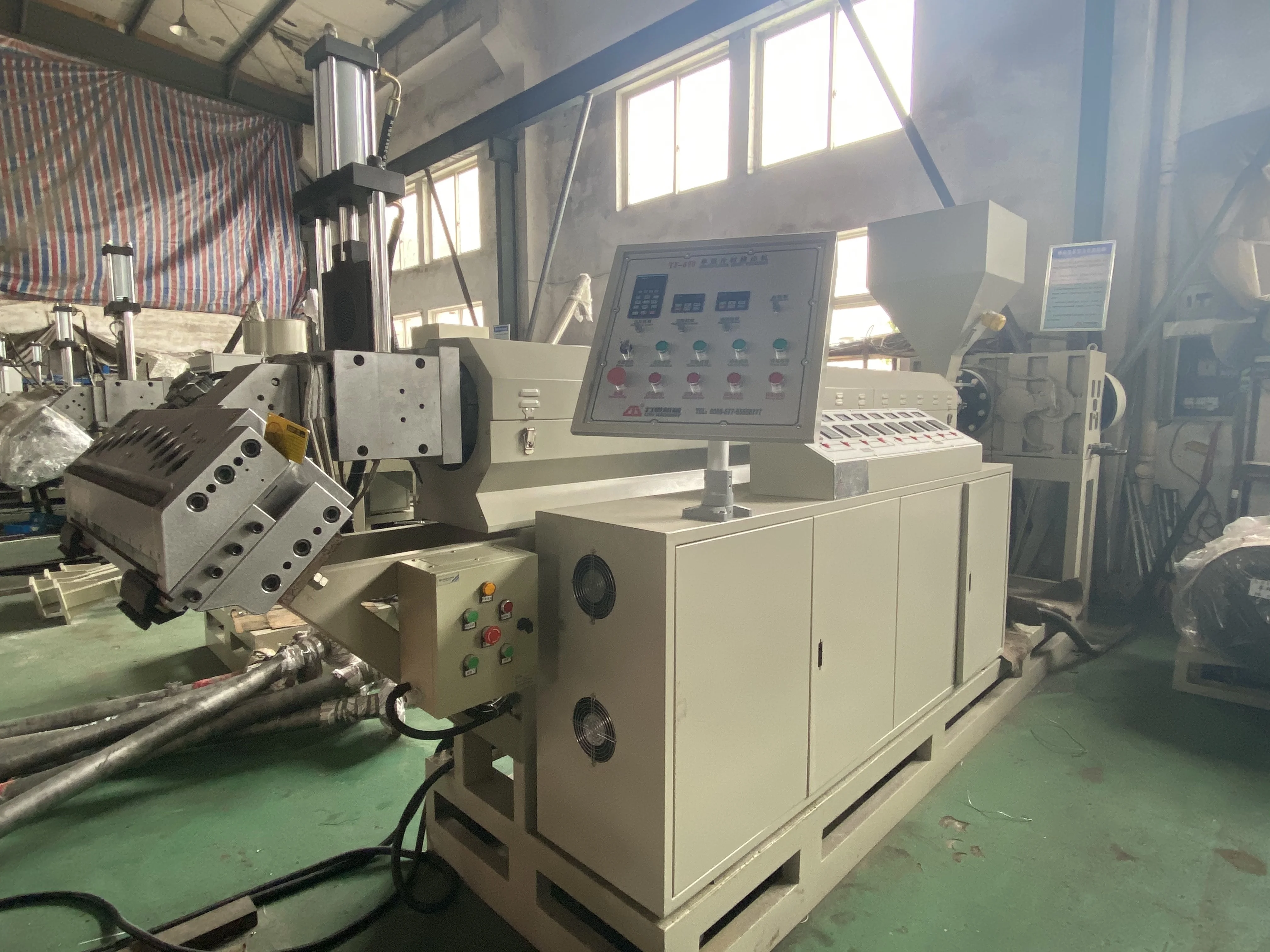

Sheet Extrusion Line Ps Extruding Equipment Extruder Machine High Output Pp Plastic Single screw
- Category: >>>
- Supplier: Pingyang Litai Machinery Co. Ltd.
Share on (62568495029):
Product Overview
Description
Product parameters
Model | TJ-750C |
Suitable Sheet | PP,PS |
Max. Sheet Width | 770mm |
Sheet Thickness Range | 0.3-2.0mm |
Screw Rod Dia. | 120mm |
Screw L/D ratio | 33:1 |
Main Motor Power | 132kw |
Rated Power | 270kw |
Max. Output | 400kg/hr |
Power Supply | AC 380V, 50Hz, Three-phase, Four-wire |
Dimension | L15000xW2600xH2800mm |
Weight | About 12T |
Products Description
APPLICATION

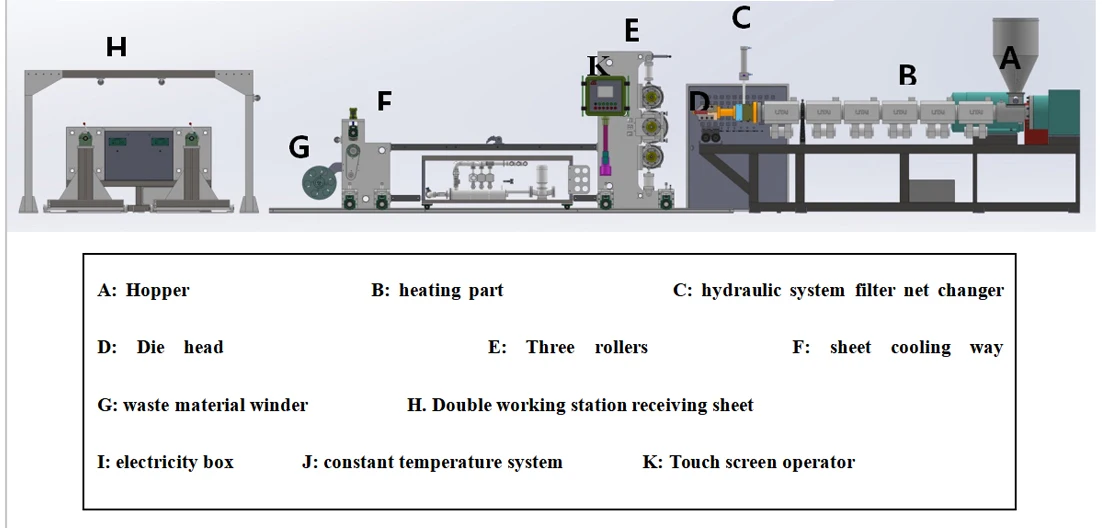

The sheet extruder is composed of extrusion, calendaring, traction and rolling. The main
parts are abrasion resistant, resistant to corrosion, high-temperature resistant by high quality specially-treated. Low resistance force in die head extruding channel makes sheet thickness evenly, the internal spiral tank in three rollers ensures an effective cooling and it is easy to change and install net changer with the hydraulic pressure unit, no need to stop machine. The machine extrudes PP/PS granule to PP/PS sheet with single color, which is used for producing plastic products by plastic thermoforming
machines, like cups, food container, trays, dishes, bowls, lids, etc.
parts are abrasion resistant, resistant to corrosion, high-temperature resistant by high quality specially-treated. Low resistance force in die head extruding channel makes sheet thickness evenly, the internal spiral tank in three rollers ensures an effective cooling and it is easy to change and install net changer with the hydraulic pressure unit, no need to stop machine. The machine extrudes PP/PS granule to PP/PS sheet with single color, which is used for producing plastic products by plastic thermoforming
machines, like cups, food container, trays, dishes, bowls, lids, etc.

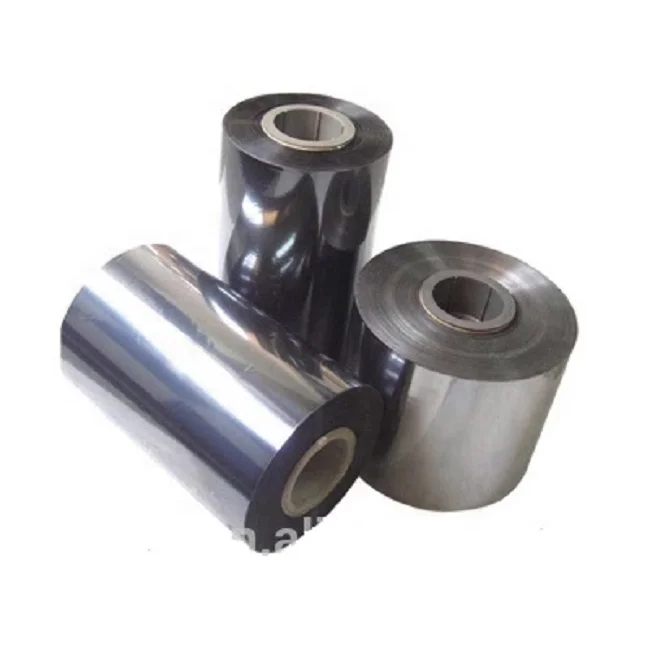

PP
PP sheet has light weight, uniform thickness, smooth surface, good heat resistance, high mechanical strength, excellent chemical stability and electrical insulation, non-toxic characteristics of PP board is widely used chemical containers, machinery, electronics , electrical appliances, food packaging, pharmaceutical, decoration and water treatment fields. PP board practical temperature up to 100 degrees.
PS
*Perfect transparency and the light transmittance with 88%. *Excellent electrical insulation, very light in weight.*Good surface hardness and good weather resisting property.
*High tensile strength and rigidity.
*High plasticity, Processing and shaping easier.
*Beautiful in color, A high gloss and easy to clean
*Capable of being fully recycled.
*High tensile strength and rigidity.
*High plasticity, Processing and shaping easier.
*Beautiful in color, A high gloss and easy to clean
*Capable of being fully recycled.

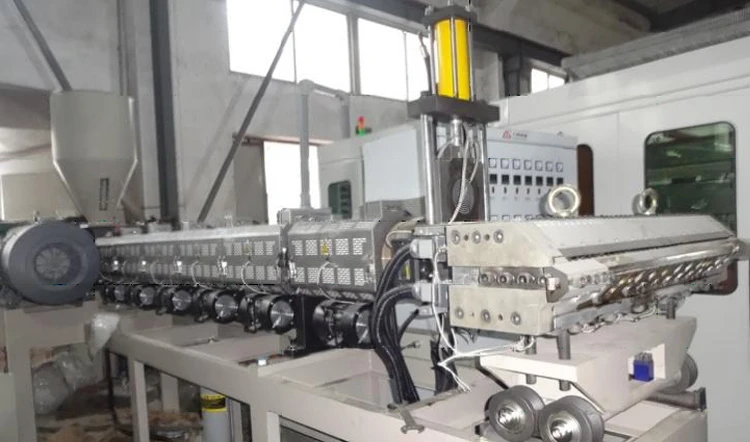

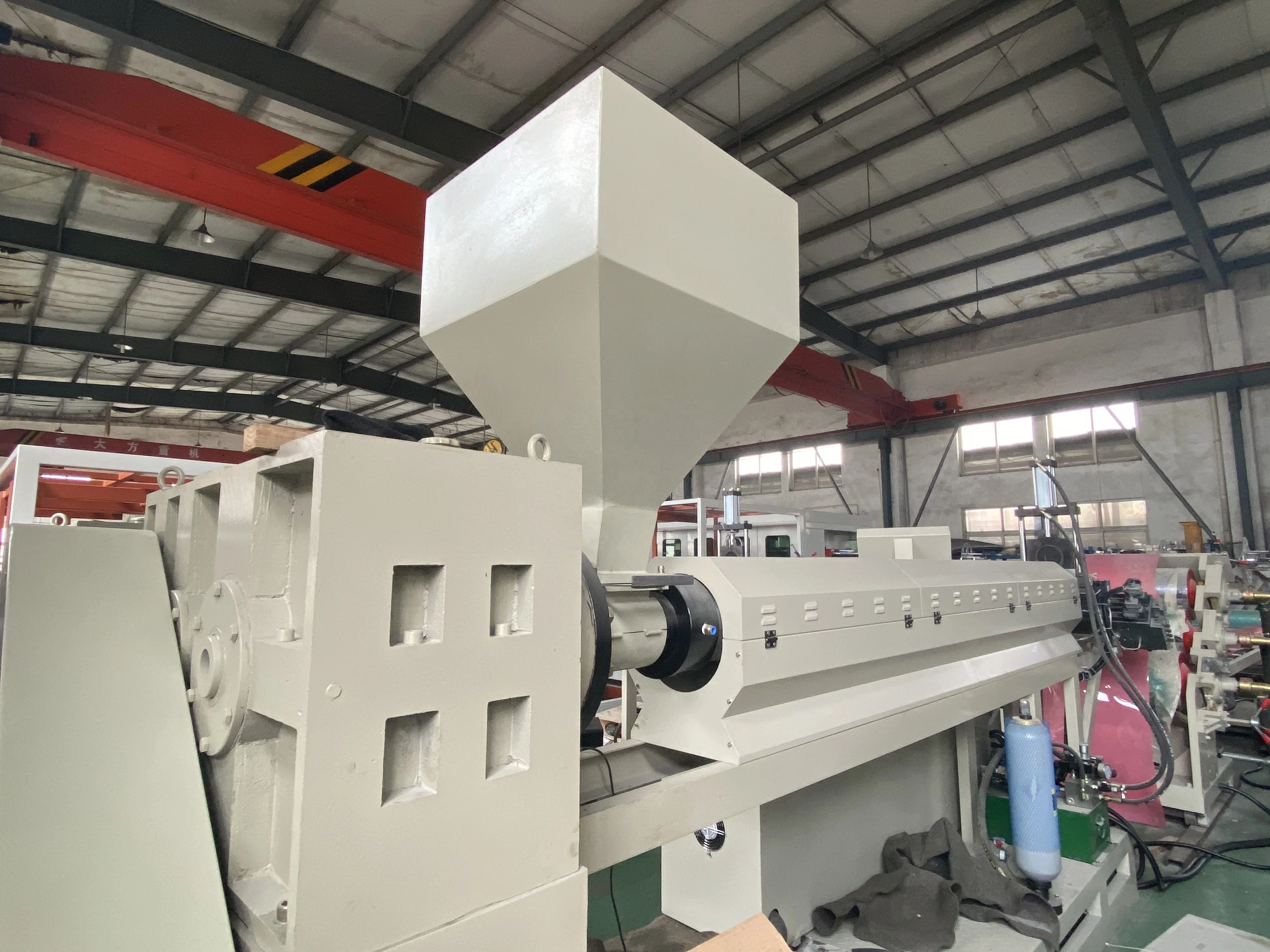

EXTRUDER PART: 1 SET
Output: Max. 400kg/h Screw Dia: Ф120 L/D: 33:1
Screw & Barrel Material: 38 CrMoAlA
after nitrogen treatment with optimum hardness, strong corrosion resistance and long service lifetime. Screw Rotate Speed: 0-70r.p/min.
Main Motor Power: 132.0KW Heating way: Aluminium-casted heater. Heating Power: 15.0KW.
Screw & Barrel Material: 38 CrMoAlA
after nitrogen treatment with optimum hardness, strong corrosion resistance and long service lifetime. Screw Rotate Speed: 0-70r.p/min.
Main Motor Power: 132.0KW Heating way: Aluminium-casted heater. Heating Power: 15.0KW.

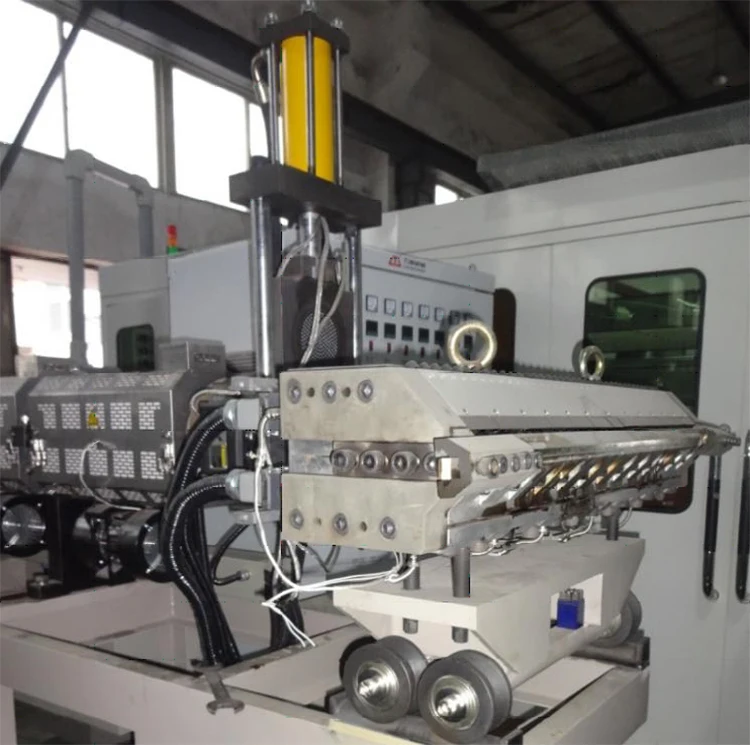

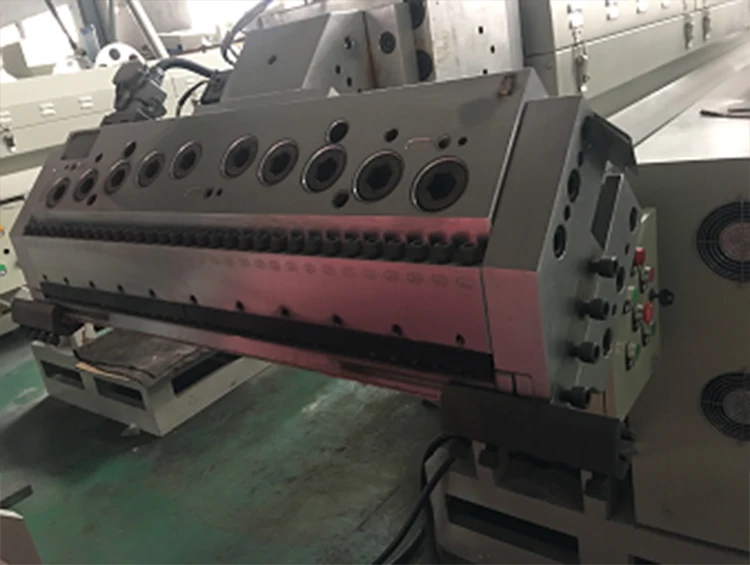

DIE HEAD PART: 1 SET
Sheet Structure: 1 layer. Heating Way: Aluminum-casted heater.
T-die Design: like cloth-hanger, enable the melting material be flowed evenly from the outlet.
Die Head Width: 1000mm Finished Sheet Width: 770mm Sheet Thickness: 0.3mm-2mm.
T-die Design: like cloth-hanger, enable the melting material be flowed evenly from the outlet.
Die Head Width: 1000mm Finished Sheet Width: 770mm Sheet Thickness: 0.3mm-2mm.
FILTER PART: 1 SET
Worm-Gear Case: 1 pcs Filter Size: 300mm x 40 mm Net Dia.: Ф3-3.5mm Heating power: 7.2kw

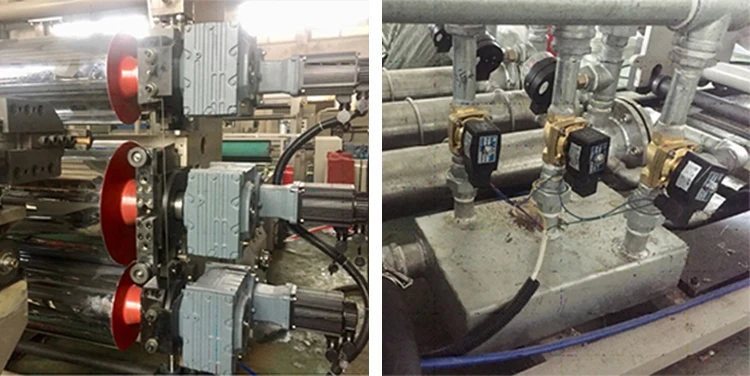

3 ROLLERS PART: 1 SET
Roller Dia./ Length:Ø345x1000mm Ø500x1000mm Roller No.: 3 pcs Rollers reach to ''mirror surface'' standard
Roller linear speed: 0-14m/min Drive motor: 4.0kw Roller part movement: by motor, 1.1kw
Roller layout way: by level type, each roller arranged side by side
The cooling way: It's gyroidal way (not linear way) to cool each rollers as inside roller has many channel irons.
Roller layout way: by level type, each roller arranged side by side
The cooling way: It's gyroidal way (not linear way) to cool each rollers as inside roller has many channel irons.

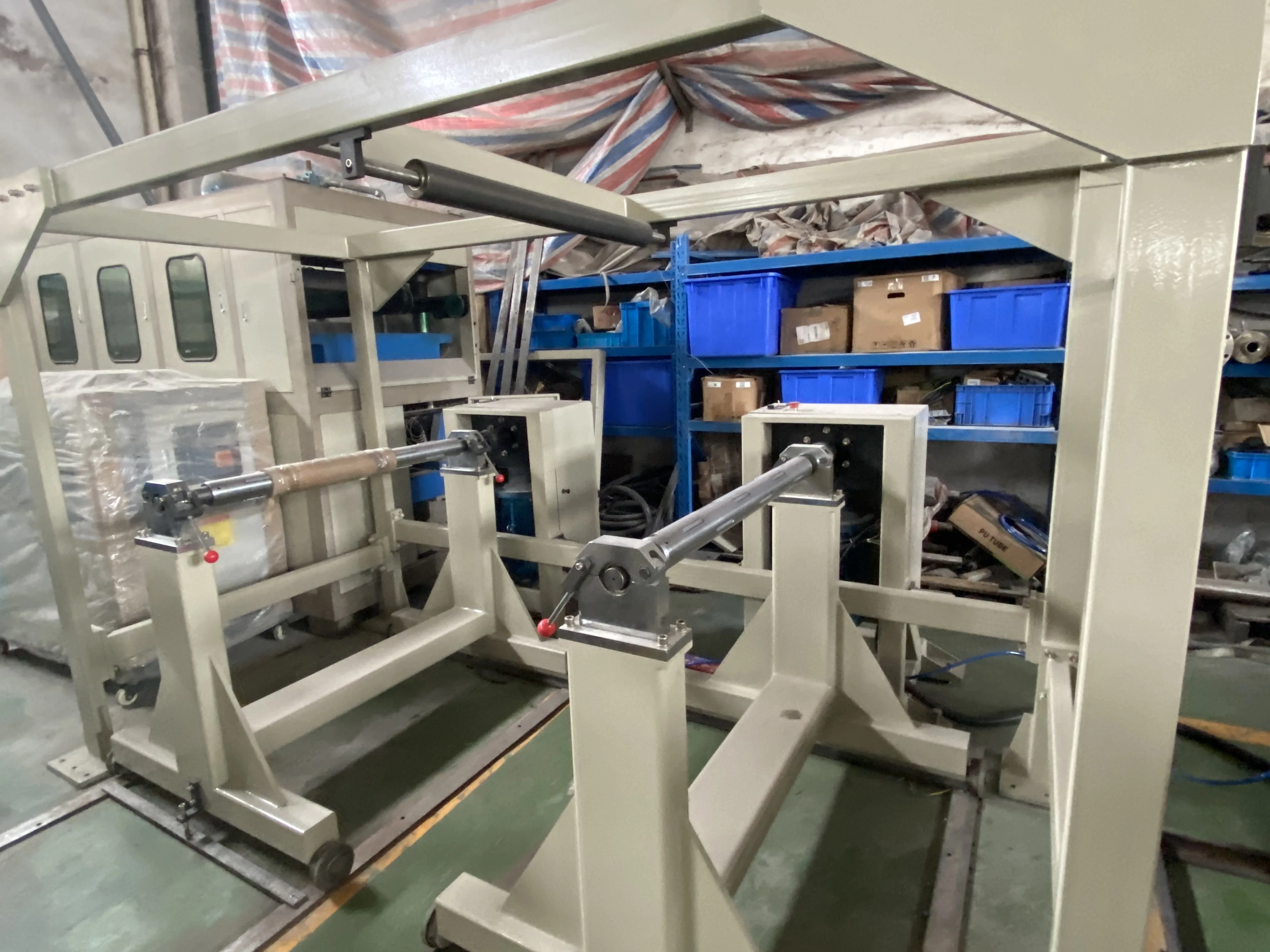

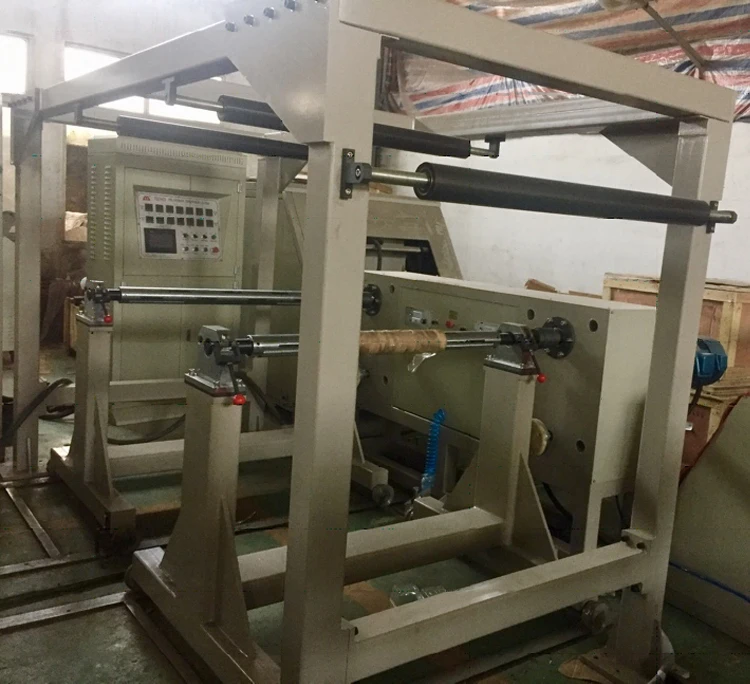

DOUBLE WORKING STATION
Double working station is easy to receive sheet, if one roller is full, we can use another roller. It do not need to stop the machine to save time.One roller can hold 500-600KG sheet, the finished sheet roller diameter can be around 1000mm.

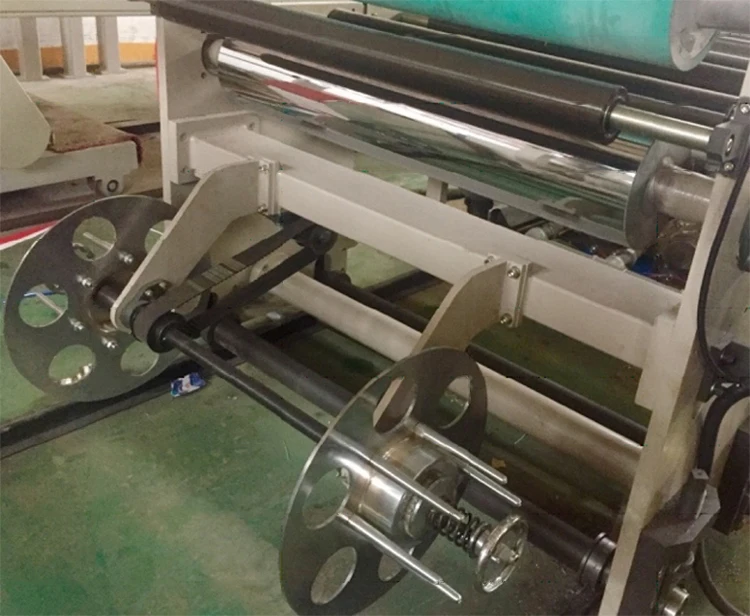

ROTARY ROLL WINDER
Rewinding waste material for recycling.
