Fruit Dring Machine Vegetable Dryer Machine Price.it is a continuous drying device for batch production. It is used for dehydration and drying of various Chinese herbal medicines, dried fruits, and other flakes, strips, and granules. The temperature of hot air can be controlled between 40 degrees and 160 degrees, and it can be heated and dried simultaneously. Multi-layer drying, cycle flip, layer by layer drying, make full use of hot air, drying and dehydration quickly save energy.
We main supply two type dryer.

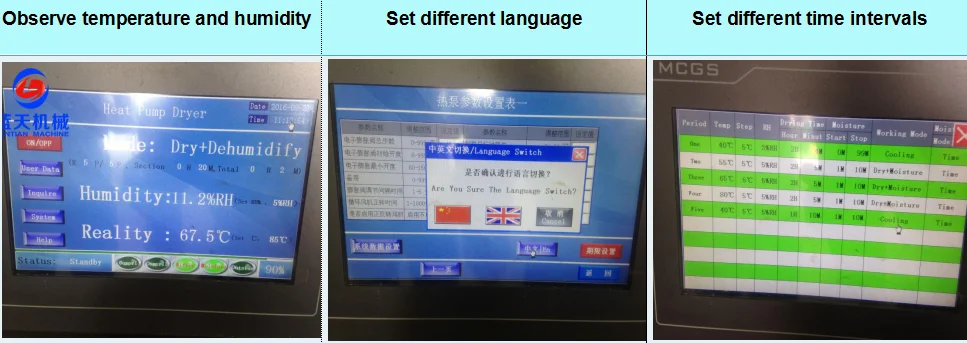

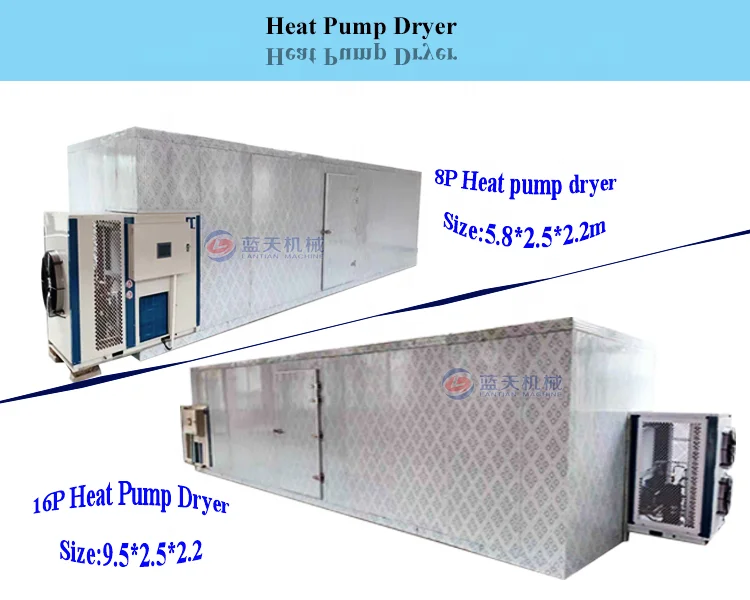

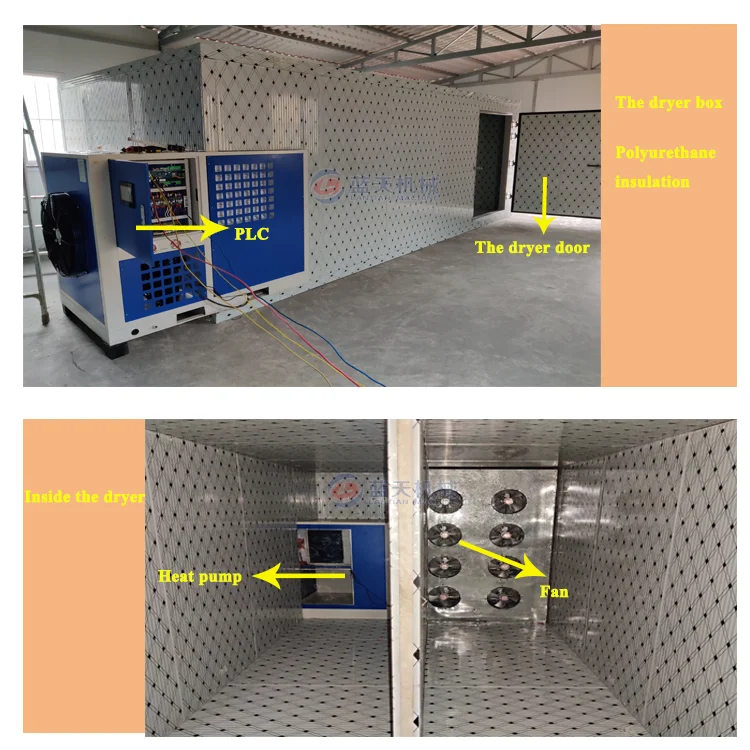

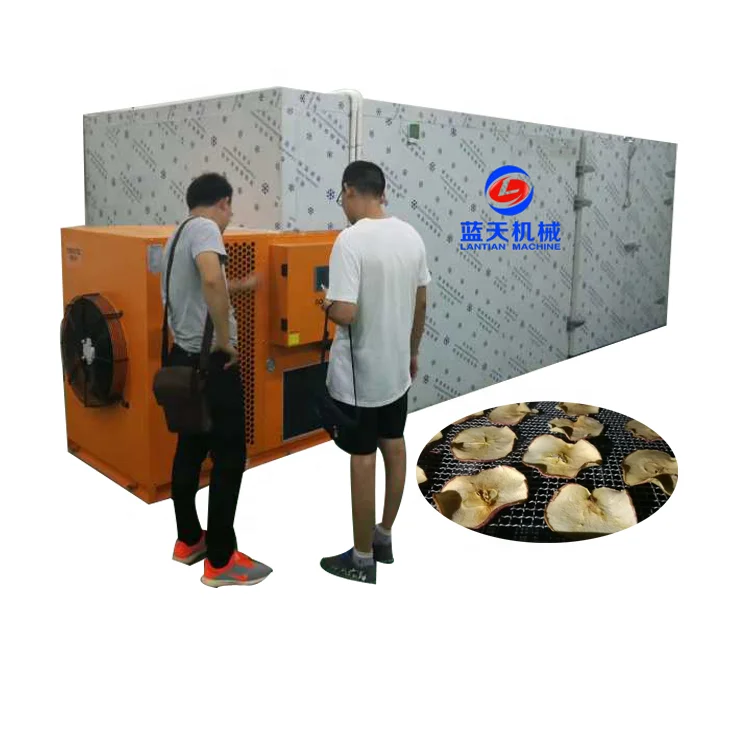

First type:Heat pump dryer box. This type suitable small capacity. the dryer size we can customized for you. This type suitable for all kinds of fruit and vegetable. orange, apple, meat, ect.
Model
Power
Diamension
Trays
Capacity
3P
2.25kw
2.7*2.2*2.5m
30 pieces
150-300kg
8P
6.5kw
4.8*2.5*2.2m
96 pieces
500-1000kg/h
16P
13kw
9.5*2.5*2.2m
192pieces
1000-2000kg/h

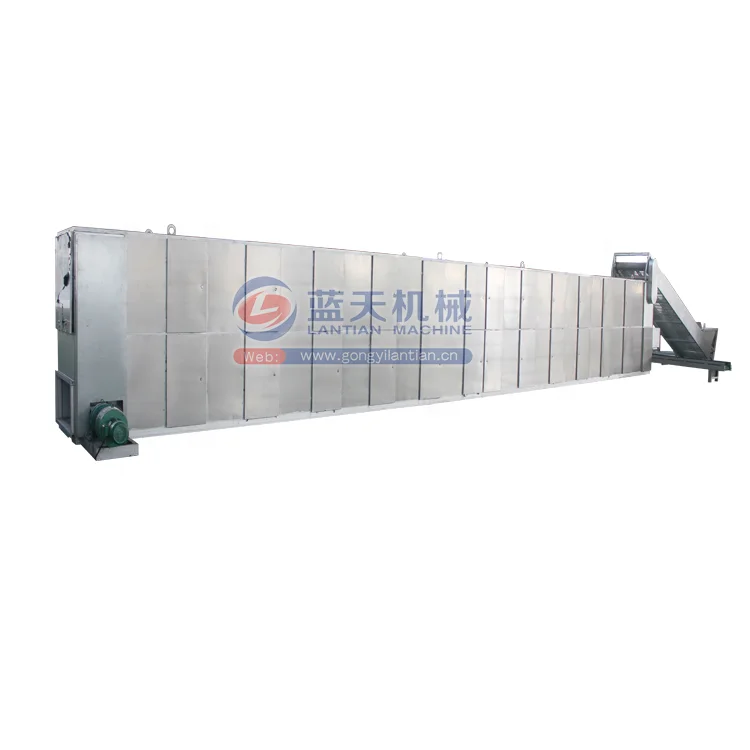

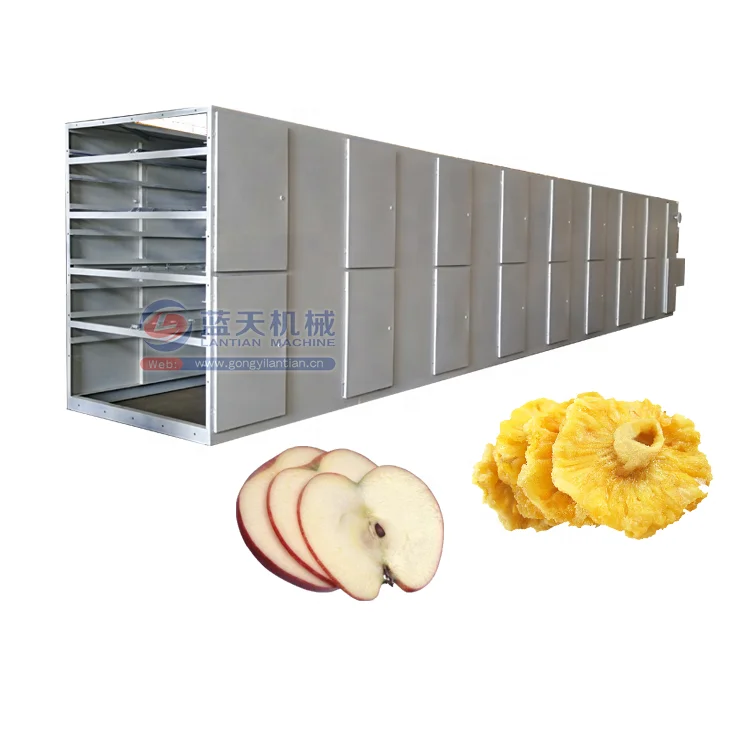

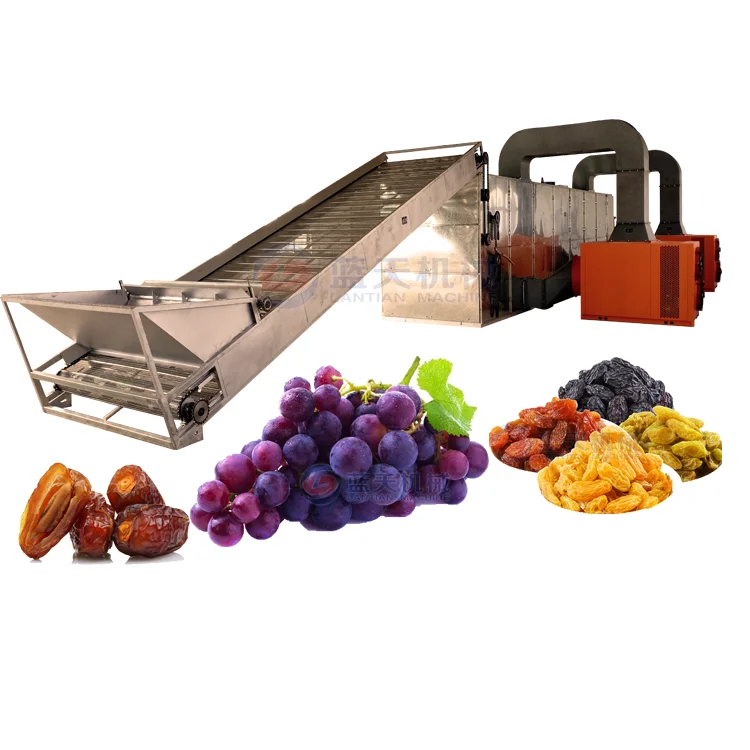

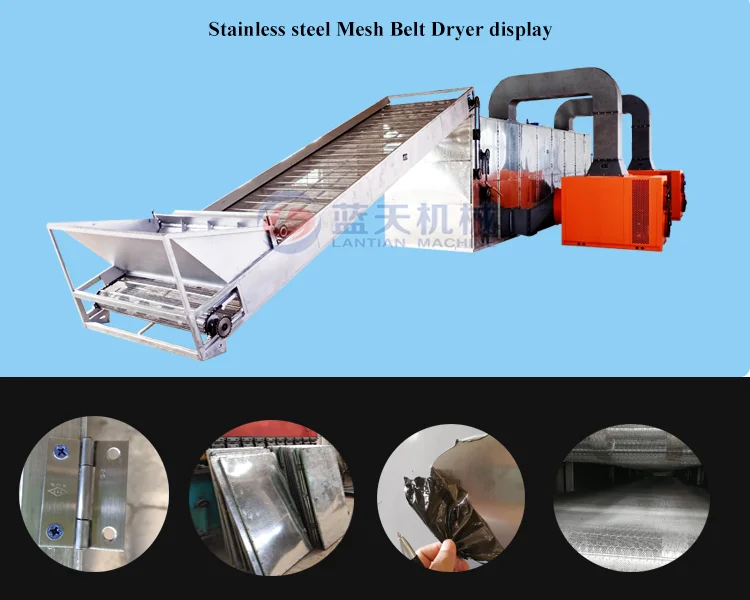

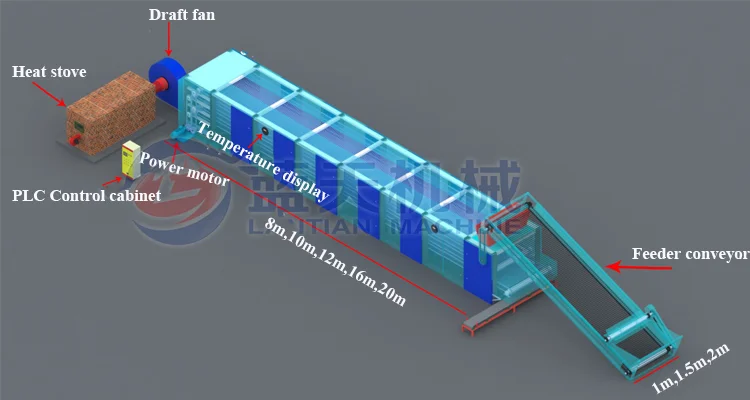

Second type: Mesh belt dryer
This is one continuous type dryer machine. this dryer suitable for big capacity. supply for chili, hemp, seed, flower, peanut, and other raw material.
Model
Power
Dimension
Weight
Capacity
LT-12
19.75KW
12*1.5*2.2m
7000kg
300-500kg/h
LT-16
26.75KW
16*2*2.2m
9000kg
500-1000kg/h
Details Images

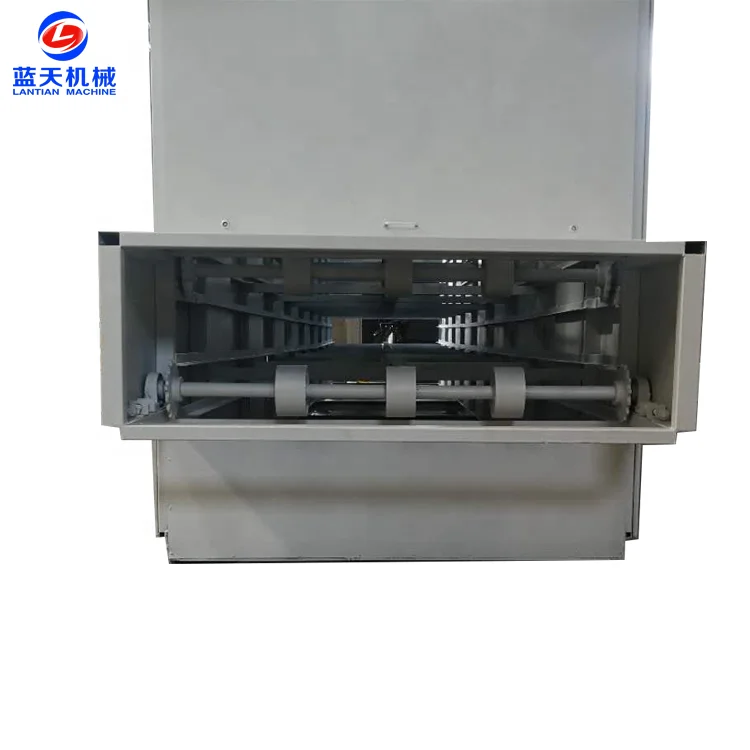

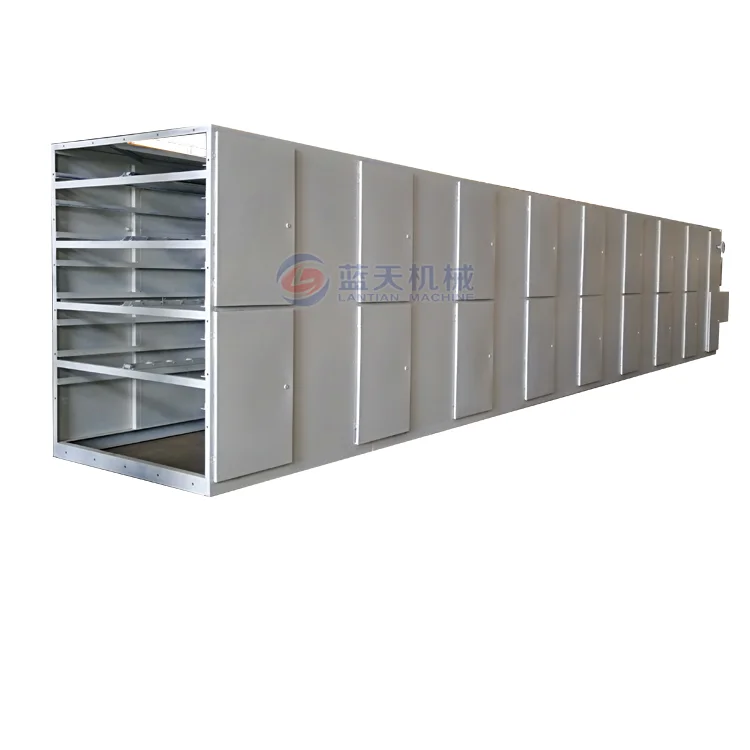

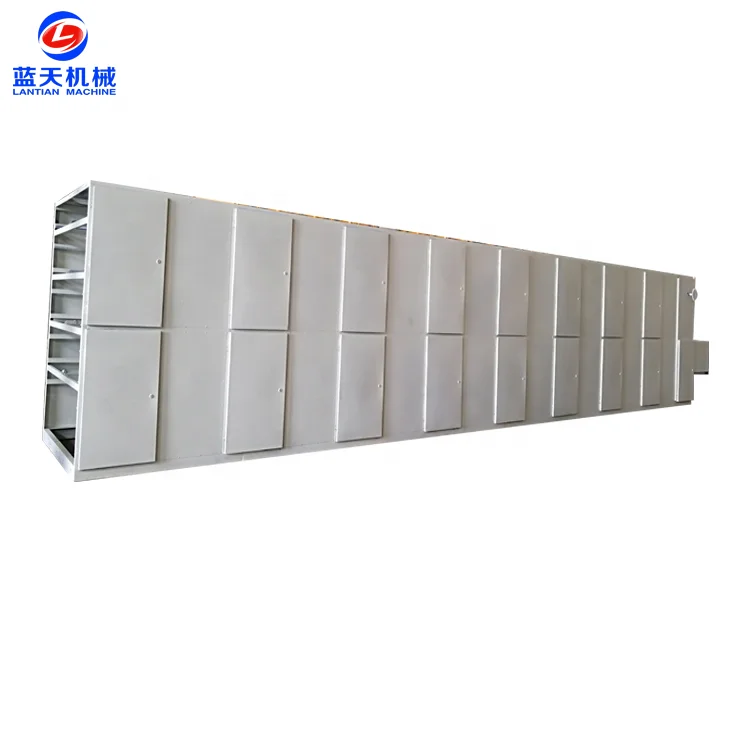

Item1: Belt dryer chamber
The dryer chamber size can be support customized. we can make stainless stell material, usual steel .
The drying chamber is generally divided into 3layers, 4 layers, and 5 layers.

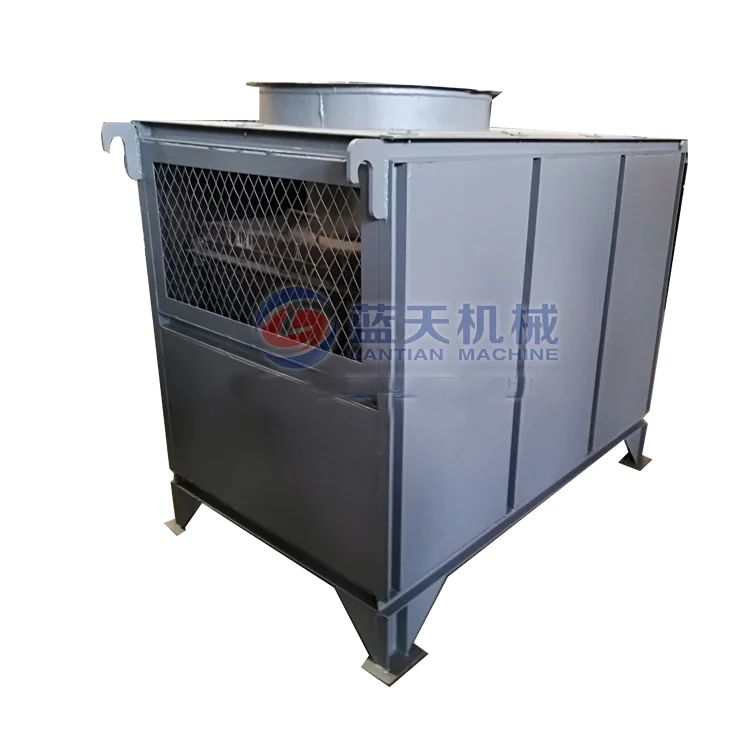

Item2: Heat exchange furnace
Dimension: 2200*1100 *2200 Weight :800kg Heating fuel: Coal, wood, natural gas, propane, water vapor, electric heating.
Heat exchange furnace and the drying chamber are separated. The hot air entering the drying box is pure, non-polluting, non-sticky, and there is no hidden danger.

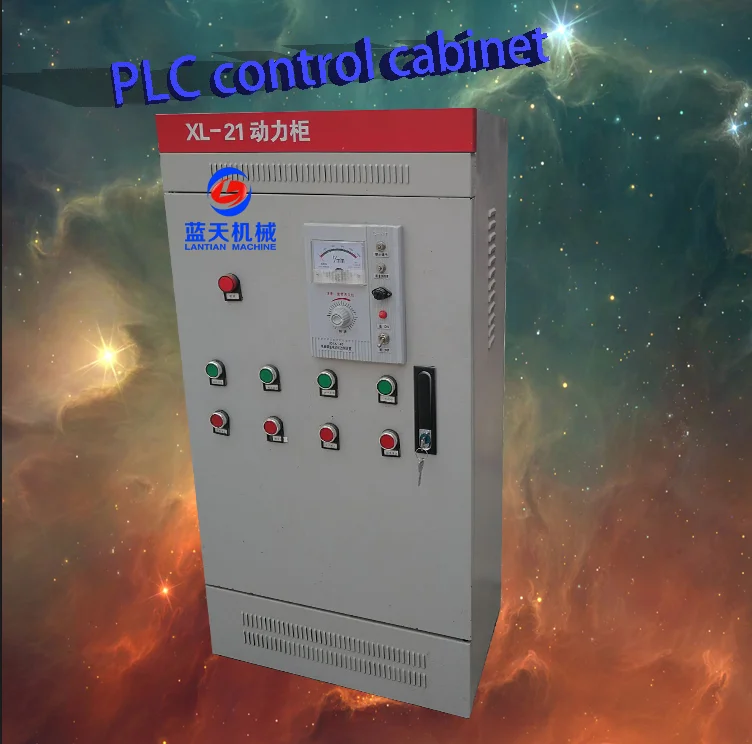

Item3: PLC control cabinet
Dimension: 4*0.6*0.3 m Equipped with PLC, can be set during drying process,according to the moisture requirements of raw materials, different speeds can be set for drying.

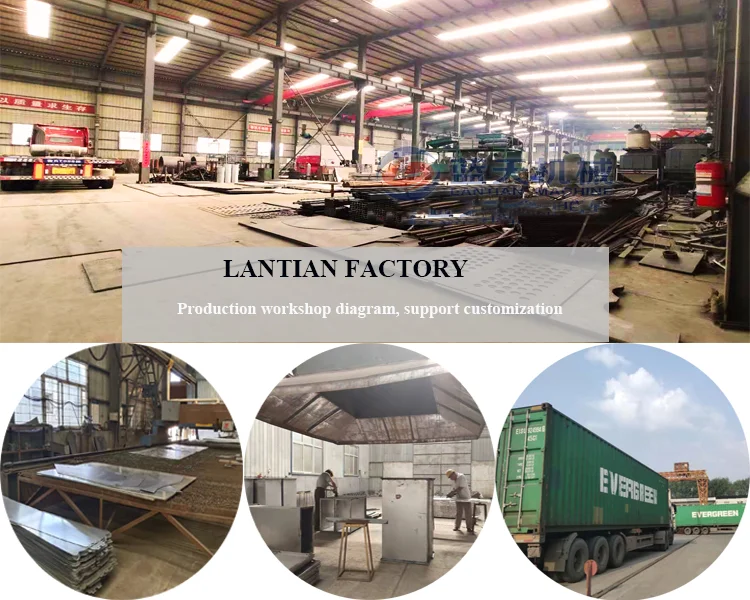

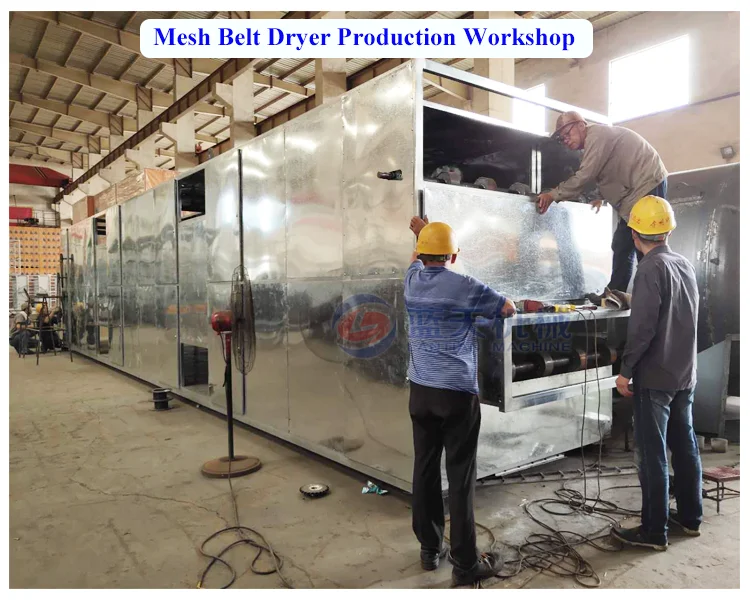

Mesh belt dryer production workshop and the spot

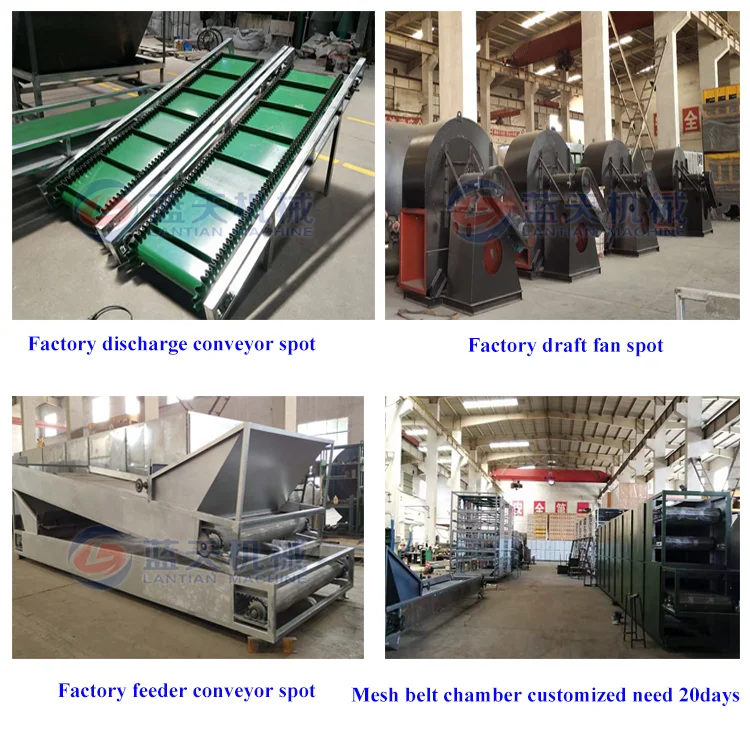

The factory generally has spot accessories, which can be customized by customers at any time, with short production cycle and fast delivery. Welcome to consult and make order.
The suitable raw material :
1>Fruit:Almonds, jujube, peanuts, longans, walnut, papaya tablets, apple, lemon, hawthorn pills, bananas, etc.
2>Vegetable:Asparagus, beans, kidney beans, lentils, eggplant, red pepper, Chinese prickly ash, black fungus, tremella, papaya tablets, pills, bitter melon, radish, cucumber slices, mushrooms, mushrooms, ginger, garlic, etc.
3>Medicinal material:Flos lonicerae, radix scutellariae, salvia miltiorrhiza, burdock, fructus schisandrae, codonopsis, radix rehmanniae, prepared rhizome of rehmannia, mulberries, forsythia, Chinese wolfberry, etc.
4>Others:Lily, rose, peony seed,fennel seeds,etc.

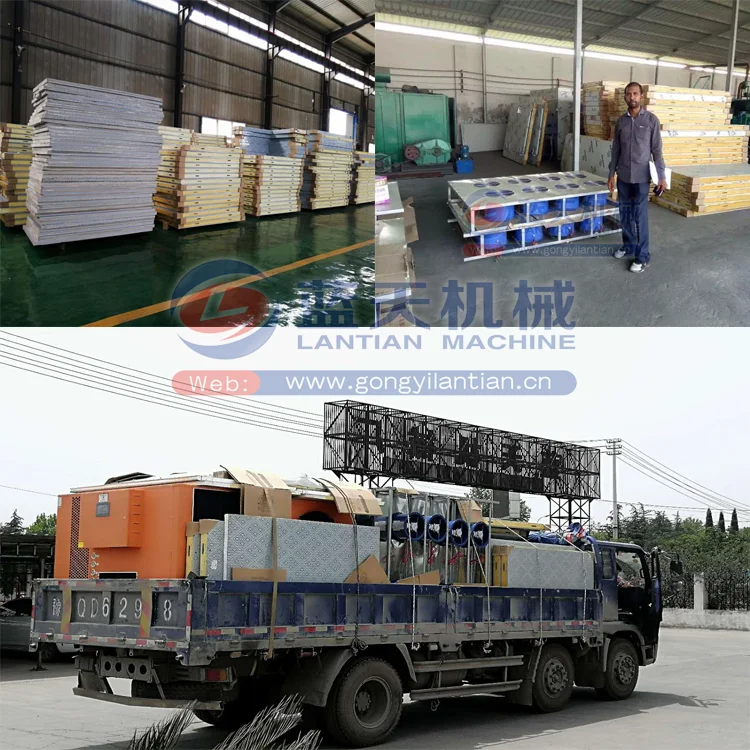

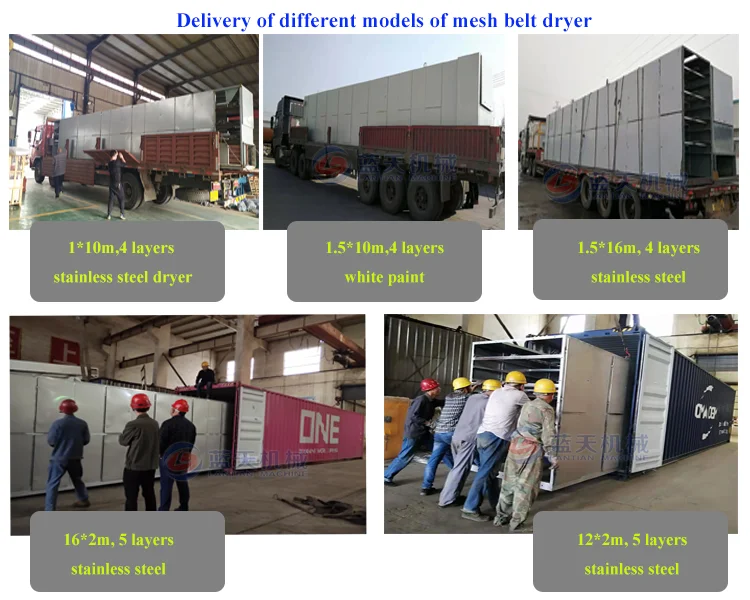

Packing & Delivery

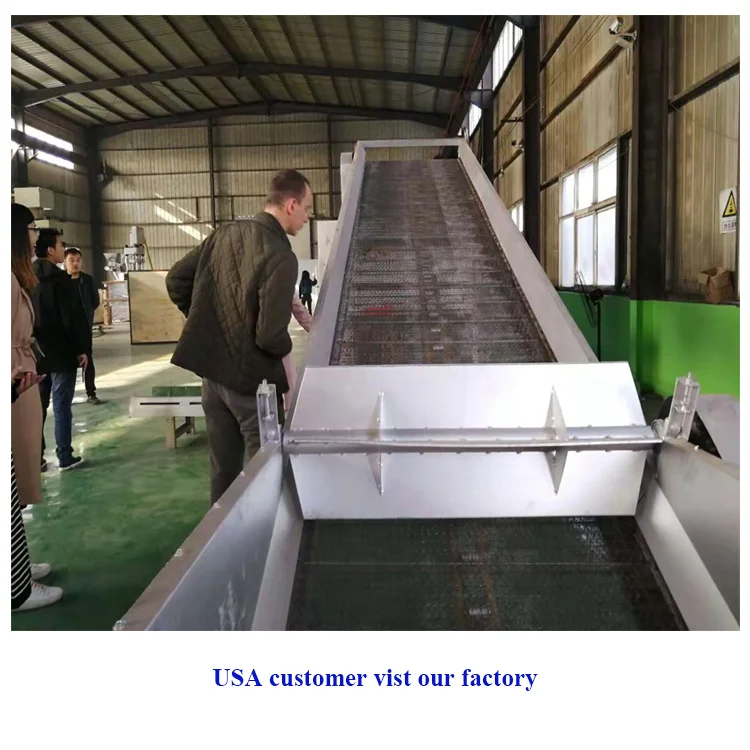

Customer Photos
Company Profie
Henan Lantian Machinery Manufacture Co.,Ltd.
Henan Lantian Machinery Manufacture Co.,Ltd. which located in Gongyi, Henan province, is a modern enterprisewhich sets the scientific research, production and sales as a whole.We have a modern management system, the first-class processing art, perfect detection means. our factory have more than 20 years, we main supply many type fruit and vegetable and fruits washing machine, peeling machine, slicer machine, dryer machine.
