MURS Certificate license free 5 CH 2W Handheld two way radio transmitter Retevis RT27V
- Category: >>>
- Supplier: Shenzhen Retevis Technology Co. Ltd.
Share on (62568833018):
Product Overview
Description

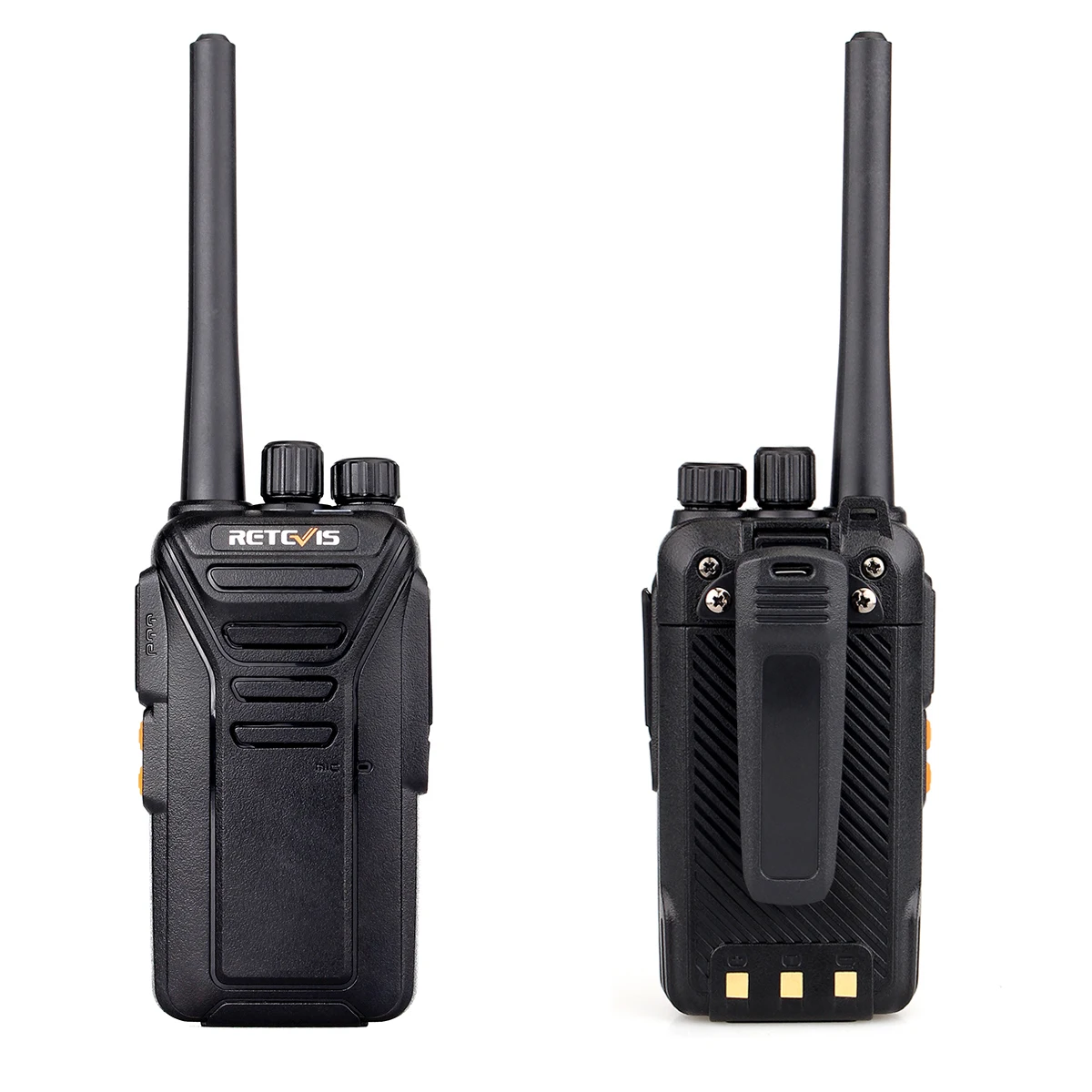

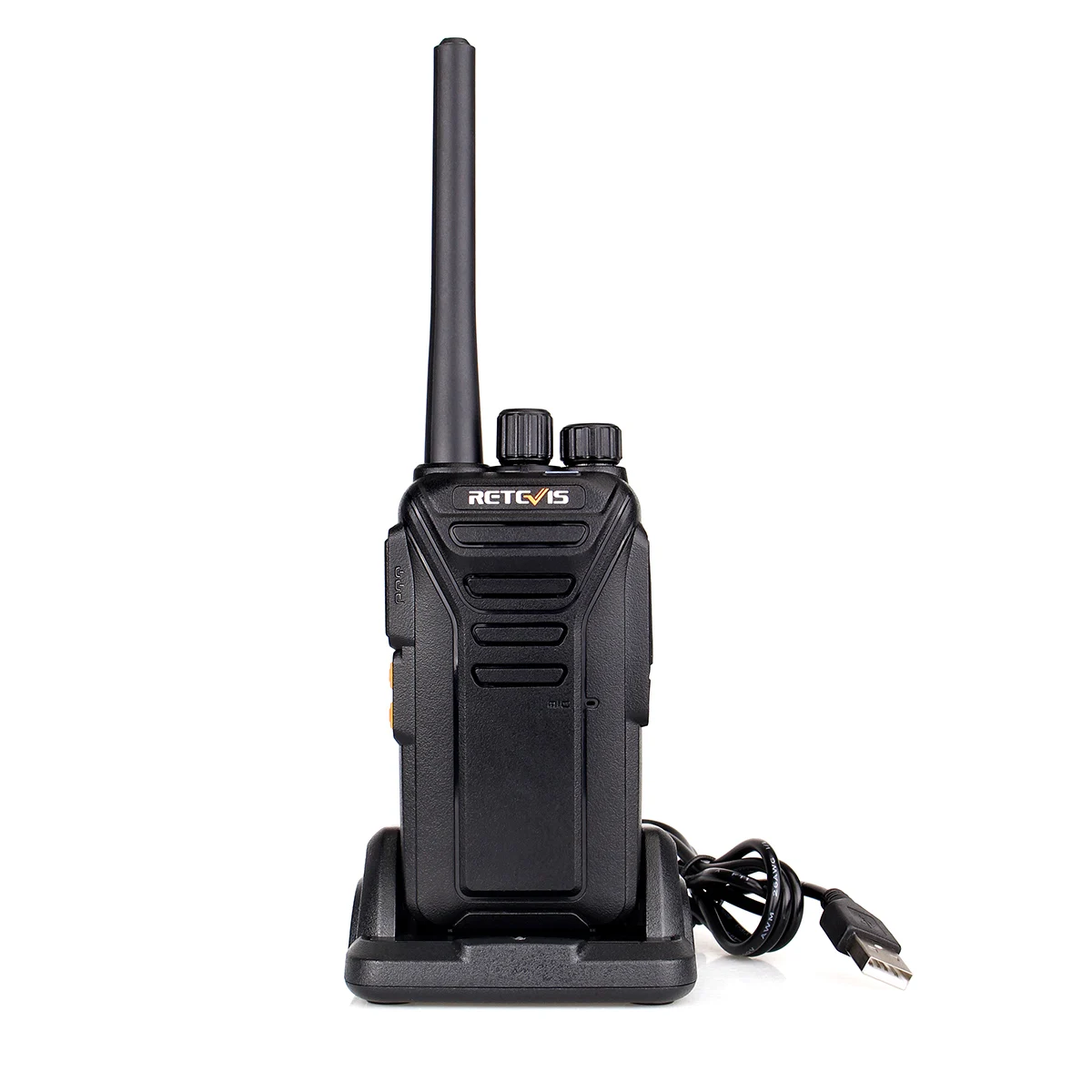

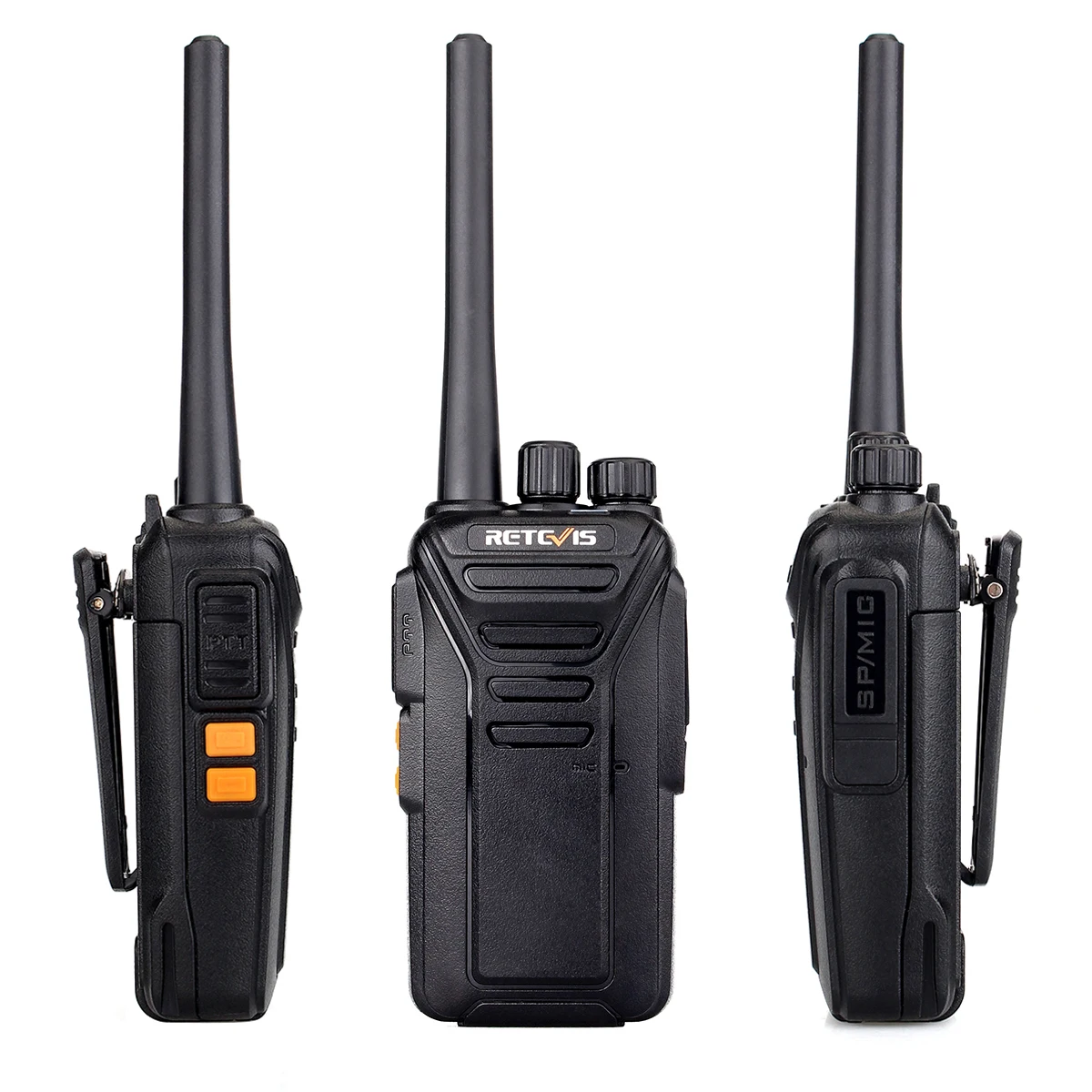

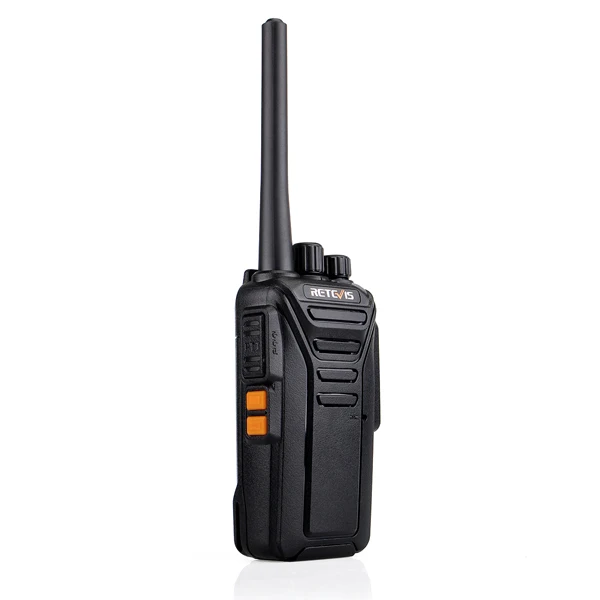

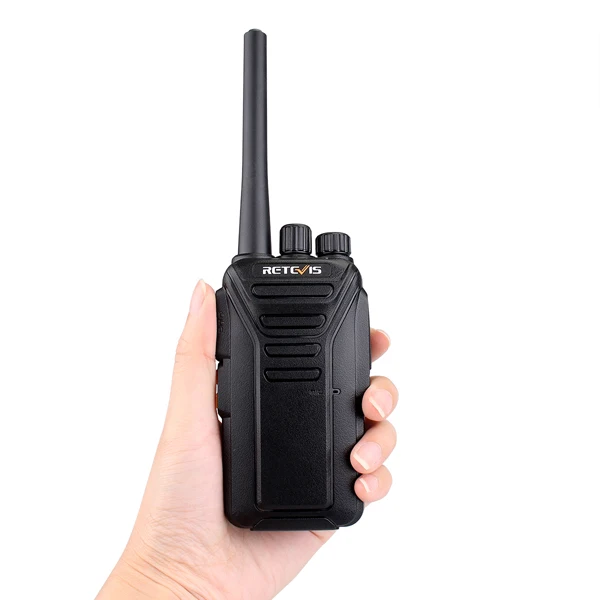

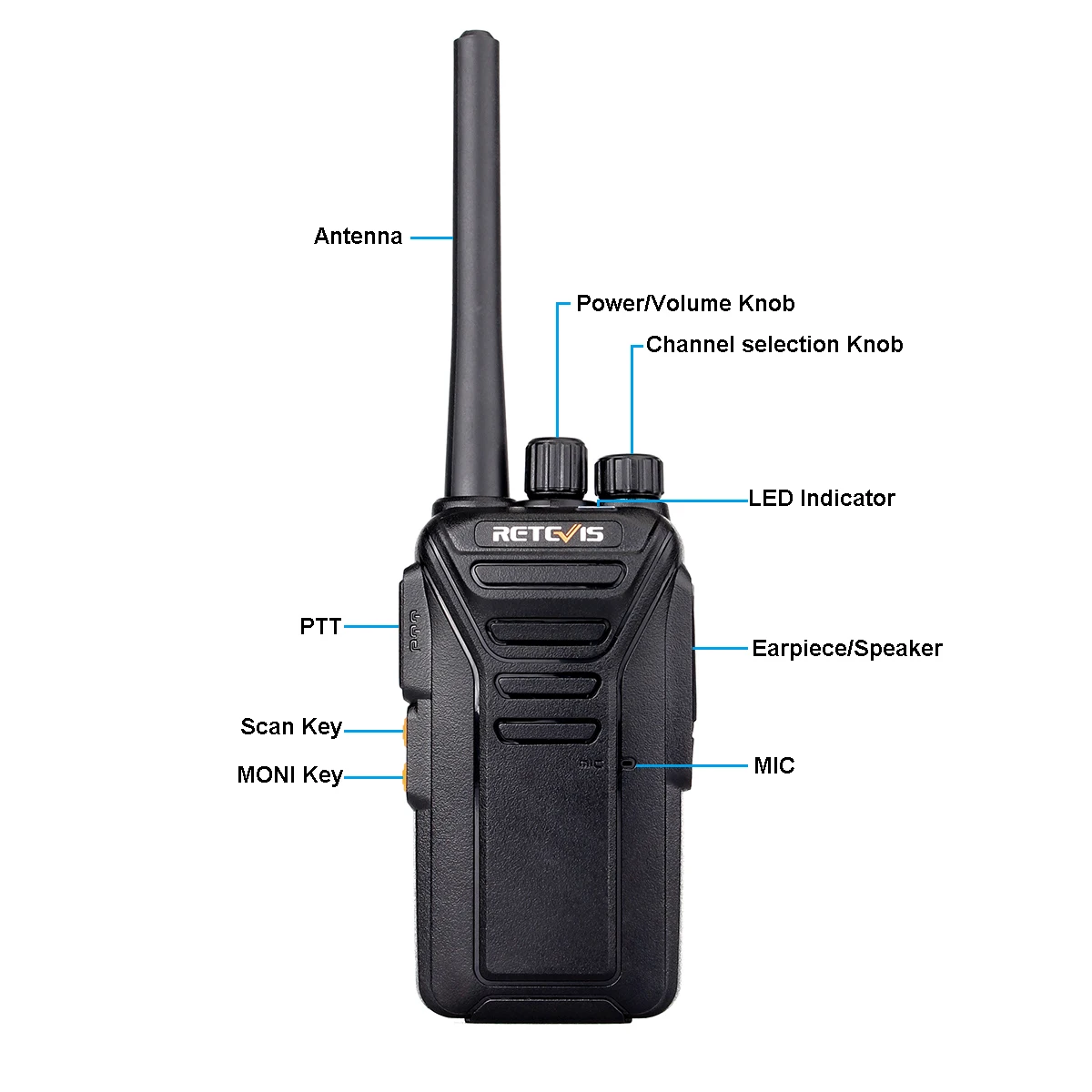

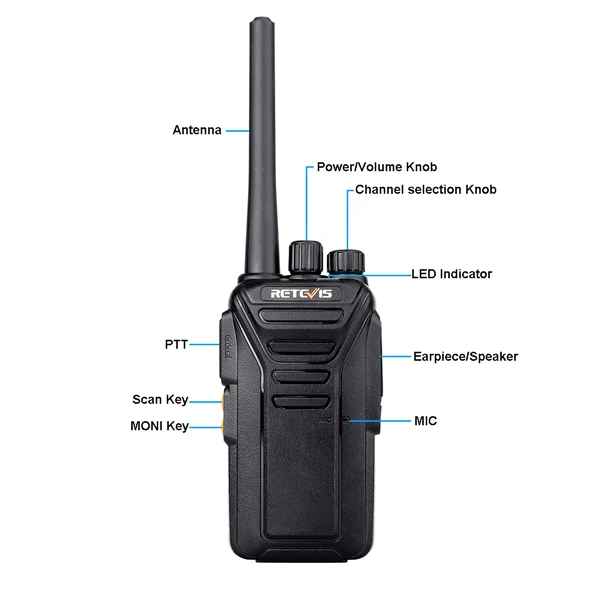

Retevis Details Images
Retevis Products Description
1.RT27 is a license-free analog handheld two way radio.
2.With a compact, ergonomics design.
3.50 CTCSS 210 DCS avoid hearing on the same channel extra call.
4.Time-out timer (TOT) to avoid inadvertent continuous operation.
5.Programmable via PC, you are able to customize the feature of each radio.
Feature：
VOX function
Scan function
CTCSS and DCS
DCS encrypt
Busy Channel lockout(BCL)
Adjust squelch level
Monitor
Time-out timer (TOT)
Battery save
Voice companding function
2.With a compact, ergonomics design.
3.50 CTCSS 210 DCS avoid hearing on the same channel extra call.
4.Time-out timer (TOT) to avoid inadvertent continuous operation.
5.Programmable via PC, you are able to customize the feature of each radio.
Feature：
VOX function
Scan function
CTCSS and DCS
DCS encrypt
Busy Channel lockout(BCL)
Adjust squelch level
Monitor
Time-out timer (TOT)
Battery save
Voice companding function
Technical Specification | ||||||||
Frequency range | 151.820MHz-154.600MHz | |||||||
Channel | 5 | |||||||
Channel spacing | 11.25KHz/20KHz | |||||||
Operation voltage | 3.7V | |||||||
Battery | 1100mAh(Li-ion) | |||||||
Frequency stability | ±2.5ppm | |||||||
Operating temperature range | -20℃+55℃ | |||||||
Dimensions | 105 x 59 x 34mm(without antenna) | |||||||
Weight(with antenna and battery) | 185g | |||||||
Receiver | ||||||||
RF sensitivity | ≤0.3µV | |||||||
Silent sensitivity | ≤0.25µV | |||||||
Audio frequency power | ≥250mW | |||||||
Related audio distortion | ≤5% | |||||||
Modulation receiver bandwidth | ±7KHz | |||||||
Spurious rejection | ≥55dB | |||||||
Selectivity | ≥65dB | |||||||
Inter-modulation | ≥60dB | |||||||
Transmitter | ||||||||
output power | 2W | |||||||
Modulation | F3E | |||||||
Current | ≤1.2A | |||||||
Modulation distortion | ≤5%(300-3000Hz) | |||||||
Maximum frequency deviation | ≤2.5KHz | |||||||
Remanent modulation | ≤-35dB | |||||||

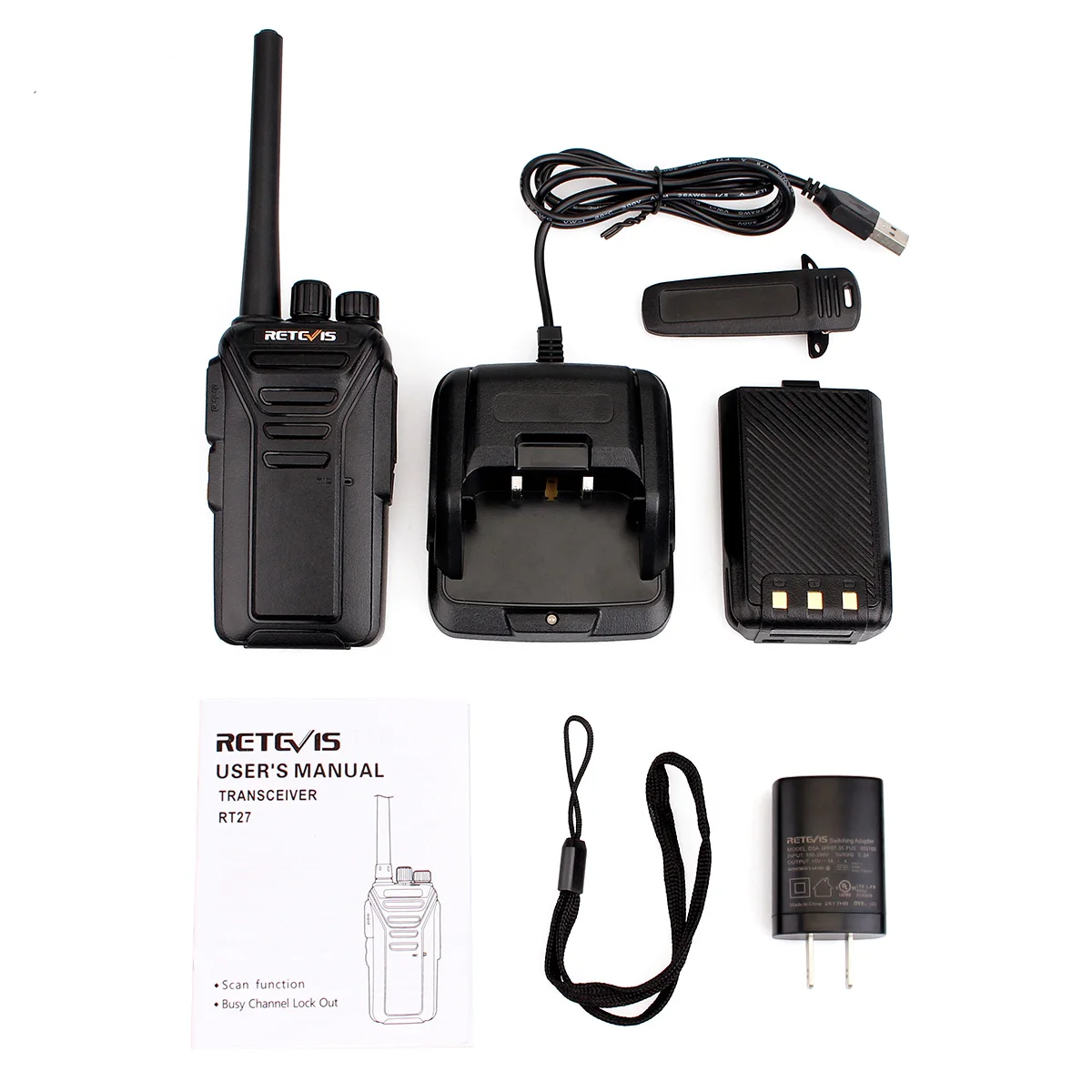

Retevis Product packaging
1 x Radio
1 x Battery
1 x USB Charger
1 x Belt Clip
1 x Hand Strap
1 x User’s Manual
1 x Battery
1 x USB Charger
1 x Belt Clip
1 x Hand Strap
1 x User’s Manual
Retevis Certifications
Retevis Design & Manufacture for OEM & ODM
