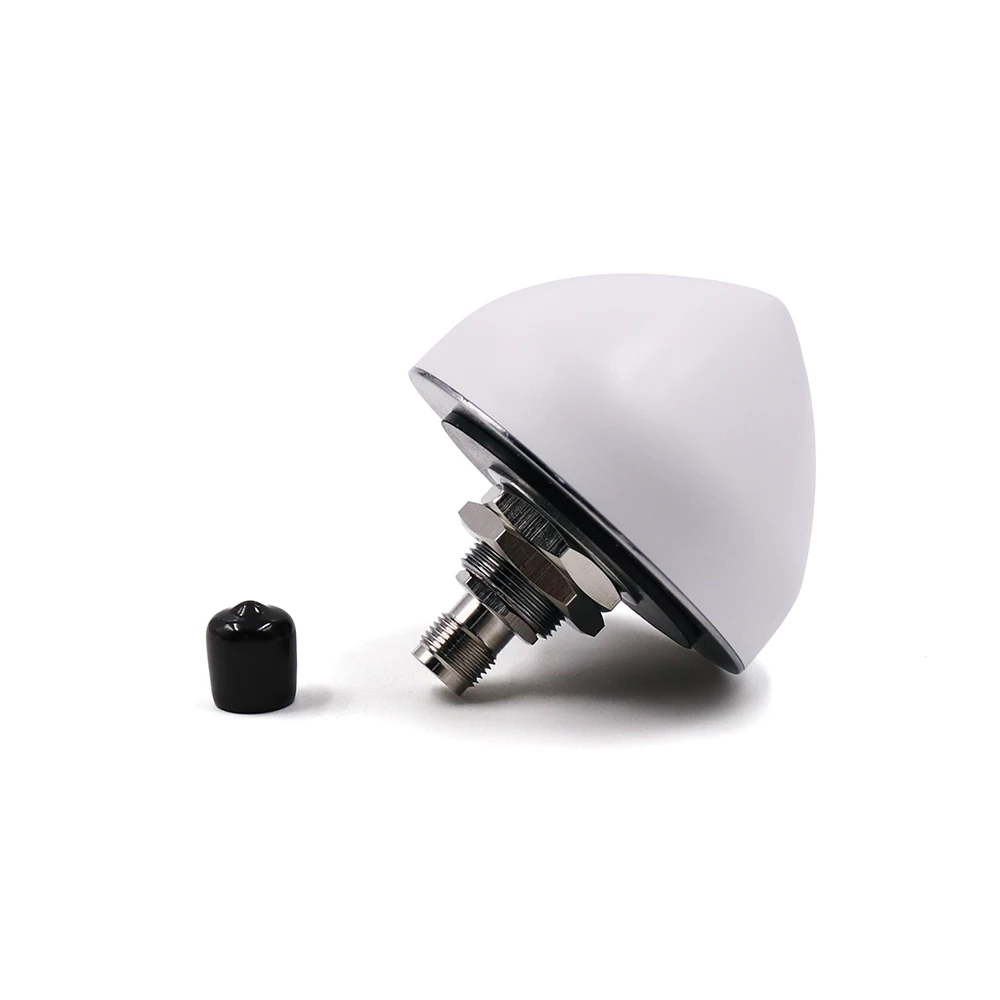

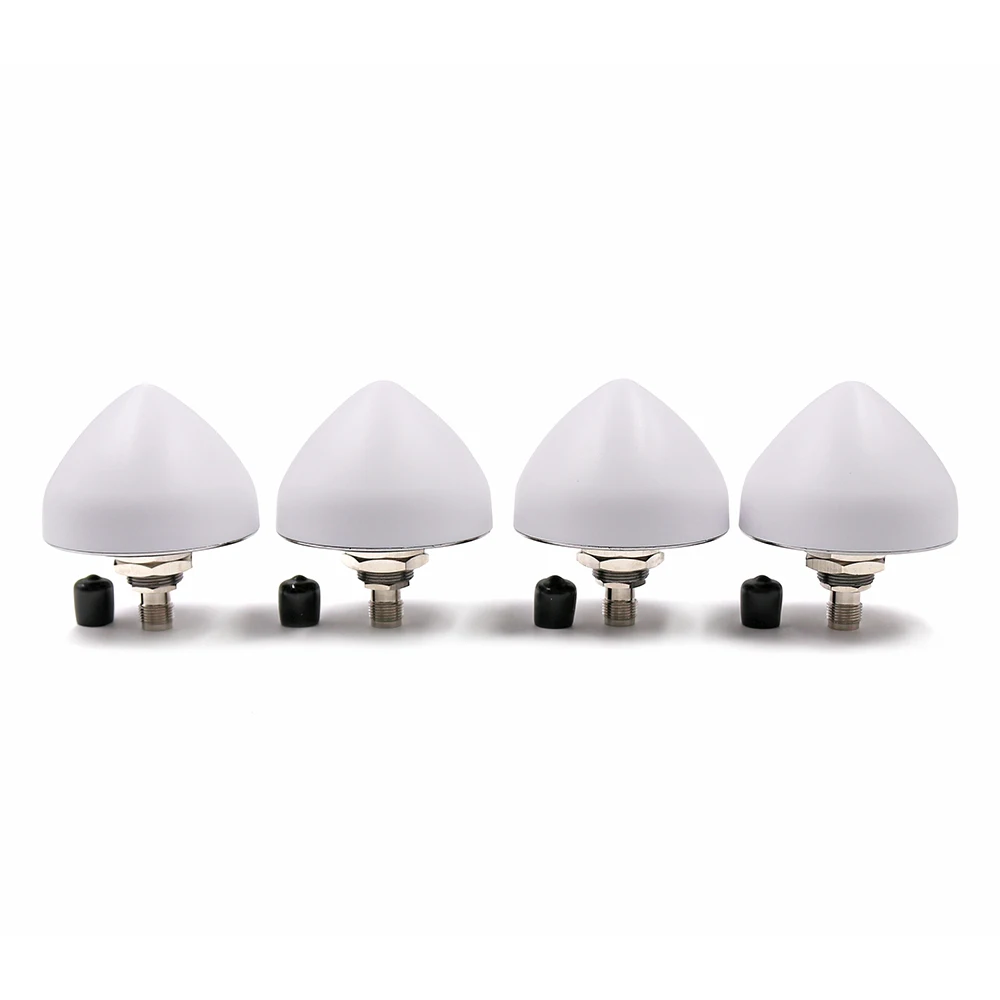

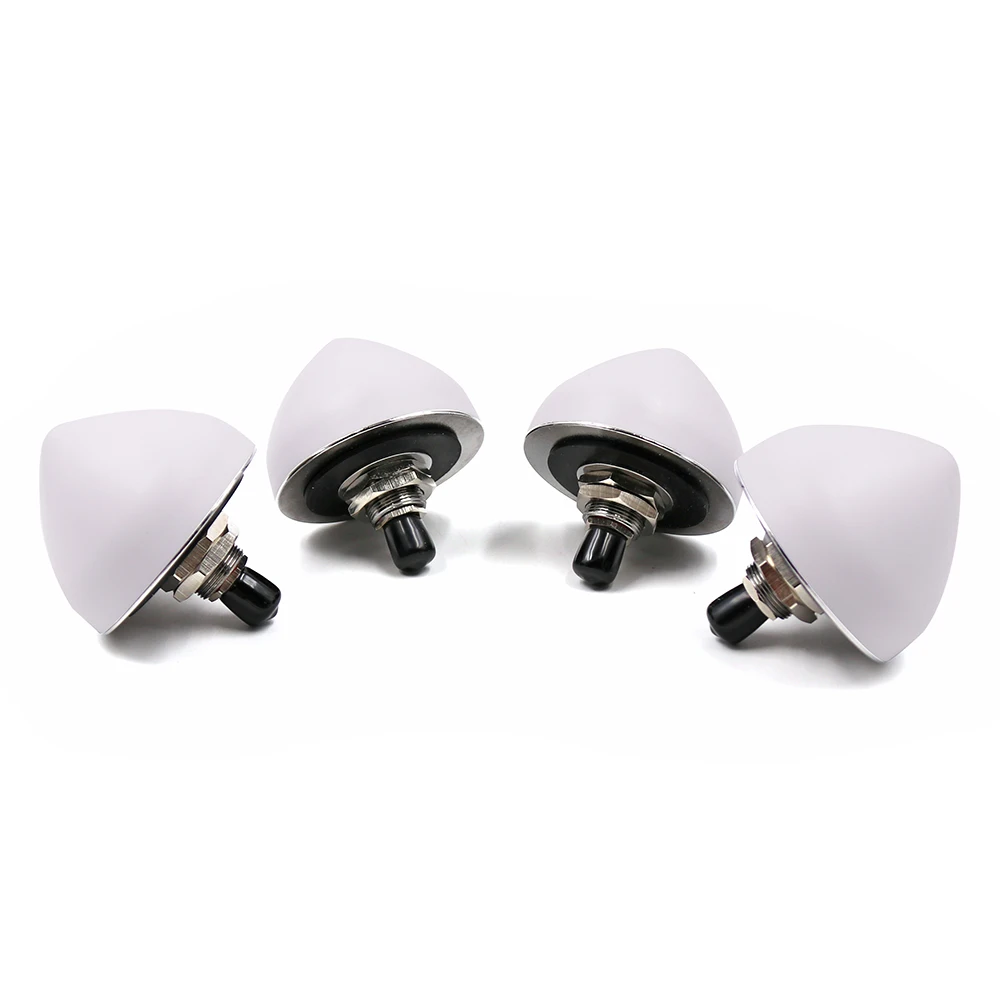

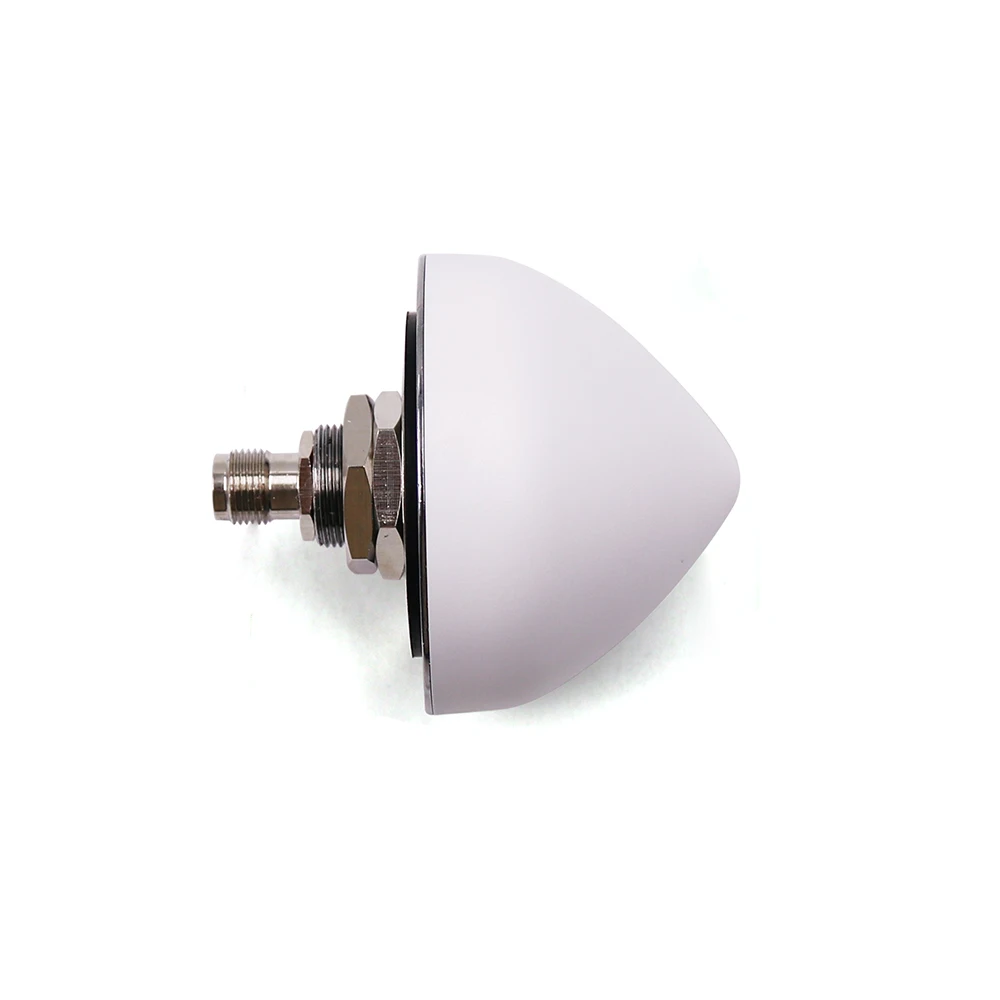

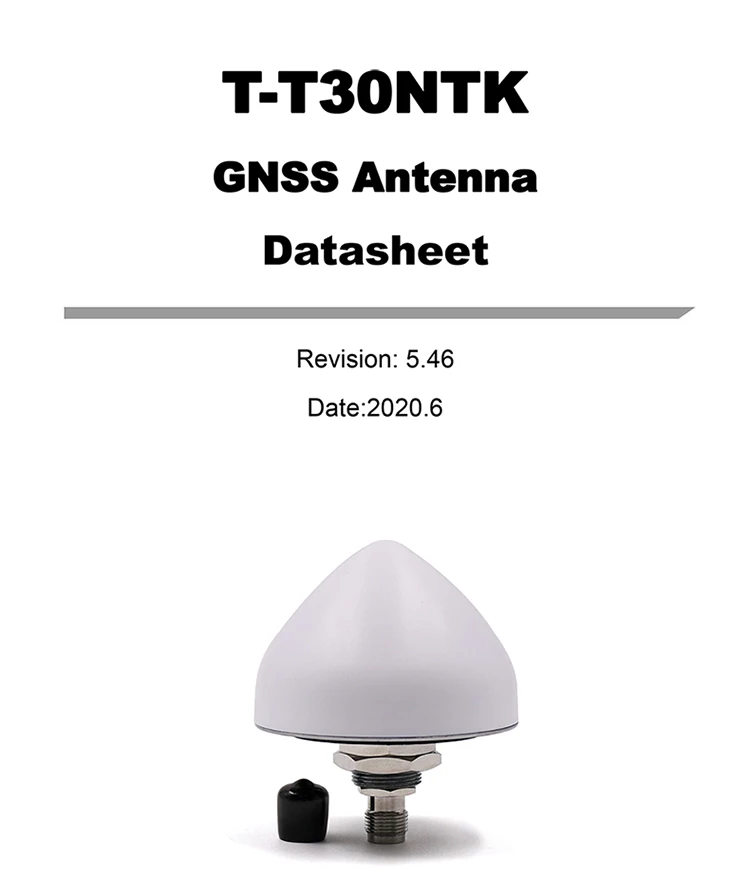

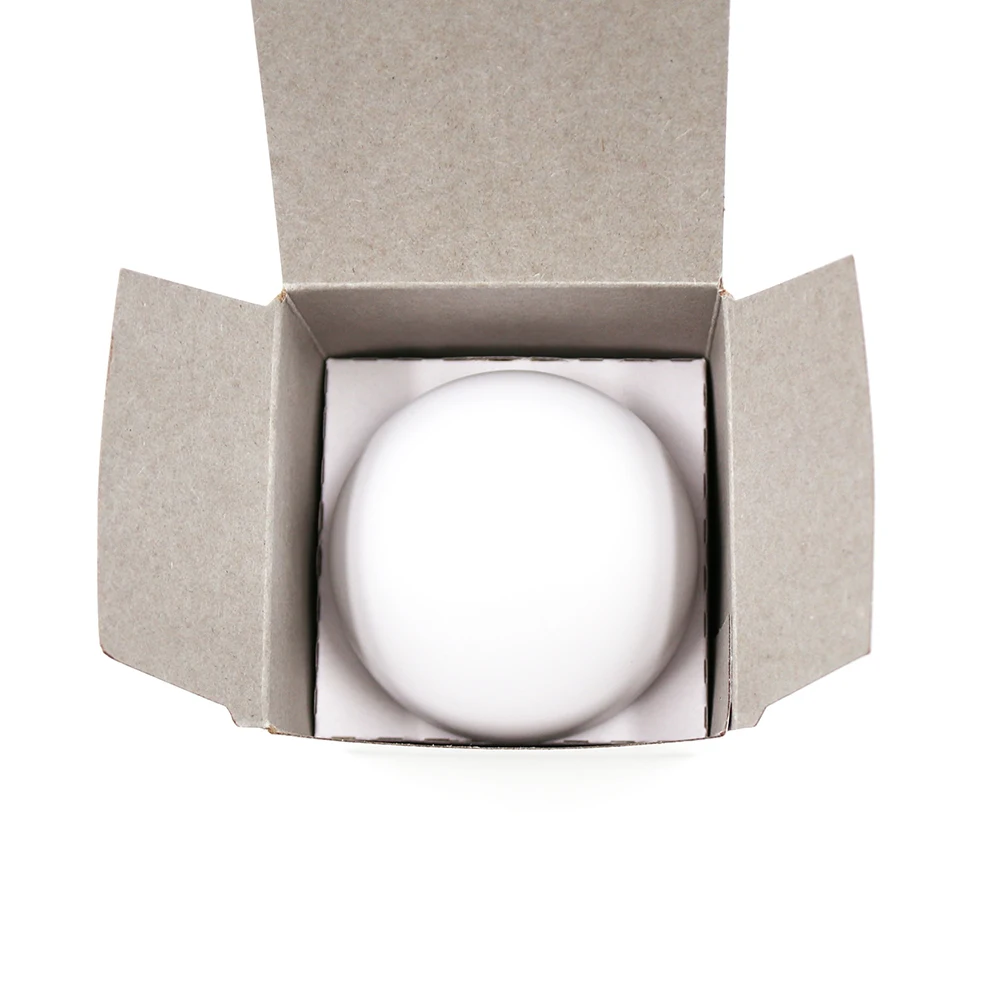

BEITIAN mushroom BDS GLONASS GPS antenna passive internal cellular GPS active antenna T T30NTK

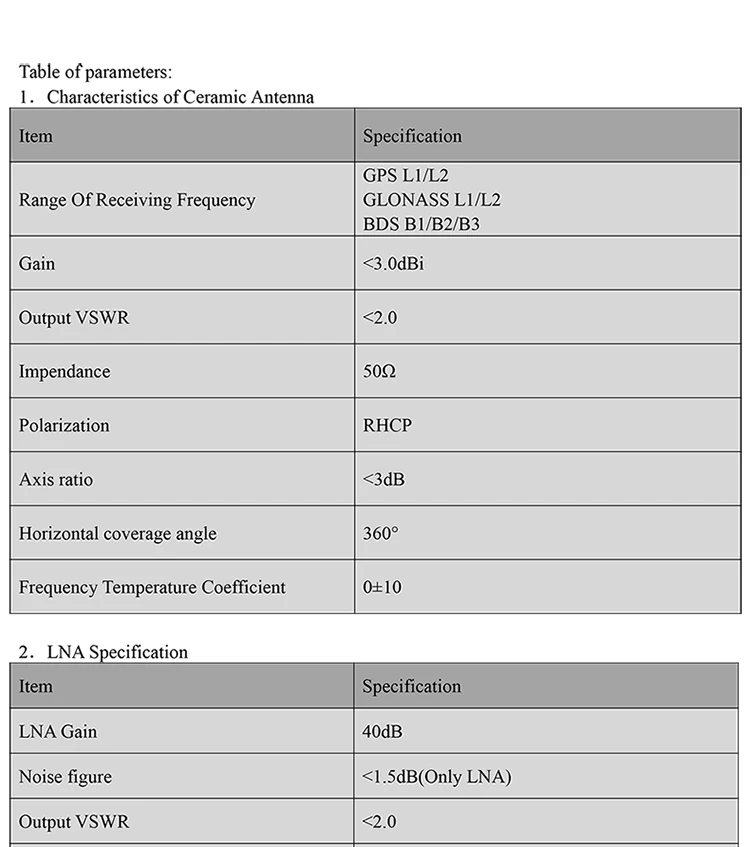

Item

Specification

Range Of Receiving Frequency

GPS L1/L2

GLONASS L1/L2

BDS B1/B2/B3

Gain

<3.0dBi

Output VSWR

<2.0

Impendance

50Ω

Polarization

RHCP

Axis ratio

<3dB

Horizontal coverage angle

360°

Frequency Temperature Coefficient

0±10

Item

Specification

LNA Gain

40dB

Noise figure

<1.5dB(Only LNA)

Output VSWR

<2.0

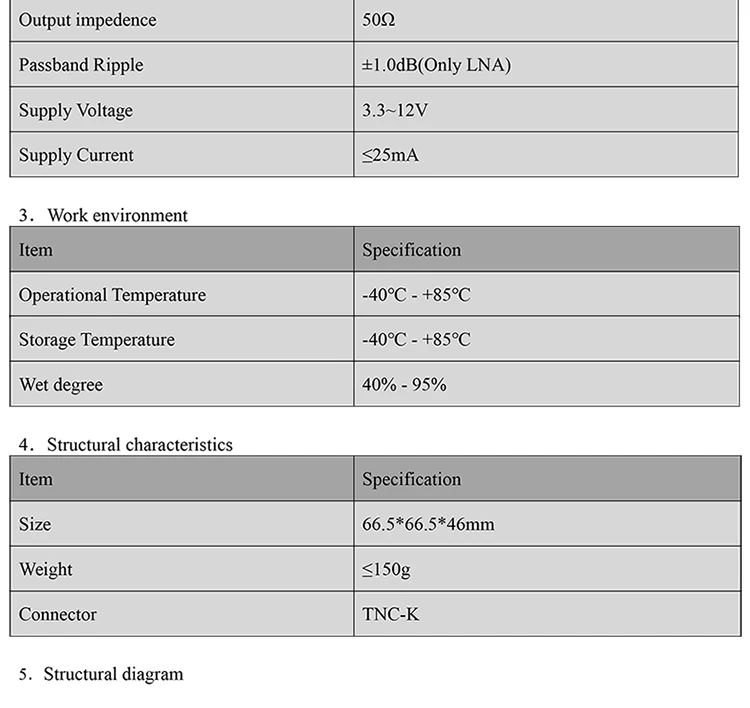

Output impedence

50Ω

Passband Ripple

±1.0dB(Only LNA)

Supply Voltage

3.3~12V

Supply Current

≤25mA

Item

Specification

Operational Temperature

-40℃ - +85℃

Storage Temperature

-40℃ - +85℃

Wet degree

40% - 95%

Item

Specification

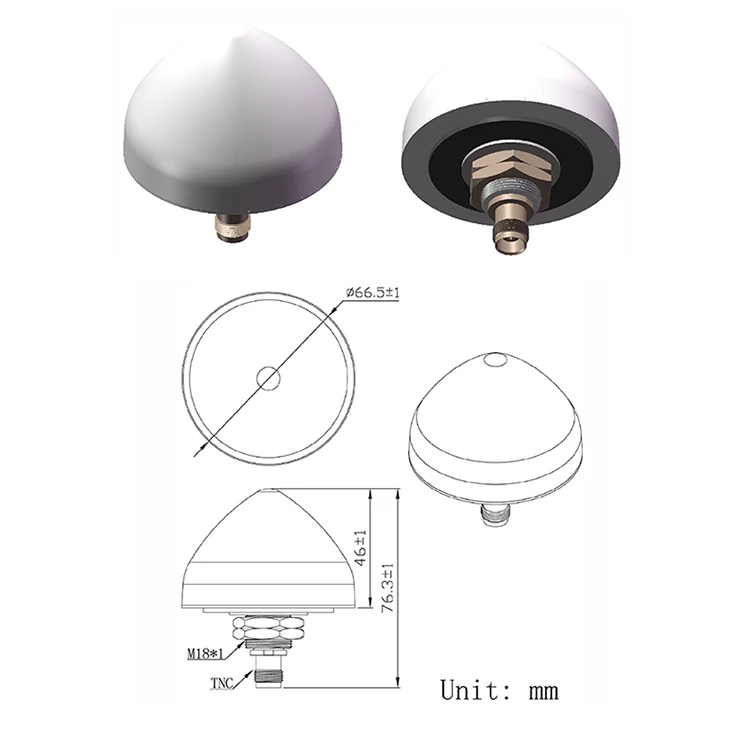

Size

66.5*66.5*46mm

Weight

≤150g

Connector

TNC-K
