Product Overview
Description

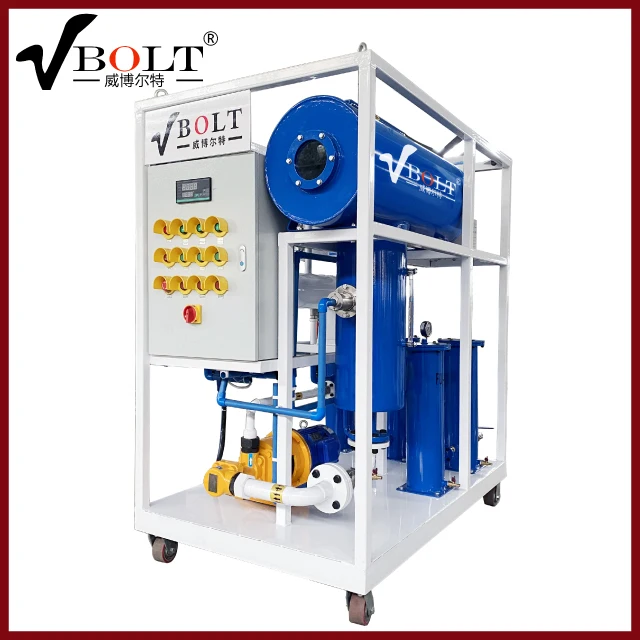

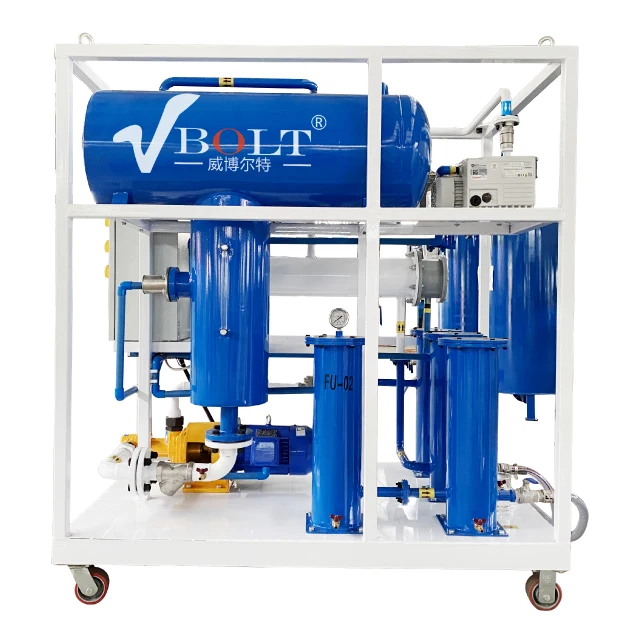

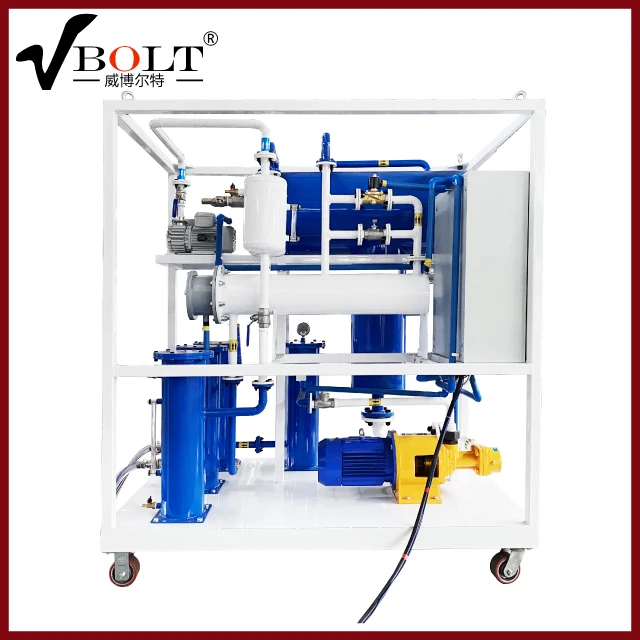

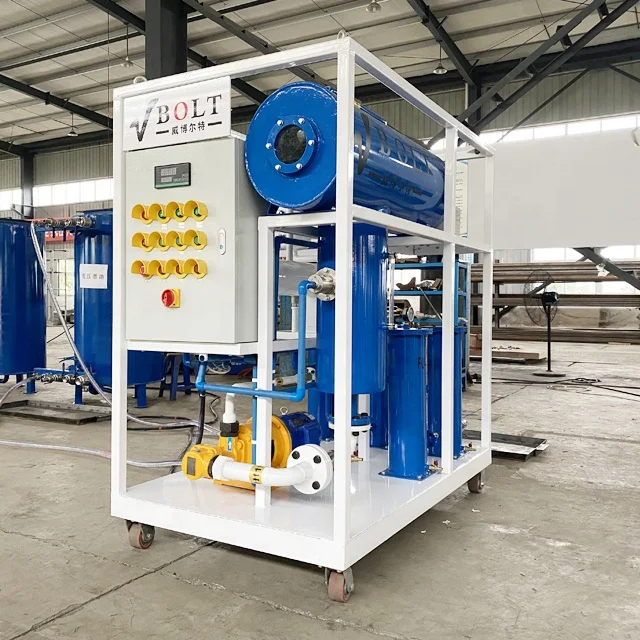

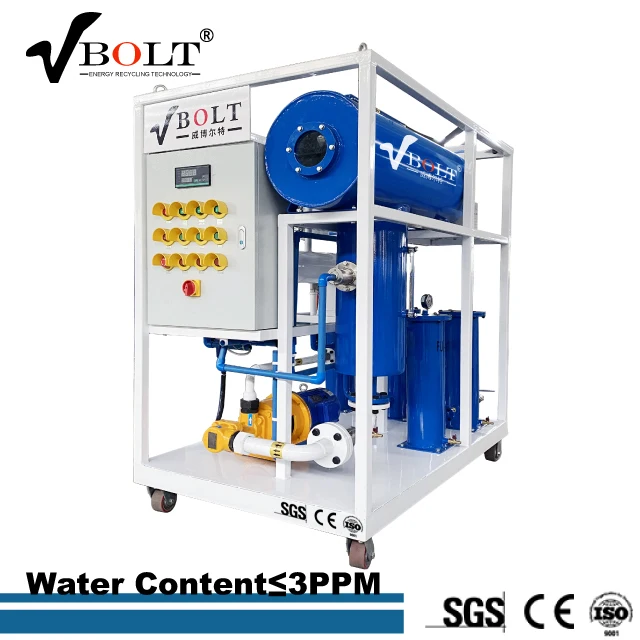

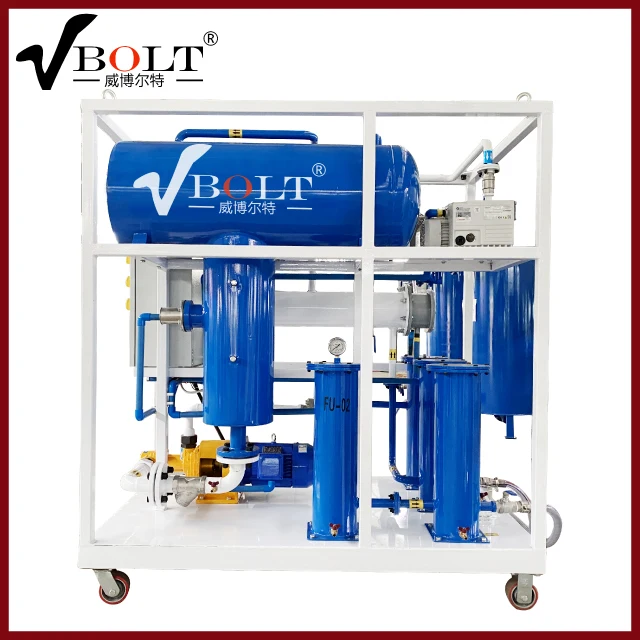

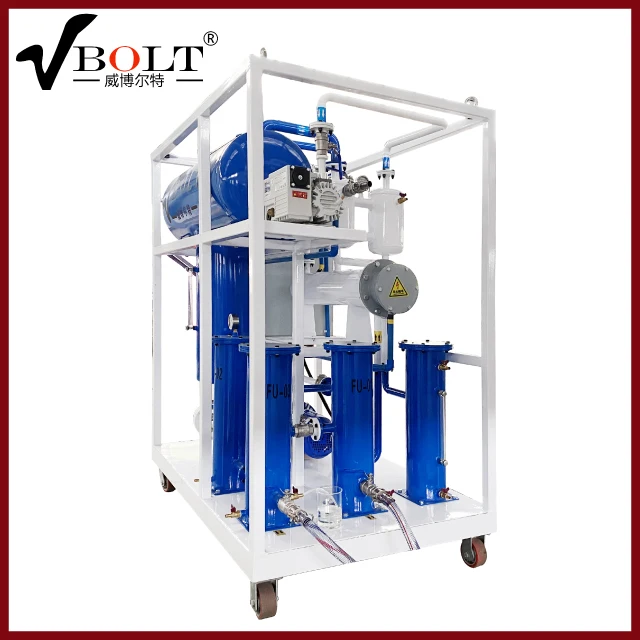

Anti Explosion Cooking Oil Lube Oil Dehydration And Degassing Oil Purifier For Manufacture Use
VBOLT high quality oil purify machine is highly applied for power plant, power station, electricity company, power transformation industry, railway industry transformer manufacturing company, metallurgy, petrochemical, mechanical engineering, transportation, railway and transformers manufacturing etc. It can effectively improve the service life of oil products, multi-level precise filtration. It’s with full automatic control system can 24 hours work, working 800 hours without any stop with explosion-proof.
Application
Centrifuge Oil | Steam Turbine Oil | Hydraulic Oil | High Viscosity Lubricating oi | Refrigerating oil |
Fire-resistant oil | Transformer Oil Engine Oil | Transformer Oil | Machine Oil | Petroleum |
Specification
VBOLT Oil Purify Machine Technical Parameter | ||||||||||
ITEM | UNIT | VBT-RV-50 | VBT-RV-100 | VBT-RV-200 | VBT-RV-300 | |||||
flow rate | L/min | 50 | 100 | 200 | 300 | |||||
working pressure | Mpa | ≤0.3 | ||||||||
breakdown voltage | KV | ≥75 | ||||||||
water content | PPM | ≤80 | ||||||||
gas content | % | ≤0.1 | ||||||||
cleaness | hm | ≤ grade 6 | ||||||||
Demulsification Value | min | new oil≤15 min use oil≤30 min （GB/T7305） | ||||||||
acidity | mgKOH/G | ≤.0.01 | ||||||||
Dielectric Loss Factors | tg(90℃） | ≤0.001 | ||||||||
Temperature Range | ℃ | 20-80 | ||||||||
Power Supply | 380V/50Hz -customization | |||||||||
Working Noise | dB(A) | ≤65 | ≤75 | ≤80 | ≤80 | |||||
Heating Power | KW | 36 | 54 | 72 | 90 | |||||
Total Power | KW | 40 | 60 | 80 | 102 | |||||
Intel /Outlet | mm | 32 | 42 | 50 | 60 | |||||

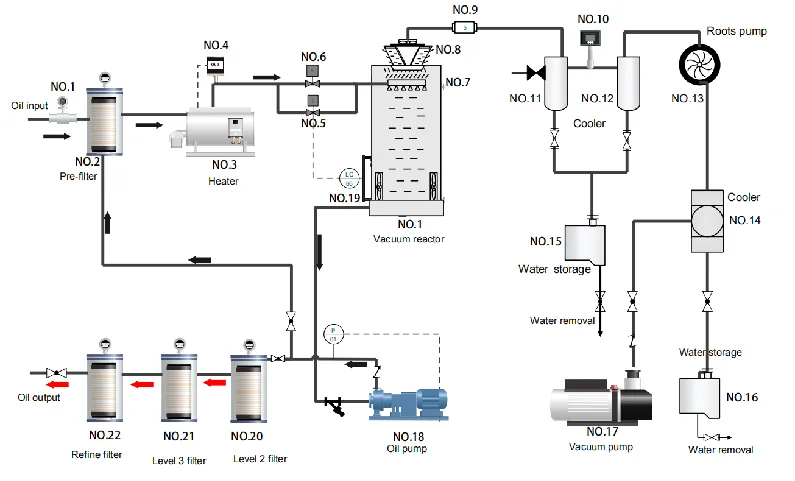

Flow Chart
Oil Quality

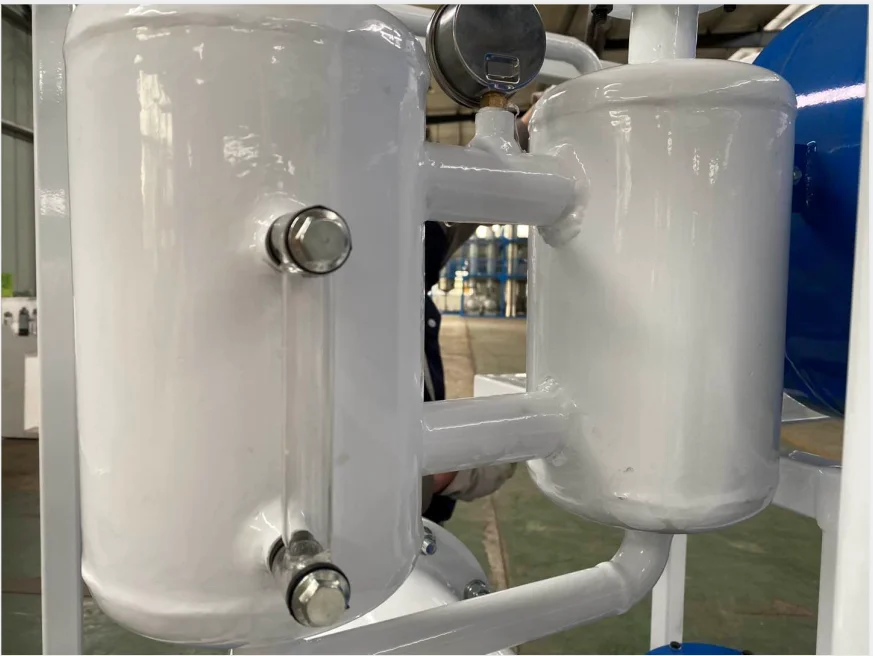

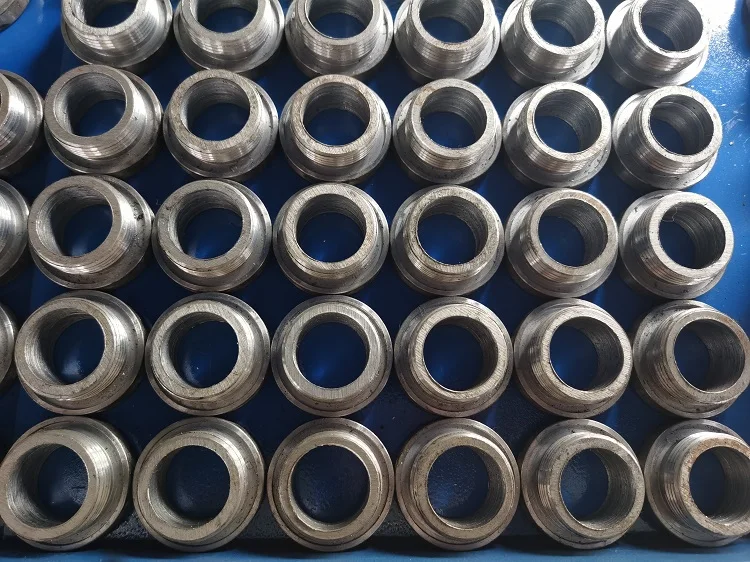

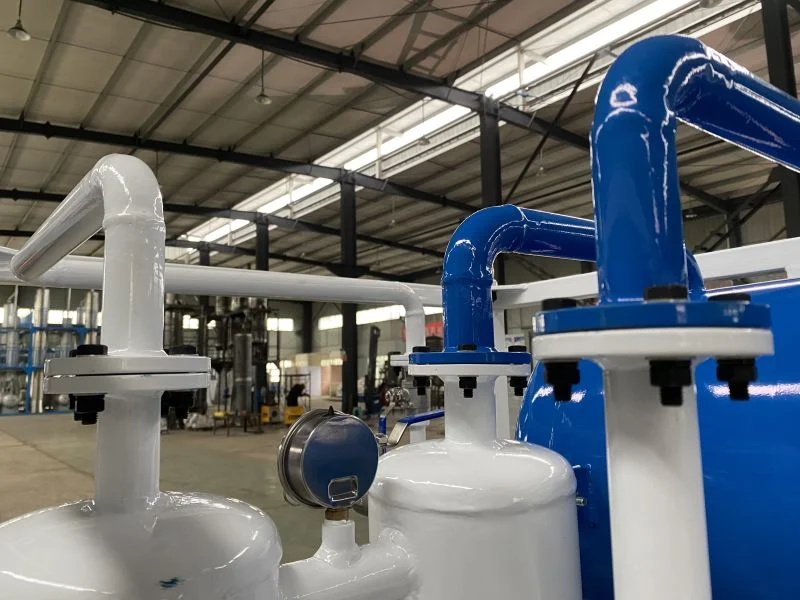

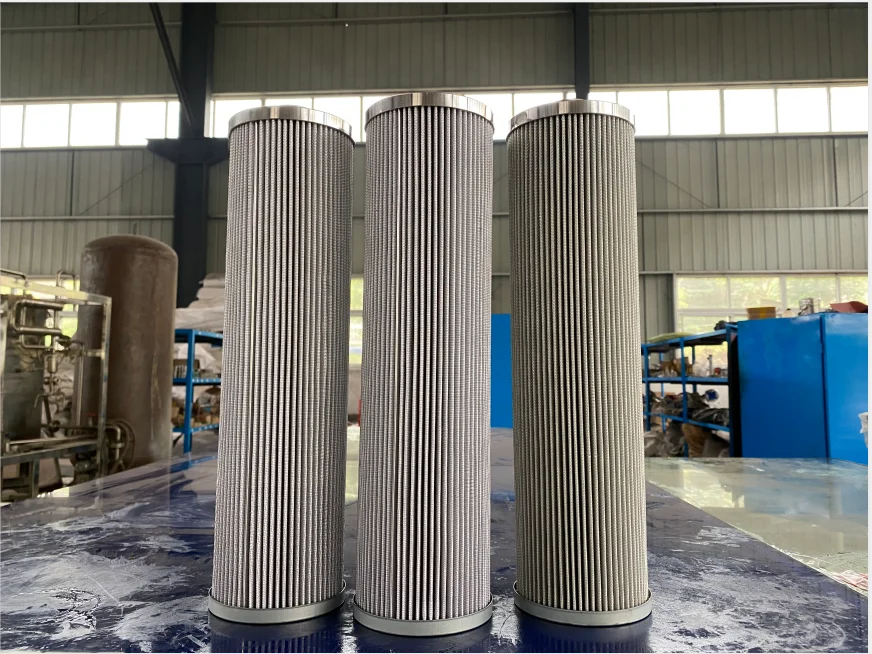

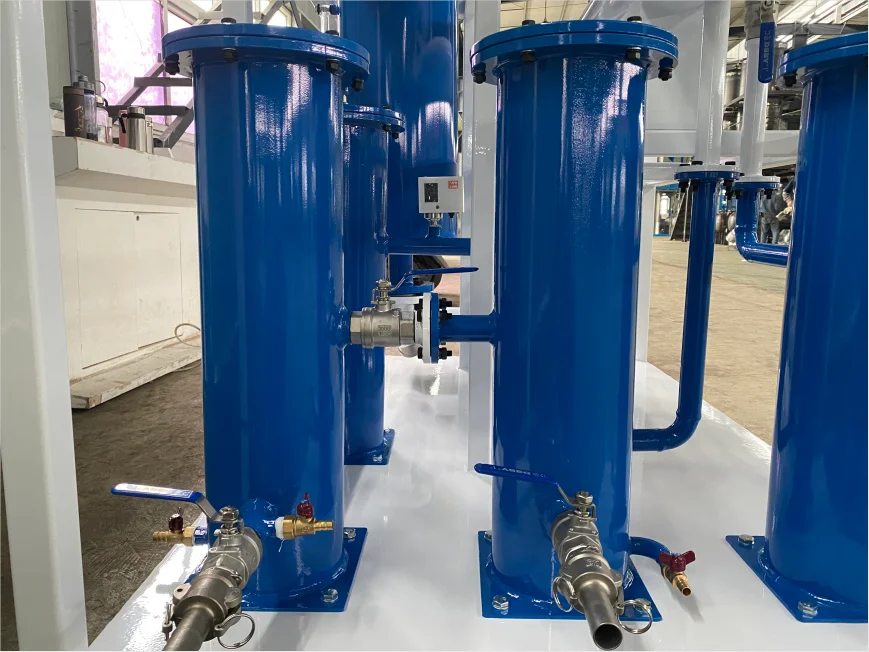

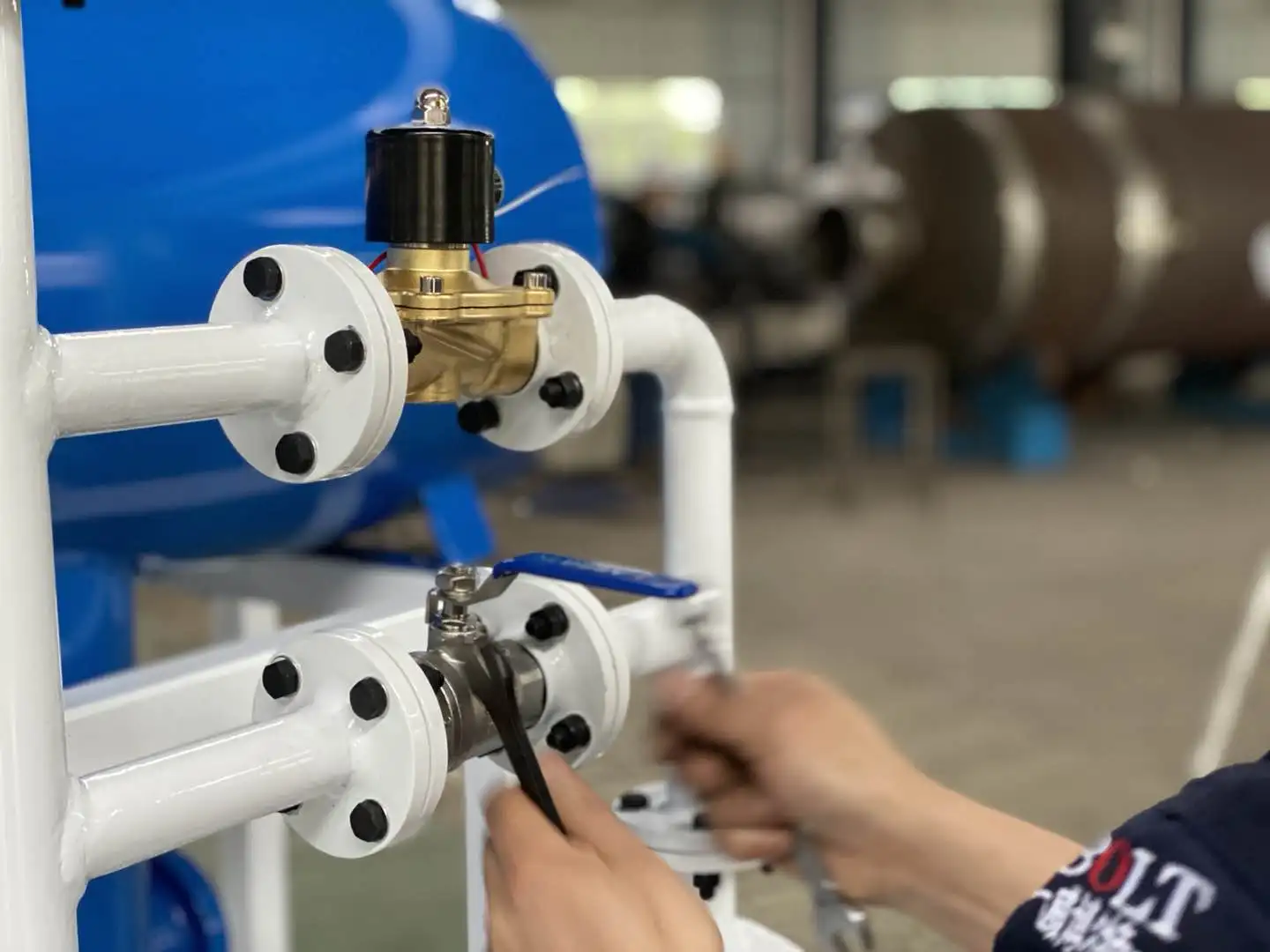

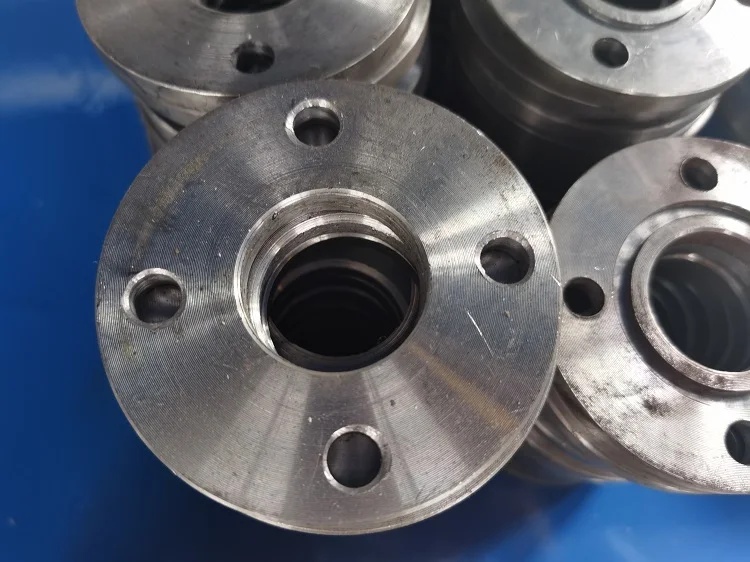

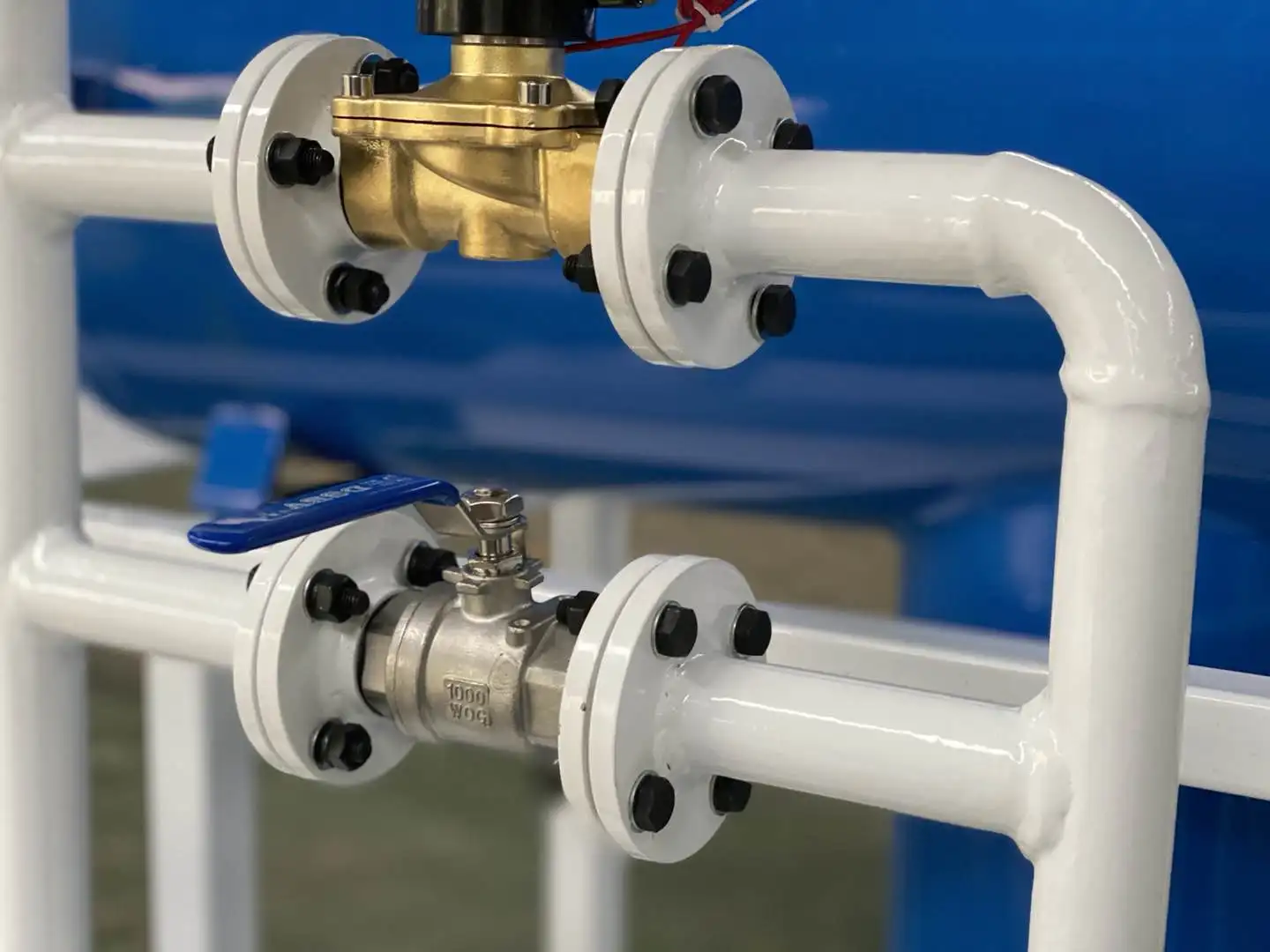

Parts
Advanced part configuration

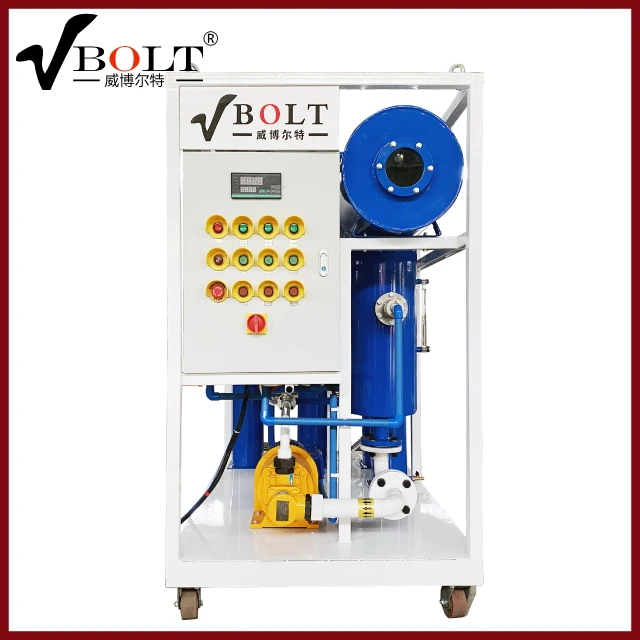

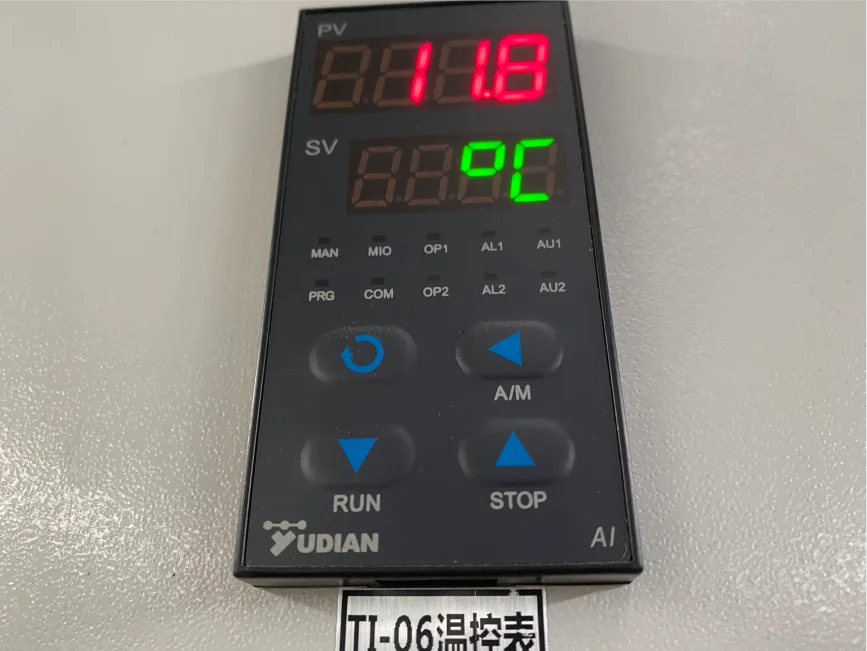

VBOLT oil purifier with PLC control system and touch screen operation, only need 1 person on site. All data shows directly by
online flow meter Online ,moisture tester. The inlet and outlet can be interchanged
online flow meter Online ,moisture tester. The inlet and outlet can be interchanged
Long working hours
Market normal oil purifier can constantly work for 400 hours. VBOLT oil purifier can constantly working for 800 hours without any
stop. Twice as much as a traditional machine.
stop. Twice as much as a traditional machine.

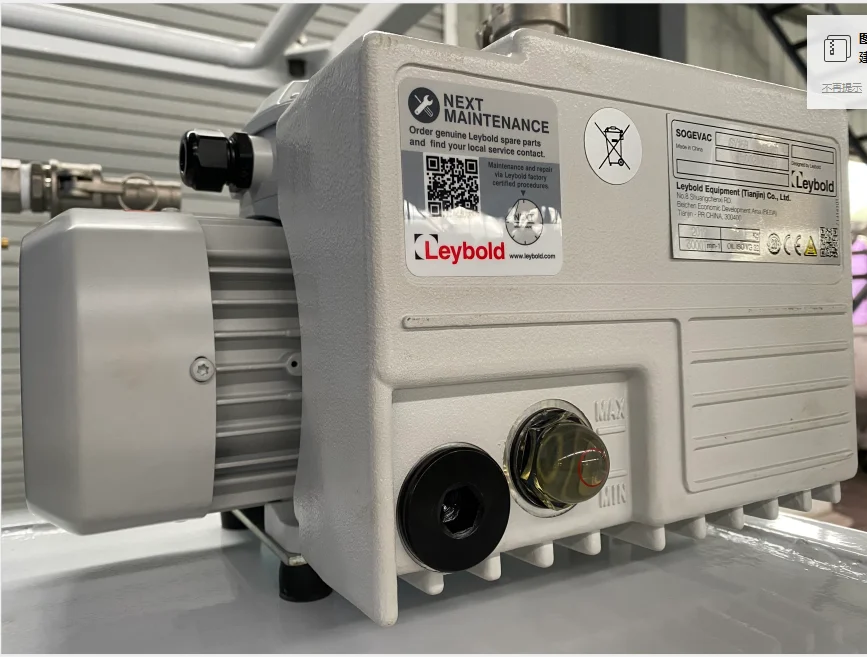

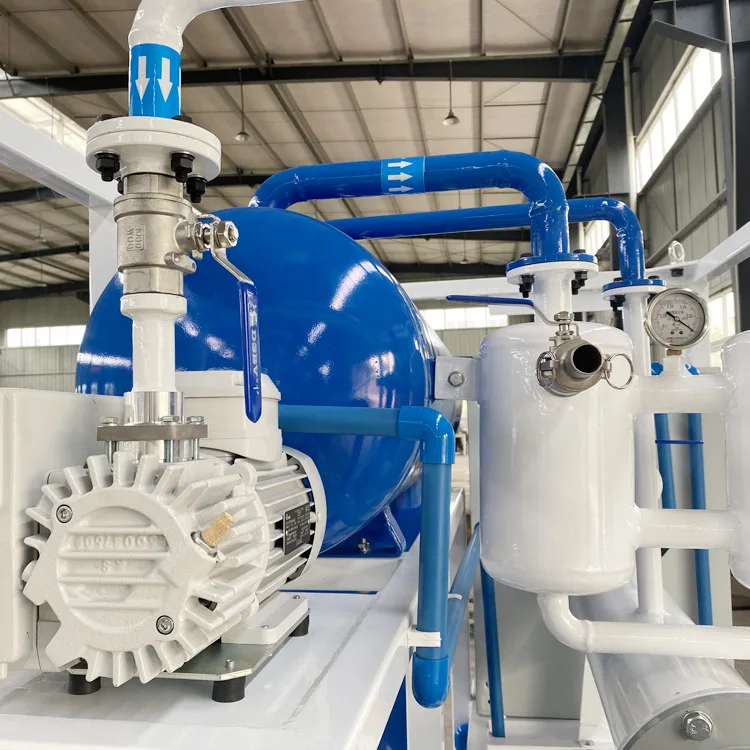

Double-Stage Vacuum
Removes the impurities more quickly, more completely and makes the oil limiting voltage-withstand value much higher. As the
bridge-type vacuum linking system, it is used for filtrating system as well as an independent vacuum power supply to vacuum oiling
of power equipment .
bridge-type vacuum linking system, it is used for filtrating system as well as an independent vacuum power supply to vacuum oiling
of power equipment .
Explosion-proof.Easy handle
Geatly improves the safety of the machine operation and displays the running status of the machine in time.Easy to handle. Our VBOLT provide mobile trailer and moving roller design which is much helpful for machine operation.

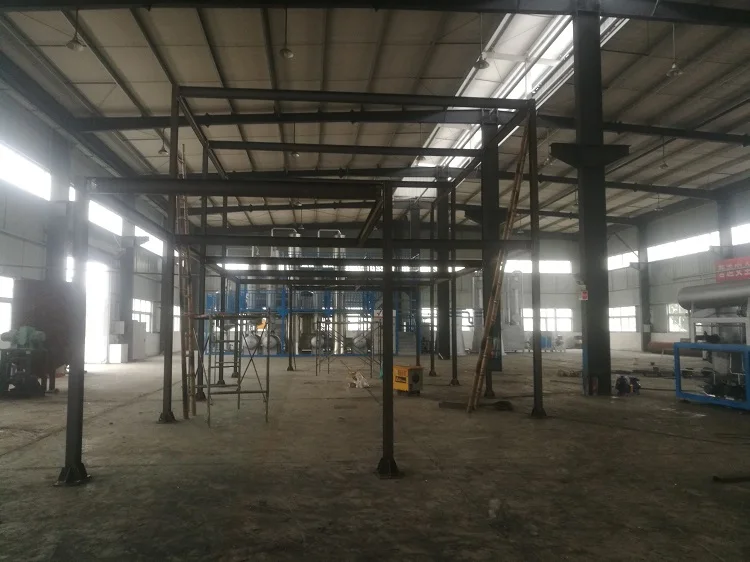

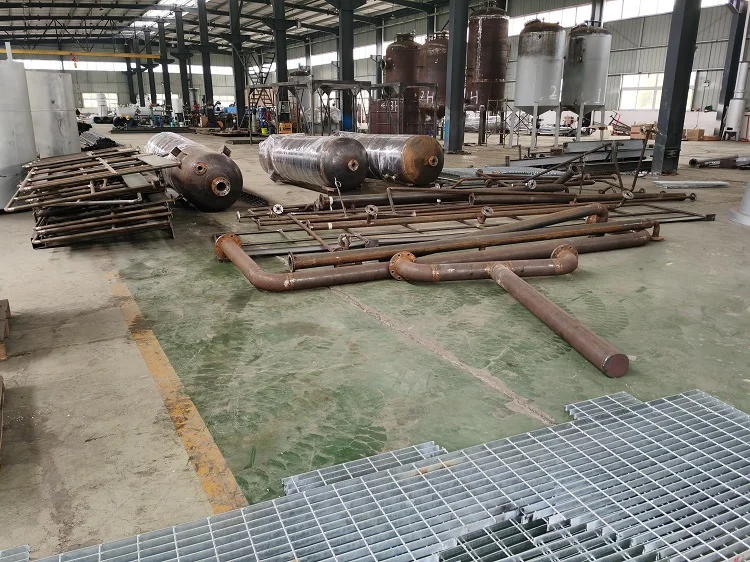

Visiting Customers
Warmly welcome to our VBOLT factory ！Seeing is believing！
Packing & Delivery
