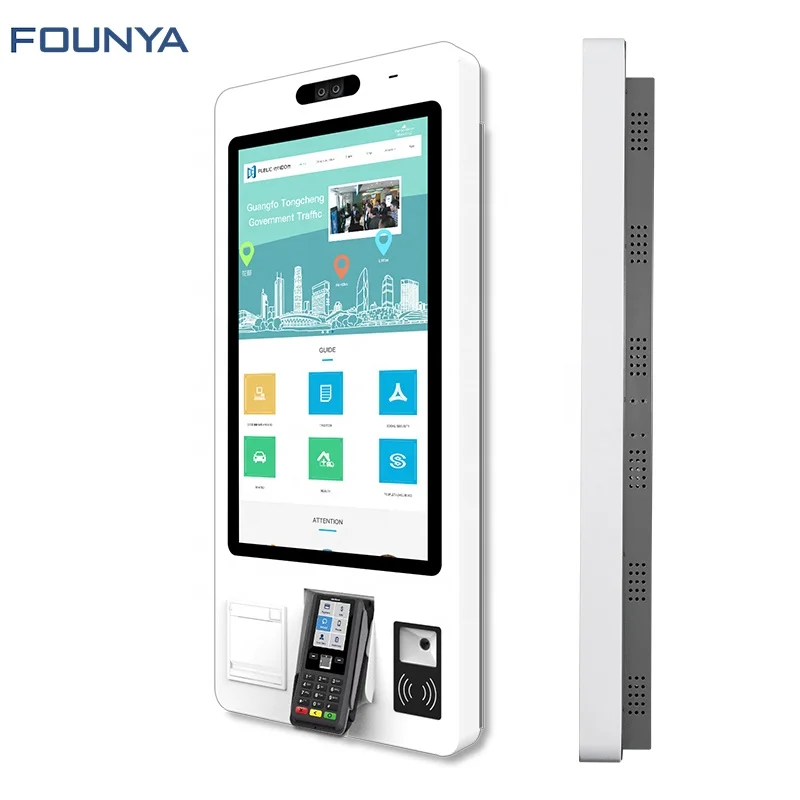

NFC/ RFID card reader self service pay bill fee machine for leisure clubhouse foot massage beauty salon indoor park
- Category: >>>
- Supplier: Guangzhou Founya Electronics Co. Ltd.
Share on (62568970126):
Product Overview
Description
NFC/ RFID card reader self service pay bill fee machine for leisure clubhouse foot massage beauty salon indoor park
Product Description
Product Paramenters
Configuration---self service kiosk | ||
Main board: | Android RK3288，Quad-Core，1.8 GHZ; | |
RAM: | Standard 2GB (4GB optional) | |
ROM: | Standard 8G EMMC （(16GB/32GB/64GB optional） | |
Interface: | MIPI output*1; eDP output *1; LVDS output1 *1;5*USB; TTL serial-port *3;Amplifier output; | |
Network support: | 10M/100M Ethernet ,WIFI,（4G&external GPS optional ) | |
Remark : Android RK3399, J1900, i3, i5, i7 series and other configurations are also available . | ||
Optional peripheral---self service kiosk | ||
Thermal printer: | Front opening thermal printer,with automatic cutter | |
Scanners: | QR code / Barcode scanner | |
Card reader: | IC card reader/RFID card reader/NFC card reader | |
Camera: | Binocular camera,2M pixels face recognition | |
Fingerprint scanner: | Communication interface: USB | |
Panel Specification---self service kiosk | ||
Screen size | 24inch/32inch/21inch/27inch/customized | |
Screen resolution: | 1920*1080 | |
Display color: | 16.7M | |
Brightness (nits): | 350 nits | |
Contrast: | 3000:1 | |
Visual angle: | 178°/178° | |
Response: | 3ms | |
Touch screen: | 10-point capacitive touch screen | |
Appearance specifications---self service kiosk | ||
Surface: | Anti-scratched tempered glass | |
Color: | White color (customized color) | |
Power supply: | AC 110–240, 50-60Hz | |
Installation method: | Wall mounted or floor standing | |
Slot for POS machine: | POS machine is provided by the customer | |
Honeycomb packing: | 950*503*185/26kg(26kg) , 1750*360*600mm/32kg(32inch) | |
Please contact us to learn more self service kiosk(hardware&software,OEM,ODM) | ||
Company Profile
Certifications
FAQ

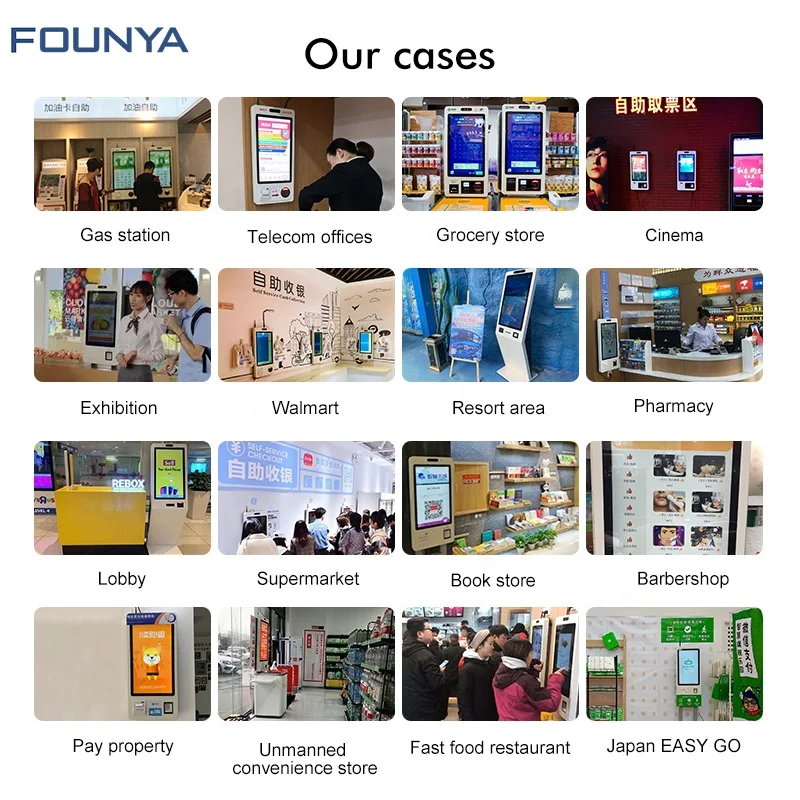

Q: What are the application areas of self service kiosk?
Areas of application:
1.Configuration of products and subsequent order.
Areas of application:
1.Configuration of products and subsequent order.
2.Payment of doctor's fees, admission fees at hospital, medical practice fees.
3.Payment of invoices (electricity provider etc).
4.Payment of tickets (road toll, admission tickets).
3.Payment of invoices (electricity provider etc).
4.Payment of tickets (road toll, admission tickets).
5.Top-up of prepaid cards (canteens, university etc).
6.Donation terminal.
7.Implementation of transactions or processes (such as registration).
6.Donation terminal.
7.Implementation of transactions or processes (such as registration).
8.Order of, and payment for, goods or services (long shelf applications).
Please contact us to learn more self service kiosk.(software,hardware,sample)
