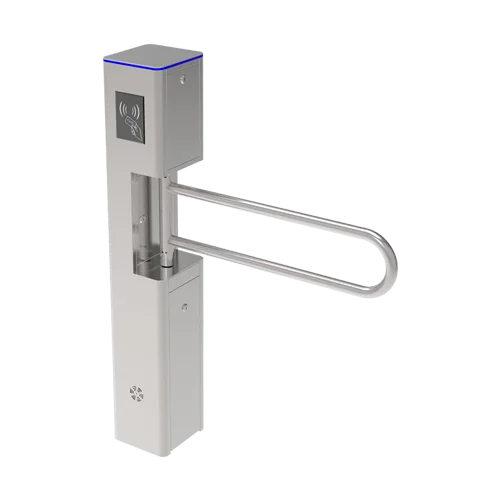

Охранные распашные двери с функцией распознавания лиц система контроля доступа кард ридер для распашных ворот барьер
- Category: Turnstile >>>
- Supplier: Shenzhen Yuan Mechanical Electronic Co. Ltd.
Share on (62568989558):
Product Overview
Description
Product Description

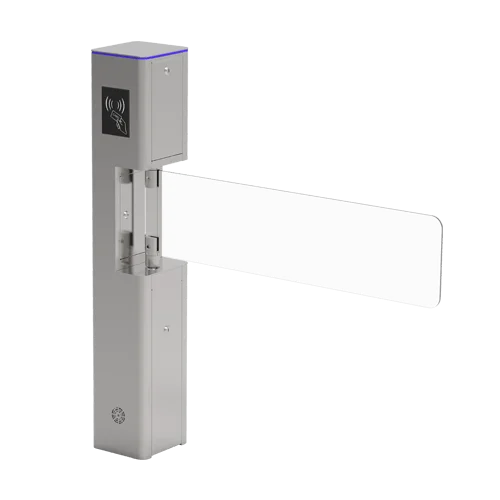

Glass swing Turnstiles have clear bidirectional motorized barrier panels and a stylish architectural design that enhances any access control installation.
High security with optional sensor quantity, and dual swinging glass barriers available in multiple heights
Small footprint as the sleekest pedestal in the Glassgate line, with glass barrier in four heights.
Offers maximum lane widths for wheelchair access with advanced “sidegating” technology.
High security with optional sensor quantity, and dual swinging glass barriers available in multiple heights
Small footprint as the sleekest pedestal in the Glassgate line, with glass barrier in four heights.
Offers maximum lane widths for wheelchair access with advanced “sidegating” technology.
Housing material | 304 stainless steel | |
Housing size | L200*W185*H1090(mm) | |
Entrance width | 300-800mm(optional) | |
Housing thickness | 2.0 mm | |
Net weight | 45Kg/unit | |
Temperature | -10 ℃-50℃ | |
Humidity | ≤90% | |
Motor | Servo motor | |
Normal life-span | 5-8 million times | |
Operation speed | 30-45person/min | |
Working environment | indoor | |
Glass material | Acrylic glass/PC glass | |
Direction | Single direction/Bi-direction | |
Input interface | Dry contact signal or +12V level signal or RS485 communication signal | |
Communication interface | RS485(distance less than 1200m) | |
Main Function | ||
1.Optional card reader:Rfid card ,fingerprint scanner ,face machine ,Bar code, QR code ,card collection ,intercom system ,remote control and so on | ||
2. Access control system ,Ticketing system ,consumption system | ||
3. Standard/customize housing design (ODM/OEM) | ||
5. Optional entrance width(500-950mm) ,glass door size, operation speed | ||
Applications | ||
Banks and insurance companies ,airports | ||
Government buildings and instituations | ||
Office buildings,head offices,administrative sites | ||
Schools ,universities and colleges | ||

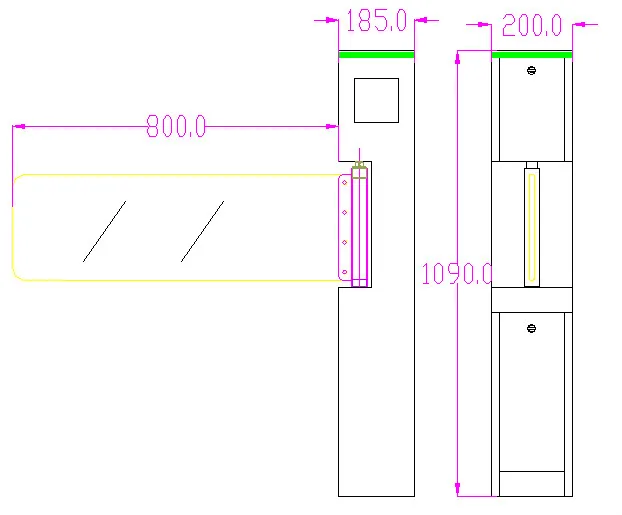

Turnstile gate size drawing
Same housing design with stainless steel door

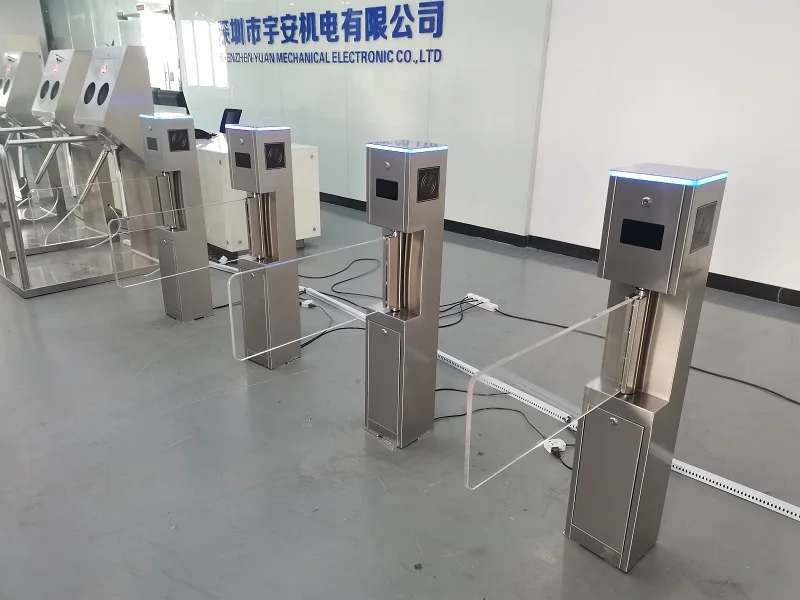

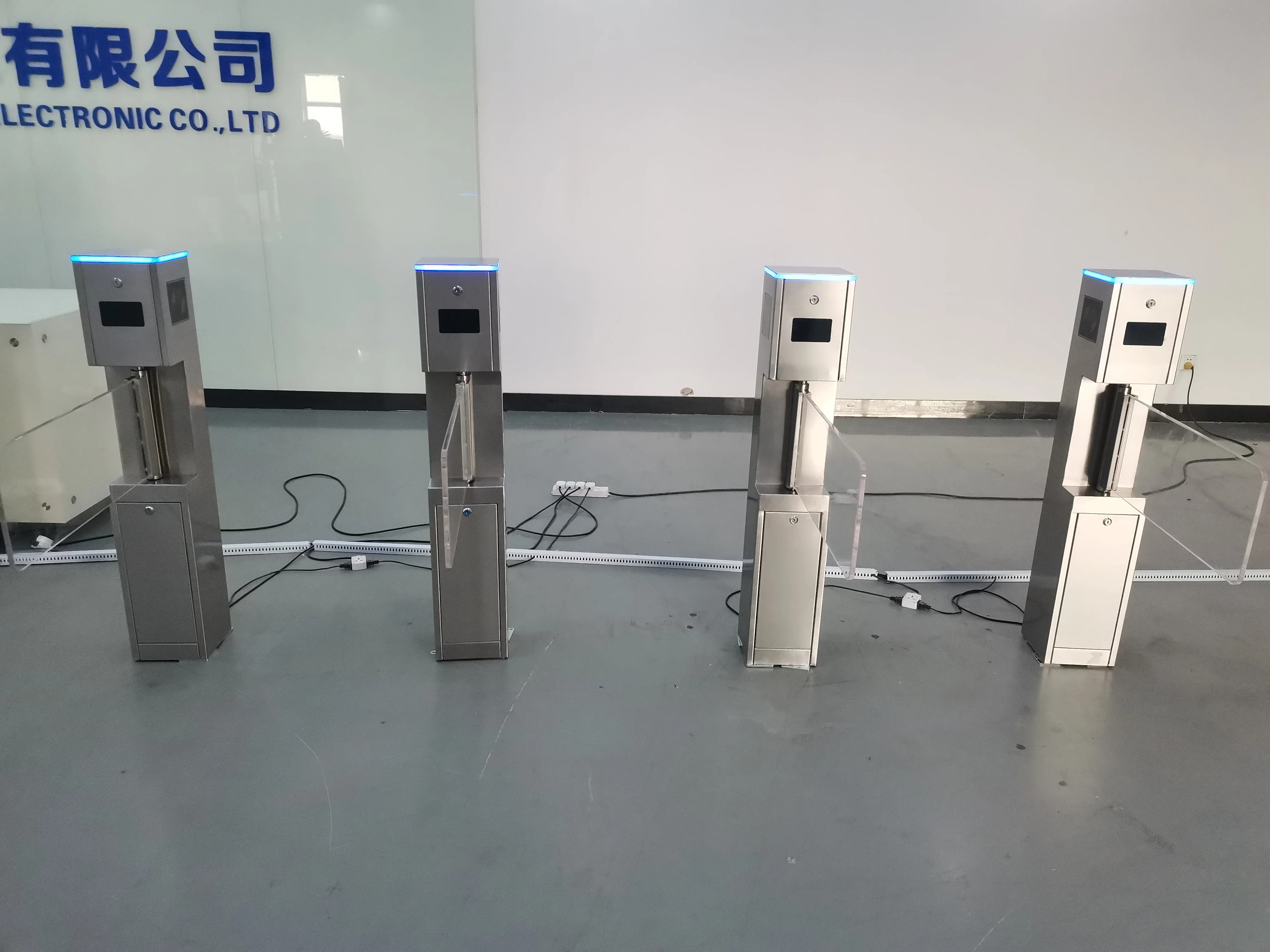

Turnstile in factory picture
