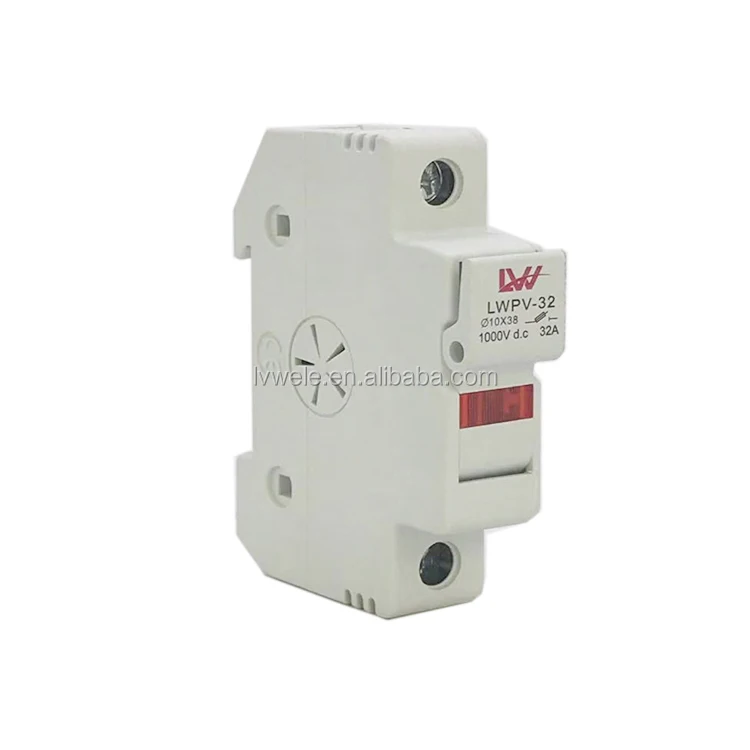

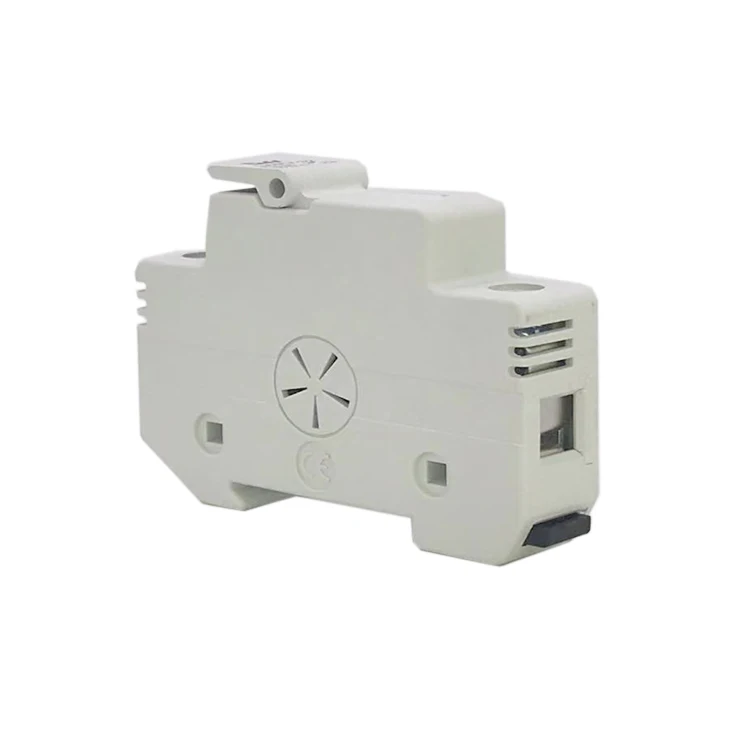

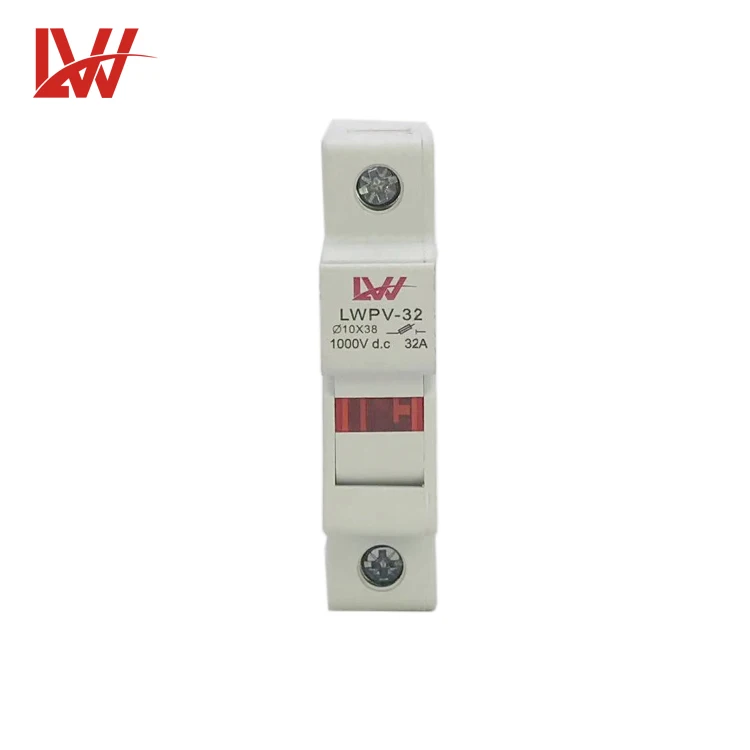

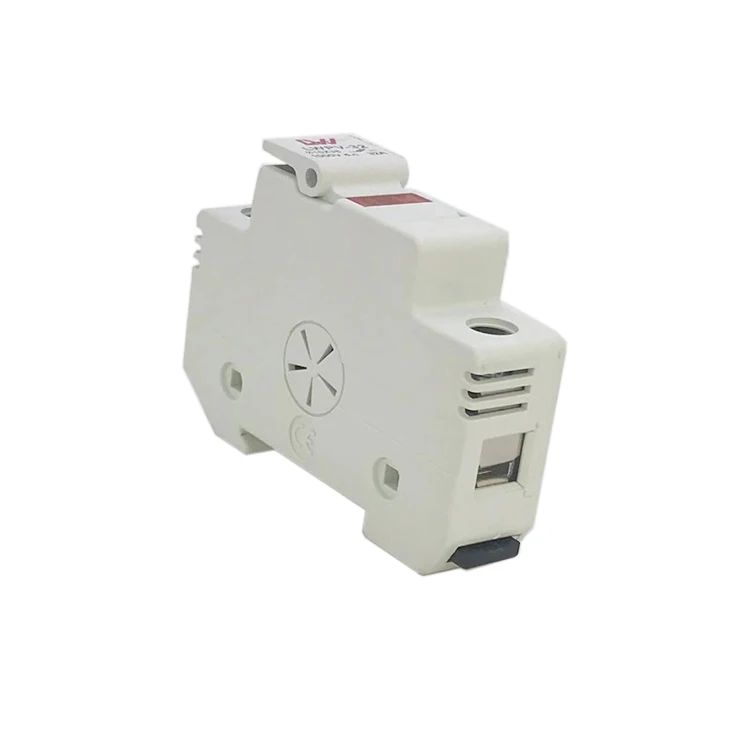

Fuse Holder for Solar PV System 1000V/1500V

Product Overview

Description

DC 1000V Solar Fuse Holder with 2A-32A Fuse

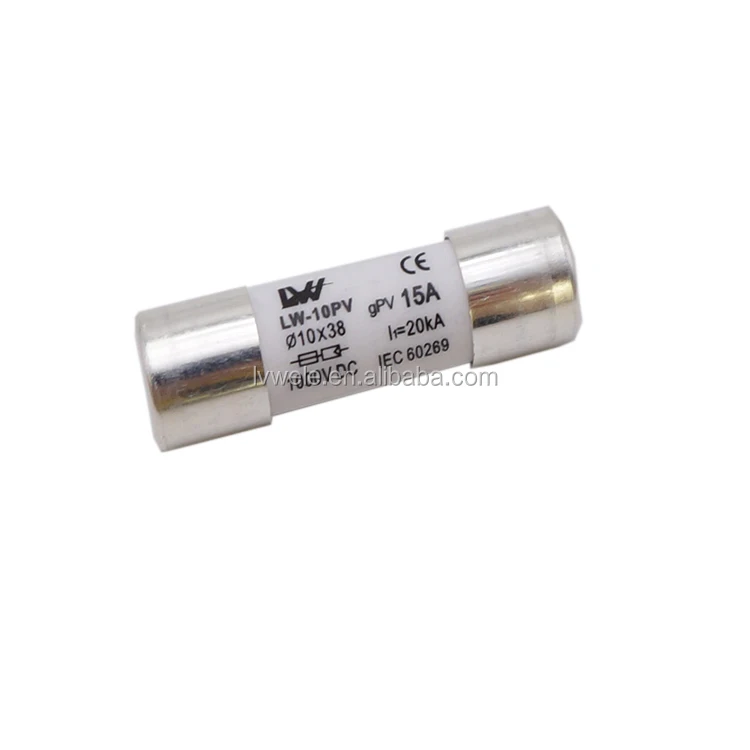

    PV Fuse series of fuse consists of fuse link and fuse base. The variable cross-section fuse body made by pure copper piece (or copper wire, silver wire, silver piece) is sealed in the fusion tube which is made by the high strength porcelain or epoxy glass cloth pipe, there is full of the high-purity quartz sand processed after chemistry to take the extinguishing of arc medium in the tube. The two sides of the fuse use the spot welding to reliably connect with the end plate and to form the cylindrical cap shape structure. Fuse base suppressed by the resin or plastic casing fitted with contacts and contains the fusion pieces, the connection made by riveting as the support of the appropriate size fuse body parts .



Specification

Item	DC FUSE
Pole	1P,2P		1P,2P
Voltage	≤1000VDC
Current	1A,2A,3A,4A,5A,6A,8A,10A,12A,15A,20A,25A,32A
Giggest block ability(KA)	33KA
Standard	IEC/EN60269
Commection(mm)	2.5-10
Power consumption(W)	3.5
Working Temperature	-5° to +40°
Protection Degree	IP20
Dimension(W)X(H)X(D)	10X38		18X60X78
Installation	35MM DIN RAIL
Installation Altitude	≤2000M

Product Display



FAQ :

Q: If I'm interested in your Solar Combiner box when receive quotation and detail information after send the inquiry?
A:All your enquiry will be replied in 5-10 minute

Q:Your Combiner Box perfect but what's the difference between you and other suppliers?

A: The combiner box can be designed according to the requirements of the customer's inverter and solar panel configuration.

Q:Can I get a sample before the order ?

A: Sure !We also think sample order is the best way to build the trust.

 Q:How's the delivery?Because I really need them urgently?

A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.

Q:How's the warranty  period ?

A:We offer two year warranty
