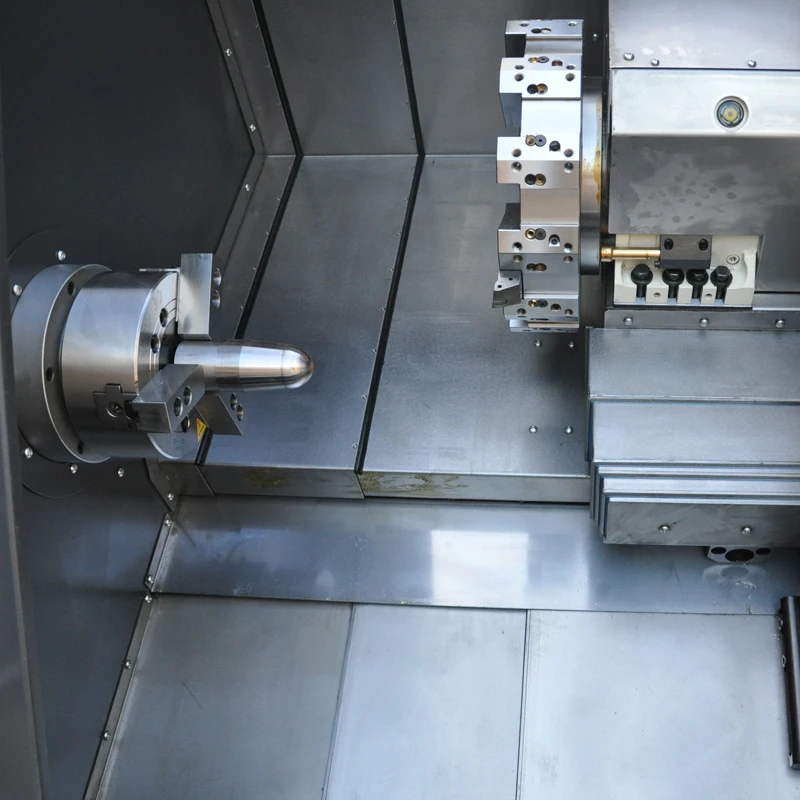

DS28 O Lathe machine spring chuck and chuck double used CNC lathe
- Category: >>>
- Supplier: Zhejiang Kaida Machine Tool Co. Ltd.
Share on (62569274812):
Product Overview
Description
Quick Details
| Port: | Shanghai or Ningbo Port |
| Payment Terms: | L/C,Western Union,T/T |
| Supply Ability: | 410 Set/Sets per Year |
| Weight (KG): | 4300 |
| Max. Turned Length (mm): | 500 |
| Spindle Bore(mm): | 65 |
| After-sales Service Provided: | Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service |
| Dimension(L*W*H): | 2880x1850x2000 |
| Machining Capacity: | Medium Duty |
| Toolpost Brand: | Loushing |
| Conveyor: | Auto chip conveyor |
| Repeatability (X/Y/Z) (mm): | 0.003 |
| Warranty of core components: | 1 Year |
| Tool Post Stations: | 12 |
| Function: | Machining Metal |
| Key Selling Points: | Competitive Price |
| Voltage: | 220V/380V/400V/690V |
| Max. Spindle Speed (r.p.m): | 4000 |
| Local Service Location: | Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan |
| Guideway: | Taiwan linear guide ways |

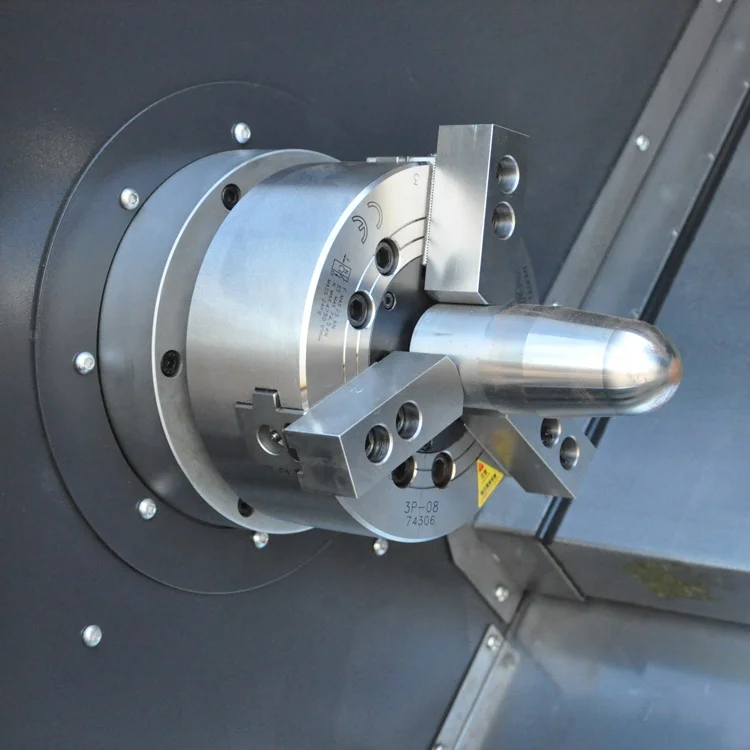

| Chuck: | Taiwan hydraulic 3-jaw chuck |
| Structure: | Slant Bed Lathe |
| Machinery Test Report: | Provided |
| Spindle Motor Power(kW): | 11/15 |
| Condition: | New |
| Travel (Z Axis)(mm): | 600 |
| Spindle speed: | 4000/5000rpm |
| Place of Origin: | Zhejiang China |
| Warranty: | 1 Year |
| Machine Type: | Slant Bed Cnc Lathe Machine |

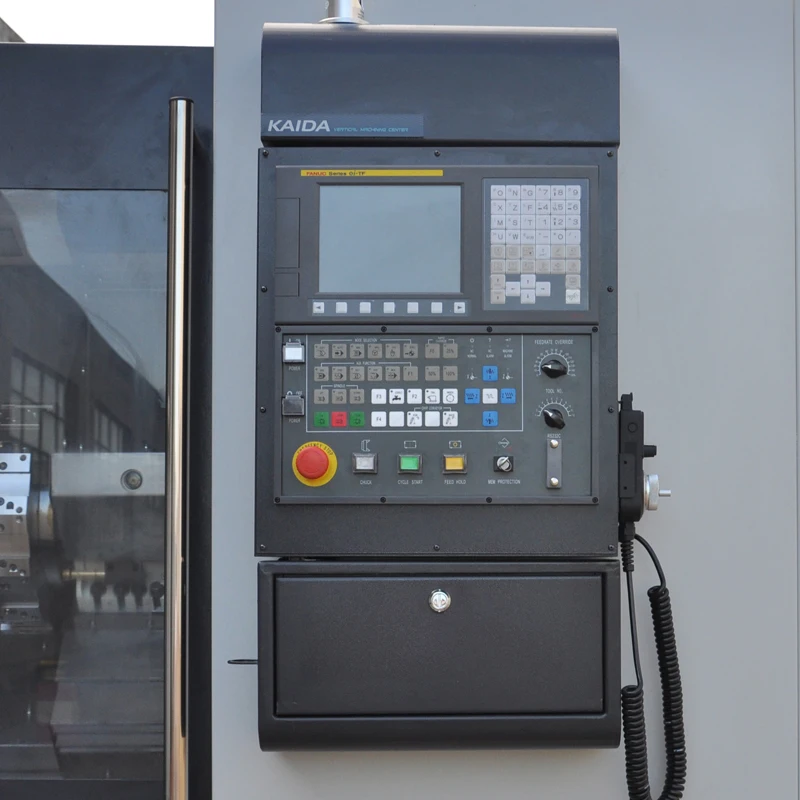

| Control system: | SIEMENS GSK FANUC (optional) |
| Color: | Custom-made |

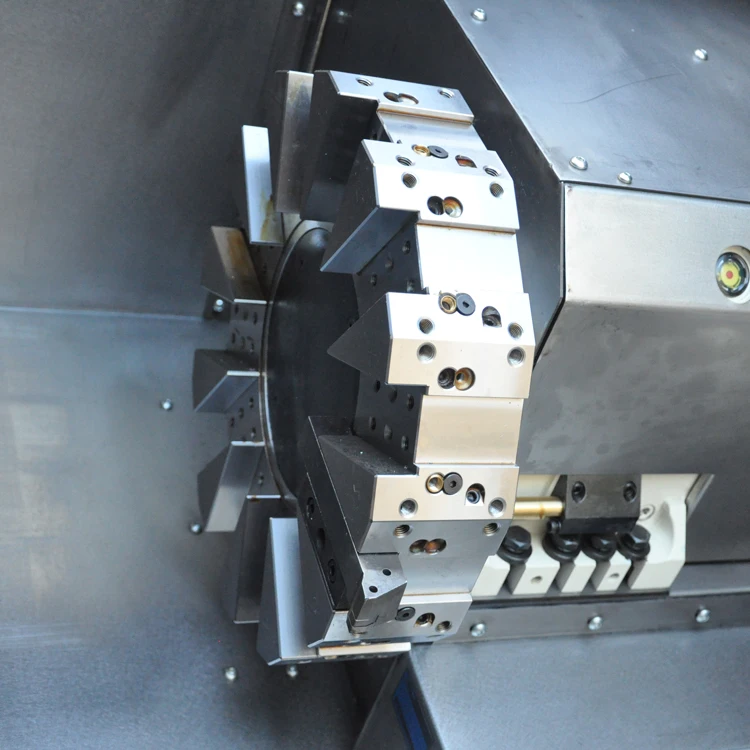

| Turret Type: | Taiwan 12 - position hydraulic turret |
| Travel (X Axis)(mm): | 255 |
| Showroom Location: | Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Ukraine,None |
| No. of Spindles: | Single |
| Model Number: | DS28-O |

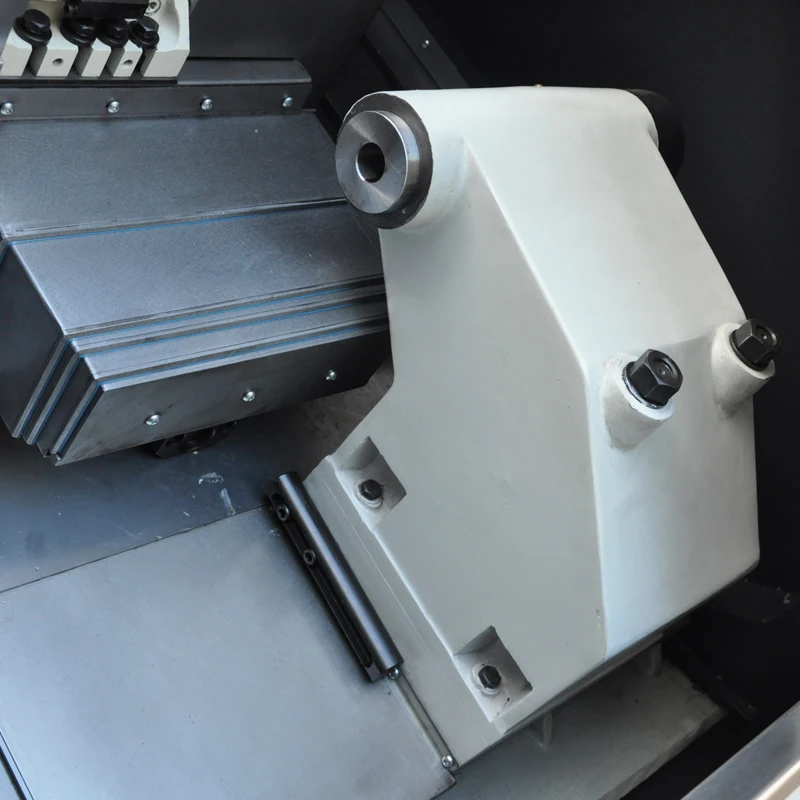

| Tailstock: | Hydraulic tailstock |
| Certification: | CE, ISO9001, ISO14001 |
| Brand Name: | KD |
| Max. Length of Workpiece (mm): | 500 |
| Video outgoing-inspection: | Provided |
| Type: | Horizontal |
| Year: | 2020 |
| Core Components: | PLC |
| Marketing Type: | New Product 2020 |
| Applicable Industries: | Machinery Repair Shops,Manufacturing Plant,Retail |
| Number of Axes: | 2 |
| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service |
| Positioning Accuracy (mm): | 0.01 |
| Width of bed (mm): | 300 |
| CNC Control System: | FANUC |
| Packaging Detail: | Wooden case |
| Package Preview: | https://sc03.alicdn.com/kf/H9bf363c20b8d4ea993040f58aa3b46abY.jpg_640x640.jpg |
