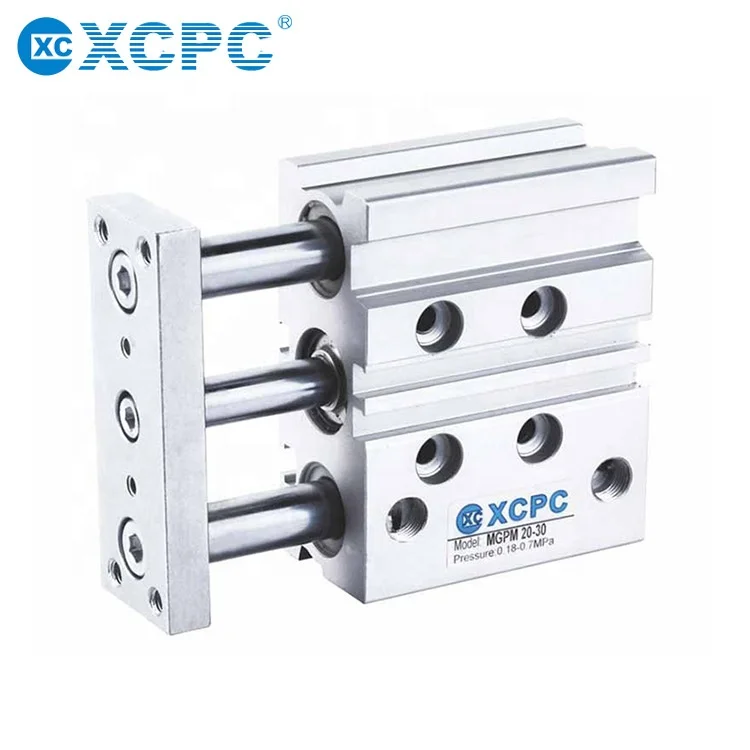

High Quality OEM Manufacturer MGP Series Three Shaft Cylinder
- Category: >>>
- Supplier: Ningbo Xinchao Automatization Component Co. Ltd.
Share on (62569356629):
Product Overview
Description
ORDER CODE
Specification
| Bore(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Working Medium | Air | ||||||||||
| Motion Pattern | Double-action | ||||||||||
| Ensured Pressure Resistance | 1.5Mpa(15.3kgf/cm2) | ||||||||||
| Max.Operating pressure | 1.0Mpa(10.2kgf/cm2) | ||||||||||
| Min. Operating pressure | 0.12Mpa(1.2kgf/cm2) | ||||||||||
| Ambient and Medium Temperature | -10~+60℃ | ||||||||||
| Piston Speed | 50~500mm/s | 50~400mm/s | |||||||||
| Buffer | Rubber Cushion | ||||||||||
| Tolerance of Stroke | 1.5 | ||||||||||
| 0 mm | |||||||||||
| Bearing | (Slide bearing/ball guide bdaring) | ||||||||||
| Precision of | Slide Bearing | ±0.08° | ±0.07° | ±0.06° | ±0.05° | ±0.04° | |||||
| Piston rod Non-rotating | Ball Guide Bearing | ±0.10° | ±0.09° | ±0.08° | ±0.06 | ±0.05° | |||||
| Port size | M5×0.8 | G1/8" | G1/4" | G3/8" | |||||||

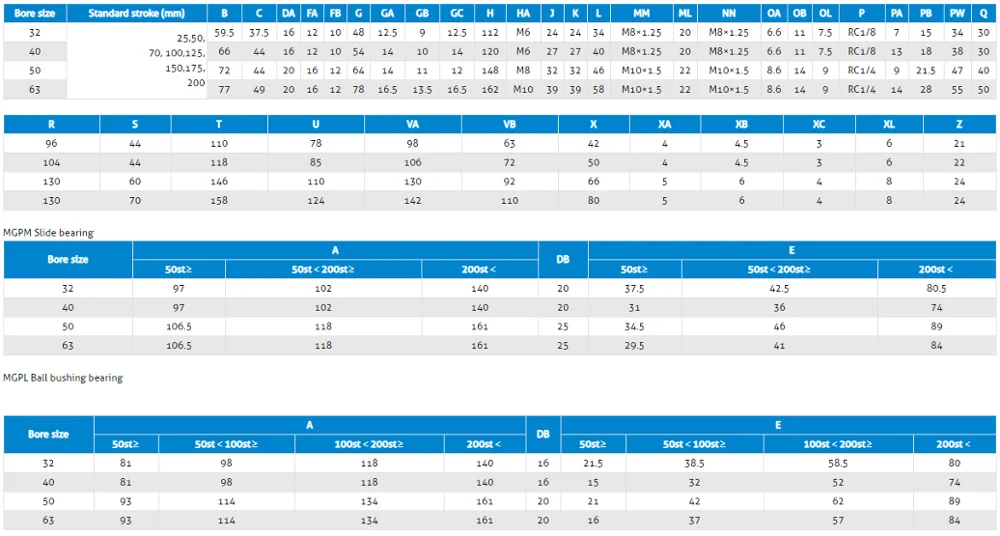

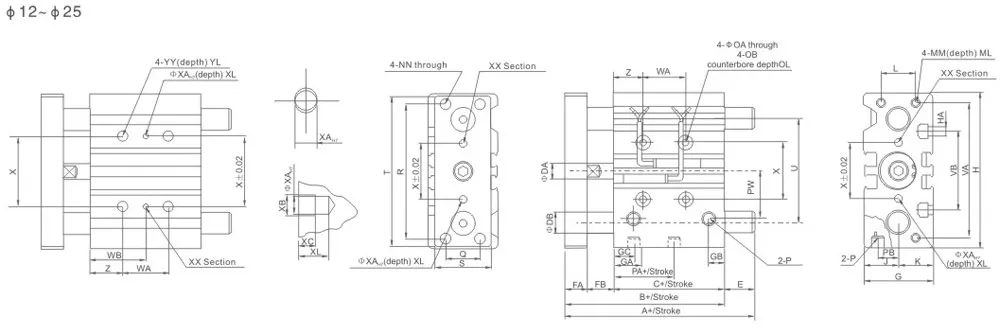

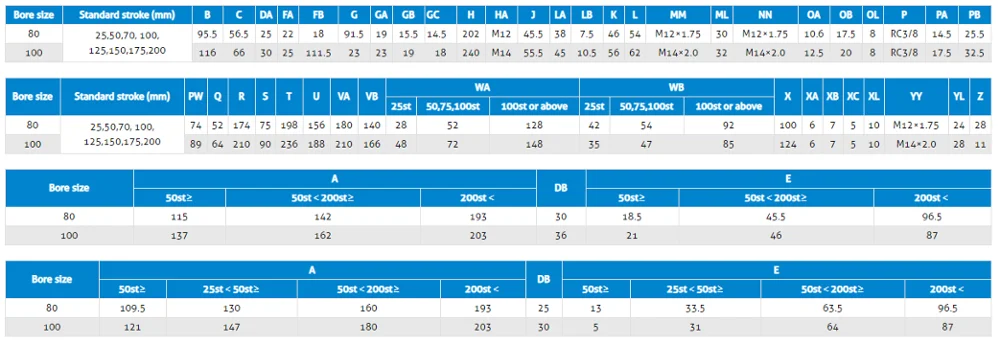

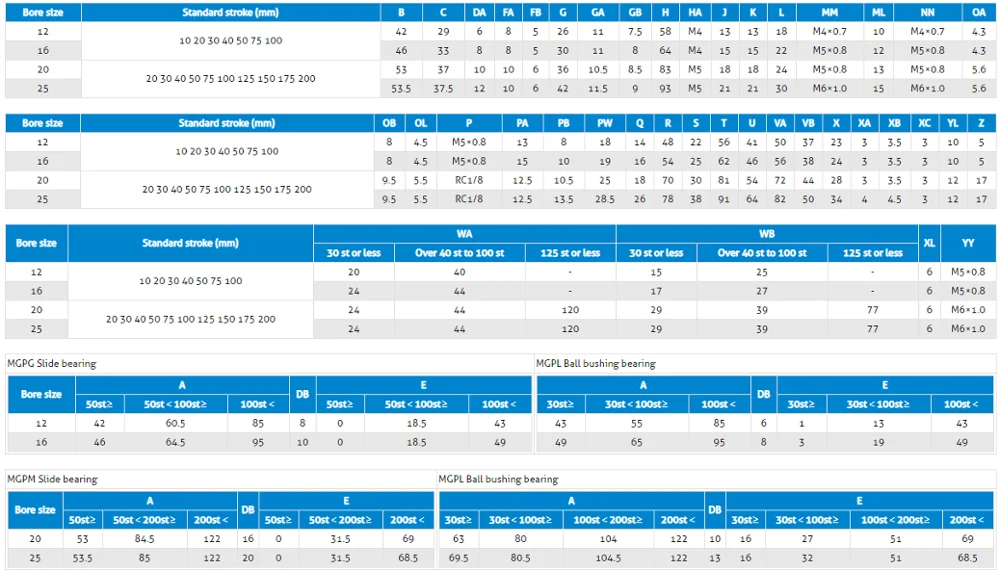

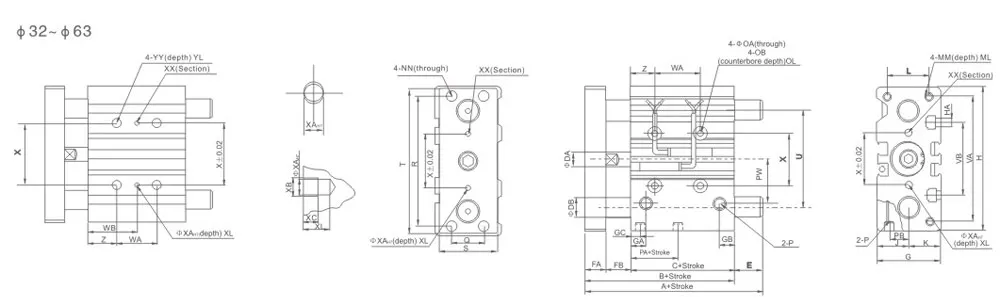

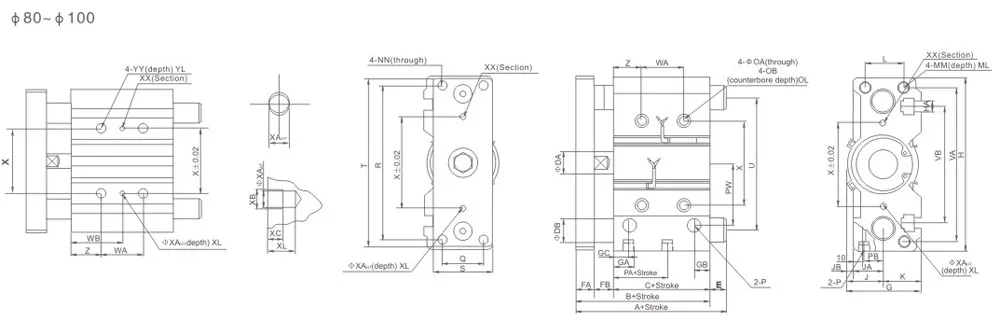

Overall
Application
company info
Customized Solutions
FAQ
Our Services
Enhance competitiveness of XCPC brand,explore the world market with XCPC brand, keep improving the product quality and service to reach the best.
