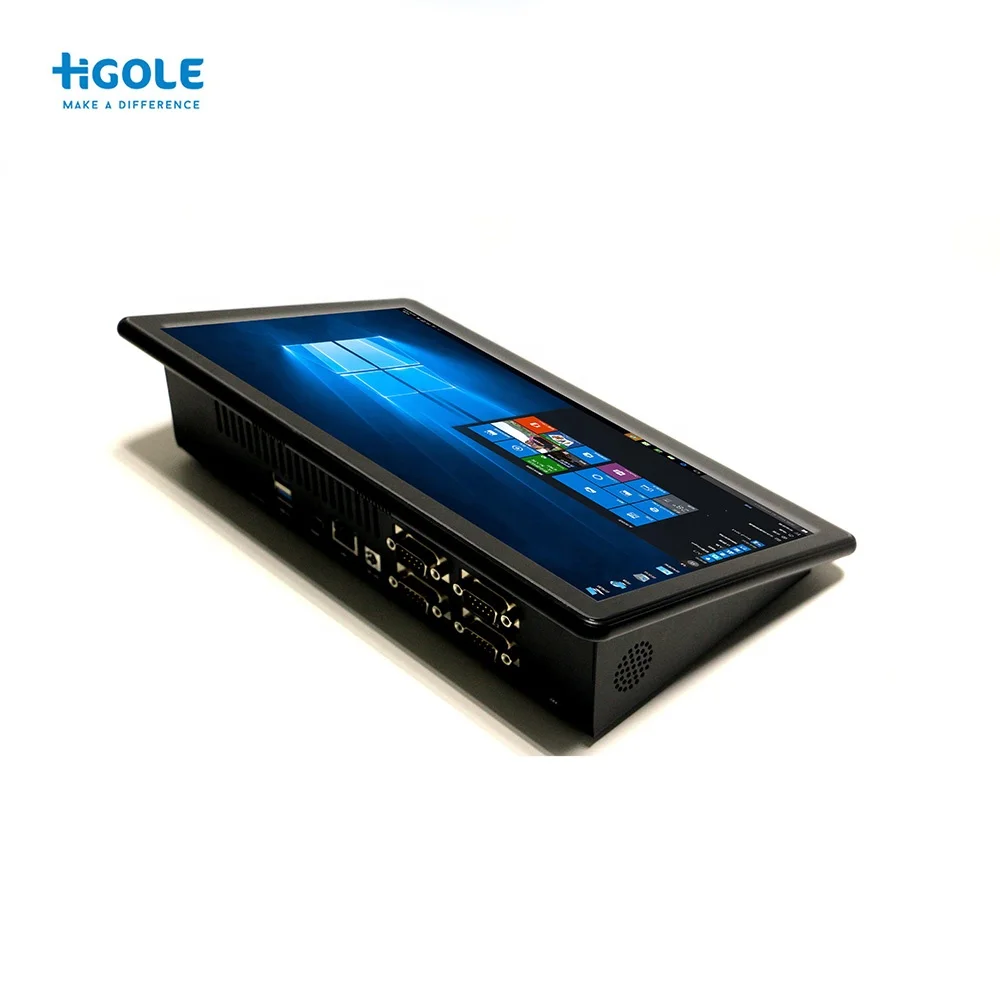

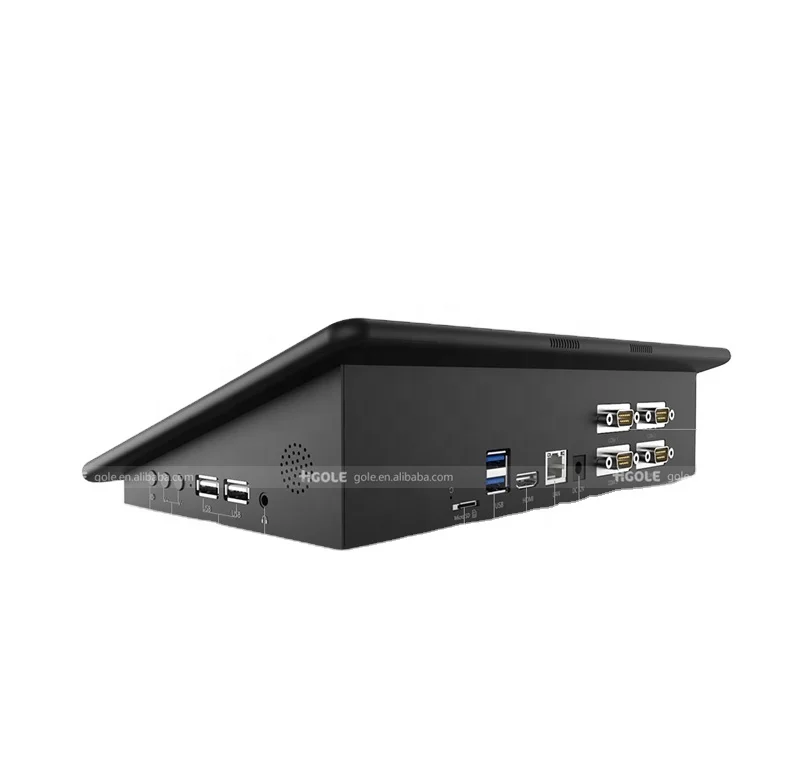

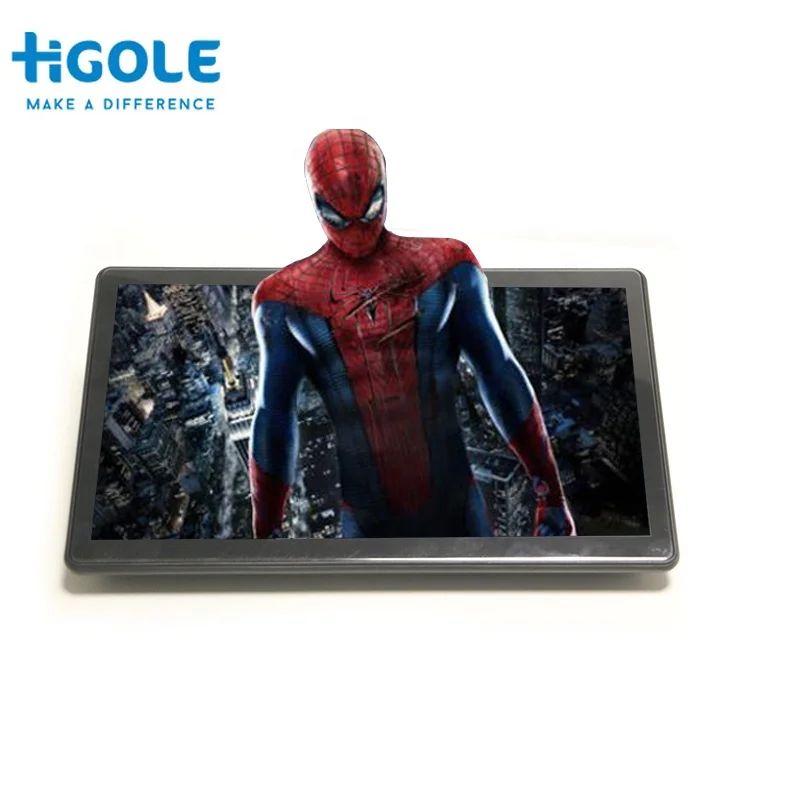

Gole 11.6 inch desktop all in one RS232 RS485 POS system windows 10 industrial mini pc
Gole 11.6 inch desktop all in one RS232 RS485 POS system windows 10 industrial mini pc
Gole 11.6 inch desktop all in one RS232 RS485 POS system windows 10 industrial mini pc
Gole 11.6 inch desktop all in one RS232 RS485 POS system windows 10 industrial mini pc
Gole 11.6 inch desktop all in one RS232 RS485 POS system windows 10 industrial mini pc
Gole 11.6 inch desktop all in one RS232 RS485 POS system windows 10 industrial mini pc
Gole 11.6 inch desktop all in one RS232 RS485 POS system windows 10 industrial mini pc

Gole 11.6 inch desktop all in one RS232 RS485 POS system windows 10 industrial mini pc

Share on (62569509758):


Price:$199.00 - $229.00

Quantity:


Product Overview

Description

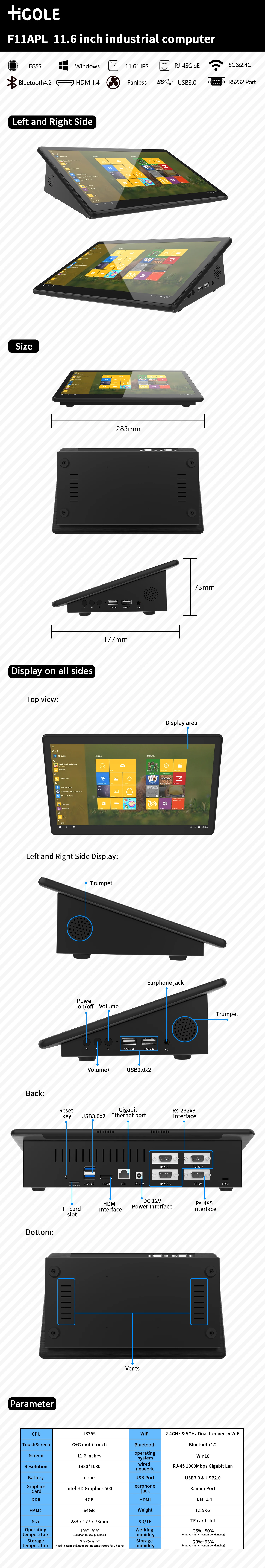

Product Description




















System Physical Standard Configuration:
Type
Details
Descriptions
Product Form
Form Factor
11.6" mini Aio PC
Dimensions
283 x 177 x 73mm
Weight
1.25KG
LCD
Screen Size
11.6"
Screen Resolution
1920×1080 (IPS + 250ANSI)
TP
Touch Module
G+G Multi-Touch
Battery
Recharge Li-ion battery
Optional
System Hardware Configuration:
Type
Details
Descriptions
CPU
Type
Intel Apollo Lake N3450 /J3355 Dual-Core
Speed
2GHz ~ 2.50GHz
GPU
Type
Intel HD Graphics 500
Memory
Capacity
4GB (LPDDR4)
Storage
eMMC
64GB
SSD (M.2; 22×42mm)
Optional
Speaker
Built-in
8Ω/1W
Micphone
Built-in
Optional
G-sensor
Built-in
Yes
Network Connections:
Type
Details
Descriptions
WIFI
WIFI Module: Intel AC3165
WIFI 802.11ac/b/g/n 5G&2.4G Dual-band
BT
BT Module: Intel AC3165
BT4.2
Ethernet Network
RJ-45
100/1000Mbps Gigabit Lan
4G LTE
M.2 4G module
Optional

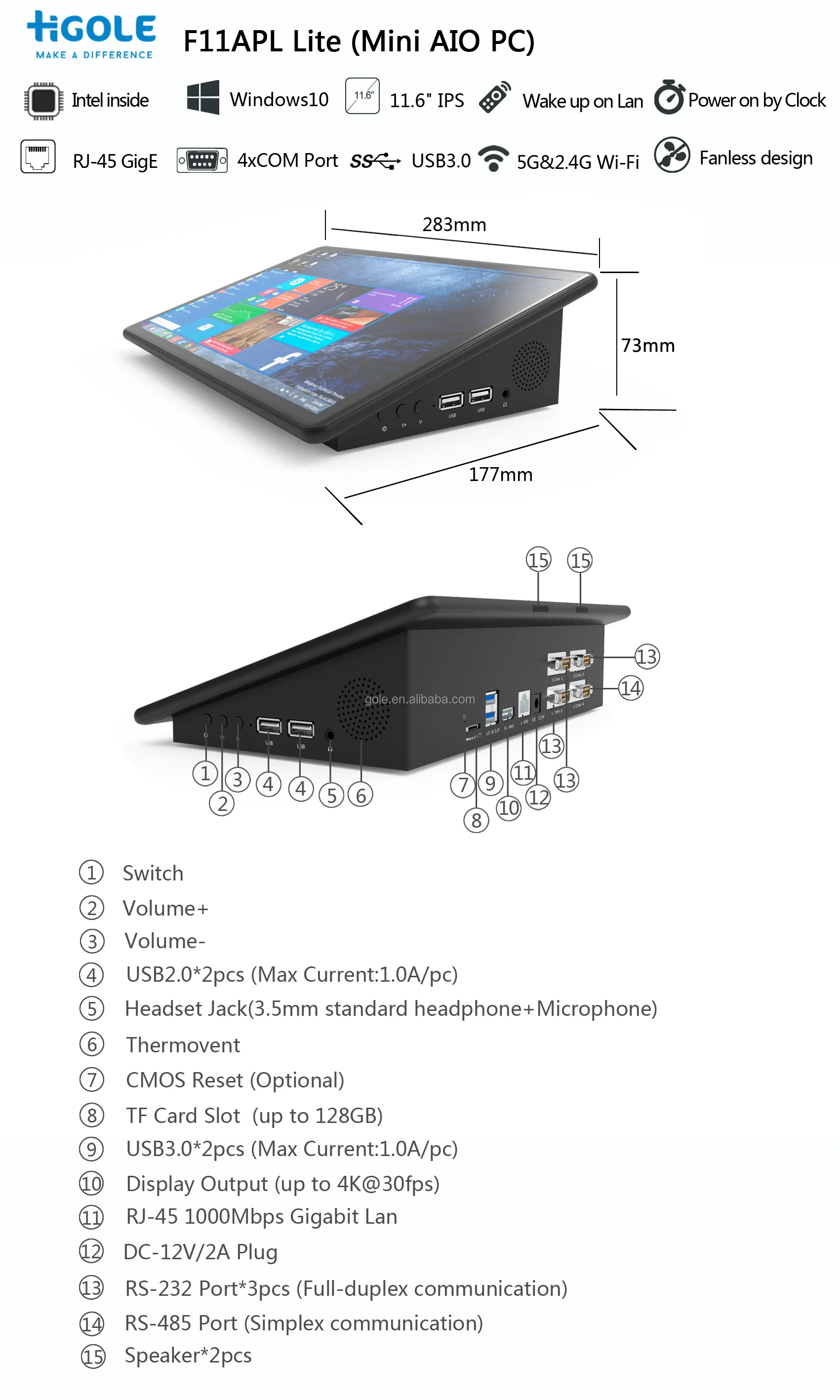

Interface Configuration:
Type
Details
Descriptions
USB Interface
USB3.0 Host
×2pcs
USB2.0 Host
×2pcs
SD / TF Card reader
TF Card reader
×1pc
Audio Jack
3.5mm headphone
×1pc
HD-MI
HD-MI 1.4
×1pc
Video output through HD-MI
Up to 4K
COM Port
DB9 (RS232) / (RS485)
×4pcs (RS232×3pcs + RS485×1pc)
Button Switch:
Type
Details
Descriptions
Power
On/Off
×1pc
Volume
Down/UP
×1pc
CMOS Reset
Reset by Short Press
Optional
Main Accessories:
Type
Details
Descriptions
Power adapter
DC 12V/2A
×1pc
User's Manual
User's Manual
×1pc
Software Configuration:
Type
Details
Descriptions
Power on Function
By Power Button or Auto Power on
Optional
Wake up on Lan
Wake up on Lan by RJ45
Support
PXE
Preboot Execution Environment
Support
Operating System
Windows 10
Optional
Linux
Test by end user
Environment:
Temperature
Operation Temperature
-10oC ~ 50oC (1080p or 4K local video display)
Storage Temperature
-20oC ~ 70oC (Restore to Operation Temperature 2hr before use)
Humidity
Oprating Humidity
35% ~ 80% relative humidity, Non-condensing
Storage Humidity
20% ~ 93% relative humidity, Non-condensing
Certification:
CE
CE
Optional
Other
Other
Optional


Product Features

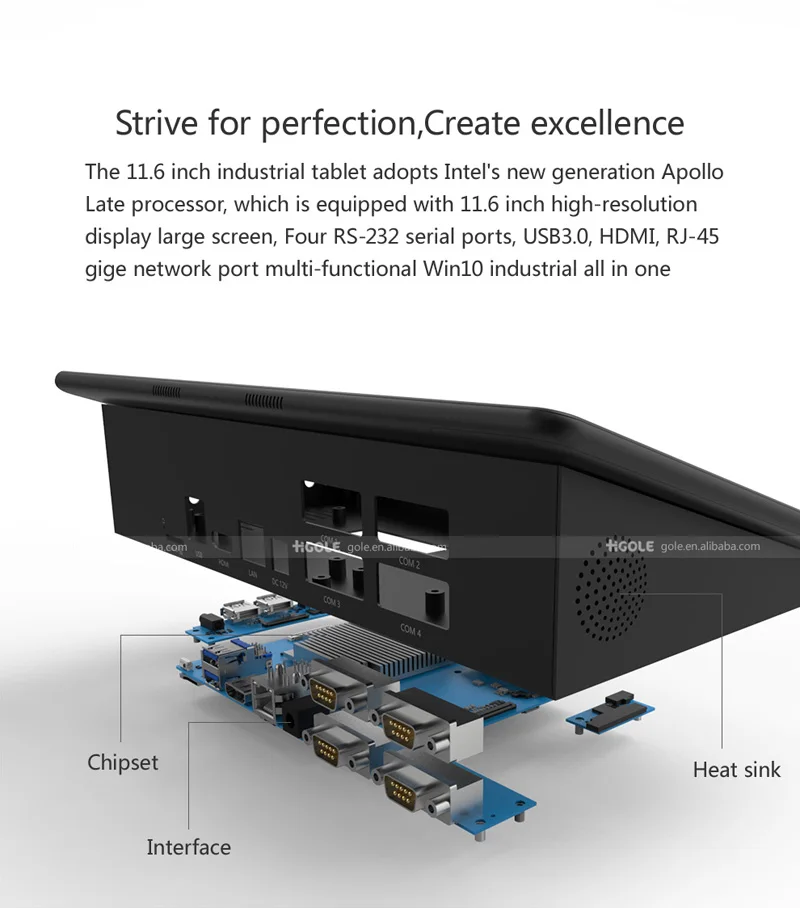

1. Multi interfaces, 4 COM ports(3 RS232 and 1 RS485) can connect external devices

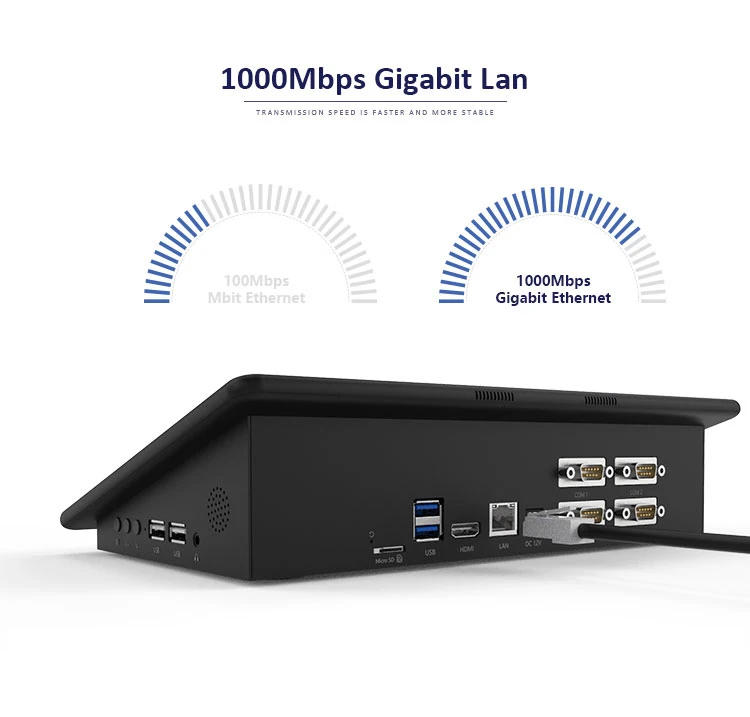

2. RJ45 Gigabite Lan: To ensure better and stable network
3. Dual Frequency WIFI: 2.4G&5G
4. Fanless design: To prevent the dust going into the machine
5. Mini size: 11.6 inch Portable size
6. Low Power: 12V/2A Power consumption: 576 watt/day , 17280 watt/one month(17.28kilowatt hour)
7. Fast speed: Intel J3355 Dual core , 2GHz ~ 2.50GHz
8. Multi touch all in one pc: Software keyboard and touch screen to facilitate your life

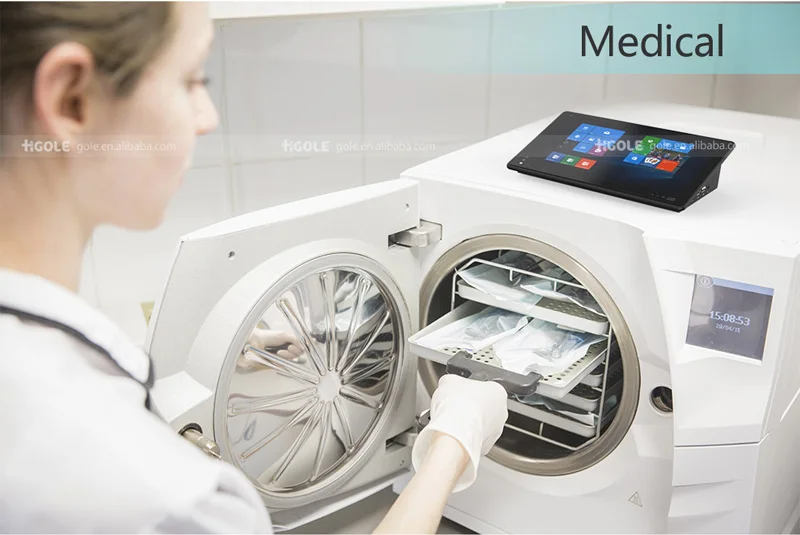

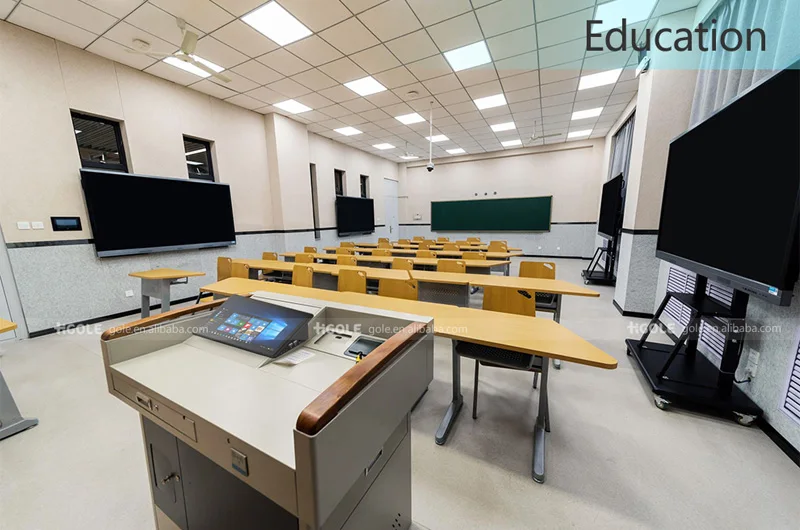

Application




It is portable, dual wifi, 1000Mbps Gigabit Lan, with HD-MI, RS232, RS485 and low power consumption, small size and various application. It can be widely used in POS system, printing server, industry manufacturing, smart home, catering, video meeting, education, etc. Since the power is DC 12V/2A, it is much power saving. It can replace desktop pc in most cases. It contains 4 COM ports, which is the best choice for POS system.

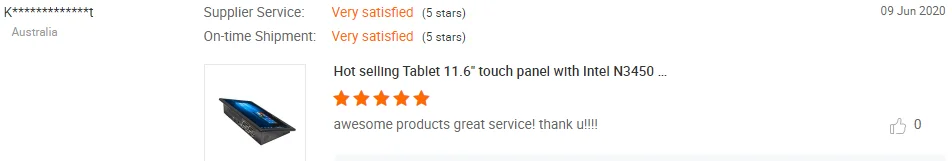

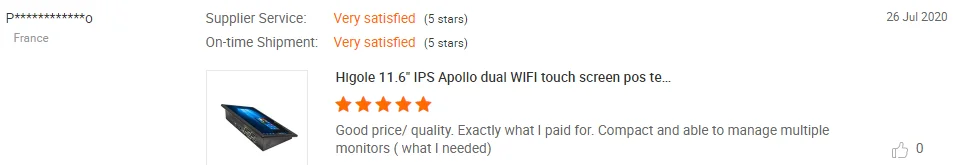

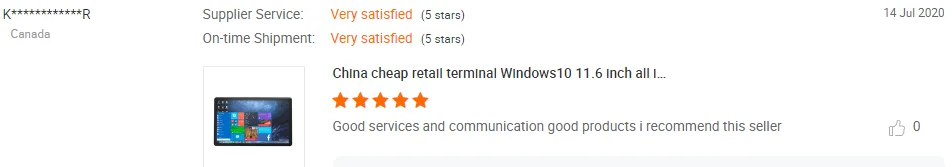

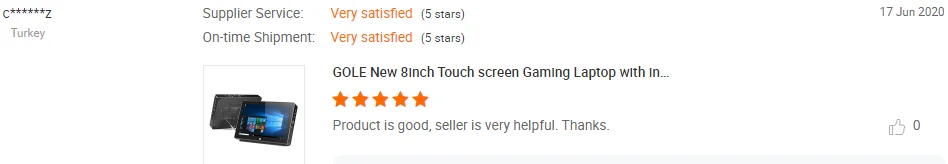

Customer Feedback












Related Products




QC Flow








Company Profile






Shenzhen Qianhai Gole Technology Co., Ltd. was established in 2008. It is a state-level high-tech enterprise. It is a leading supplier of three-proofing rugged computers and intelligent equipment in industry. We have established strategic partnerships with Intel, Microsoft, Google, ALLWINNER, Rockchips and other top high-tech companies in the world. The company's business is all over the world and provides intelligent equipment solutions for many well-known international brands.


Certifications




FAQ


Q : Are you manufacturer?
A: Yes, we are manufacturer with our own R&D team, production lines, sales department, after-sales service team etc. We can provide OEM/ODM customized service.

Q: What is the minimum order (MOQ)?
A: We accept one unit for standard products. If necessary, we can even customize your logo. For OEM & ODM required order, welcome to contact our sales department for more details.

Q: How to order and pay?
A: We accept Alibaba trade assurance online order, T/T bank transfer, Paypal, Western Union, L/C at sight etc.

Q: What's your products warranty?
A: We offer one year as warranty.

Q: How to repair the device if any problem?
A: We will provide technical support online to solve software problems. For the hardware problems, we can send the parts or components to customers and teach them how to fit it they have technicians. Or send back the defective unit to us to fix it.
