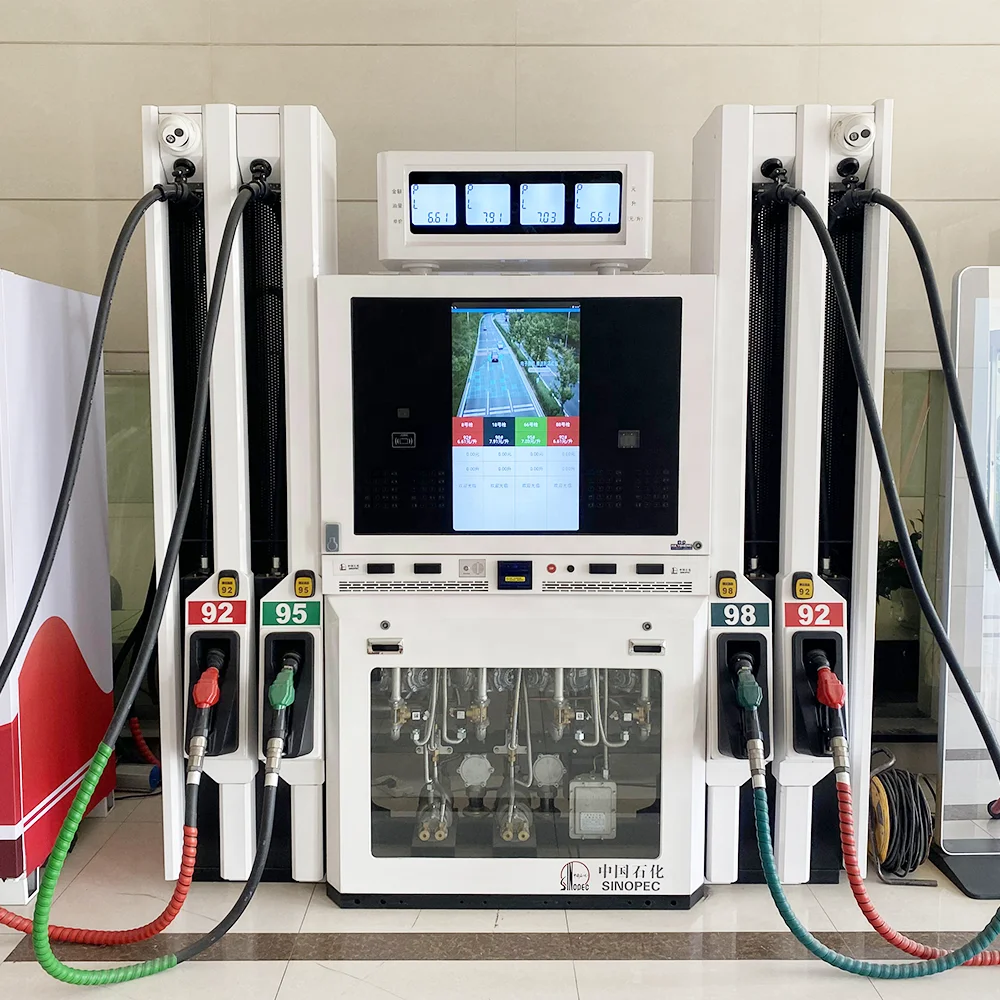

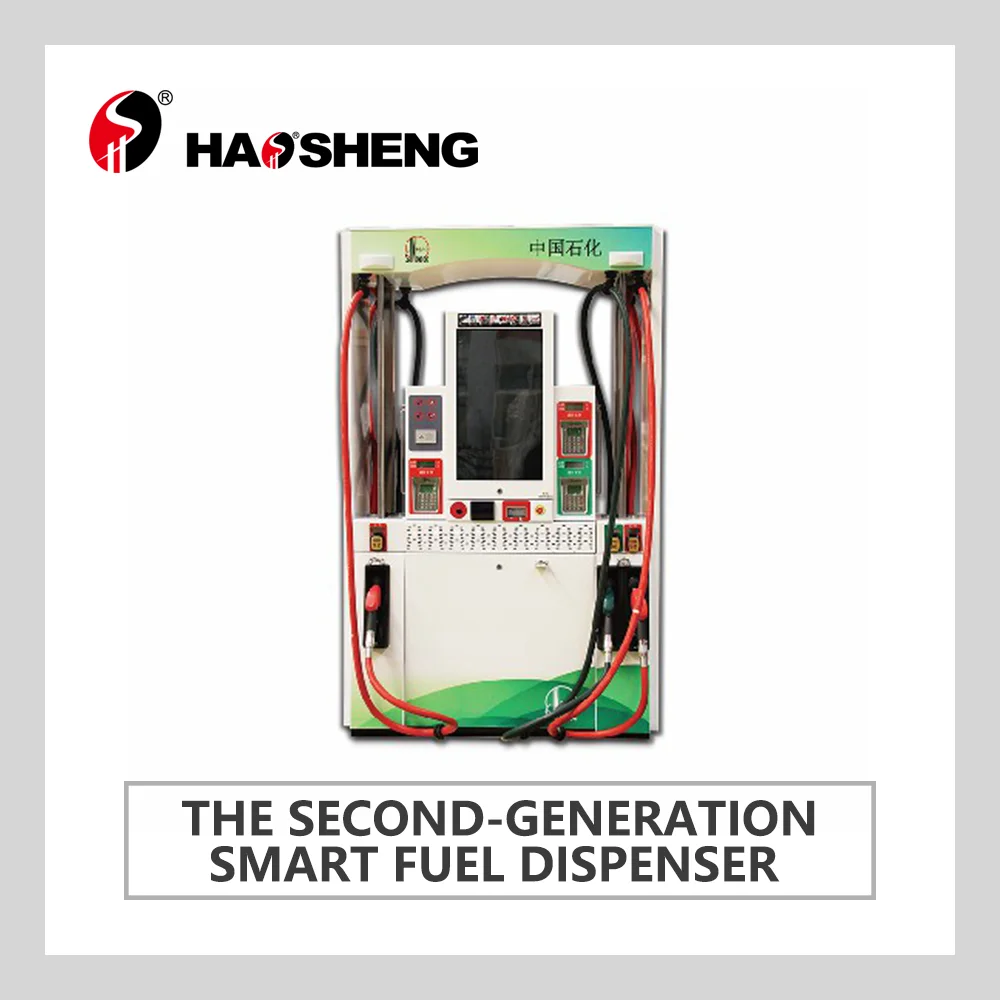

AI Smart Fuel Dispenser Good Price Gas Station Safety Smart Diesel Fuel Dispenser for Sale

Function Description

Lighting Guidance Function

Guide customers to complete self-service operation and ensure operation safety

Lightweight Oil Gun

Use the lightest oil gun in the industry, to minimize labour intensity;

Voice Guidance System

Intelligent voice interaction; it can complete refueling guidance by voice

Multiple payment methods

Support IC card, cash, bank card, Wechat, Alipay,
electronic accounts, mobile phone and other payment functions;

Oil Product Confirmation Button,

Second oil product confirmation, with lighting guidance and electrostatic release function

Rubber Hose Automatically Drawing Back

It can hover at any position, with self-locking function

Internet of Things  Intelligent Terminal

Intelligent door lock: the authorized party can open; the behaviour is clear and checkable

Intelligent Interactive Screen

2-inch/49-inch high resolution, high contrast, industrial TFT screen are adopted;

it is anti-glare, visible in sunlight and its brightness can be automatically adjusted according to external light

License plate recognition function: AI recognition technology is used to pay by the senseless payment for the license plate

Touch Screen Operation Guidance

Multi-touch technology is adopted to support refueling of multi-guns at the same time

Identity card identification: support credit payment and identity verification

Human body induction for panel

With infrared human body induction technology, inductive distance is adjustable

Facial recognition: support face brushing payment verification;

Colour-labelled hose

Different oil products are clear at a glance

On-line monitoring of oil & gas recovery: support closed-loop oil & gas recovery system to realize automatic adjustment of gas-liquid ratio

Technical Parameters

Item Name

Technical Indicators

Item Name

Technical Indicators

Outline Size

2240 × 600 × 2450mm (2 guns, 4 guns, 6 guns, 8 guns) 32- inch screen

Environmental Adaptability

Temperature: (- 45 ~ + 55) ℃, not more than 95%

Atmospheric pressure: 86kPa~106kPa

2590 × 600 × 2450mm (2 guns, 4 guns, 6 guns, 8 guns) 49- inch screen

Metering Performance:

Max. allowable error of the fuel dispenser is ± 0.30%, and its repeatability is not more than 0.10%

Power Supply Adaptability

Voltage: AC 220V / 380V (- 15% ~ + 10%), Frequency: 50Hz ± 1 Hz

Flow Range

Ordinary flow fuel dispenser: (5-50) L/min; Ordinary large flow fuel dispenser: (5-90) L/min;

Noise

Night ≤ 55dB (A), daytime ≤ 70dB (A)

Min. measured quantity

Ordinary flow fuel dispenser:5L; Ordinary large flow fuel dispenser :5L

Explosion Proof Certificate No.

CCRI18.3054

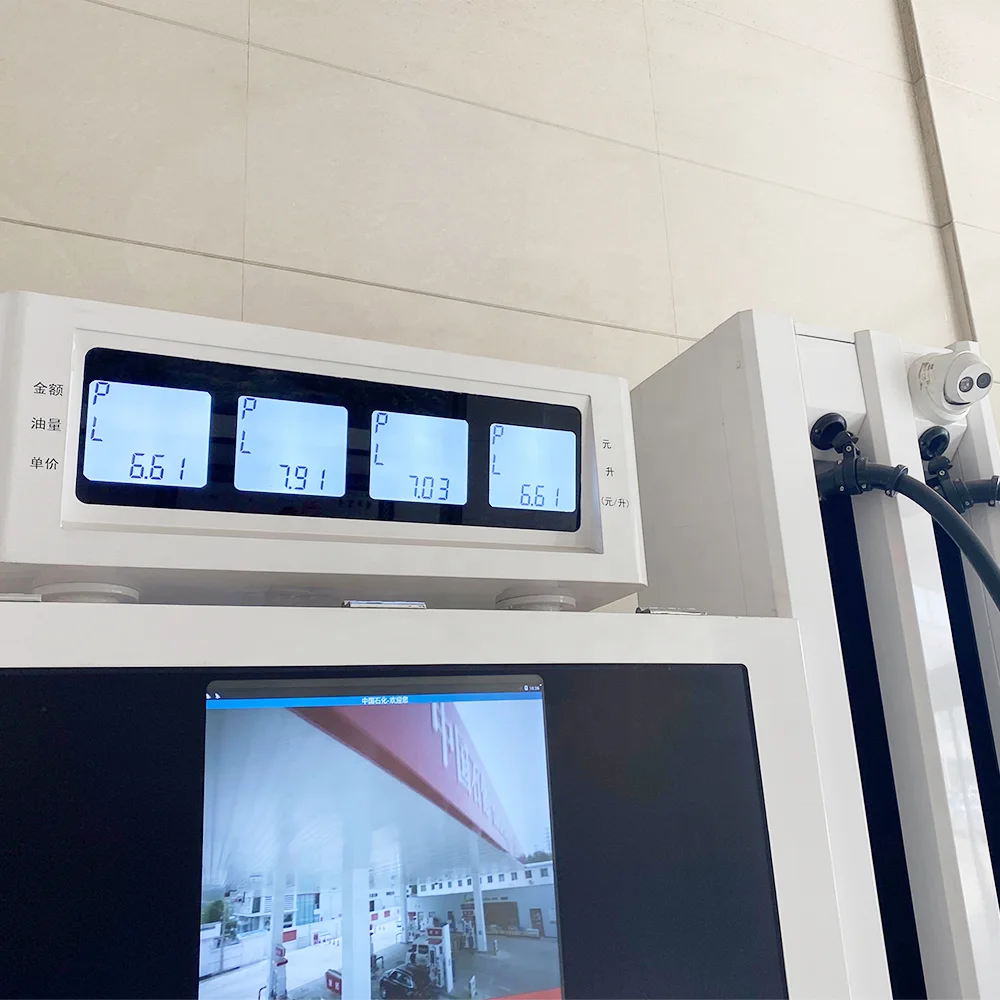

Display Range

Amount: 6 figures (0.01-9999.99 yuan); Refuelling volume: 6 figures (0.01-9999.99 Liter); Unit price: 4 figures (0.01-99.99 yuan/liter) ; Accumulative refuelling volume: 10 figures (0.01-99999999.99)
