Custom size removal dust filter element of water purifier for condensate water
Custom size removal dust filter element of water purifier for condensate water
Custom size removal dust filter element of water purifier for condensate water
Custom size removal dust filter element of water purifier for condensate water
Custom size removal dust filter element of water purifier for condensate water
Custom size removal dust filter element of water purifier for condensate water
Custom size removal dust filter element of water purifier for condensate water

Custom size removal dust filter element of water purifier for condensate water

Share on (62569704558):


Price:$2.30 - $2.90

Quantity:


Product Overview

Description



Custom size removal dust filter element of water purifier for condensate water


Product Description





Product Name
Water treatment plant RO pleated filter 5 microns PP cartridge water filter with 10 20 30 40 inch length
Filtration media
PP/PTFE/PES/PVDF/Nylon
Support material
Polypropylene
Core & Structural components
Polypropylene
Inner core
PP/Stainless steel
Packing method
Polybag/Vacuum
Filtration precision
0.1μm, 0.2μm, 0.45μm,  0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm
Length
2.5", 5". 10", 20", 30", 40", 50", 60", OEM
Adaptor
215/222/226/Fin/Flat/Thread/OEM
Sealing method
Hot melting welding
Sealing gasket & O-ring material
Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber.
Effect filtration area
≥0.6m²
Filter cartridge diameter
69mm
Max. working temperature
PP: 88℃,0.27Mpa； PTFE: 80℃, 0.173Mpa ；PES: 85℃, 0.28Mpa
PVDF: 80℃, 0.173Mpa；Nylon: 49℃, 0.21Mpa
Max. positive differential pressure
0.42Mpa (25℃)
Max. back pressure differential pressure
0.28Mpa (25℃)
Sterilization conditions
121℃ 30min
Applications
Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration;


PP melt blown water filter cartridge

Polypropylene melt blown filter cartridge or PP spun water filter, PP filter, PP filter cartridge is the most widely used filtration consumable products in domestic and industrial water treatment systems.
PP melt blown filter cartridges (PPF) are made of 100% pure polypropylene fiber, providing broad wide chemical compatibility.
Melt Blown sediment filter cartridge has strong pollutants holding capacity.


Polypropylene microporous membrane filter

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of
feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.



Detailed Images

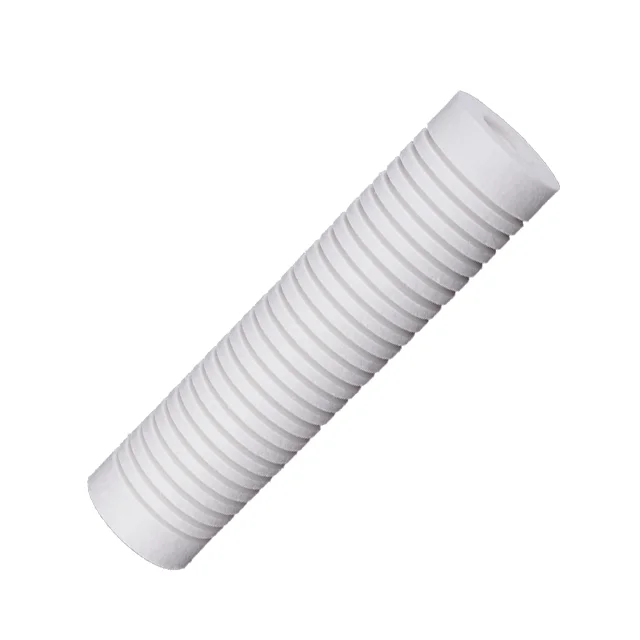

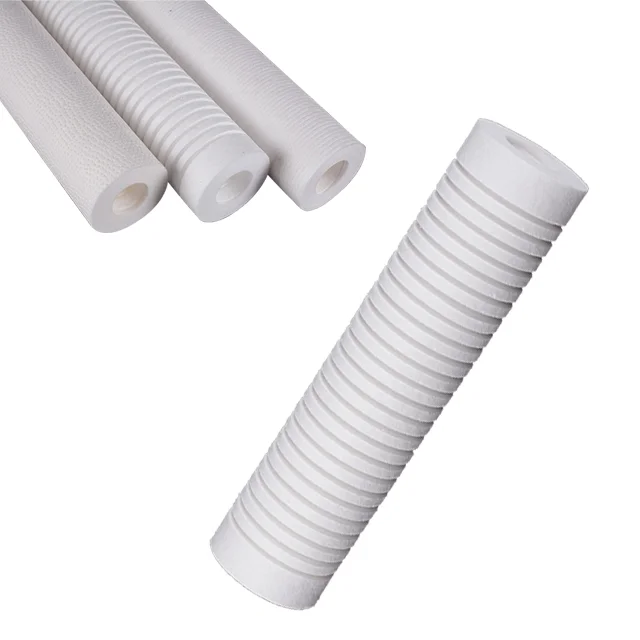

Groove surface PP sediment filter cartridges.
Flat surface PP sediment filter cartridge
215 222 226 Flat/Fin end cap PP filter, code 0 3 6 7 8 9 available.



DOE opened pleated filter

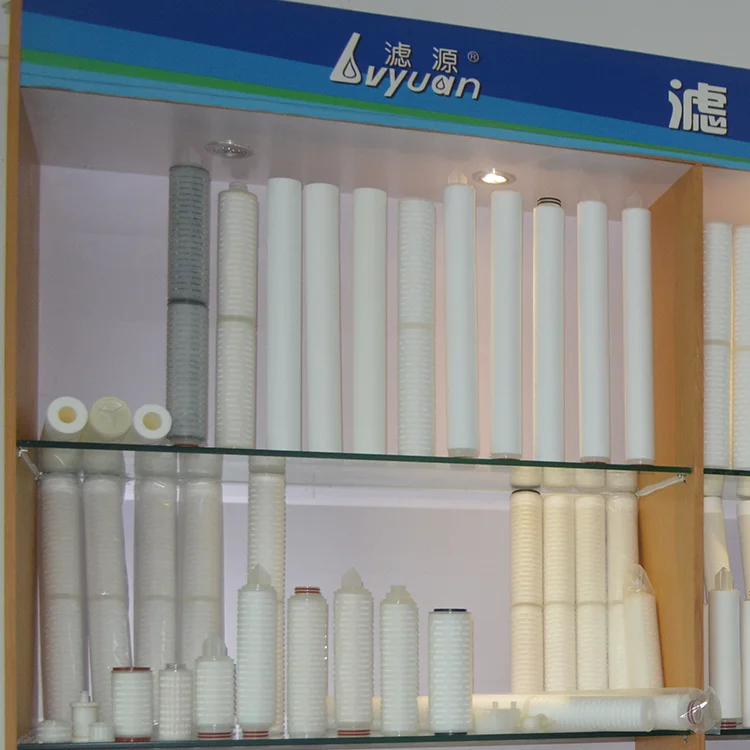

OEM customized size filter

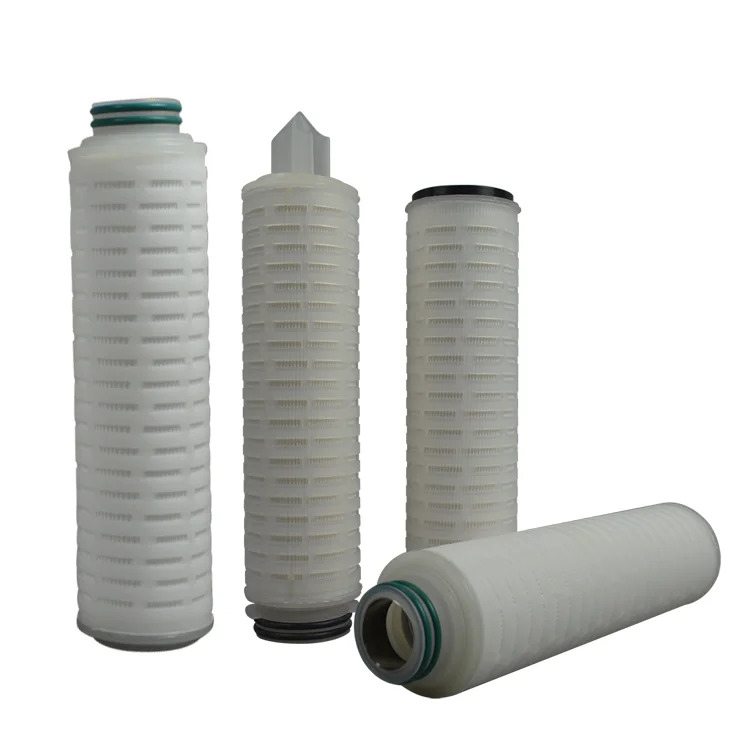

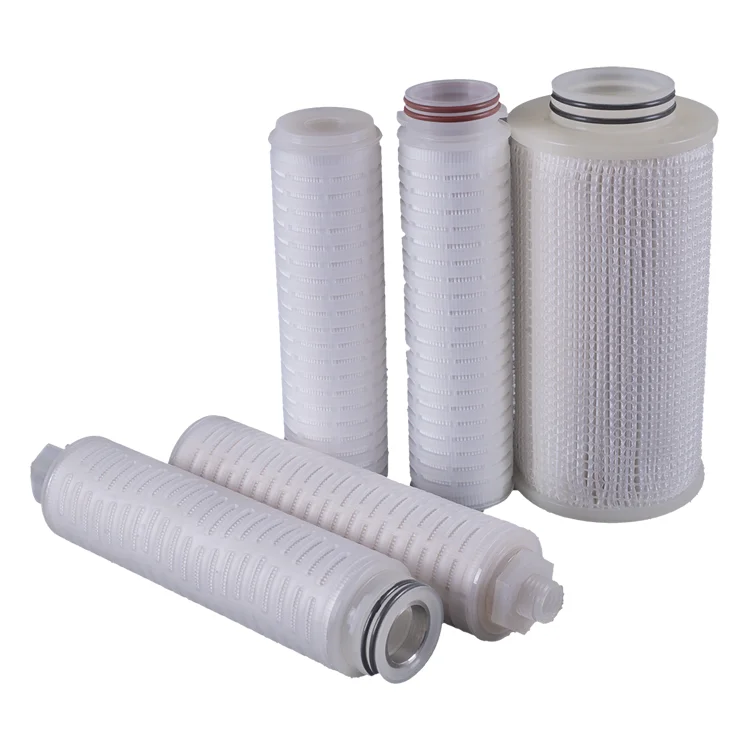

Different end caps pleated filter



PP melt blown filter cartridge with 1 2 3 layers for option
PP shell Polypropylene melt blown filter cartridge


Customize PP core or stainless steel shell/core pp filter cartridge





Application


RO WATER TREATMENT

BOTTLED MINERAL WATER

CHEMICAL TECHNOLOGY  FILTRATION



BEER & BEVERAGE FILTRATION

PETROCHMICAL INDUSTRY

SEA DESALINATION WATER EQUIPMENT



Packing & Delivery




Container for shipment

Container for shipment



Certifications




Our Company











Let's Make Custom Water Filter Cartridge For You Now.
.
