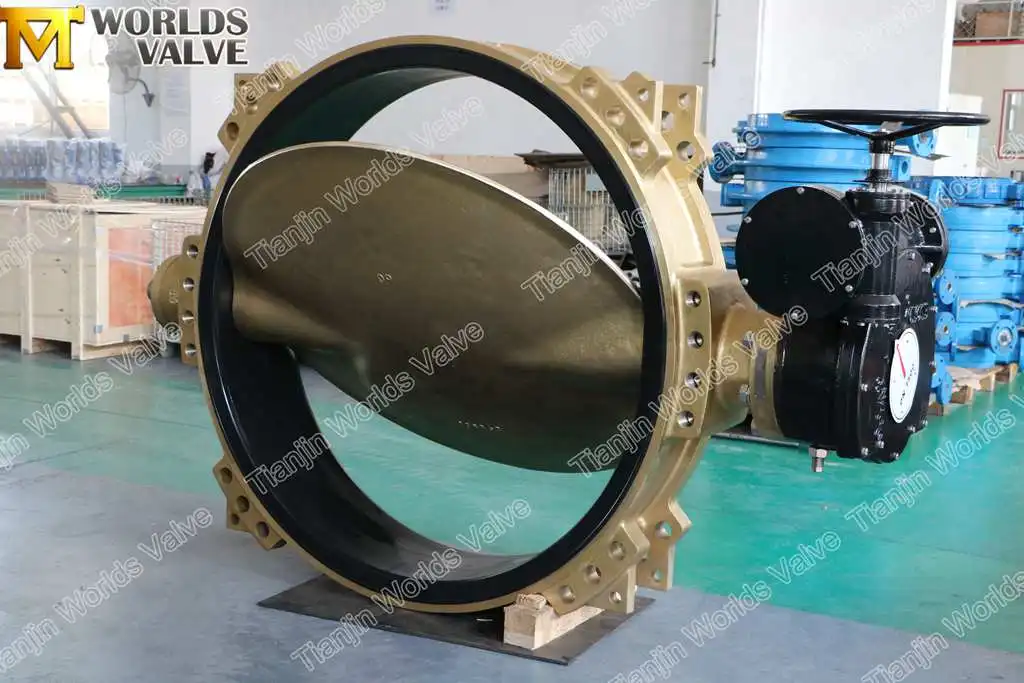

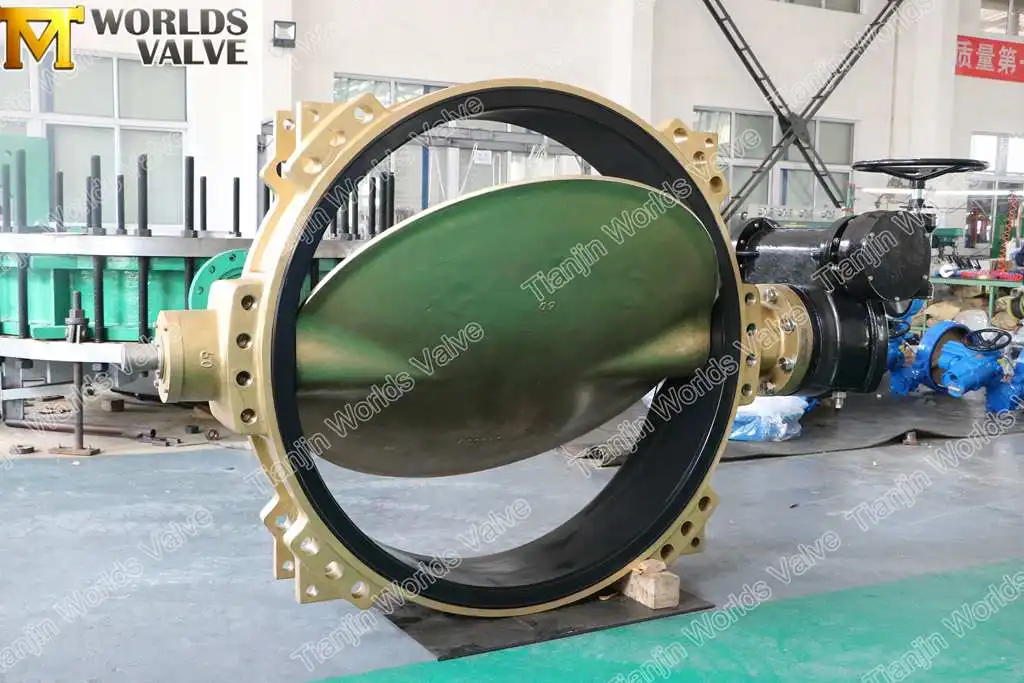

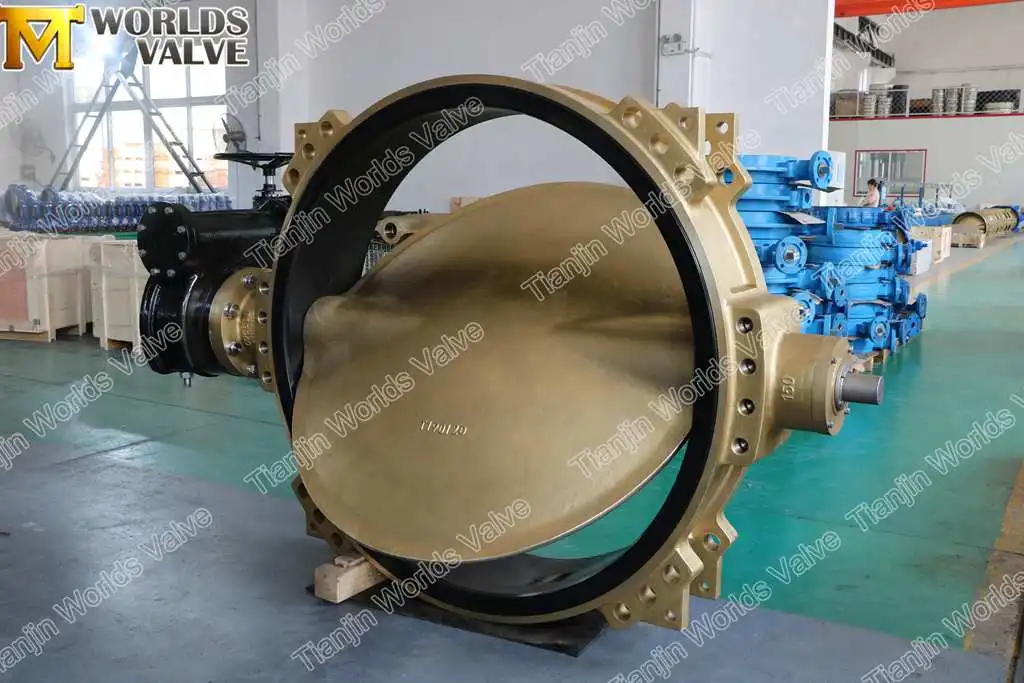

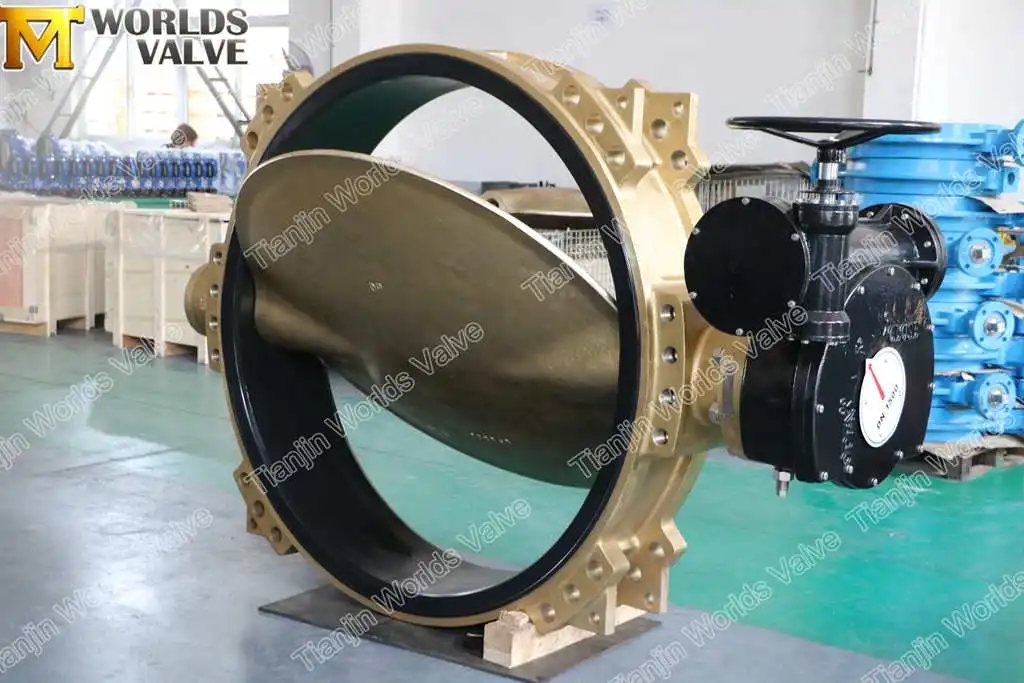

60inch wafer type gear operated btv valve butterfly

Product Overview

Description

60inch wafer type gear operated btv valve butterfly

Executive Standard:

Design Standard	EN 593 , MSS SP67   API 609  BS5155
Inspection & Test	API 598  ISO 5208  EN 12266
End Standard	ANSI B16.1 CL. 125LB & B16.5 CL. 150LB AS 2129 Table D & E   BS 10 Table D & E DIN 2501 PN6, PN10 & PN16 EN 1092 PN6, PN10 & PN16 ISO 2531 PN6, PN10 & PN16 ISO 7005 PN6, PN10 & PN16 KS B 1511 / JIS B 2210 5K & 10K MSS SP44 CL. 150LB  AWWA C207 SABS 1123 Table 1000/3 & Table 1600/3
Face to Face	ISO 5752 , EN 558 , MSS SP67 and API 609 DIN3202
Top Flange	ISO 5211

Main Material:

Name	Material
Body	Cast Iron  Ductile Iron  Carbon Steel  Stainless Steel  AL-Bronze
Disc	Ductile Iron  Carbon Steel Stainless Steel  AL-Bronze
Shaft	Stainless Steel  Monel K500
Seat	BUNA  NBR  EPDM  VITON  PTFE  HEPDM  Neoprene  Hypalon Natural rubber

Tianjin Worlds Valve Co., Ltd. is a professional manufacturer of soft seal butterfly valve established in the year 2007,

We are mainly provide high quality OEM products for the internation well know brand.

Our factory is located in Tianjin China, and company area is about 8000 square meters, building area is about 5000 square meters.

After 13 years of development, we have extensive experience in the production and processing of soft seal butterfly valves.





All our butterfly valve molds are designed and manufactured by ourselves.

We have a professional technical team and R&D team. And 20 people with bachelor degree and 5 senior engineers.

We can provide you with OEM, ODM services.

The main products are: wafer butterfly valve, lug butterfly valve, flanged butterfly valve, lined PTFE butterfly valve, Y strainer, gate valve and check valve.



WORLDS VALVE have been gradually recongnized by customers and markets.

Our turnover has increased steadily in the past five years.

***2015: $8.5 million

***2019: $15 million

and more and more countries and regions are expected to choose WORLDS VALVE as their sole distributor at the local market.

WORLDS VALVE hopes to establish cooperation with more overseas customers.



WORLDS VALVE have wide range for valve:

Resilient seat butterfly valve, gate valve, dual plate check valve and Y strainer are our main products



Refer to butterfly valve size range is from DN32-DN3000, The max working pressure is PN25

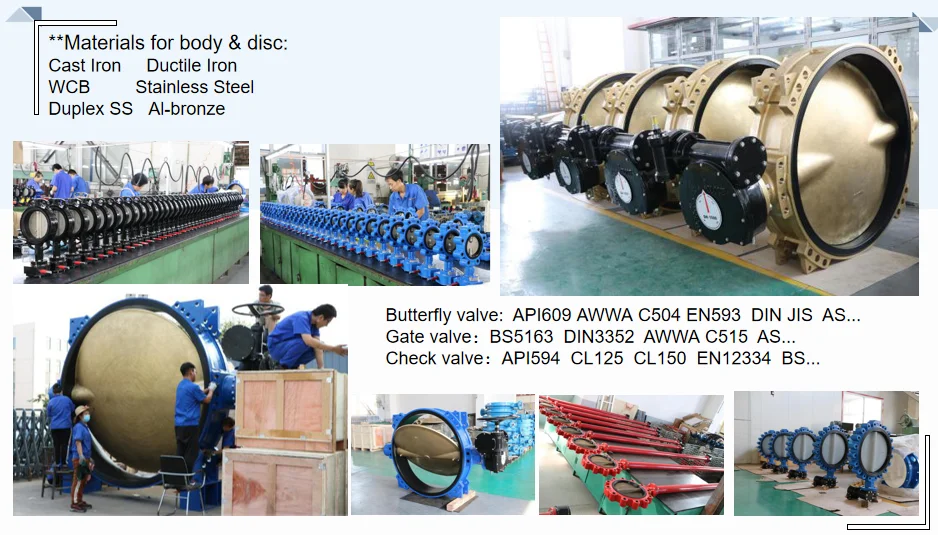

The body material of butterfly valve, we can make: CI/DI/SS/Duplex stainless steel/aluminum bronze

The disc material of butterfly valve, we can make:DI/SS/Duplex stainless steel/aluminum bronze with FBE, with nylon coating, halar coating

Seat: EPDM/NBR/VITON/SILLICON Rubber /neoprene with PTFE, PFA



Design standard: EN593, API 609,JIS, AWWA C504

Face to Face standard: ISO5752 Series 13,14,16,20 awwa c504

We can help you with all the products which you cannot find in the market





B. Gate valve: DN50-DN1200

The max working pressure:PN25

Face to Face: BS5163, DIN3202 F4/F5, AWWA C515

We have rising and non-rising gate valve



C. We just can produce dual plate check valve



Size range is from DN50-DN1200

Face to Face: we have 4 types, the common type is ISO5752 Series 16, API 594 Class125, Class150

The special type is  EN558 Series50



D, Y Strainer: DN50-DN600

Face to Face: iso5752 series F1

The max working pressure is pn20



Full PTFE/PFA lined butterfly valve is our advantage valve.

And PTFE seat and disc made by ourself



WORLDS VALVE COMPANY has a completed quality assurance system, such as the ISO9001 quality system certification.

The butterfly valves are certified by CE, and WRAS, ACS.

If you need RINA, ABS, DNV, we can also issue it for you.









1. Q: Are you a manufacturer or trading company ?

A: we are valve manufacturer and factory ,and not trading company.

2. Q: Do you have agent or representative abroad?

A: We dont have agent abroad,please contact us to purchase valves

from Tianjin Worlds Valve Co.,Ltd directly.

3. Q: What's your product range?

A: We can produce Butterfly valve,Gate valve,Check valve,Y strainer,

by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.

4. Q: Is there any stock in your factory? and how about your lead time?

A: We stock valves with normal sizes.

The lead time depends on your quantity,generally 30-40 days.

5. Q: Which countries do you export to ?

A: We export directly to vast majority of countries in the world.

6. Q: What certificates will you provide ?

A: We can provide CE-PED / ISO / WRAS - UK/ ACS-France CO.

7. Q : How do you control the quality of the product?

A: Adheres to strict quality control procedures that begin with product design and carry

through to the end of the production process using state-of-the-art quality control equipment.
