P16 outdoor RGB full color led display module

Product Overview

Description

Outdoor waterproof  i68 RGB full color p16 led display screen module price

Technical specifications

Unit Module	Item	Parameter
	Module number	LJX-P16-static
	Moule size	256mm x 256mm
	Pixel pitch	16mm
	Pixel density	3906dots/sqm
	Pixel configuration	1R1G1B
	Package mode	smd3535
	Pixel resolution	16x16dots
	Max power consumpion	28w

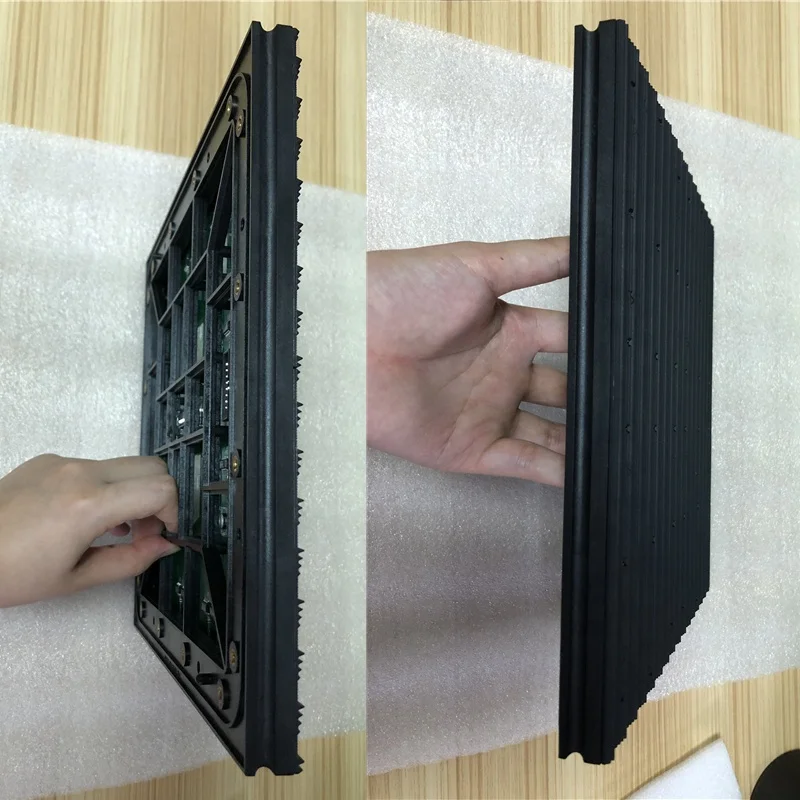

	Module thickness	14.85mm(without magent)
	Module weight	0.8kg
	Driver method	constant drive
	Driver method	static scannig
	Port type	HUB75
	Brightness	7000cd/sqm
Bracket	Size	256mm x 256mm
Unit Cabinet	Cabinet size	1024mm x 1024mm
	Quantity of module	16pcs
	Power supply	5v/40A x 4pcs
	Thermal discharge	2pcs cooling fans
	Pixel per cabinet	64 x 64dots
	Best viewing distance	6m-33m
	Best viewing angle	160°(w)120°(H)
	Temperature	storage:-35℃-+85℃
		working:-20℃- +50℃
	Opration humidity	10%-95%
	Thickness	85mm
Power	Working voltage	220V±10%
	Averange power consumption	140W/sqm
	Max. power consumption	420w/sqm
	Current	<20mA(single LED)
Control system	CPU	Pentium 4 or above
	Operation system	WIN98/2000/NT/XP
	Control method	Synchronization
	Driving device	Constant currentdriver IC



Outdoor waterproof  ip68 RGB full color p16 led display screen module price

P16 waterproof outdoor led display, smd LED module. 1rgb led mdoule, outdoor full color P16 led module, P16 led module, Outdoor billboard use led display panel, best view distance from 15m to 160m. for large gient displace use.

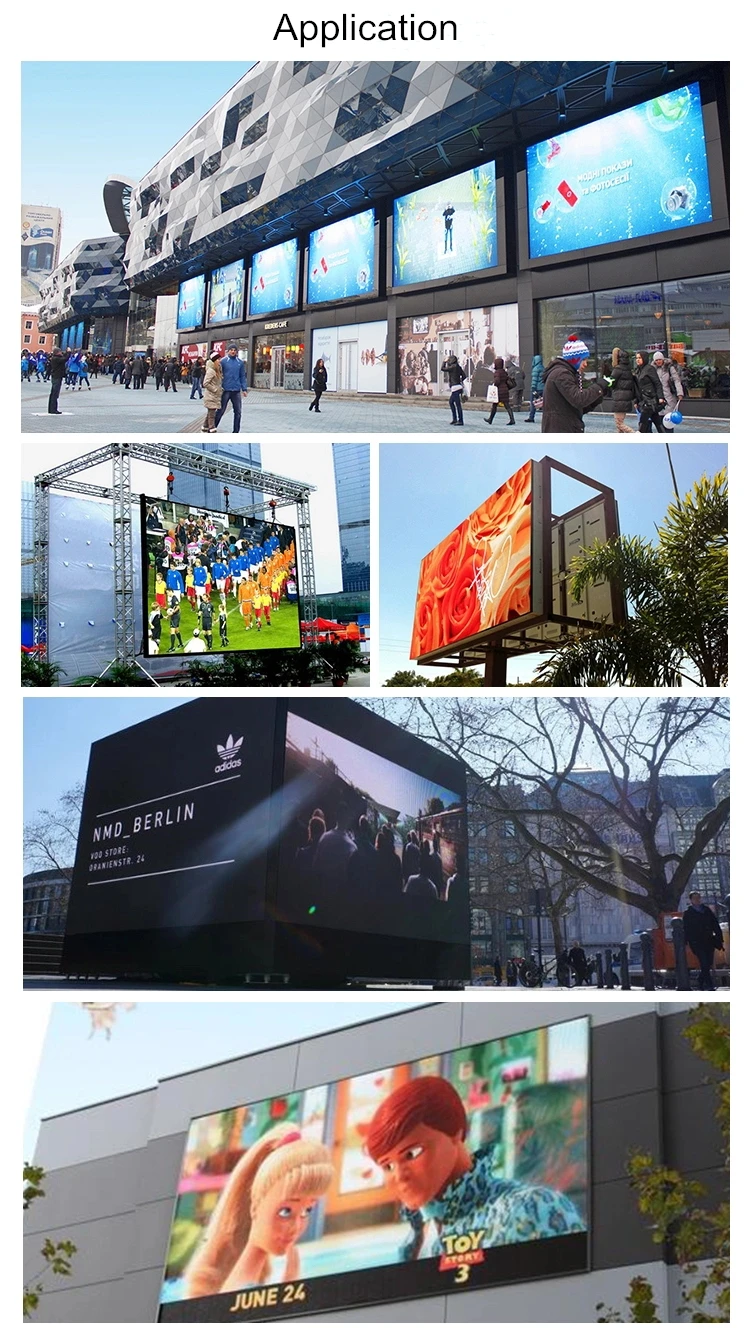

1. Wide application, including stage rental events, exhibition, wedding and so on.
2. Standard panel design makes stocking, transportation, construction, spare parts and maintenance easy and simple.
3. Silent operation, little heat generated.Super-High refresh frequency, better and smoother picture coherence

4.UltraHD :Unique image quality enhancement technology, to effectively improve the image clarity; high-speed picture is still smooth without smearing.



Advantage:
1. Professional installation instructions: Our company also can arrange our engineers to provide you professional installation guide and training for free via remote control, video and phone.
2. Promising the goods quality: All of products will be tested many times and 100% promise the products are well before shipping.
3. Customized products:The products can be customized according to your projects and offer you the CAD drawing for free.
4. After-sale service:We guarantee all of our displays, modules, spare parts for full two years. During the time, we will replace or fix our goods for free if there is something wrong with them.

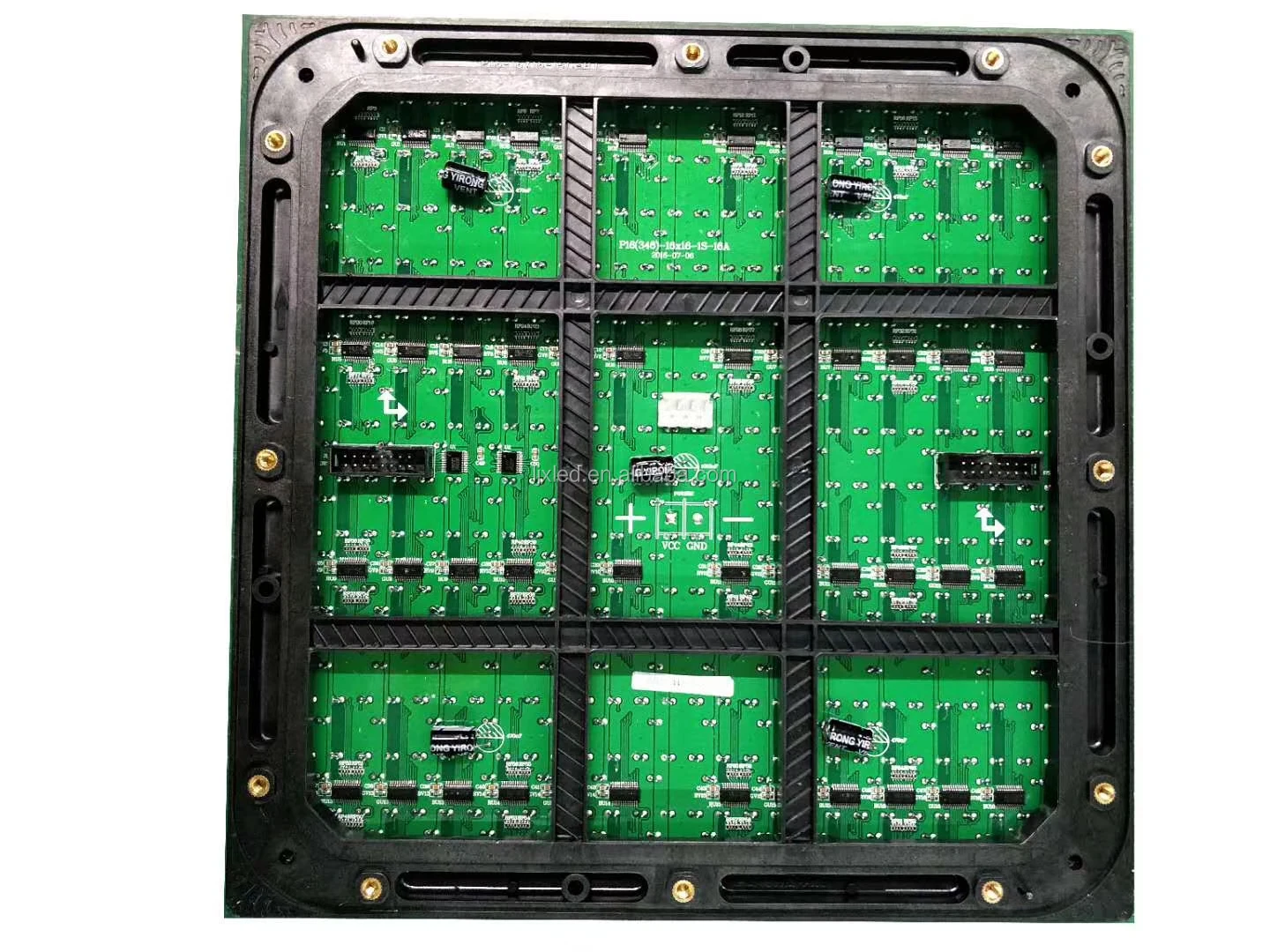

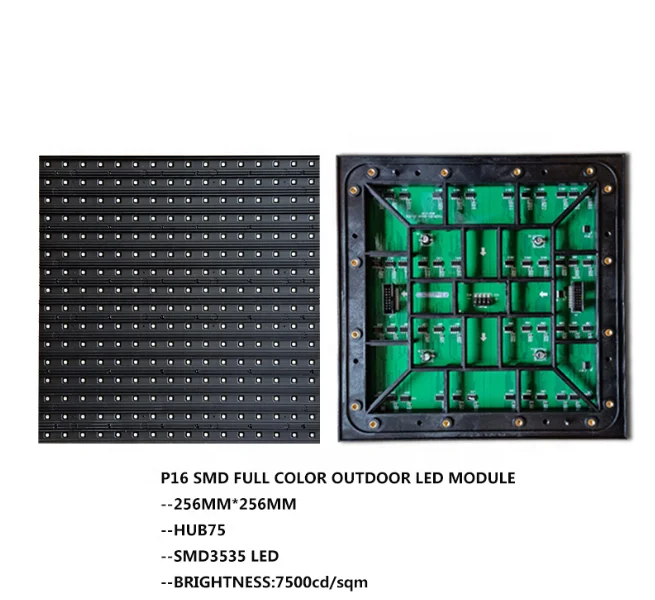

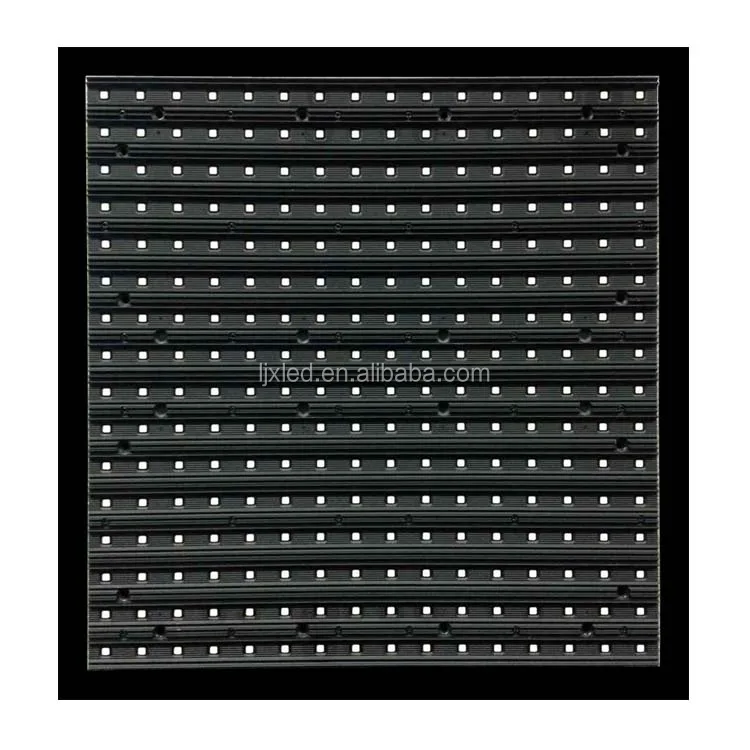

P16 led module (size 256x256mm)

Front service smd led module p16 (size 256x256mm)3.We also have p16 dip346 led module (size 256x256mm)



n led display panel pri

LED MODUL



FAQ
 Q1: What is the lead time?

 A: Sample:2-5days; small quantity: 15-20days; large order: 20-25days; according to quantity.

Q2: Is it all right to make customers’own brand name?

 A: That’s all right to make your own brand name.

Q3: Is it available for samples? SMD RGB Outdoor P3 P4 P5 P6 P8 P10 Digital LED Display

A:yes, of course. sample is free, and you may pay freight cost. that would be reasonable

Q4:Is there a middle man draining your profit?

A:Get rid of them,it’s information age.Factory Directly Supply,Provide good price, high-quality, quick-delivery, best quality service.

Q5: What is the min.order? Video Wall P6 LED Signs Outdoor Advertising Screen Panel

You can order any quantity you want .

Q6:The display could be customer made ?

Yes , of  course , any type you want , please tell me , we can disign and discuss together

Q7:Service Content

1. 24/7 hours hotline service, including counseling and technical guidance.
2. On-line service.SMD3535 Full color RGB Outdoor P16 LED Display Panel Module 16mm
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
Q8:Warranty Period
Two years warranty and a lifetime maintanance.



If you like this p16 led module , please send us enquiry
