Сильный шасси Xilin, 2000 кг, 6,5 фунтов, М, полностью свободный подъем, Электрический ковшовый штабелер с опорными ножками для работы в невысокой крыше
- Category: >>>
- Supplier: Ningbo Ruyi Joint Stock Co. Ltd.
Share on (62570076086):
Product Overview
Description

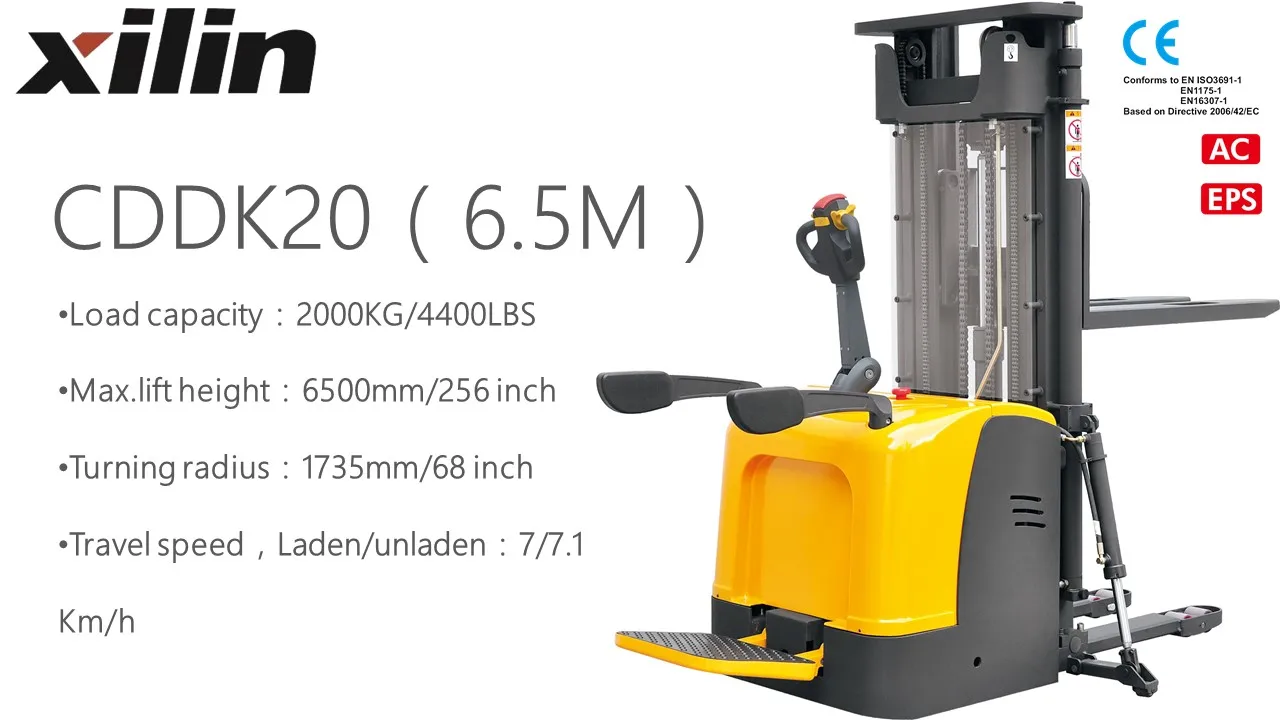

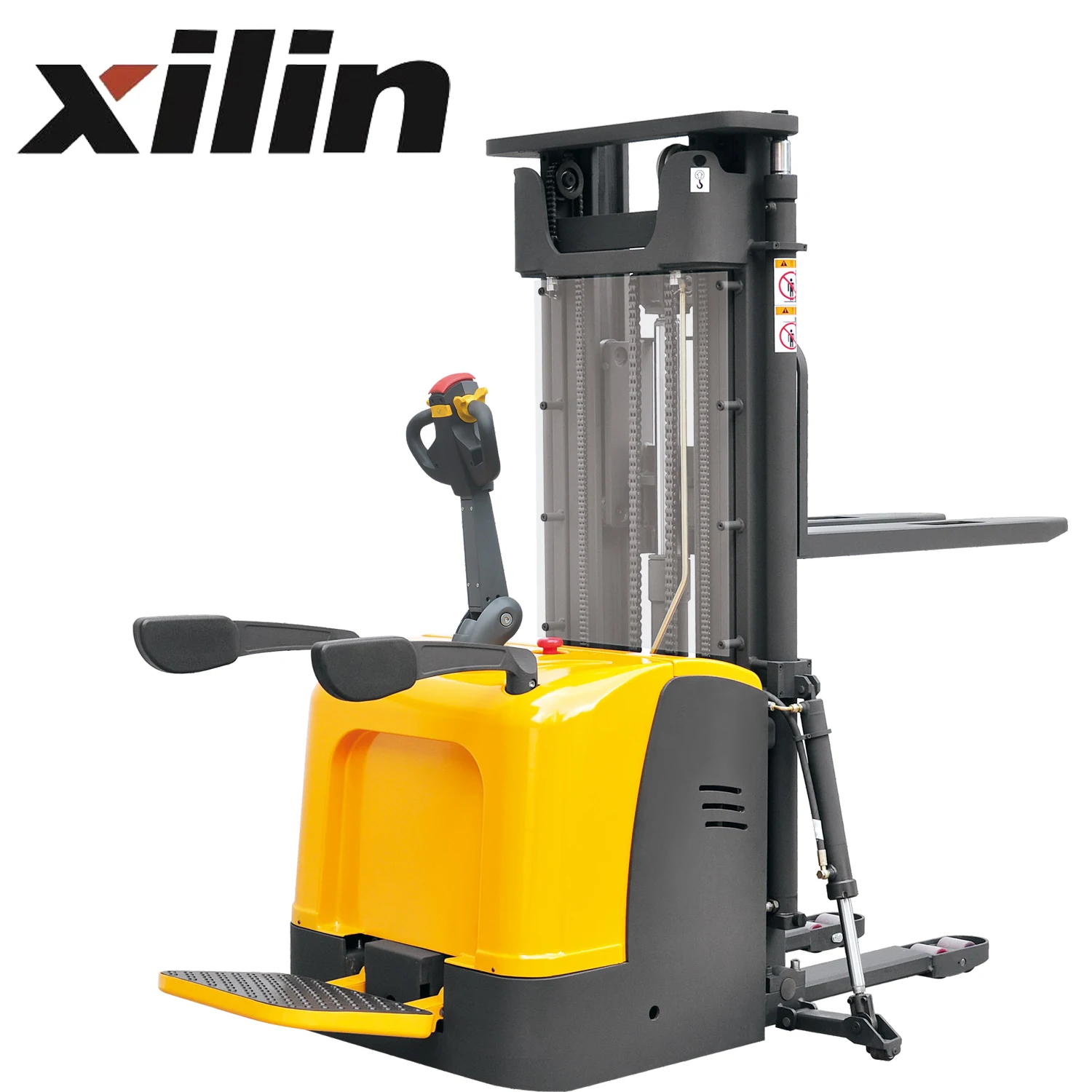

Xilin 2000KG 4400lbs 6.5M Strong Chassis Full Free Lifting Electric Rider Stacker WithSupport Legs ForWorking In Low Roof House
Safety And Produnctivity
* AC Motor eliminates replacement of carbon brush.
* Multi-function display with BDI and hour meter.
* Side way battery is easy to maintain.
* Damping cushion for low-noise operation;
* Emergency reversing device in the handle provides higher safety for the whole operation.
* Auto deceleration function makes operation more safely.
* Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
* Braking applied with handle upright and horizontal position, increasing the safety of the truck.
* Emergency power disconnect switch.
* Turtle-shaped low speed switch.
* Stepless speed control.
* Multi-function display with BDI and hour meter.
* Side way battery is easy to maintain.
* Damping cushion for low-noise operation;
* Emergency reversing device in the handle provides higher safety for the whole operation.
* Auto deceleration function makes operation more safely.
* Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
* Braking applied with handle upright and horizontal position, increasing the safety of the truck.
* Emergency power disconnect switch.
* Turtle-shaped low speed switch.
* Stepless speed control.
Optimum Structural Design
* Low center of gravity ensures the stable operation.
* Vertical driving wheel ensures convenient maintenance and small turning radius. Water-proof and dust-proof motor structure,
keeps the braking and motor more durable and reliable.
* The mast and the frame are dividable and exchangeable.
* Full free lifting, fit for working in low roof house.
Serviceability
* Low voltage protection setting prolongs the battery life time.
* The electronic components’ concentrated design simplify the circuit and makes easy access to assemble, debug and maintain,
* CANbus technology reduces wiring complexity and increase reliability.
* Hall element reduces wear components, resulting in increased component life.
* Vertical driving wheel ensures convenient maintenance and small turning radius. Water-proof and dust-proof motor structure,
keeps the braking and motor more durable and reliable.
* The mast and the frame are dividable and exchangeable.
* Full free lifting, fit for working in low roof house.
Serviceability
* Low voltage protection setting prolongs the battery life time.
* The electronic components’ concentrated design simplify the circuit and makes easy access to assemble, debug and maintain,
* CANbus technology reduces wiring complexity and increase reliability.
* Hall element reduces wear components, resulting in increased component life.

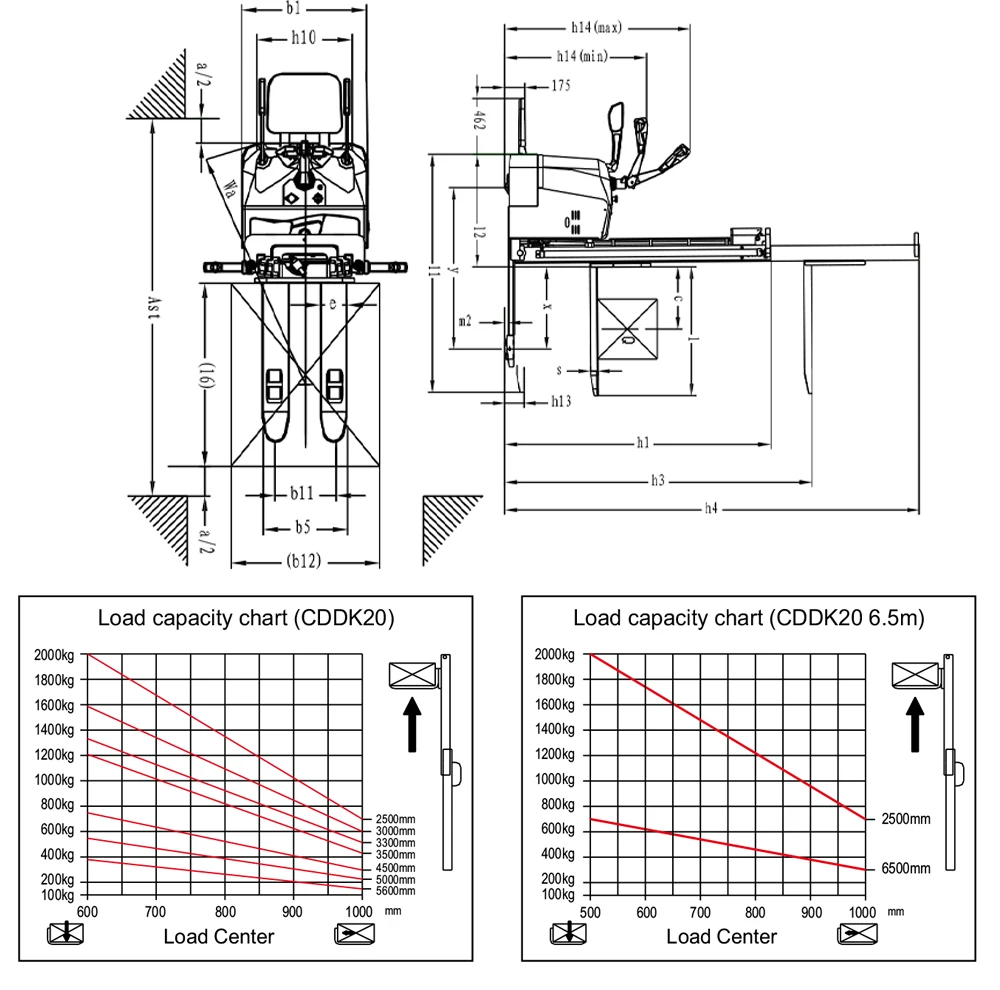

Model | CDDK20(6..5M) | |
Load capcacity | Q(kg) | 2000 |
Load centre distance | c(mm) | 500 |
Load distance,centre of drive axle to fork | x(mm) | 672 |
Fork height,lowered | h13(mm) | 90 |
Height,mast lowerd | h1(mm) | 2710 |
Max.lift height | h3(mm) | 6500 |
Height,mast extended | h4(mm) | 7050 |
Height of tiller in drive position min./max. | h14(mm) | 1150/1450 |
Length to face of forks | l2(mm) | 950 |
Overall width | b1(mm) | 950 |
Overall length | l1(mm) | 2100/2180 |
Fork dimensions | S/e/l(mm) | 60*180*1070(1150) |
Width overall forks | b5(mm) | 570/695 |
Aisle width for pallets 800*1200 lengthways | Ast(mm) | 2595 |
Turning radius | Wa(mm) | 1735 |
Travel speed,laden/unladen | Km/h | 7/7.1 |
Battery voltage,nominal capacity K5 | V/Ah | 24/300 |
Service weight(with battery) | kg | 1850 |
Q1:Are you a factory?
A1: Of course.Ningbo Ruyi Joint Stock Co. Ltd., established in 1985, is a national hi-tech enterprise, which owns the unique
combination of scientific research,development, production, sale and service. Moreover, the trademark of Xilin has been registered in 68 countries and regions around the world and its products sell well in more than 100 countries and regions until this year.
A1: Of course.Ningbo Ruyi Joint Stock Co. Ltd., established in 1985, is a national hi-tech enterprise, which owns the unique
combination of scientific research,development, production, sale and service. Moreover, the trademark of Xilin has been registered in 68 countries and regions around the world and its products sell well in more than 100 countries and regions until this year.
Q2: Do you have agent or representative abroad?
A2: Yes. We have two branches in the US and Russia. We have two warehouses are located in Los Angles and Chicago with products in stock and ready to ship. We also have Xilin distributors agent in Norway, Thailand, Japan, Vietnam and Malaysia. If you are interesting to be our agent and enjoy more price. Pls contact us then we can discuss more detailed.
A2: Yes. We have two branches in the US and Russia. We have two warehouses are located in Los Angles and Chicago with products in stock and ready to ship. We also have Xilin distributors agent in Norway, Thailand, Japan, Vietnam and Malaysia. If you are interesting to be our agent and enjoy more price. Pls contact us then we can discuss more detailed.
Q3: What's the specification of the chargers?
A3: Xilin have all kinds of the chargers and welcome the customers to custom-made.
A3: Xilin have all kinds of the chargers and welcome the customers to custom-made.
Q4: Warranty for the product?
Q4：We do offer one year warranty which would cover the failure not caused by miss-usage like over loading or misplacing the item.And There is no warranty for wearing parts such as wheel and fuse.Q5: How about the delivery time?
A5: Usually Xilin producing time is 15-20 working days after we receive the advanced payment. For some standard products,we have most in stock and could delivery immediately.
A5: Usually Xilin producing time is 15-20 working days after we receive the advanced payment. For some standard products,we have most in stock and could delivery immediately.
Q6:What is your payment term?
A6: T/T or L/C,if you want any other way,please contact us.
A6: T/T or L/C,if you want any other way,please contact us.
Q7: What can I get from cooperating with Xilin?
A7: 1. Unique products, with customized service.2. Timely production and delivery, time is money. 3. Market protection service, long term business strategy.
