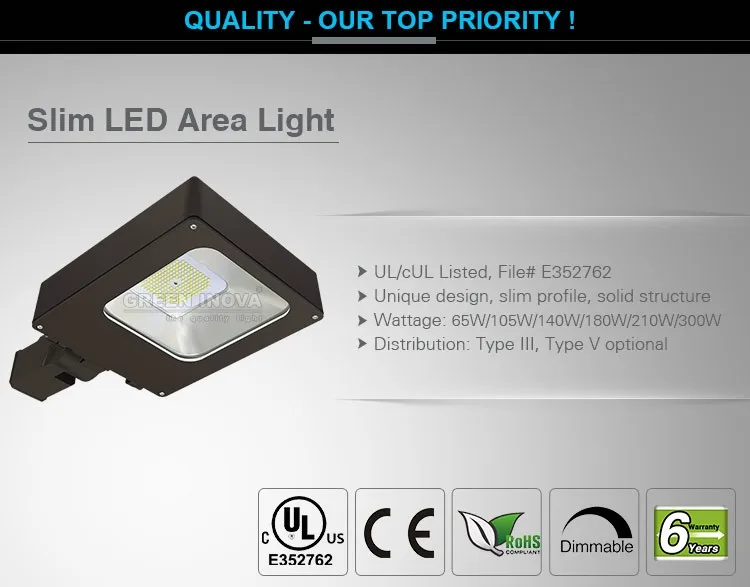

6SB详情

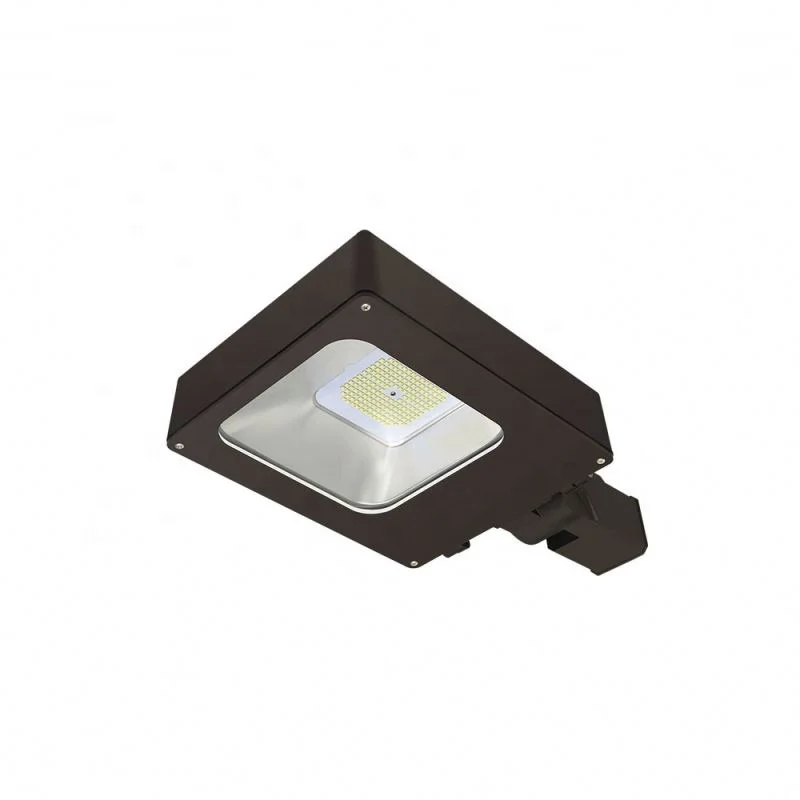

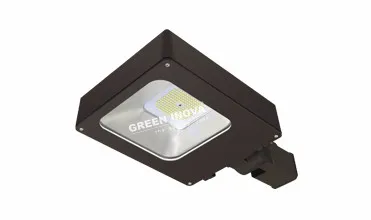

Green Inova launched newest parking LED display, which features aesthetically designed housing with corrosion resistant polyester powder coating, high reflective rate anodic oxidation reflector, and toughened UV stablized glass cover.The driver is separated from the heat sink, providing lower temperature and longer life span.

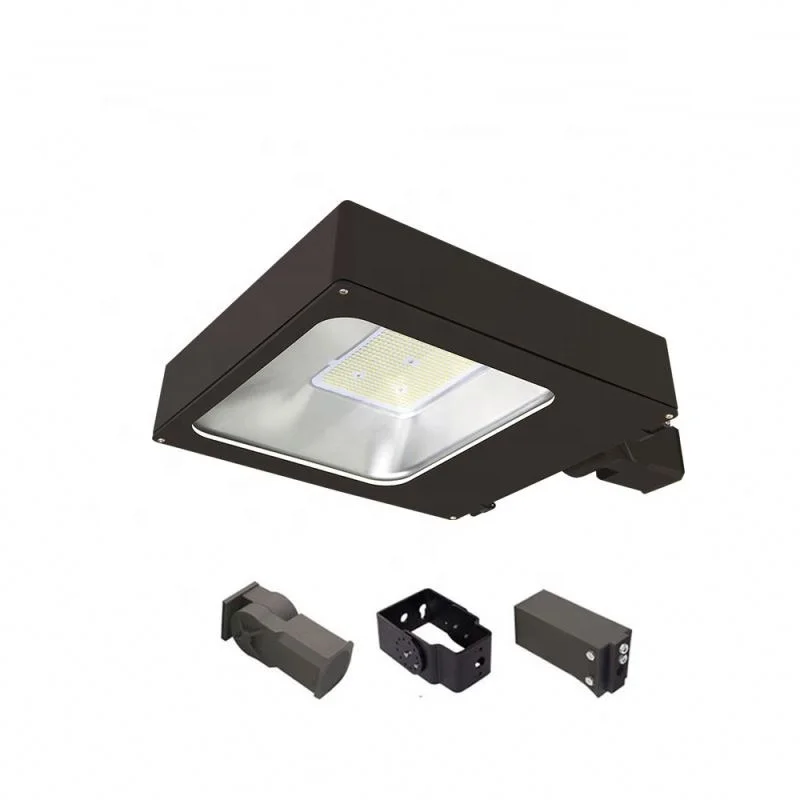

It is built with all desired features for easy installation, such as mounting options of straight arm, slip fitter, trunnion and yoke, sensor options of twist-lock photocell and motion sensor (compatible with remote controller). Type III and Type V light distribution is optional.

Specification chart of Best Quality Popular LED Area Light:

\t
Item No.
\t
6SB65L(c)(d)1P(i)
\t
6SB105L(c)(d)1P(i)
\t
6SB140L(c)(d)1P(i)
\t
6SB180L(c)(d)1P(i)
\t
6SB210L(c)(d)1P(i)
\t
6SB300L(c)(d)1P(i)
\t
Wattage
\t
65W
\t
105W
\t
140W
\t
180W
\t
210W
\t
300W
\t
Replacement
\t
250W MH/HPS
\t
350W MH/HPS
\t
450W MH/HPS
\t
550W MH/HPS
\t
750W MH/HPS
\t
1000W MH/HPS
\t
Output, (lm)
\t
7,800 LM
\t
12,495LM
\t
16,800 LM
\t
21,600LM
\t
25,200 LM
\t
36,050LM
\t
Input Voltage
\t
AC100-277V/347-480V
\t
Color Temp.
\t
4000K/4500K/5000K
\t
 CRI
\t
>73
\t
Power Factor
\t
>0.9
\t
Operating Temperature
\t
-25-40ºC
\t
Surge Protection
\t
10KA surge protection as standard
\t
Beam Angel
\t
Type III, Type V optional
\t
Mounting Options
\t
Straight arm pole, Slip fitter, Trunnion, Yoke
\t
Fixture Surface
\t
Bronze (other finish available)
\t
Warranty
\t
6 years warranty
\t
Certification
\t
UL/cUL listed, applying utility certificate
Product Description

Electrical Advantages:

1. High quality LED chips.
2. Market-leading efficiency up to 130LM/W.
3. Top quality MeanWell driver or UL driver with high quality.
4.100-277V & 347-480V available for all items.

Real Mean Well driver

One of our subsidiary corporations is a Mean Well distributor, allowing us quality source for Mean well drivers.

Structure Advantages:.

1. Aesthetically designed housing with corrosion resistant

   polyester powder coating.
2. Reflector: Anodic Oxidation reflector of high reflective

    rate.
3. Cover: Toughened, UV stabilized glass cover.
4. Screws: SUS316 stainless steel screws, stronger ability

     to resist corrosion.

5. Heat Sink: Die-casting aluminum features excellent heat

   dissipation.





Other Options:

1. 0-10V dimming.

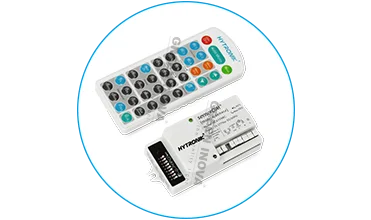

2. Sensors: photocell, microwave sensor (compatible with

   remote controller).

3. Surge Protection available.

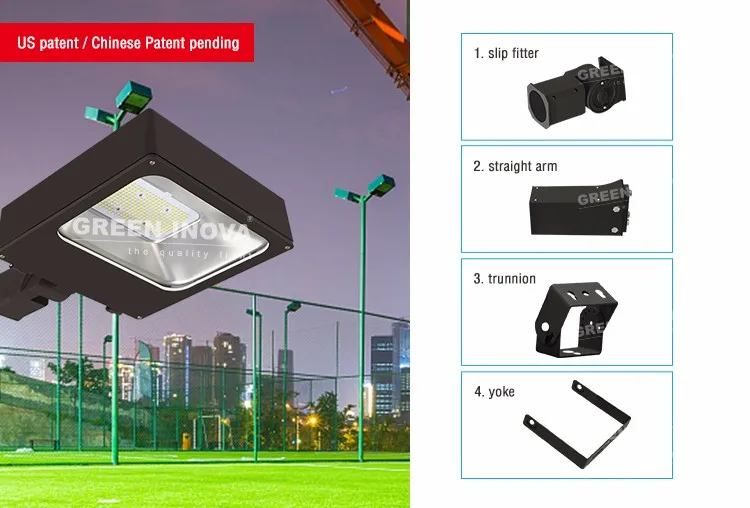

Installation Process

Three installation ways optional for parking LED display: Straight arm pole, Slip fitter, Trunnion, Yoke. The straight arm pole mount is our patent pending design, it can be installed by one person only.

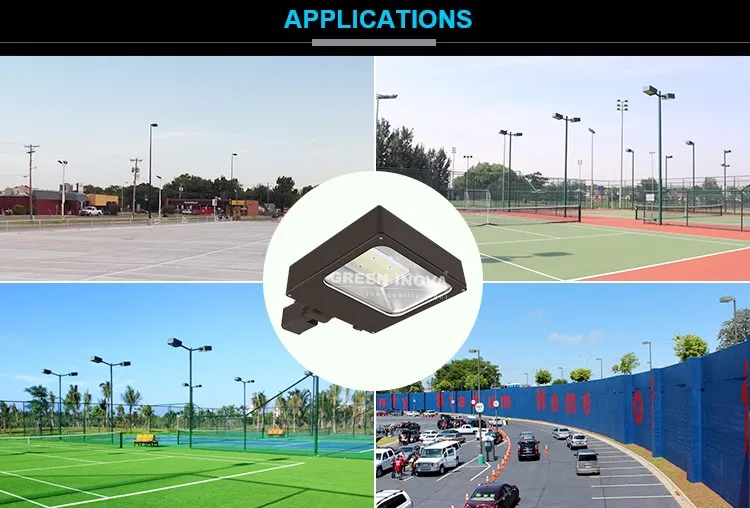

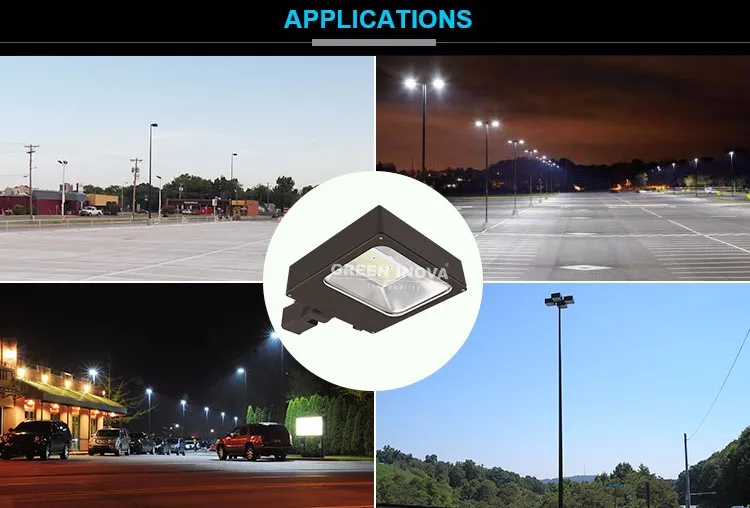

Applications

Widely used in high pole parking lot lighting, car dealership lighting, roadways, pathways and perimeter.

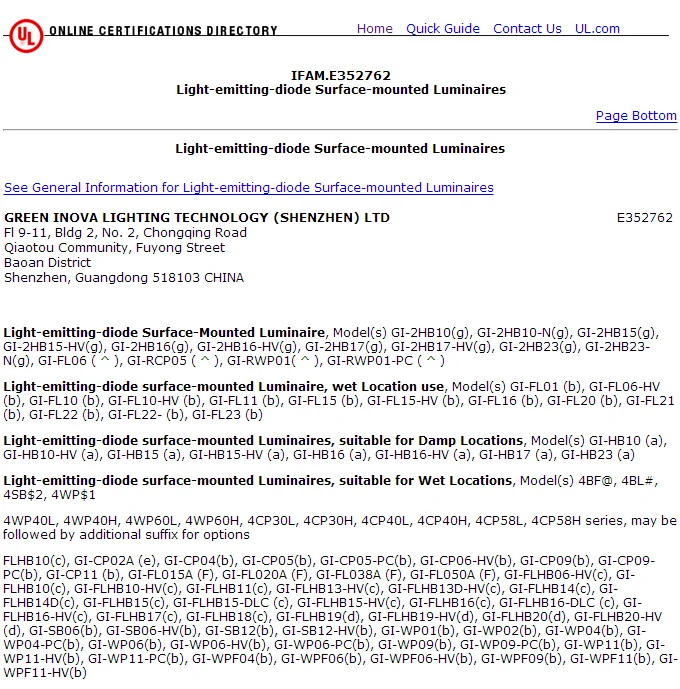

Certifications
Quality Control

IQC

1. Most strictly select raw material

   100% checking.

IPQC

1. Testing all PCB after soldering with   electricity.
2. Integratingsphere testing
 Waterproof testing.
3. Cooling effect testing.
4. 100% 48 hours aging testing

(72 hours for high voltage products).

FQC

1. 100% appearance checking
2. 100% lable checking
3. 100% function checking

Company Information

Green Inova is an innovative, energetic and vibrant company, which was founded in year 2007, has been a leader in manufacturing and marketing of LED lightings. Our expertise is manufacturing LED lighting products including LED retrofit kits, LED wall packs, LED canopy lights, LED Shoebox, LED IP65 high bays, LED Flood lights, New LED PL G24 lamps and bulbs,LED Post Top Retrofit kits & LED Billboard Retrofit kits, LED Low Priofile LED Canopy, LED Barn Light etc.

We are the first company in China who started to make LED wall packs, LED canopy, & LED retrofit kits, awarded by around 40 Utility model patents. Our LED G24 lamps have also been upgraded to a brand-new level and awarded with both Utility model patent and product appearance patent. The new heat dissipation technology allows the lamps real lifespan of more than 50,000 hours. We have been making the most reliable products in these areas.

Green Inova Services

1.Customize services are available when needed. OEM/ODM available.
2.More than 8 years experience R&D and sales engineers would offer best lighting solution for projects.
3.Best after services:Time tracking of customers' usage, collect information to improve,fast action of dealing with problems in 48 hours.
4.Quick action of technical support and maintenance.
