CK6156 high accurate cnc flat bed lathe part
- Category: >>>
- Supplier: Zhejiang Kaida Machine Tool Co. Ltd.
Share on (62570186511):
Product Overview
Description

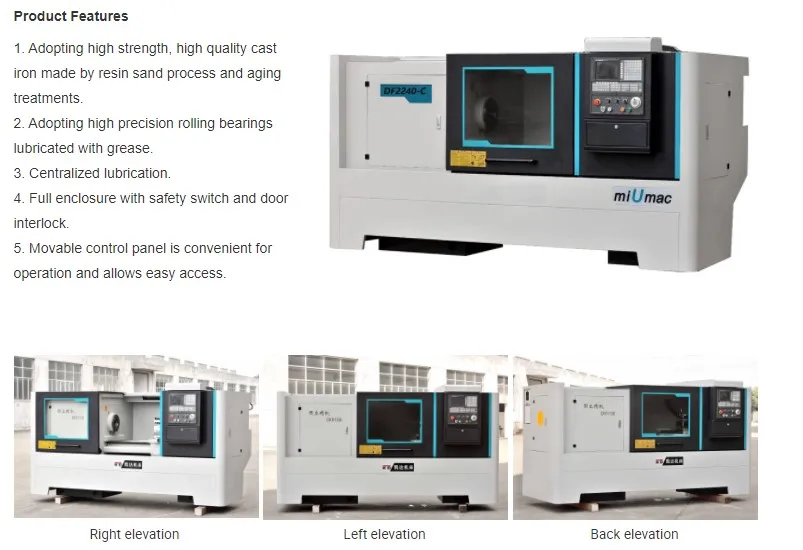

FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
MODELS | CK6156 | CK6166 | |
CAPACITY | |||
Max.swing over bed | Ф560mm | Ф660mm | |
Max.swing over carriage | Ф330mm | Ф430mm | |
Max. length of workpiece | 750/1000/1500/2000/3000mm | ||
Max. turning length | 650/900/1400/1900/2900mm | ||

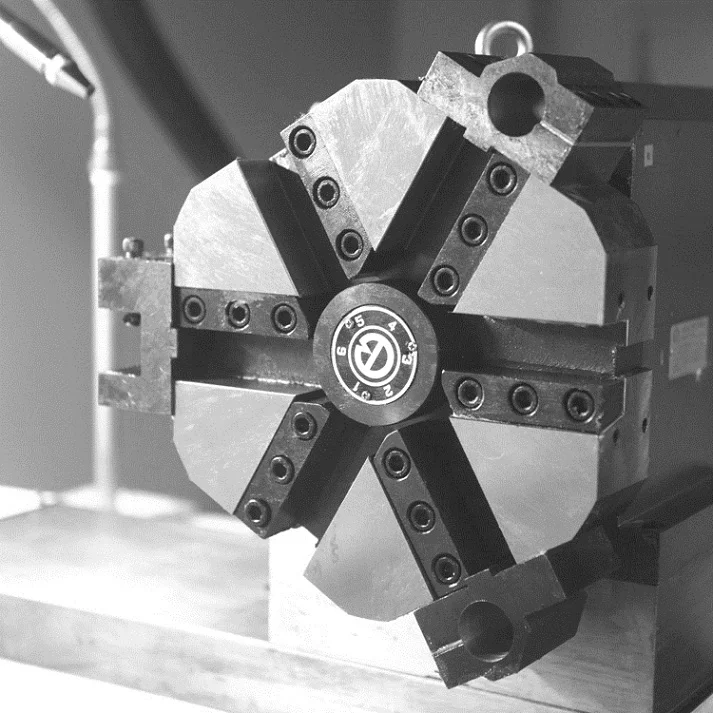

6-way turret max turning length | 585/735/1235/1735/2735mm | ||
6-way turret max turning diameter | Ф420mm | Ф520mm | |
TRAVEL | |||
Max.cross travel(X) | 320mm | 365mm | |
Max.longitudinal travel(Z) | 720/970/1470/1970/2970mm | ||
FEED | |||
Rapid feed for axis X | 8m/min | ||
Rapid feed for axis Z | 10m/min | ||
SPINDLE | |||
Spindle nose | A2-8 | D8 | |
Spindle bore | Ф105mm | ||
Taper bore of spindle | Ф113 1:20 | ||
Steps of spindle speed (manual) | 4 | ||
Spindle speed (manual chuck) | 27~135, 55~270, 160~805, 325~1630rpm | ||
TOOL POST | |||
Tool post stations | 4-way | ||
Tool cross section | 32×32mm | ||

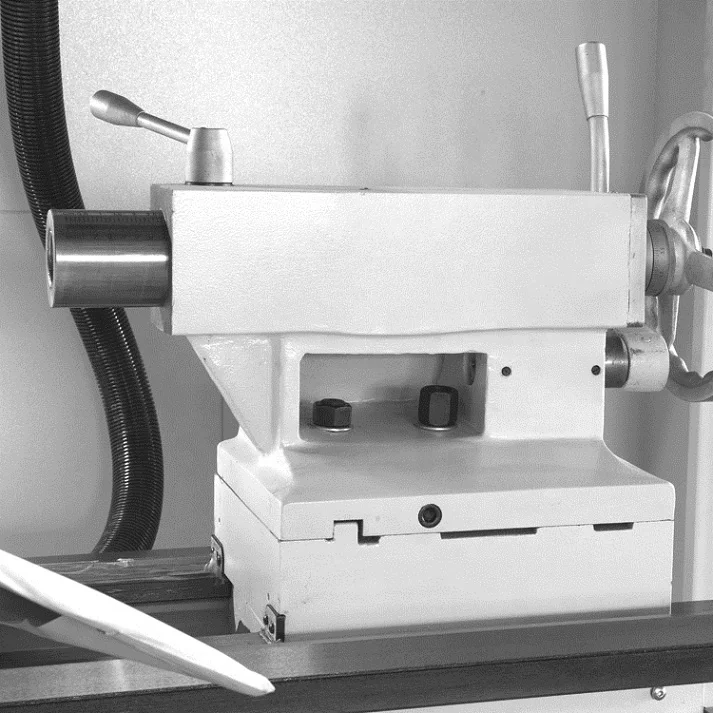

TAILSTOCK | |||
External diameter of tailstock sleeve | Ф75mm | ||
Taper bore of tailstock sleeve | M.T.NO.5 | ||
Max.traverl of tailstock sleeve | 150mm | ||
OTHERS | |||
Min. input | 0.001mm | ||
Main motor power | 7.5kw | 11kw | |
Coolant pump power | 90w | ||
Overall dimensions(L×W×H) | 2250/2500/3000/3500/4500×1250×1580mm | 2250/2500/3000/3500/4500×1250×1580mm | |
Net weight | 2700/3000/3600/4100/4700kg | 2800/3100/3700/4300/5300kg | |

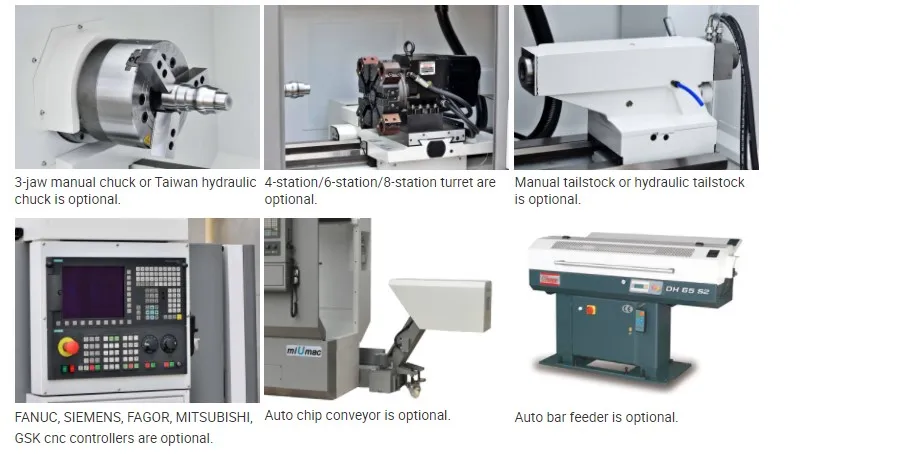

PRODUCT CONFIGURATION
COMPANY PROFILE
