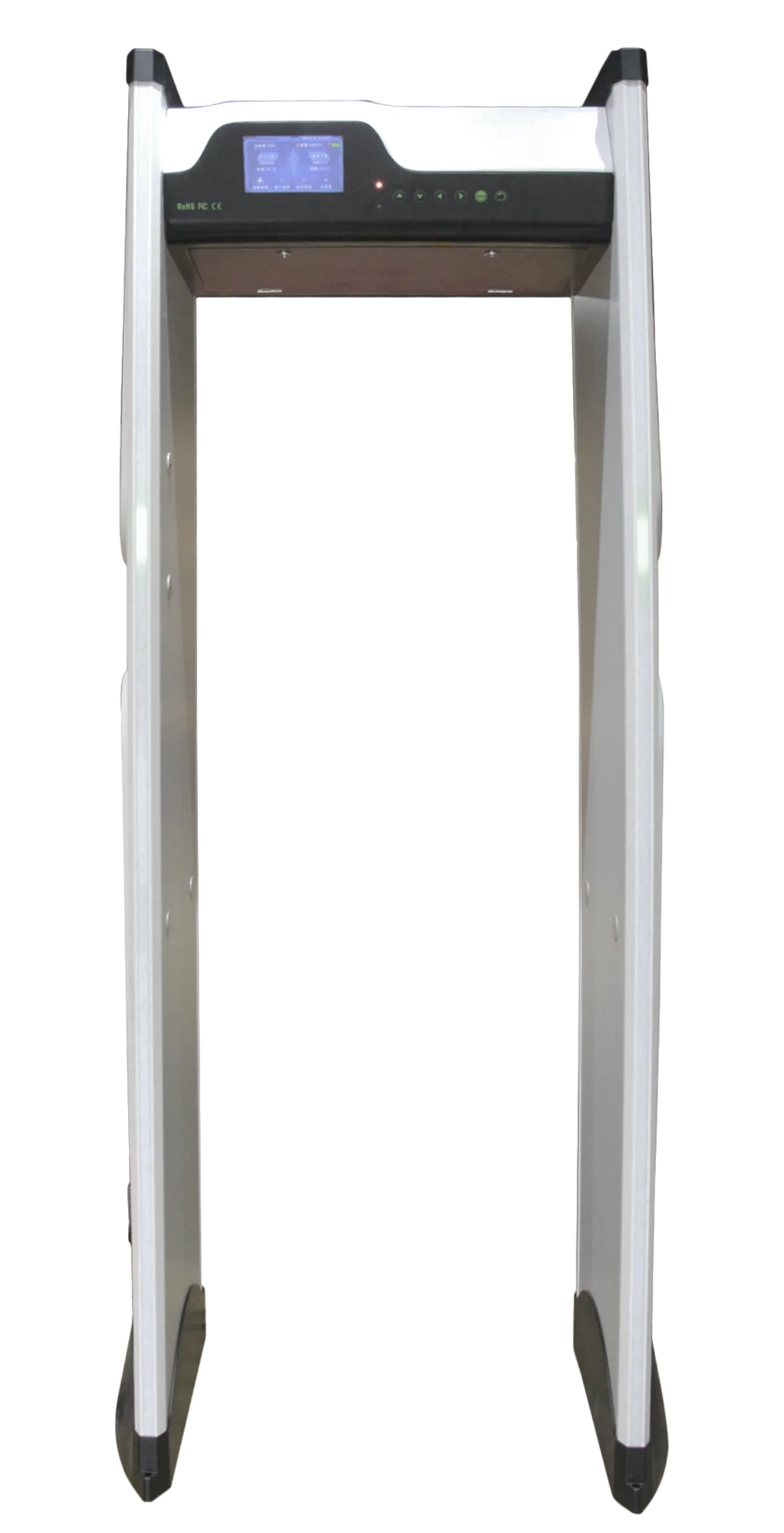

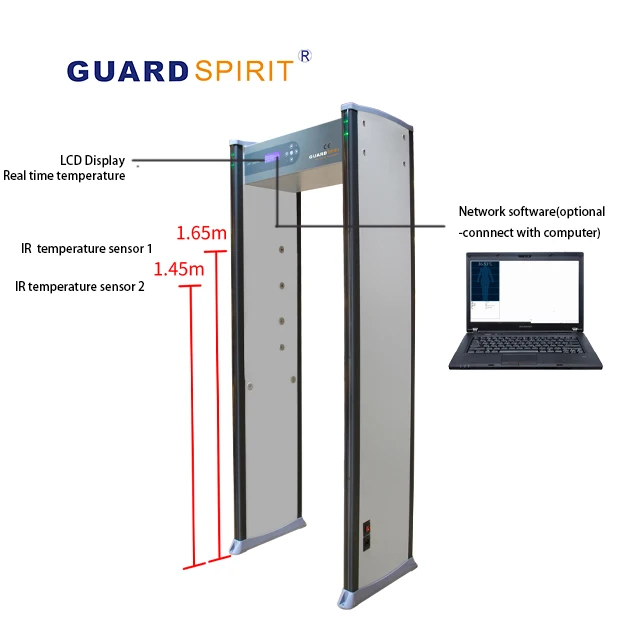

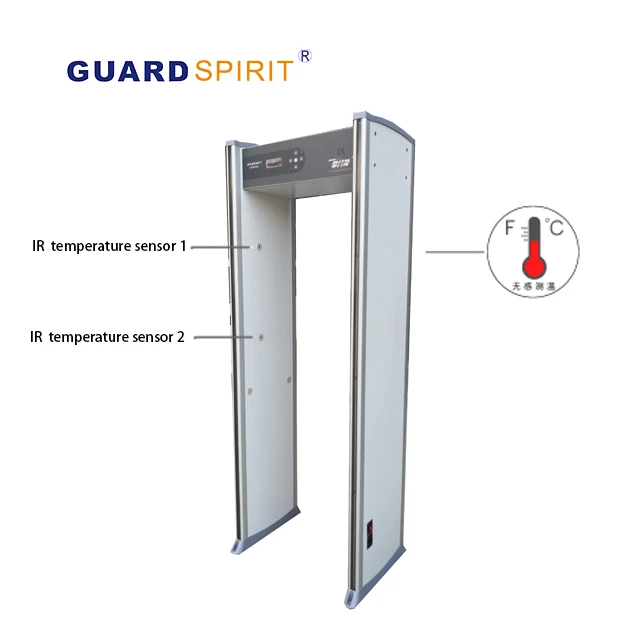

No contact body temperaturescanner walk through door frame metal detector

Product Overview

Description

Welcome to visit our Alibaba website and look over our products. Our ISO factory established in 2000 in the field of  X-ray baggage scanner, multi-zone walk through metal detector, hand held metal detector, under vehicle scanning system and Anti-explosive products

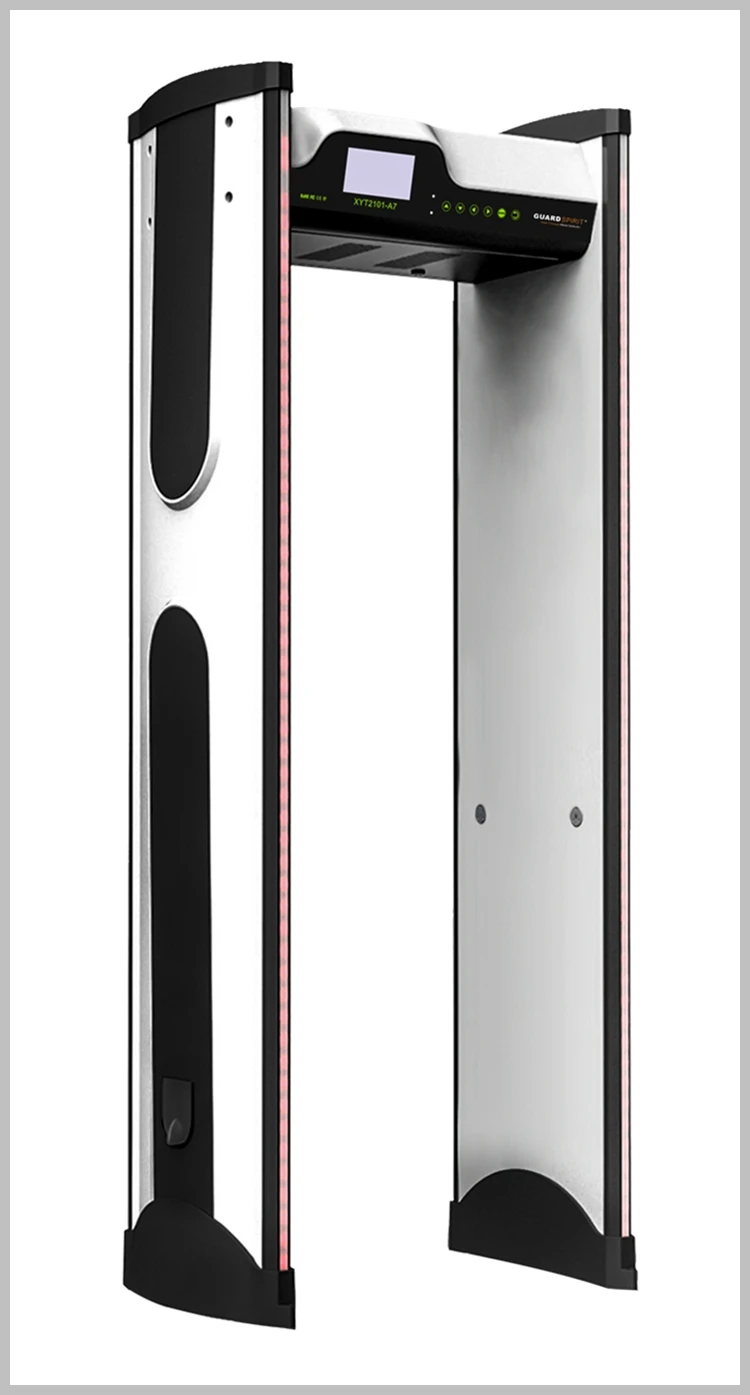

XYT210A7 Multi-language view, metal Numbers display walk through metal detector gate



Electric current: AC85V-264V,50/60HZ

Power: <20W

Net weight: 70KG

Workplace environment: -20℃~+45℃

Alarm: Sound alarm & LED light alarm

Inner size:2000*700*590mm

Outer size:2300*820*650mm

Standard: GB15210-2003, CE)



Item	Specifation
Electric current	AC85V~264V/50-60HZ
Power	<20W
Gross weight:	80 KG
Workplace environment	-20℃~+50℃
Alarm	Sound alarm & LED light alarm
Inner size	1990mm(H)X700mm(W)X590mm(D)
Outer size	2300mm(H)X820mm(W)X650mm(D)
Standard	GB15210-2003, CE, FCC, ROHS
Detecting zone	6-12-18 zones
Sensitivity adjustable	Each zone has 299 degree sensitivity level
Adjustable Passing speed	up to 100 persons/min
Network support	Optional





Characteristic & Function



Product Advantage:

1.     9.2 inch LCD colorful screen , support Multi-language.

2.     Intelligent in/out counting and alarm counting

3.     Intuitive power display and show “battery is low”when need charge

4.     According to the amount of metal Numbers display to identify the metal size

5.     Can connect the multi-doors security terminal by network for the real-time data collection, reading, parameter setting, data generation and operation condition

6.     Simple setting of factory default

7.     The remote control is easy to operate

8.     Low power consumption and multi-zones continuous accurate alarm

9.     Multiple frequency,  strong anti-interference

10.  Modular design,parts are easy to pull and plug,simple to install, fault easy to rule out;

11.  The international leading digital pulse technology, stable performance;



Function Description

1. The LCD backlight: 0-99seconds show that the time is continuously adjustable

2. Identify function: According to the amount of metal Numbers display to identify the metal size,or according to the form of sound soothing to notify the worker about the metal object size.

3. Detection zone: 1.2.3.6.12.18 zones,according to customer’s request to set up a single zone or multi-zones for continuous and accurate alarm.

4. Fly article detection function: the equipment can detect and alarm when  the articles which not passthrough this door alongwith person.

5. Self diagnosis function: built-in self-checking program, can be in boot automatically when the detection module is operating normally.

6.Anti-Interference: with DSP digital signal processing filtering system, has excellent resistance to electromagnetic interference ability and strong ability of touch and impact resistance, can be normally worked in the people crowded conditions.

7. Circuit features: compound circuit design, can effectively reduce false positives and omission, intelligent alarm counting function, six count and can be automatically saved to facilitate query, and record the alarm time at the same time.

8. Sensitivity: each zone sensitivity levels are 0-299, the overall adjustable sensitivity levels are 0-4080.

9. Alarm Settings: sound and light alarm simultateously, 0-99seconds show that  the alarm time is ajustable, 0-99 alarm volume is adjustable, 1-99 tones is adjustable

10.Vibration protection: to prevent false alarms caused by vibration interference

11. Passing speed: can be adjusted start from the fastest 100 / minute and go down,  detection speed can be adjustment according to the user’s request

12. Perpetual Calendar: display year, month, day, hour,second

13. Reset: restore factory Settings, can restore the initial data

14. Application scene settings: choose the suitable working environment,passthrough speed and sensitivity automatically.

15. Waterproof design: IP54

16. Backup Power: 8 hours

17. Easy to installation: products is in integration design, people only need 20 minutes to finish the assemble and dismantle operation

18. Password setting: with password protection function, only input the correct password can modify the parameters, people except the operator can't change the parameter setting, It is convenient for management.

19. Safety standards: in accordance with the current international safety standards, use weak magnetic field emission technology, harmless for cardiac wearer, pregnant women, floppy disks, tapes, etc.



( For option) :

1. Capture: work with corresponding cameras, can get common image snapshot or alarm capture

2. Multi-doors connected by network: can connect the multi-doors security terminal by network for the real-time data collection, reading, parameter setting, data generation and operation condition

3. The extended interface: provide more extension interface, signal output function, can connect all kinds of Tripod turnstile, Wing brake, Entrance guard, Attendance machine, and   the registration equipments which need to be mutual controlled.

4. Communication interface: with RS485, RS232 ports ,in order to realize multi machine working together



Working Environment:Temperature-20℃- +55℃  Humidity:0~95%

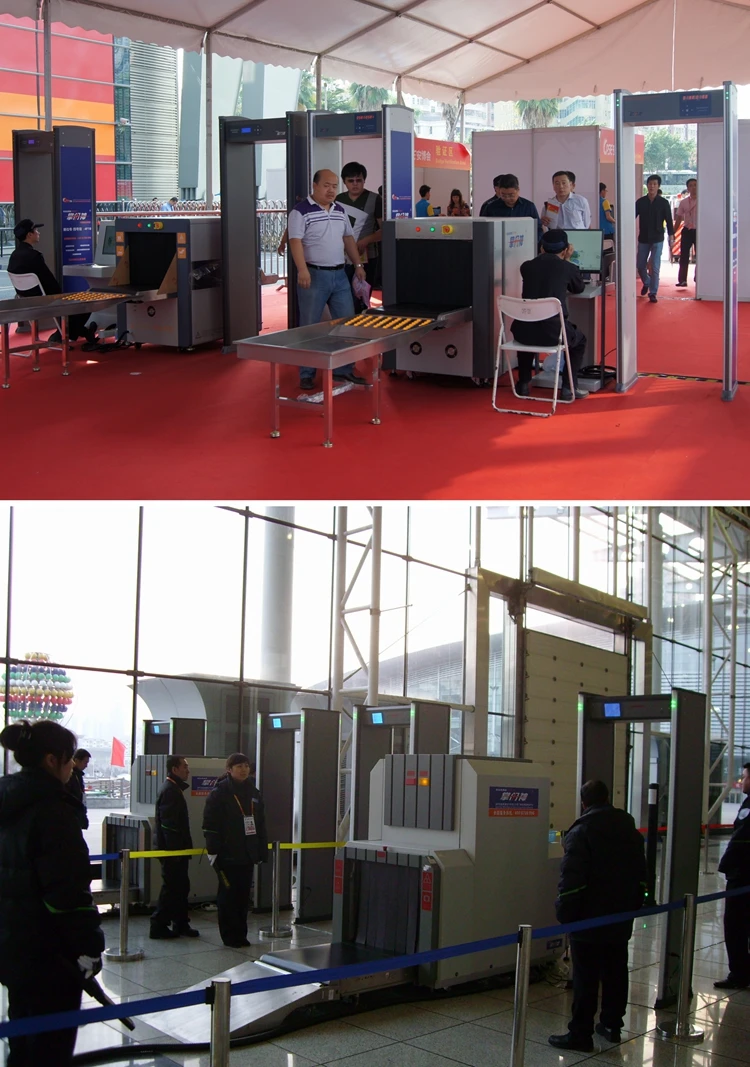

Walkthrough Metal Detector is popular adopted in Airport, Customs, Railway station, Metro, Police, Court, Embassy, Commercial buildings, Military installations, Ships, Shipping Mall,  Army, Prison, Government agency, Bank, Factory, Hotel, Entertainment environments, Gymnasiums, Exhibition Centers etc. Public security.





The Company is committed to the technical development and research of “Guard Spirit” series of security products, the developed products have been granted by 28 national patents, and have formed five categories of products including the metal detectors, X-ray access security products, test products for radioactive materials, chassis inspection products, EOD and anti-explosion products.



 Our Company has been committed in the business of access security, security equipments and services for 12 years, and during the period, we have provided safety and security services for hundreds of large-scale events, meetings, exhibitions, political and legal departments, railways, highways, ports and other places, including 26th Summer Universiade Shenzhen 2011, World Expo 2010 Shanghai, 16th Asian Games Guangzhou 2010, 14th FINA World Championship -Shanghai 2011, 24th Winter Universiade Harbin 2009, Olympic Games Beijing 2008, Wuhan-Guangzhou high-speed railway, Beijing-Shanghai high-speed railway and other key events and projects.
