FTA Tuner IRD Satellite 4 8 DVBS2 DVBC DVBT ATSC DTMBT ISDBT to ASI IP Streamer Gateway
Product Description
HPR8401F is professional high integration device which includes tuner demodulation and multiplexing. It supports 4 or 8 DVB-S2/DVB-C/DVB-T/ATSC/DTMBT/ISDB-T FTA tuner input, 1000M IP output, 1 MPTS output and 256 SPTS output.In conclusion, its high integrated and cost effective design makes the device
widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting, IPTV live streaming etc.
Key Features
4/8 tuner ( DVB-S2/DVB-C/DVB-T/ATSC/ISDBT/DTMBT optional)
1000M IP output over UDP, RTSP,RTP protocol (MPTS and 256 SPTS)
Support different types of tuner ( DVB-S2、DVB-C、DVB-T、ATSC、 DTMBT,、ISDBT, etc. ) input,
1000M IP output over UDP, RTSP,RTP protocol (MPTS and 256 SPTS)
Support different types of tuner ( DVB-S2、DVB-C、DVB-T、ATSC、 DTMBT,、ISDBT, etc. ) input,
(2ASI inputs optional).
The input program stream is multiplexed and packaged into TS stream and IP output
2 ASI Independent output (optional) as copy of 1MPTS
Support “Null PKT Filter” function
Support PID Remapping/ PCR accurate adjusting
PID pass
LCD, key function

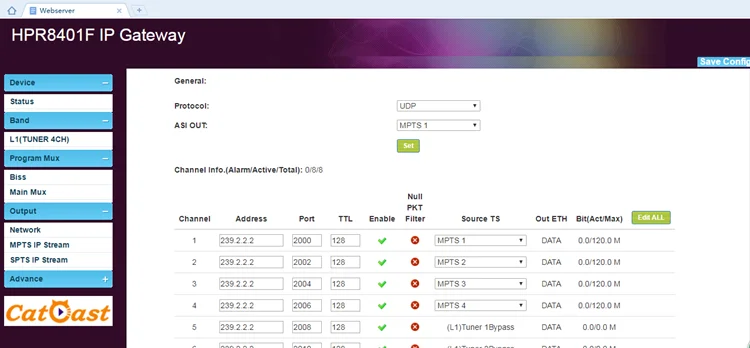

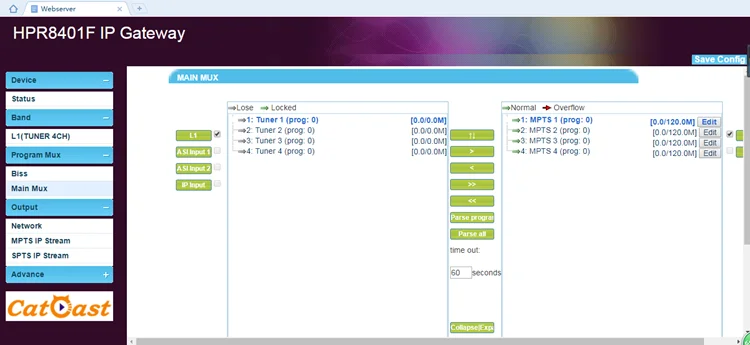

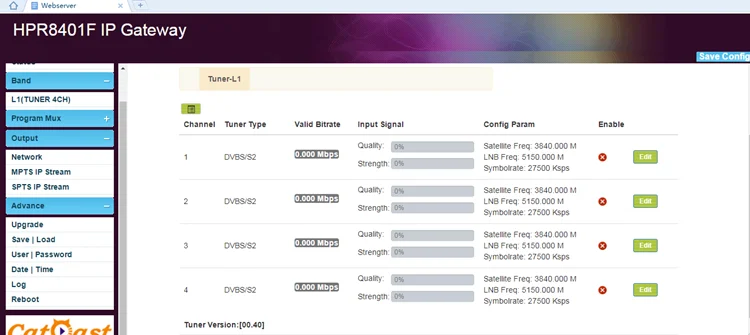

Control via web management, and easy updates via web
The input program stream is multiplexed and packaged into TS stream and IP output
2 ASI Independent output (optional) as copy of 1MPTS
Support “Null PKT Filter” function
Support PID Remapping/ PCR accurate adjusting
PID pass
LCD, key function
Control via web management, and easy updates via web
Specification
Input | 4/8 tuner (DVB-S2/DVB-C/DVB-T/ATSC/ISDBT/DMBT optional) | ||
2 ASI inputs (optional) | |||
Output | 2 ASI output (optional) | ||
IP output（256 SPTS and 1 MPTS）IP output over UDP, RTSP, RTP protocol | |||
Multiplexing | Maximum PID Remapping | 180 output pids per channel | |
Function | PID remapping ( automatically or manually) | ||
Accurate PCR adjusting | |||
System function | Network management(WEB) | ||
Chinese and English language | |||
Ethernet software upgrade | |||
Miscellaneous | Dimension (W×L×H) | 482mm×480mm×45mm | |
Environment | 0~45℃(work)；-20~80℃(storage) | ||
Power requirements | AC100~240V，50/60Hz | ||
