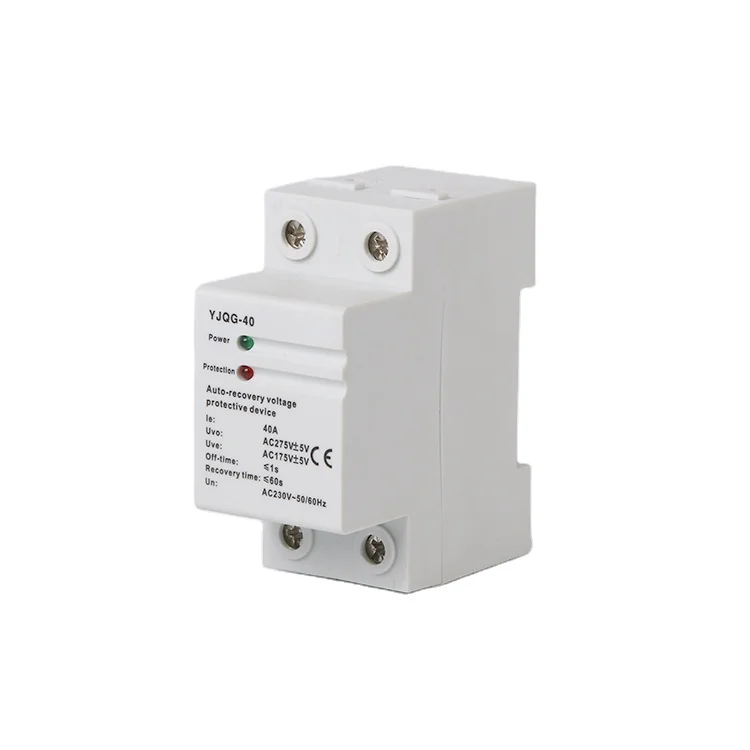

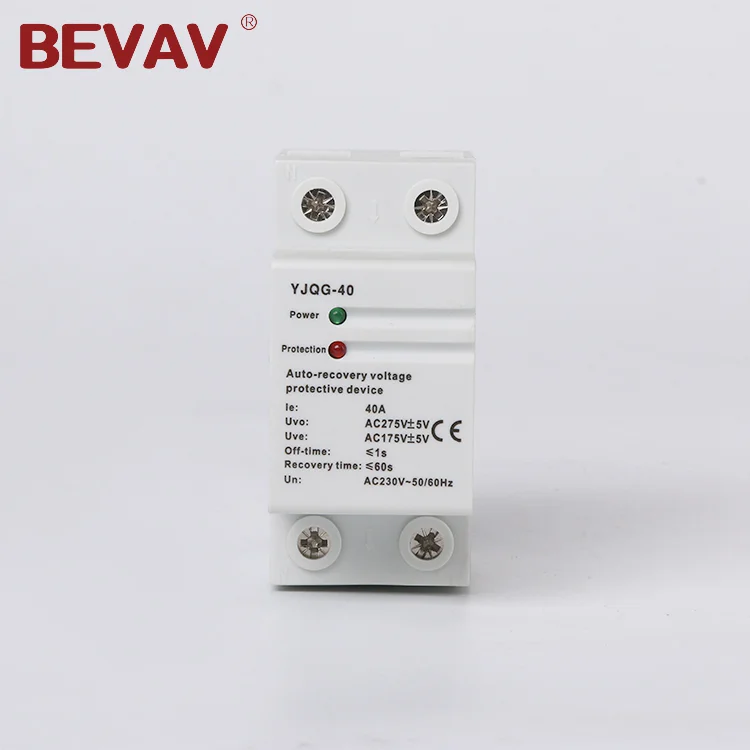

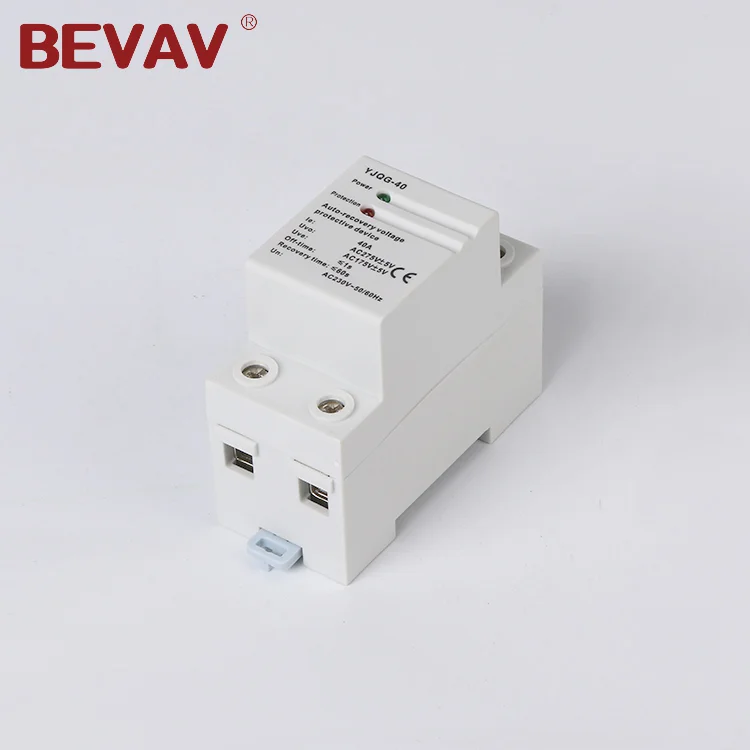

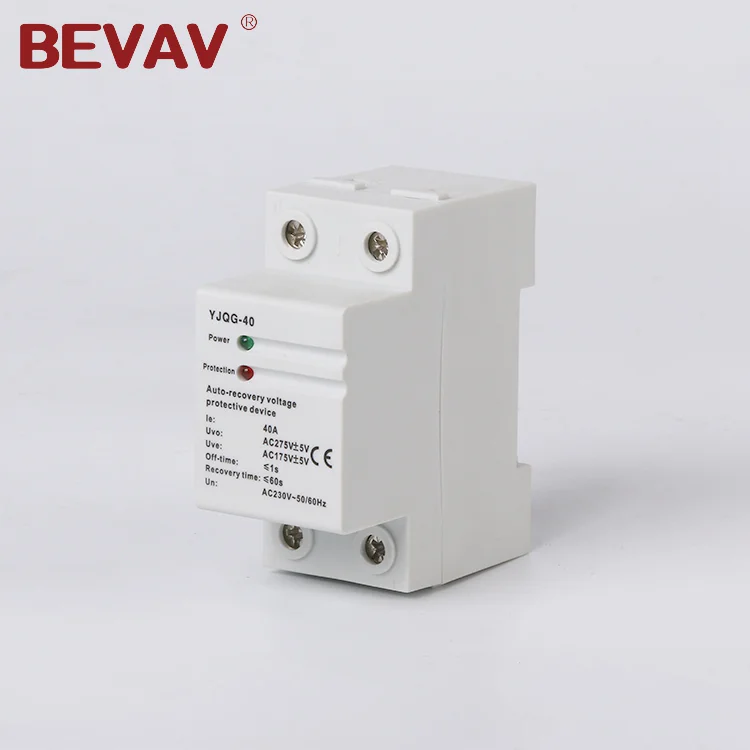

AUTOMATIC VOLTAGE REGULATOR OVER UNDER VOLTAGE PROTECTOR FOR HOME
- Category: Voltage Regulators\/Stabilizers >>>
- Supplier: Zhejiang Jinlai Electric Co. Ltd.
Share on (62570488907):
Product Overview
Description
Product Description

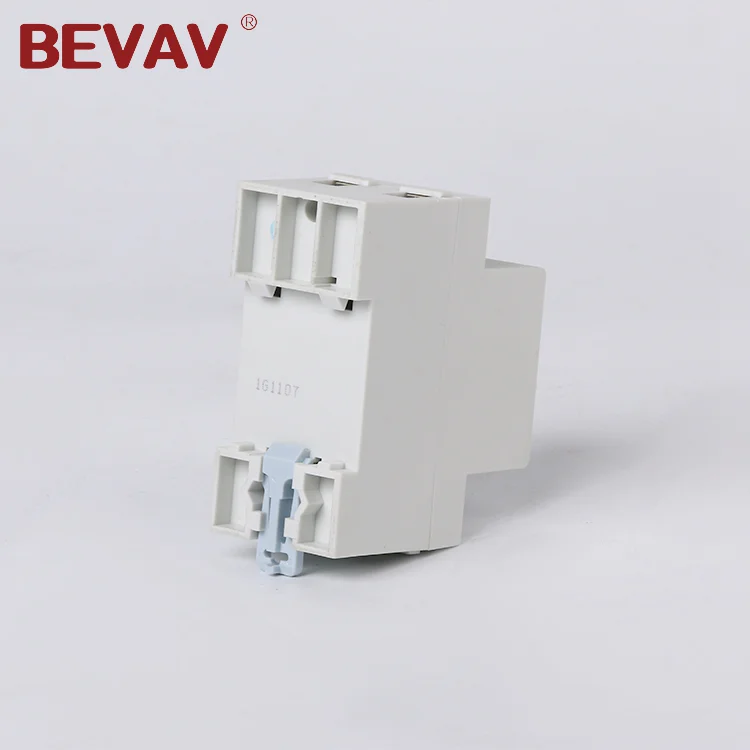

The circuit boards of products adopt good quality electronic components with reliable performance. when the power situation is unstable. It's protection function will be automatically activated. once the voltage exceeds the limited range of products, it will automatically cut off so as to protect the safely of electrical equipment and persons. The device will re-supply in 1 minute, when the power returns to normal.The green indicator display, when the power is normal supply.The red indicator display, when the power over voltage or under voltage. Installing: 35mm Din rail.
Specification
Product Parameters
1. Rated voltage: 220V~
2. Rated Working Current In: ≤ 63A
3. Over-voltage protection
Act value: Above 270± 5VAC
Act time: ≤ 4S
Restore value: 240± 5VAC
Delay time: 3min± 5S
4. Static current consumption: ≤ 7mA
5. Voltage beyond threshold IS(tentative) is regarded
As over-and-under voltage (adjustable)
6. Rated frequency: 50Hz
7. Outline dimension: 80 x 70 x 50
8. Under-voltage protection
Act value: Above170± 5VAC
Act time: ≤ 4S
Restore value: 190± 5VAC
Delay time: 3min± 5S
Act value: Above 270± 5VAC
Act time: ≤ 4S
Restore value: 240± 5VAC
Delay time: 3min± 5S
4. Static current consumption: ≤ 7mA
5. Voltage beyond threshold IS(tentative) is regarded
As over-and-under voltage (adjustable)
6. Rated frequency: 50Hz
7. Outline dimension: 80 x 70 x 50
8. Under-voltage protection
Act value: Above170± 5VAC
Act time: ≤ 4S
Restore value: 190± 5VAC
Delay time: 3min± 5S
working voltage | AC230V, frequency 50Hz | control current | 20A/32A/40A/63A |
overvoltage action cutoff value | AC276V ±5V | load power | 11KVA/14KVA |
overvoltage recovery | AC240V ±5V | power delay after power failure | 3min± 5S |
cut-off value of undervoltage operation | AC175 ±5V | movement delay time | 3min± 5S |
undervoltage recovery | AC185 ±5V | outline size | 78x36x65mm |
