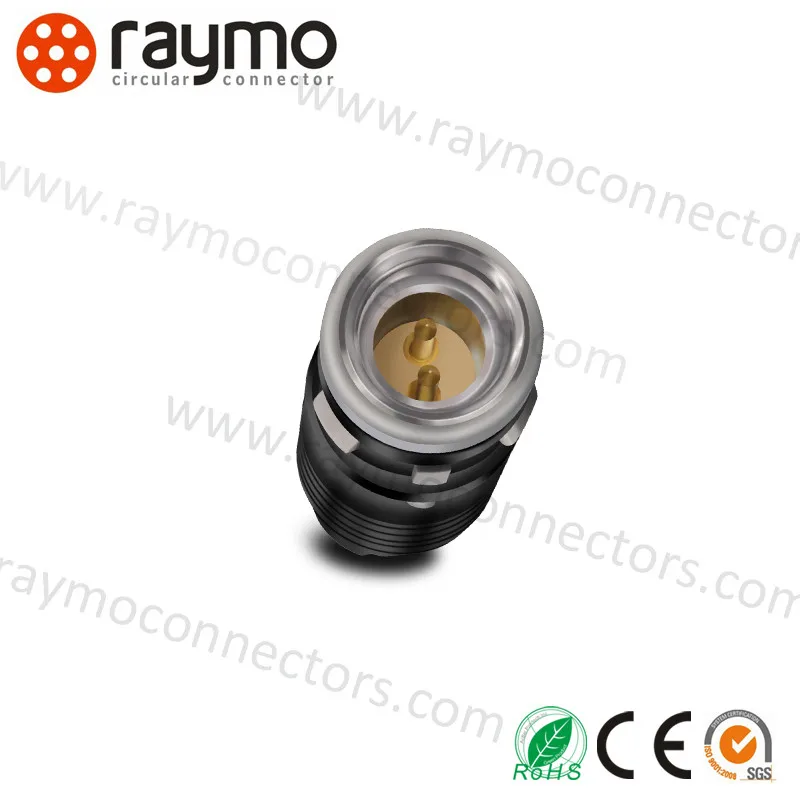

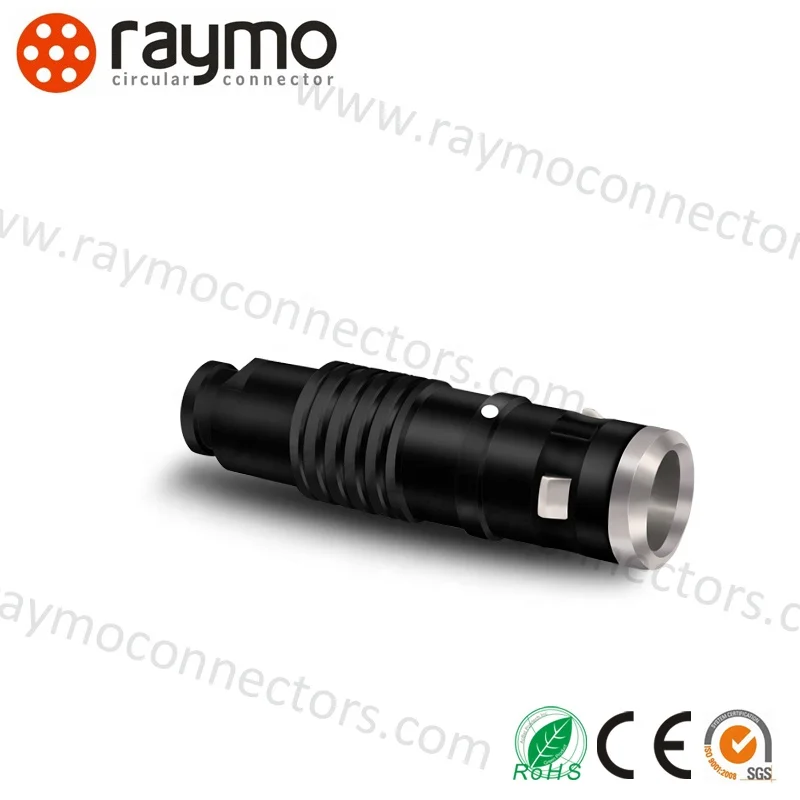

K series FGG straig IP68 waterproof metal circular connector male plug cable mounted connector compatible FGG.1K.316.KLAD52
- Category: >>>
- Supplier: Shenzhen Raymo Electronics Technology Limited
Share on (62570517966):
Product Overview
Description
products discription
RM-K Series FGG model straight plug Metal circular push pull connectors IP68 waterproof
Part No.: | RM-FGG-1KS-316-JS52= FGG.1K.316.KLAD52 |
Product Description: | 1K size plug, FGG model plug, 1 key, 0 degree, 16pin male contact, 502 cable collet, without black bend relief, black chrome plated shell in brass |
Main Features
1 | secure high performance IP68 waterproof push-pull Self-locking system |
2 | can be 100% compatible with original ODU connector |
3 | can be 1key or 2 key with different degree |
4 | can plated with white or black chrome, |
5 | vailable solder and PCB or right angle PCB contact. |
6 | 360 angle screening for full EMC shielding. |
7 | certificate: ISO:9001-2015, CE ,RoHS2.0, SGS, Reach |
Techical Chracteristics
Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
Shell Material | Brass with chrome plated | Humidity | up to 95% at 60° C/140F |
Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144 hr |
Climatical Category | 50/175/21 | Shielding (min) | > 95 dB [ at 10 MHz], > 80 dB [ at 1 GHz] |
IP Rating | IP 68 | Endurance(shell) | ≥5000 mating cycles |

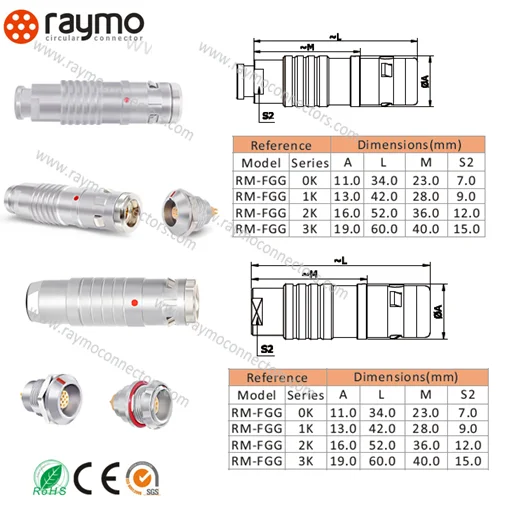

Product Photo
Shell size | Shell size |
Shell Color | plated with pear or black chrome plated |
Keying | 1key & 2key with different degress |
Collet nut | different size available |
Contact type | solder, PCB, angle PCB |
Size | Contact no. |
0K | 2,3,4,5,6,7,9 |
1K | 2,3,4,5,6,7,8,10,12,14,16 |
2K | 2,3,4,5,6,7,8,10,12,14,16,18,19,26,30 |
3K | 3,4,7,8,10,12,14,16,18,21,30,32 |
\t\t\t\t\t\t\t\t\tRelated Product \t\t\t\t\t\t\t
Compatible B series, waterproof K series, half-moon S/E series, plastic P series connectors
Compatible FISCHERS 102 103 1031 104 105 series connectors
Compatible HIROSES HR10A series connectors
Compatible Binders M16 682 420 678 series connectors
Compatible FISCHERS Ultimate series UP01 UR01 UR02 connector
Substitue W series deepsea waterproof RM-V series
Compatible ODUS metal L series and plastic M series connector
Cable assembly can be designed according customer real needs.
Accept OEM/ODM
\t\t\t\t\t\t\t\t\tOur Certification \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tApplication \t\t\t\t\t\t\t
RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Module Power, Sensor, Sensor Systems Instrumentation, Analysis Application.
Our company
RAYMO is a manufacturer that:
• Focus on manufacturing & exporting metal and plastic circular connectors, cable assembly.
• Can be 100% compatible with original LENOS • FISCHERS • ODUS • HIROSES • BINDERS •Military 38999
• Series has RM-B, RM-K, RM-S, RM-F,RM-E,RM-HR10A, RM-P, RM-M4, RM-M12, RM-M16,RM-U,RM-V BNC, B680,B423 , 38999, 26482
•Supply Ability：5000 pcs per week
•OEM are acceptable
• CO, Form A, Form E for customer clearance
• CE, ROHS, Reach,ISO:90001, SGS Audited manufacturer
• All the items can work normally > 5000 times mating
With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solution to meet customer's real needs in his field.
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in producing circular push pull connectors and cable assembly since 2010.
Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 6 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample :
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass production for 5-7 working days.
5.What is your payment terms?
Raymo: 100% T/T deposit when customer place order.
6. Does your product have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory
has instruments to tested them before shipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
