80 ton 50ton 30ton cnc 60 ton c type automatic hydraulic power press machine 25 ton for metal can prices

Product Overview

Description

80 ton 50ton 30ton cnc 60 ton c type automatic hydraulic power press machine 25 ton for metal can prices



1. Performance



1-1. J23 Series Presses is one of the new generation of plate process and developed by Anhui Sanxin Company ,The press is for cutting, punching, blanking, bending and light stretching work.



1-2. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.Steel-welded frame, high rigidity and less deformation Compact.Thick plates and large columns provide you with the stable platform you need for your demanding application.



1-3. Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is simple and the appliance is also beautiful.



1-4. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.



2. Technical Data



Item		Unit	J23-10	J23-16	J23-25	J23-40	J23-63	J23-80	J23-100
Norminal capacity		KN	100	160	250	400	630	800	1000
Slide stroke		Times/min	50	60	60	100	110	115	130
Slide strokes		mm	150	140	100	50	50	45	45
Max closing height		mm	200	245	300	350	380	385	400
Die height adjustment		mm	30	50	70	75	80	80	100
Distance between slider center and machine		mm	120	160	185	220	250	260	280
Workbench size	Front and back	mm	230	280	320	400	450	490	553
	Left and right	mm	370	455	540	650	700	760	830
Workbench diameter		mm	100	130	130	140	170	170	190
Pole distance		mm	215	215	200	245	310	310	365
Shank Hole Size	Diameter	mm	30	35	38	40	60	60	60
	Depth	mm	50	50	60	60	60	60	85
Pad thickness		mm	40	50	55	70	85	95	95
Body tilting angle		°	30	20	20	20	20	20	20
Motor power		KW	1.5	2.2	2.2	3	5.5	7.5	7.5
Dimension	Front and back	mm	800	950	1100	1500	1700	1800	2000
	Left and right	mm	600	620	800	1100	1200	1300	1500
	Height	mm	1550	1700	2000	2250	2500	2600	2800
Weight		KG	450	750	1500	2500	4000	5000	6000

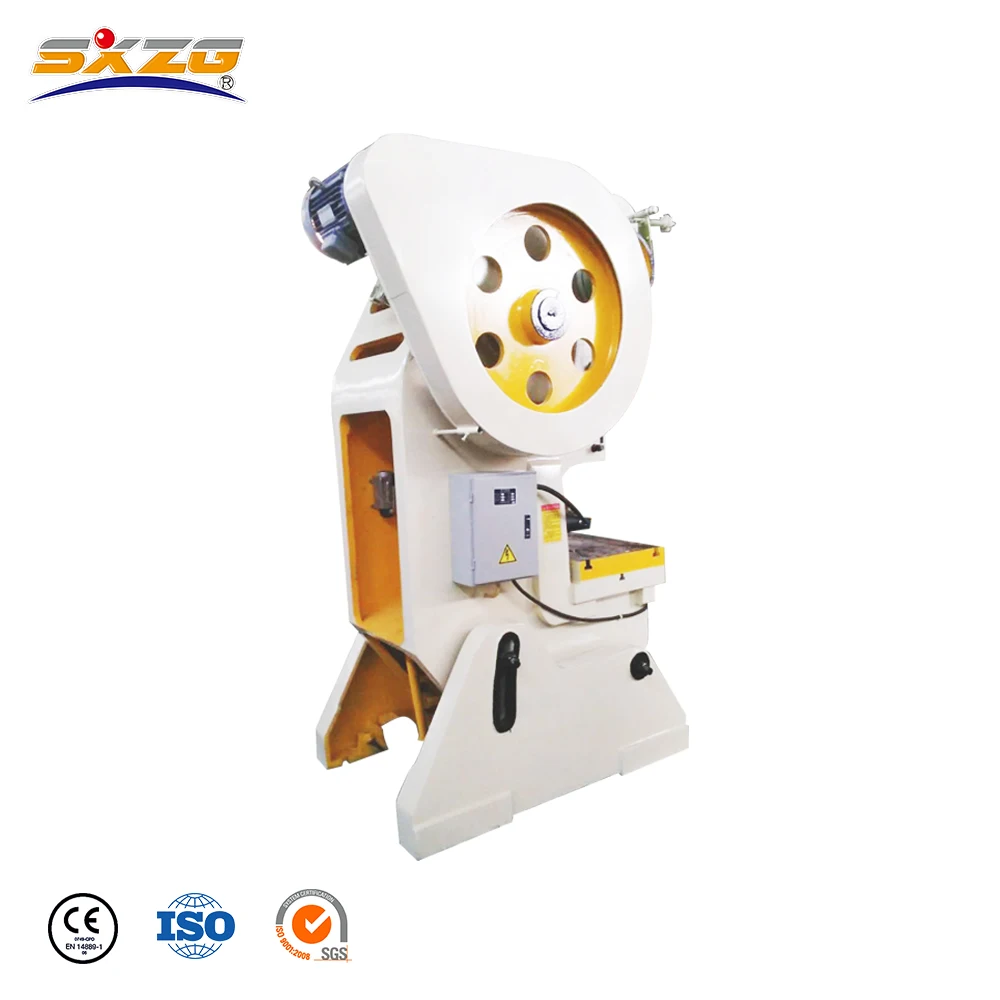

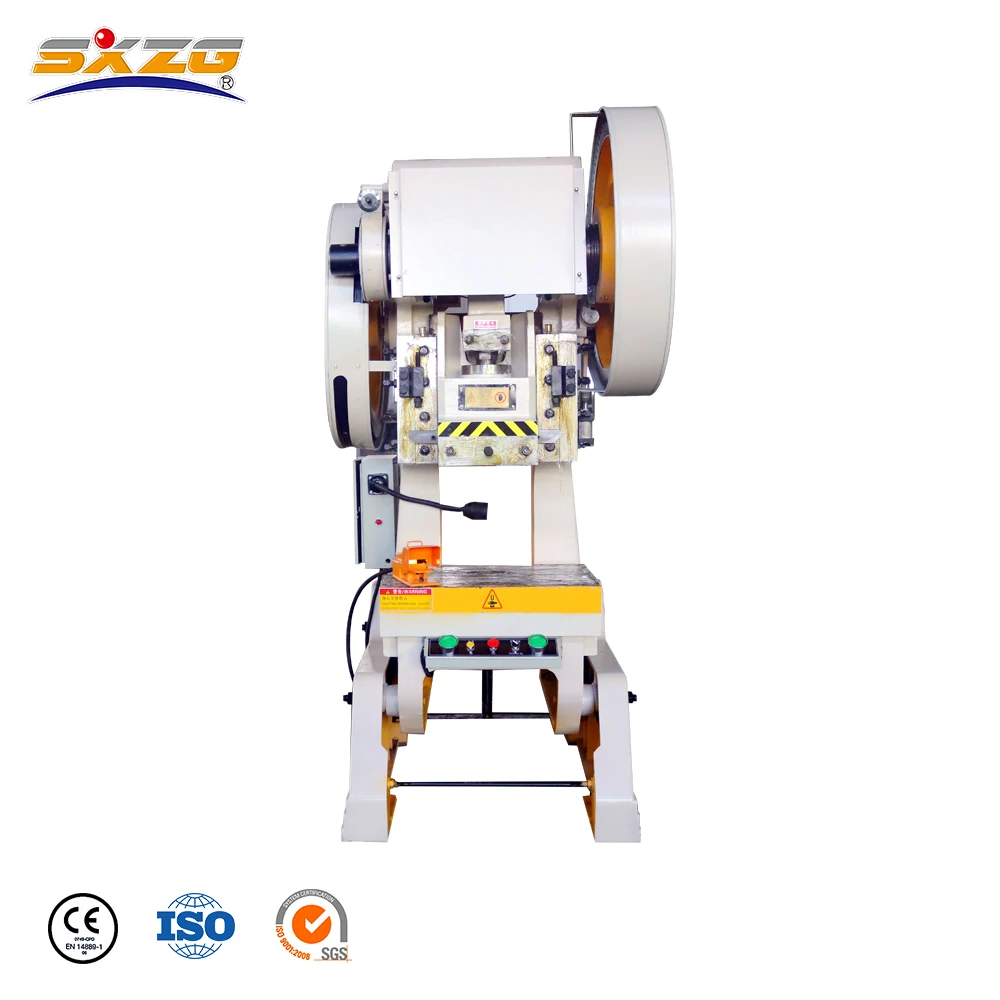

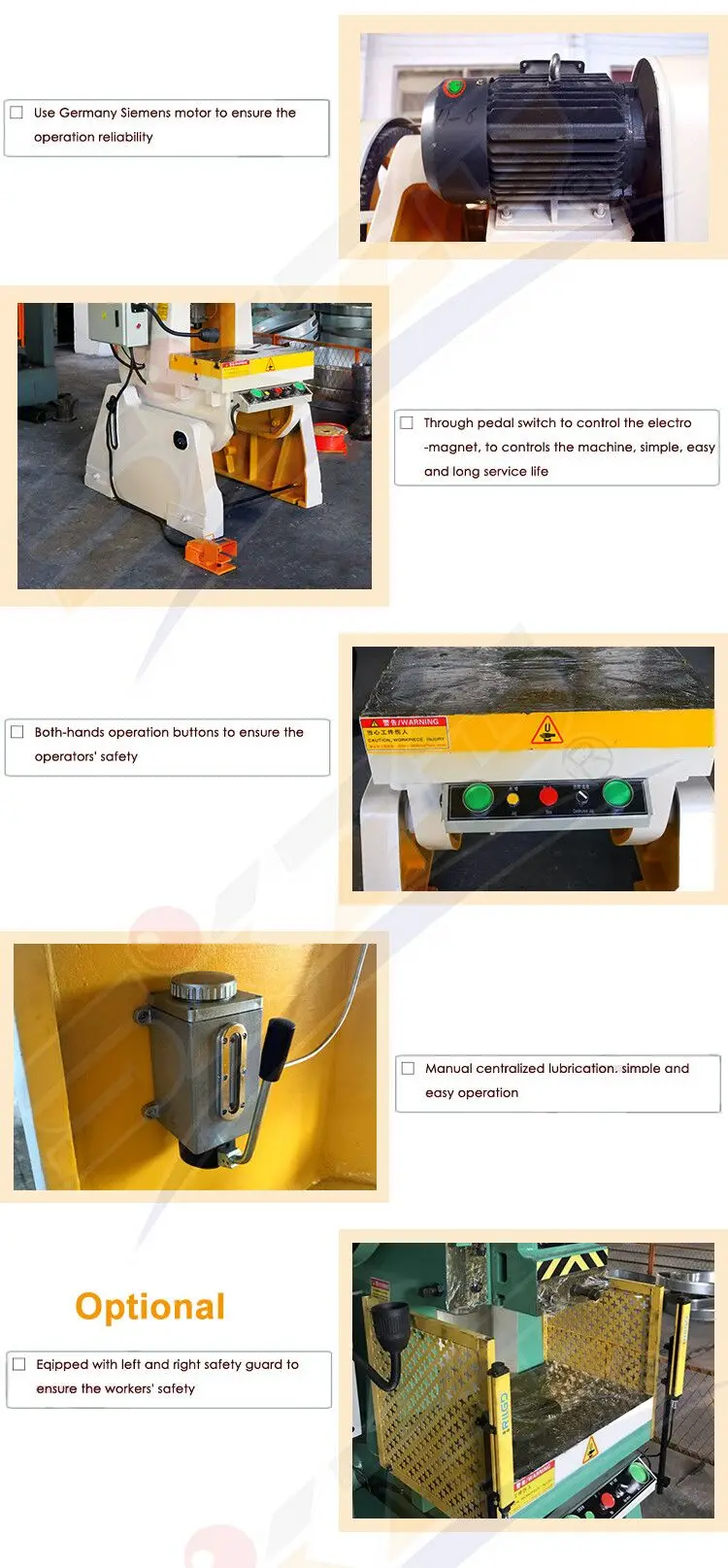

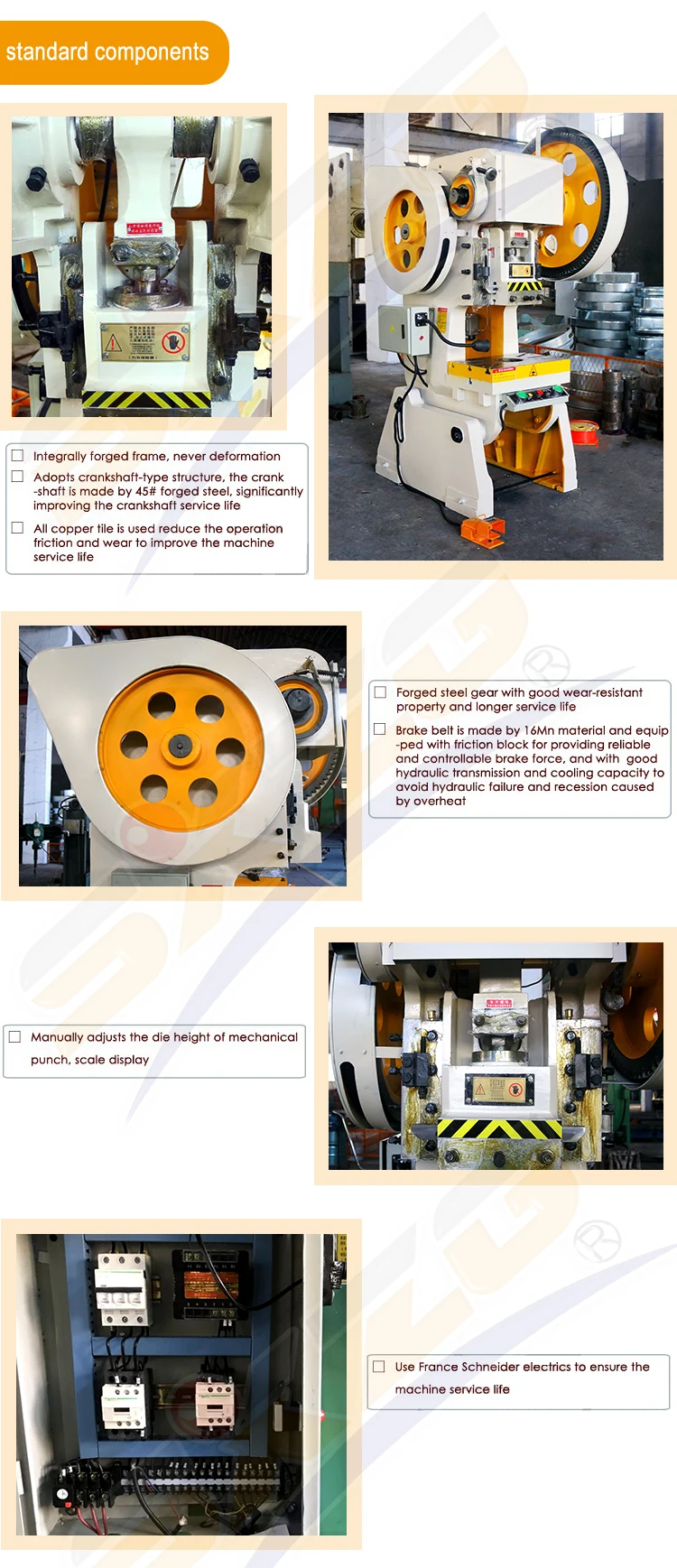

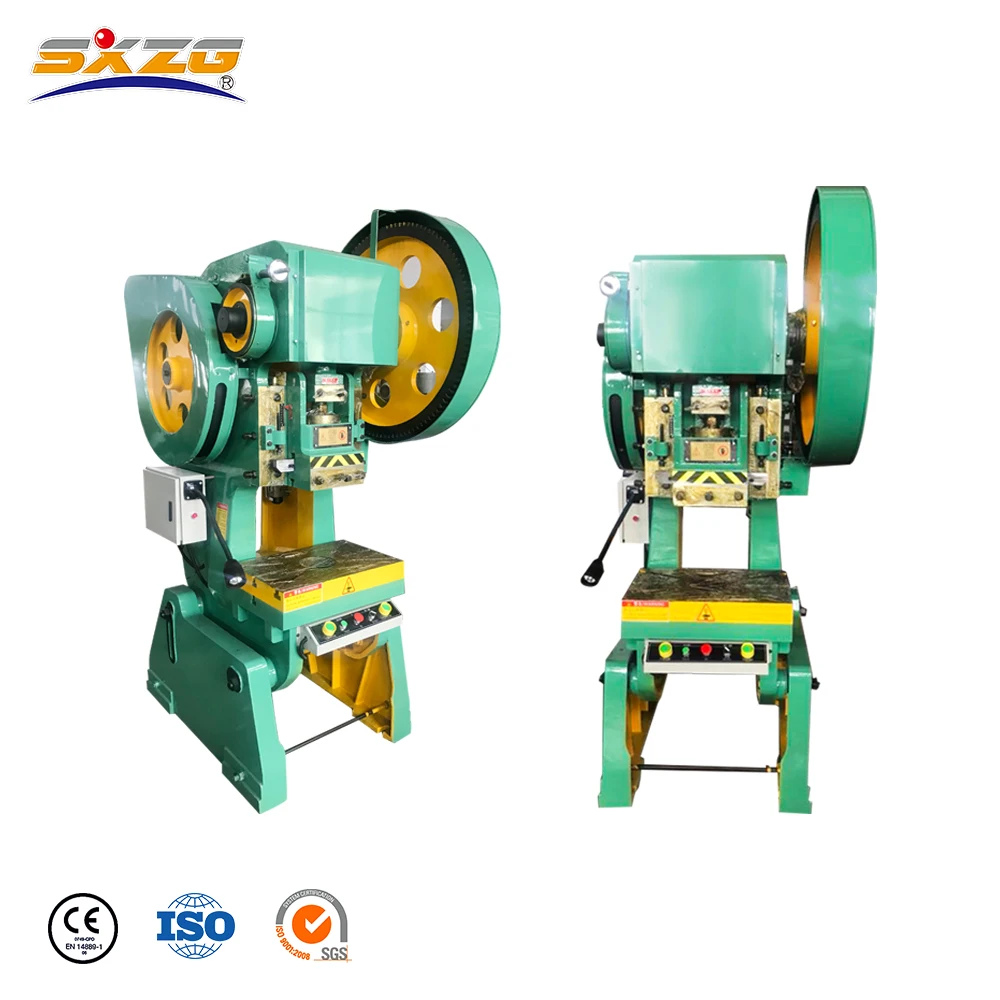

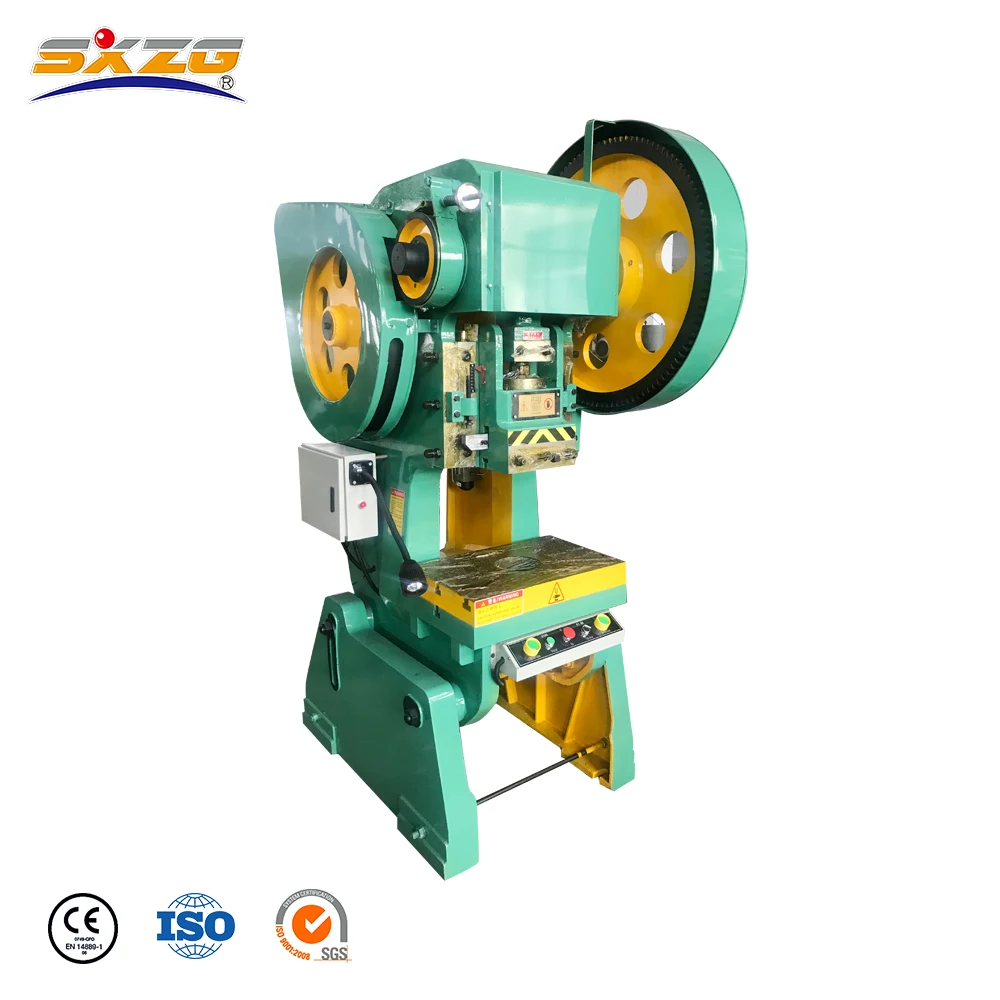

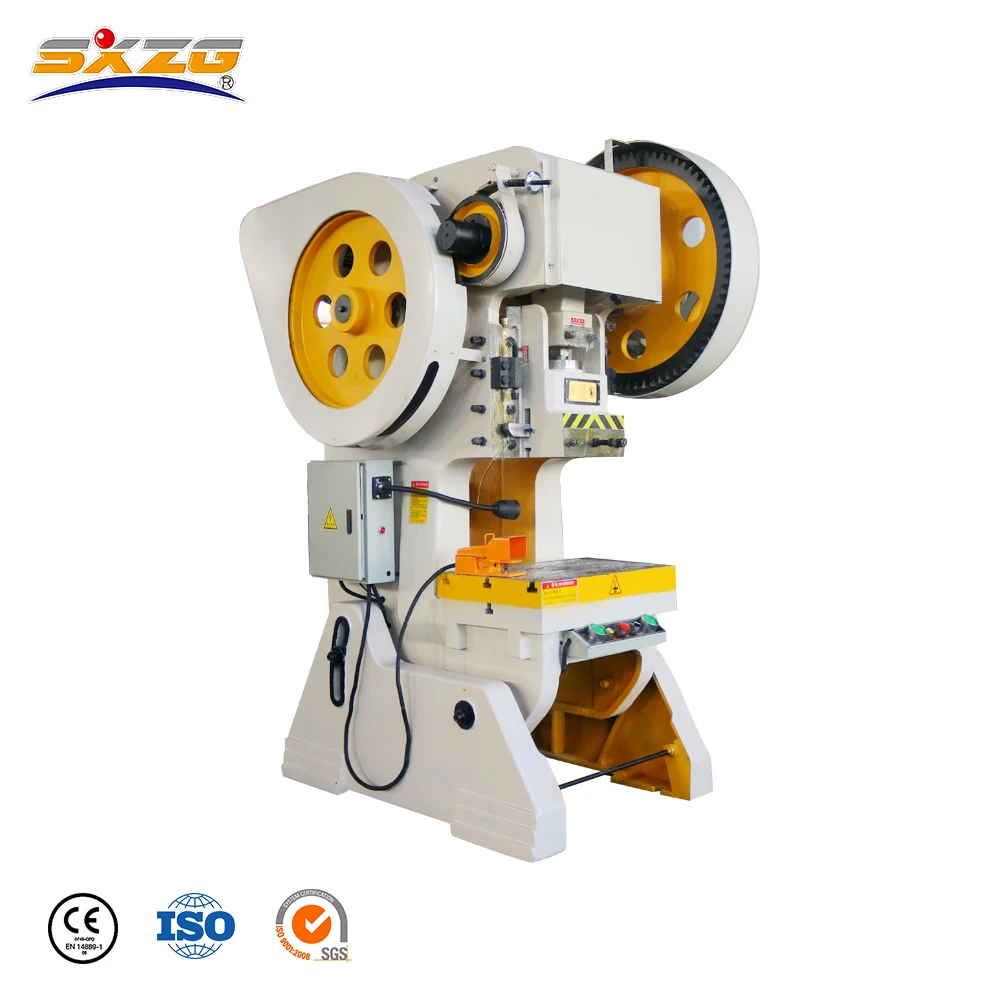

3. Punching Machine Photos

4. Our Service

1,quality Guarantee

We guarantee the quality of machine.

We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.

Machine is free to repair with 1years.We offer flexible extended warranties if needed.

2,Installation and Training Service

Our factory can send our engineer to the customer’s factory install, commission and training freely. As well, you may send your engineers to our company to learn how to operate machines.

3,Question about the products

Anything confulsed you about the products, please contact us. You can contact with us by WhatsApp, Skype, Alibaba, QQ, Wechat, Email.
