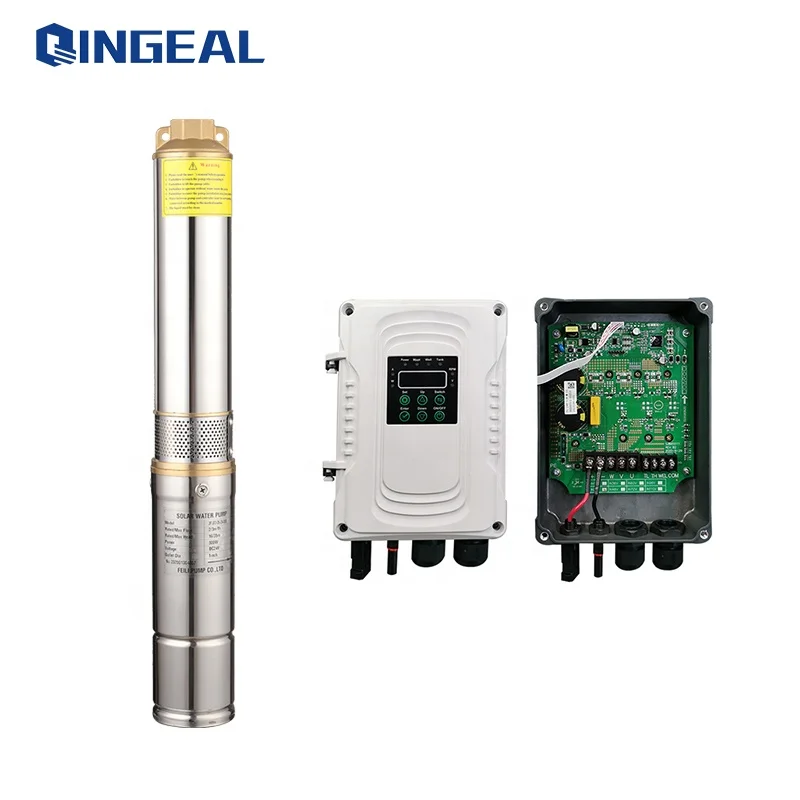

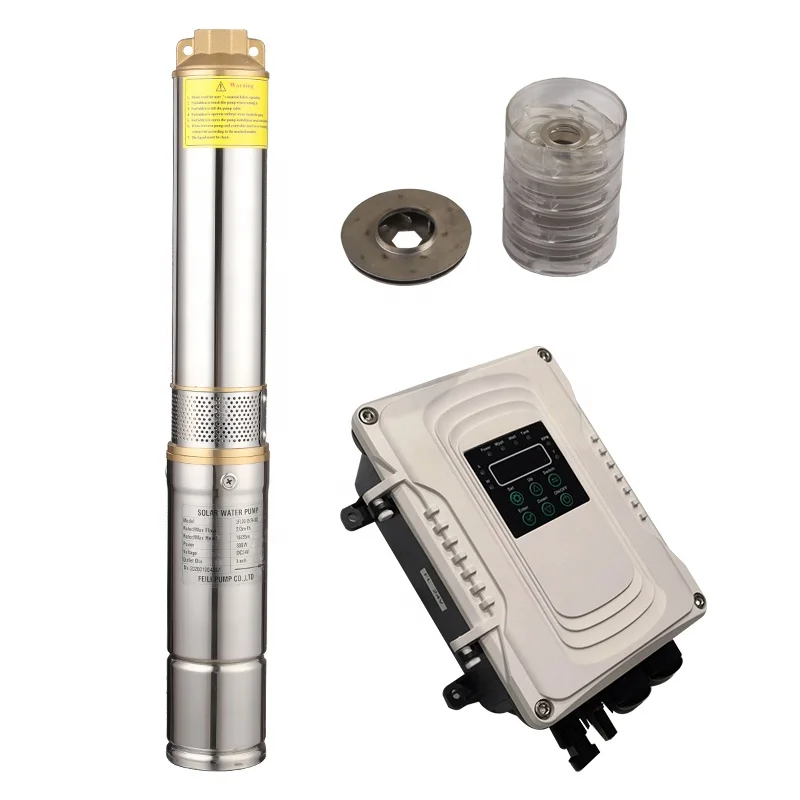

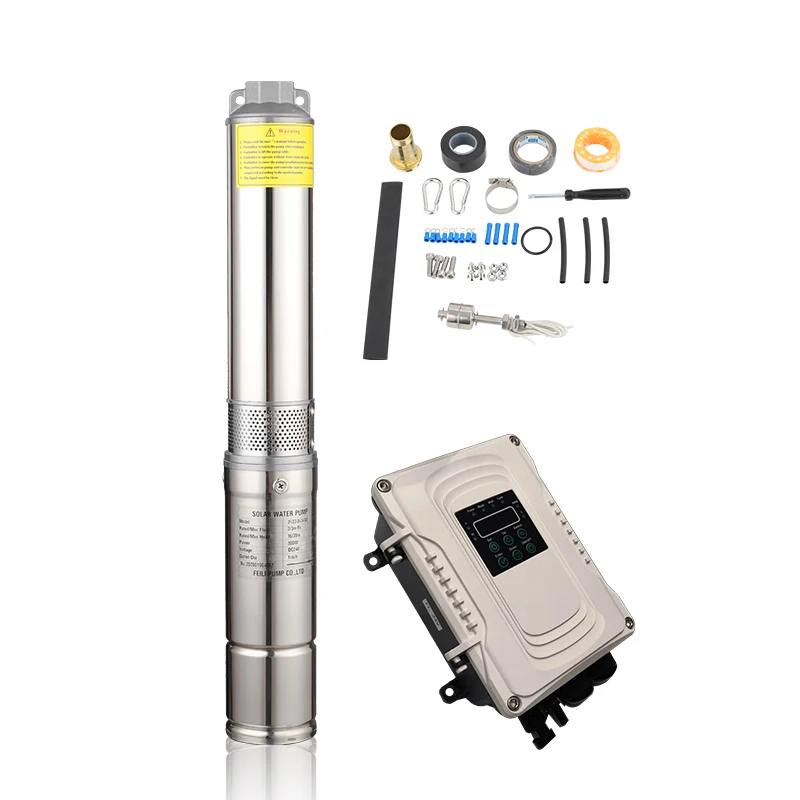

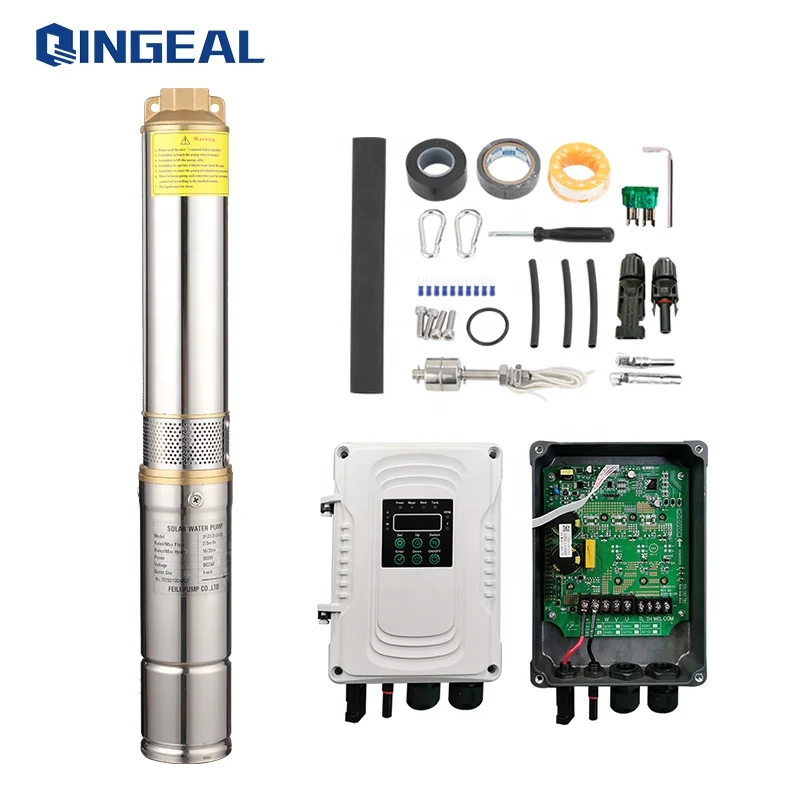

120m head submersible solar pump feili river water solar borehole pump with controller and solar water pump
- Category: >>>
- Supplier: Hangzhou Qinjie Electromechanical Co. Ltd.
Share on (62570822903):
Product Overview
Description
Pump Description

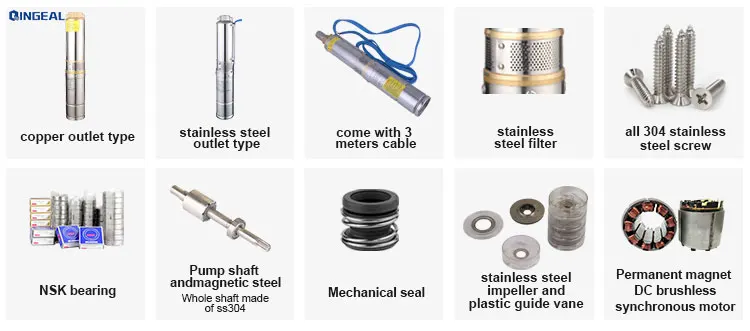

Pump Details

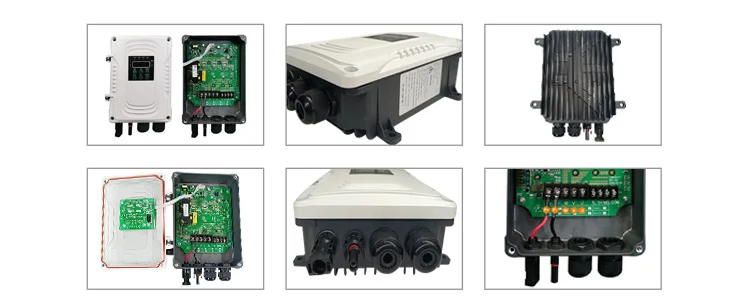

MPPT Controller
◆MPPT function, the solar power utilization rate is higher.
◆LED displays the power,voltage,current,speed etc working conditon.
◆Automatically start and stop working.
◆Water proof and leak-proof:bouble seal effect.
◆Soft start: no impulse current, protect the pump motor.
◆High voltage/low voltage protection, over-current/over-load.
◆Protection, the winding won't be burned.
◆LED displays the power,voltage,current,speed etc working conditon.
◆Automatically start and stop working.
◆Water proof and leak-proof:bouble seal effect.
◆Soft start: no impulse current, protect the pump motor.
◆High voltage/low voltage protection, over-current/over-load.
◆Protection, the winding won't be burned.

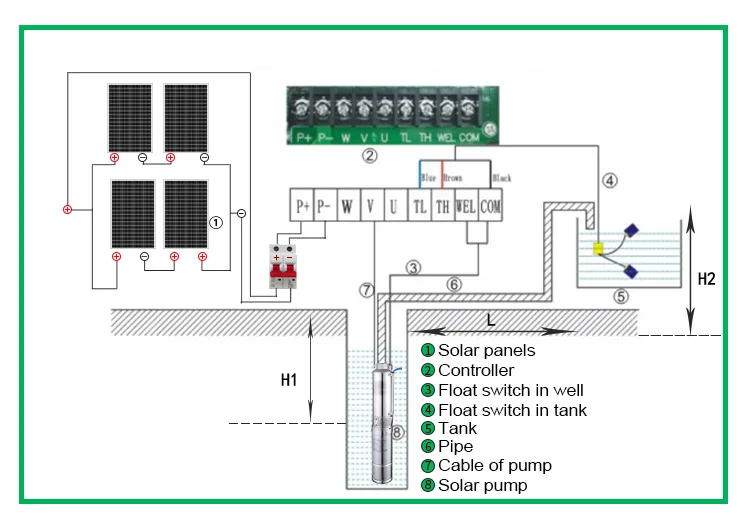

Product Parameter and connection
DC Solar Water Pump for Deep Well | ||
Pump Data | Model: 3FLD3.4-35-48-300 Power:300W Voltage: DC48V Flow: 1-3.4m3/h Max head: 35m(suit for 22m deep well) Outlet Dia:1inch Cable: 3M Solar panels suggest : 2pcs of 330W | |
Pump Size (mm) | A=531; B=303; C=227; D=78 | |

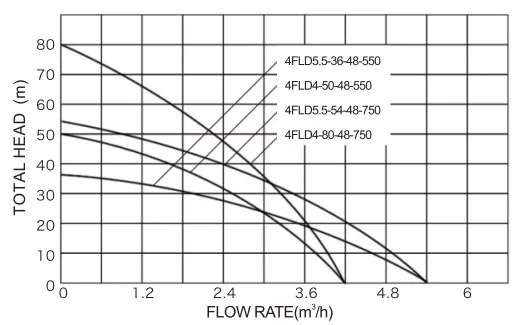

Technical Data of Other Solar Pump
Model | Rated/Max Flow (m3/h) | Rated/Max Head (m) | Pump | Solar Panels | Pump Dia (inch) | Outlet Dia (inch) | ||||||||||
Voltage(v) | Power(w) | Voc(v) | Power(w) | |||||||||||||
3inch Solar Screw Pump | ||||||||||||||||
3FLS1.0/30-D24/80 | 1 | 30 | DC24 | 80W | 25-50 | 150 | 3 | 0.75 | ||||||||
3FLS1.3/50-D24/140 | 1.3 | 50 | DC24 | 140W | 25-50 | 200 | 3 | 0.75 | ||||||||
3FLS1.8/80-D24/210 | 1.8 | 80 | DC24 | 210W | 25-50 | 300 | 3 | 0.75 | ||||||||
3FLS1.8/100-D24/270 | 1.8 | 100 | DC48 | 300W | 25-50 | 500 | 3 | 0.75 | ||||||||
3FLS1.8/120-D36/500 | 1.8 | 120 | DC48 | 500W | 50-100 | 800 | 3 | 0.75 | ||||||||
3FLS2.3/140-D48/750 | 2.3 | 140 | DC48 | 750W | 50-100 | 1125 | 3 | 0.75 | ||||||||
3FLS2.3/160-D72/1100 | 2.3 | 160 | DC72 | 1100W | 75-150V | 1650 | 3 | 0.75 | ||||||||
3FLS2.3/180-D72/1200 | 2.3 | 180 | DC72 | 1200W | 75-150V | 1800 | 3 | 0.75 | ||||||||
3inch Solar Centrifugal Pump | ||||||||||||||||
3FLD2.5-15-24-140 | 0.5/2.5 | 9/15 | DC24 | 140 | 25-50 | 200 | 3 | 1 / 1.25 | ||||||||
3FLD2.7-22-24-180 | 0.8/2.7 | 15/22 | DC24 | 180 | 25-50 | 250 | 3 | 1 / 1.25 | ||||||||
3FLD3-35-24-300 | 2/3 | 16/35 | DC24 | 300 | 25-50 | 450 | 3 | 1 / 1.25 | ||||||||
3FLD3-35-48-300 | 2/3 | 16/35 | DC48 | 300 | 50-100 | 450 | 3 | 1 / 1.25 | ||||||||
3FLD3.2-40-48-400 | 1/3.2 | 30/40 | DC48 | 400 | 50-100 | 600 | 3 | 1 / 1.25 | ||||||||
3FLD3.2-54-48-550 | 1/3.2 | 40/54 | DC48 | 550 | 50-100 | 825 | 3 | 1 / 1.25 | ||||||||
3FLD5-35-48-550 | 2/5 | 22/35 | DC48 | 550 | 50-100 | 825 | 3 | 1 / 1.25 | ||||||||
3FLD3.2-65-48-600 | 1/3.2 | 48/65 | DC48 | 600 | 50-100 | 900 | 3 | 1 / 1.25 | ||||||||
3FLD3.2-80-48-750 | 3/5 | 33/50 | DC48 | 750 | 50-100 | 1125 | 3 | 1 / 1.25 | ||||||||
3FLD5-50-48-750 | 3/5 | 33/50 | DC48 | 750 | 50-100 | 1125 | 3 | 1 / 1.25 | ||||||||
3FLD3.2-80-72-750 | 1/3.2 | 60/80 | DC72 | 750 | 75-150V | 1125 | 3 | 1 / 1.25 | ||||||||
3FLD5-50-72-750 | 3/5 | 33/50 | DC72 | 750 | 75-150V | 1125 | 3 | 1 / 1.25 | ||||||||
3FLD3.2-120-72-1100 | 1/3.2 | 80/120 | DC72 | 1100 | 75-150V | 1650 | 3 | 1 / 1.25 | ||||||||
3FLD5-72-72-1100 | 3/5 | 50/72 | DC72 | 1100 | 75-150V | 1650 | 3 | 1 / 1.25 | ||||||||
3FLD5.4-85-96-1300 | 3/5.4 | 63/85 | DC96 | 1300 | 100-200V | 1950 | 3 | 1 / 1.25 | ||||||||
4inch Solar Centrifugal Pump | ||||||||||||||||
4FLD3.4-50-48-550 | /3.4 | /50 | DC48 | 550 | 50-100 | 825 | 4 | 1.25/1.5 | ||||||||
4FLD5-36-48-550 | /5 | /36 | DC48 | 550 | 50-100 | 825 | 4 | 1.25/1.5 | ||||||||
4FLD7-30-48-550 | /7 | /30 | DC48 | 550 | 50-100 | 825 | 4 | 1.25/1.5 | ||||||||
4FLD10-21-48-550 | /10 | /21 | DC48 | 550 | 50-100 | 825 | 4 | 1.5 | ||||||||
4FLD3.4-80-48-750 | /3.4 | /80 | DC48 | 750 | 50-100 | 1125 | 4 | 1.25 | ||||||||
4FLD5-54-48-750 | /5 | /54 | DC48 | 750 | 50-100 | 1125 | 4 | 1.25 | ||||||||
4FLD7-40-48-750 | /7 | /40 | DC48 | 750 | 50-100 | 1125 | 4 | 1.25 | ||||||||
4FLD10-32-48-750 | /10 | /32 | DC48 | 750 | 50-100 | 1125 | 4 | 1.5 | ||||||||
4FLD3.4-96-72-1100 | /3.4 | /96 | DC72 | 1100 | 75-150V | 1650 | 4 | 1.25/1.5 | ||||||||
4FLD5-72-72-1100 | /5 | /72 | DC72 | 1100 | 75-150V | 1650 | 4 | 1.25/1.5 | ||||||||
4FLD7-60-72-1100 | /7 | /60 | DC72 | 1100 | 75-150V | 1650 | 4 | 1.25/1.5 | ||||||||
4FLD10-43-72-1100 | /10 | /43 | DC72 | 1100 | 75-150V | 1650 | 4 | 1.5 | ||||||||
4FLD18-22-72-1100 | /18 | /22 | DC72 | 1100 | 75-150V | 1650 | 4 | 2 | ||||||||
6FLD34-15-72-1100 | /34 | /15 | DC72 | 1100 | 75-150V | 1650 | 6 | 3 | ||||||||
4FLD3.4-140-96-1300 | /3.4 | /140 | DC96 | 1300 | 100-200V | 1950 | 4 | 1.25/1.5 | ||||||||
4FLD5-120-96-1300 | /5 | /120 | DC96 | 1300 | 100-200V | 1950 | 4 | 1.25/1.5 | ||||||||
4FLD7-95-96-1300 | /7 | /95 | DC96 | 1300 | 100-200V | 1950 | 4 | 1.25/1.5 | ||||||||
4FLD10-60-96-1300 | /10 | /60 | DC96 | 1300 | 100-200V | 1950 | 4 | 1.5 | ||||||||
4FLD18-33-96-1300 | /18 | /33 | DC96 | 1300 | 100-200V | 1950 | 4 | 2 | ||||||||
6FLD38-18-96-1300 | /38 | /18 | DC96 | 1300 | 100-200V | 1950 | 6 | 3 | ||||||||
4FLD3.7-154-96-1500 | 3.7 | 154 | DC96 | 1500 | 100-200V | 2250 | 4 | 1.25/1.5 | ||||||||
4FLD5.5-132-96-1500 | 5.5 | 132 | DC96 | 1500 | 100-200V | 2250 | 4 | 1.25/1.5 | ||||||||
4FLD7.7-105-96-1500 | 7.7 | 105 | DC96 | 1500 | 100-200V | 2250 | 4 | 1.25/1.5 | ||||||||
4FLD11-66-96-1500 | 11 | 66 | DC96 | 1500 | 100-200V | 2250 | 4 | 1.5 | ||||||||
4FLD20-36-96-1500 | 20 | 36 | DC96 | 1500 | 100-200V | 2250 | 4 | 2 | ||||||||
6FLD42-20-96-1500 | 42 | 20 | DC96 | 1500 | 100-200V | 2250 | 6 | 3 | ||||||||

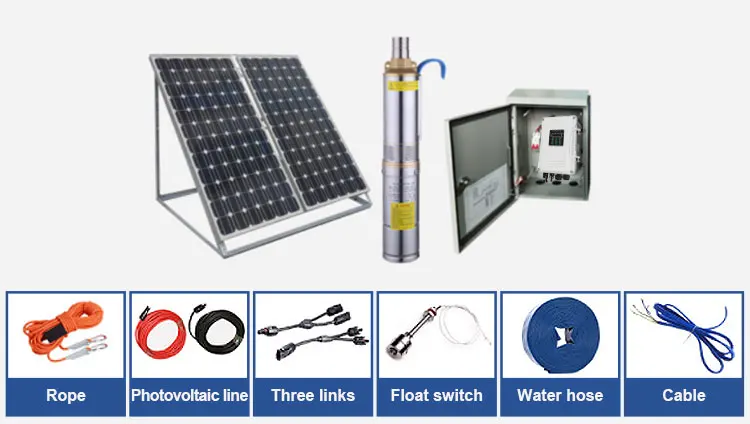

All in one solar pump system supplier
The price on our shop is only pump and controller, if you need solar panel and other accesories, pls contact with us!
Contaction Person: Kiely Sun
E: sales5@qingeal.com
WhatsApp: +8618758028160
WeChat: qingealpump
Skype: +8618758028160
Packing
Related Solar Products
How to Follow Us!
Feedback
Brief introduction of company
Hangzhou Qinjie Electromechanical Co.,ltd is a branch company established by Feili Pump in 2015, based in Hangzhou city-famous E-commerce city, provincial capital of Zhejiang Province.
We mainly produce and sell series of pump includes solar water pumps, submersible pumps, pipeline pumps and fountain pumps. Our goal is providing high-quality, cost-effective solar water pumps to customers around the world, let's make world more eco friendly!
Hangzhou Qinjie followed ISO9001 quality system, has strict quality control procedure, use good raw material for all pumps to make sure pump's quality. We have a 9,000 square meter workshop and two assembly lines with the ability to produce motors, assemble pumps, test and develop. Currently has 5 utility model patents.
At the same time, we implement After-ales service feedback system which can offer solutions within 24 hours to support customers if need.
At present, our pumps have obtained relevant export certificates such as CE, SGS CB, and our pumps have gained certain market share and brand recognition in Southeast Asia, Africa and North America.
We mainly produce and sell series of pump includes solar water pumps, submersible pumps, pipeline pumps and fountain pumps. Our goal is providing high-quality, cost-effective solar water pumps to customers around the world, let's make world more eco friendly!
Hangzhou Qinjie followed ISO9001 quality system, has strict quality control procedure, use good raw material for all pumps to make sure pump's quality. We have a 9,000 square meter workshop and two assembly lines with the ability to produce motors, assemble pumps, test and develop. Currently has 5 utility model patents.
At the same time, we implement After-ales service feedback system which can offer solutions within 24 hours to support customers if need.
At present, our pumps have obtained relevant export certificates such as CE, SGS CB, and our pumps have gained certain market share and brand recognition in Southeast Asia, Africa and North America.
From production to delivery

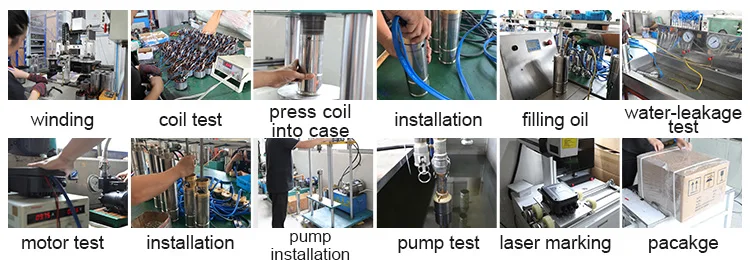

Production Process

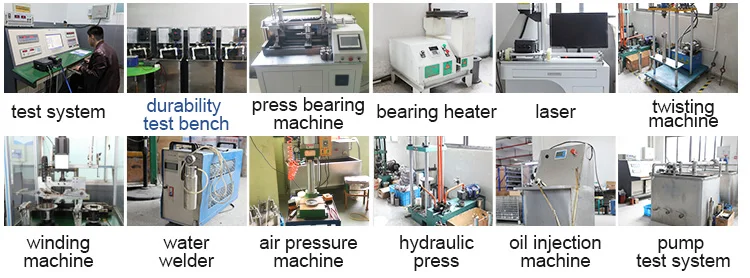

Production Equipemet

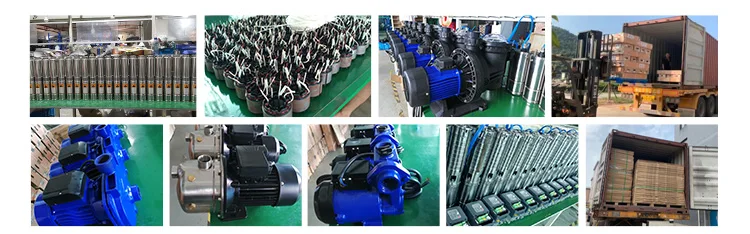

Packing and Shipment
