High quality endive Fast Precooling Vacuum Coolers , Vacuum Cooling Machine

Product Overview

Description



The technology is based on the phenomenon that water starts boiling at lower temperature as the pressure decreases. In the vacuum cooler the pressure is reduced to a level where water starts boiling at 2℃.The boiling process takes away heat from the product. As an effect, products can be cooled down through and through to 1 or 2℃ within 20-30 minutes.Even (micro-perforated) packed products can easily be cooled this way!

Because of simple principle and fast cooling speed, vacuum cooling machine is widely used in mushroom preservation, transportation and storage of the agricultural products.

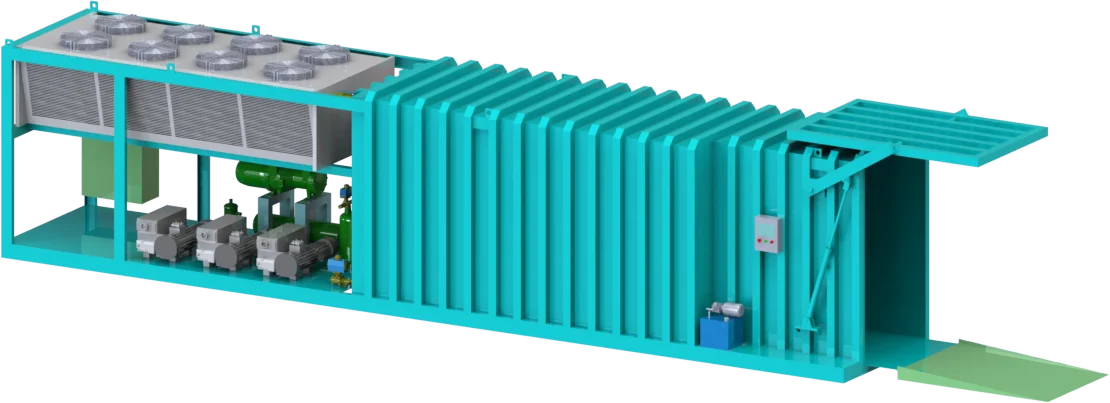

a. Vacuum chamber--To load your vegetables.

b. Vacuum system--To takes away the air in vacuum chamber, then cool the vegetables down.

c. Refrigeration system--To catch the water vapor in ths chamber so as to ensure the continous cooling process.

d. Control system---To control and show the working condition of the vacuum cooler.



1. Radily Cooling: Cooling flowers&vegetabel from 30°C to 3°C  within 20-30 Minutes

2.Cooling uniform: The core and the surface reach exactly same temperature after cooled

3. Extend Shelf Life: Stay freshness and Nutrition Longer

4. Accurated Control: PLC combine with sensitive sensors&valves

5. Easy Operation Design: Automatic Control work with touch screen

6.Running safety and stablity:  All the inportant parts adopt foreign brand. vacuum pump use Busch/Leybold, copressor use Elmo Rietschle/Bitzer, the refrigerant part use Danfoss/Johnson.

a. Vegetables--All kinds of leaf vegetables, tight vegetables,Broccoli,Mushrooms,Sweet corn etc.

b. Flowers--All kinds of cut fresh flowers

c. Fruits--Berries,Cherries,graps, strawberry,tomato etc.

d. Grass---All kinds of grass using for lawn



Vegetables/Flowers/Fruits vacuum Cooler Models&Specifications
Model No.	Processing Capacity	Inside Chamber mm	Produce Weight kg	Electricity Type	Total Power kw
AVC-500	1 Pallet	1,400x1,400x2,200	300-500	220V-660V/3P	31
AVC-1000	2 Pallets	2,600x1,400x,2,200	800-1000	220V-660V/3P	39
AVC-1500	3 Pallets	3,900x1,400x,2,200	1,200-1,500	220V-660V/3P	47
AVC-2000	4 Pallets	5,200x1,400x,2,200	1,500-2,000	220V-660V/3P	72
AVC-3000	6 Pallets	6,500x1,400x,2,200	2,300-3,000	220V-660V/3P	98
AVC-4000	8 Pallets	5,300x2,600x,2,200	3,200-4,000	220V-660V/3P	121
AVC-5000	10 Pallets	6,600x2,600x,2,200	4,200-5,000	220V-660V/3P	145
AVC-6000	12 Pallets	7,900x2,600x,2,200	5,200-6,000	220V-660V/3P	166



1.Condensor Options:

a. Air cooling  condensor     b.Water cooling condensor     c.Evaporative cooling condensor

2.Function Options:

a.Hydro cooling system      b.Water spray system    c.Products convery belt system

3.Door Options:

a. Standard swing door     b.Horizontal Sliding Door  c.Vertical Lifting Door

4.Chamber Options

a.Plain carbon steel    b.Stainless steel

5.Refrigerant Options:

a. R404a,     b.R507
