Прямая поставка из Китая, латунный стержень/трубка, горизонтальная производственная линия непрерывного литья
- Category: >>>
- Supplier: Wuxi Jintong Furnace Co. Ltd.
Share on (62571115702):
Product Overview
Description
Production Line Machines & Parameters:
1. 300KG Melting and Temperature holding Furnaces
No. | Parameters: | Qty |
1 | Rated Power: 80Kw | 1 set |
2 | Type: Melting Brass Scrap/Temperature Holding | |
3 | Model: GYT300 | |
4 | Input voltage: 380 VAC | |
5 | Furnace Content Capacity: 1~2T each | |
6 | Input phase: 3 phase (ABC) | |
7 | Power Factor: 0.95 | |
8 | Input Frequency: 50 Hz | |
9 | Melting Rate: 300KG/Hour | |
10 | Max Working Temperature: 1250 ℃ | |
11 | Hook: 1pc | |
12 | Cooling System: Water cooling | |
13 | Voltage Regulating: Autotransformer | |
14 | Temperature Measurement: Thermocouple | |
15 | Electric Cabinet: 1 set Electron component brand: CHINT |
Note: Price is different with different brand of electric control system, if you need Siemens or Schneider, we can also provide

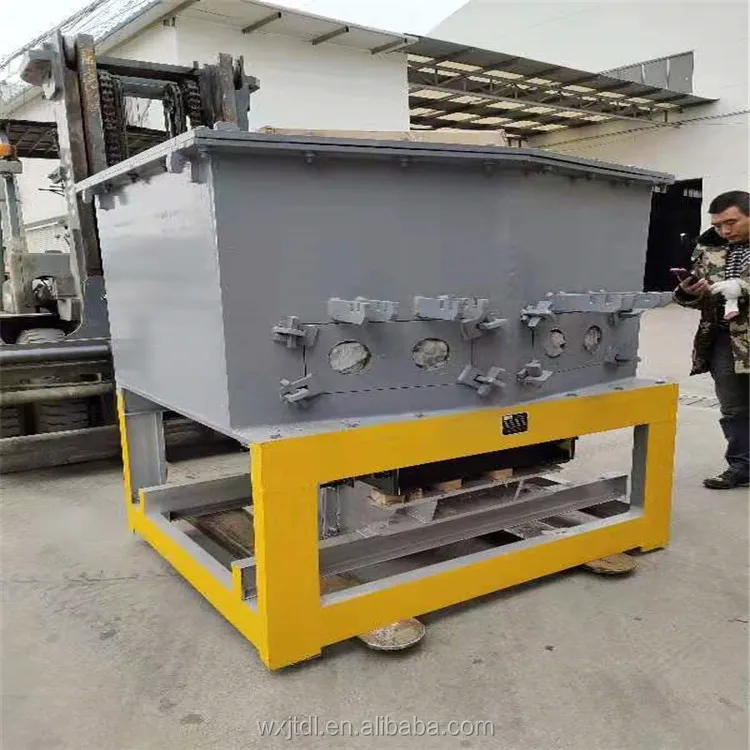

Furnace Picture: (picture just for reference, yours will customized)
2. Drawing/Traction Machine
No. | Parameters: | Qty |
1 | Power Supply: 1.5kw | 2 sets |
2 | Rod Size: Φ8-65mm | |
3 | Wheel Size:Φ138mm | |
4 | Spare wheel inner shaft size:Φ35mm | |
5 | Machine Size:730*730*1200mm |

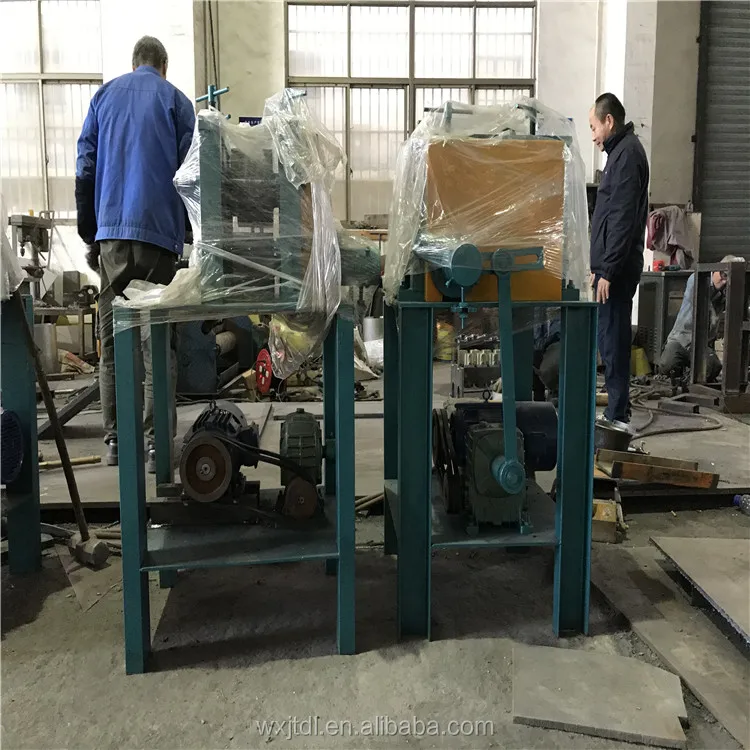

Drawing Machine Picture: (picture just for reference, yours will customized)
3. Cutting Machine
Parameters: | Qty | |
1 | Power: 4kw | 2 sets |
2 | Cutting Diameter: Φ8-70mm/ | |
3 | Guide: Hard line rail | |
4 | Pressure:0.7mpa | |
5 | Rotate Speed: 2200r/min | |
6 | Machine Size: 1150*650*1500mm |

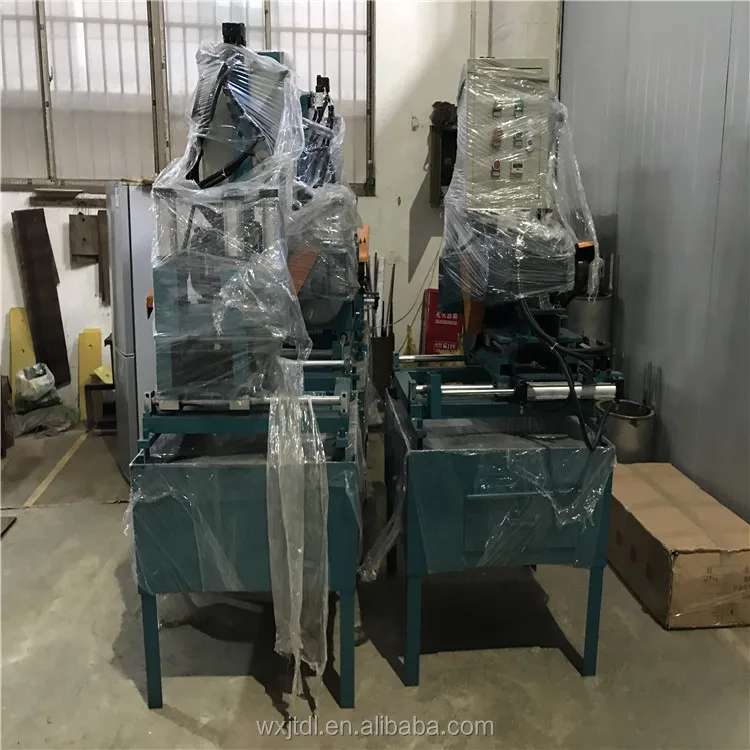

Cutting Machine Picture: (picture just for reference, yours will customized)
With rod holding shelf
