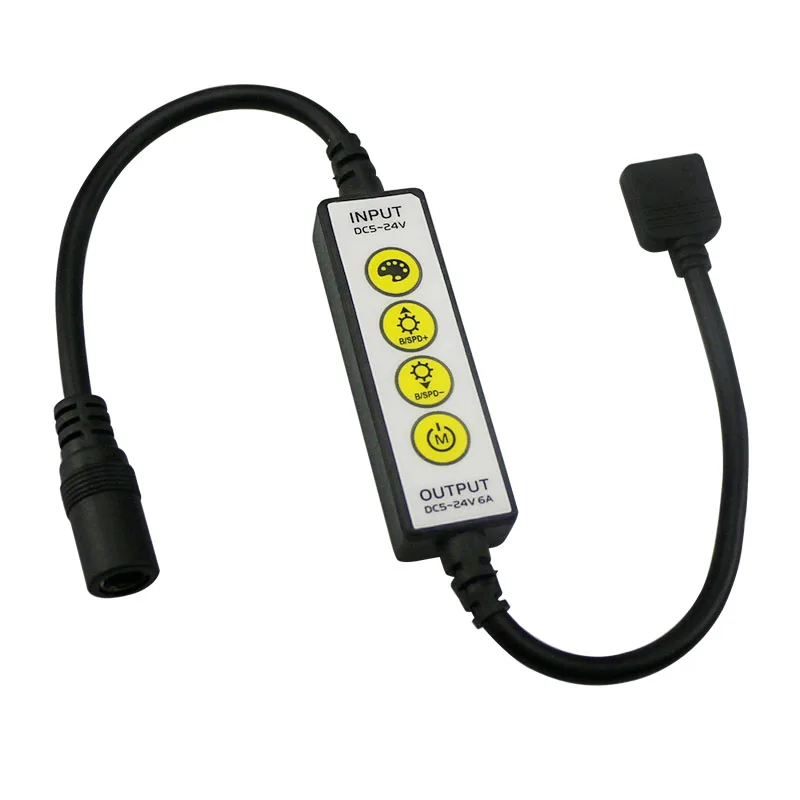

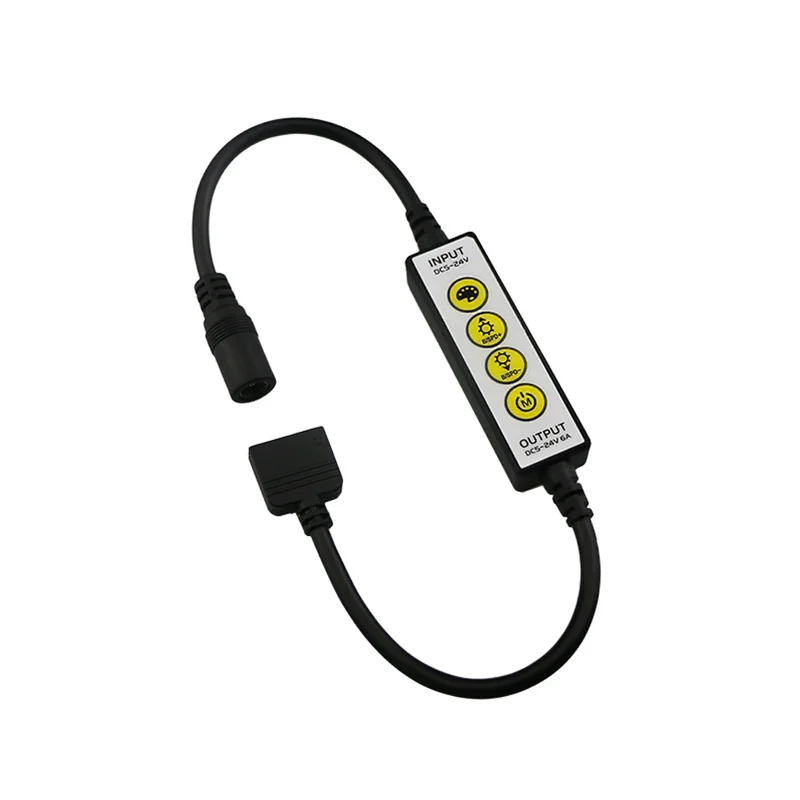

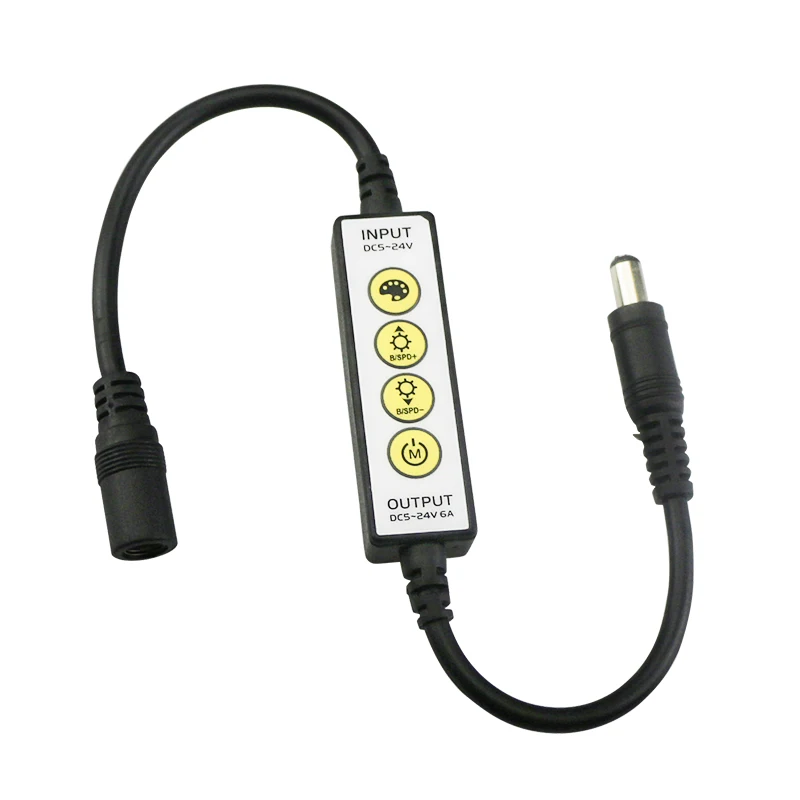

5V 24V LED Strip Controller RGB RGBW CCT Dim mini 4keys LED Controller

Product Specifications

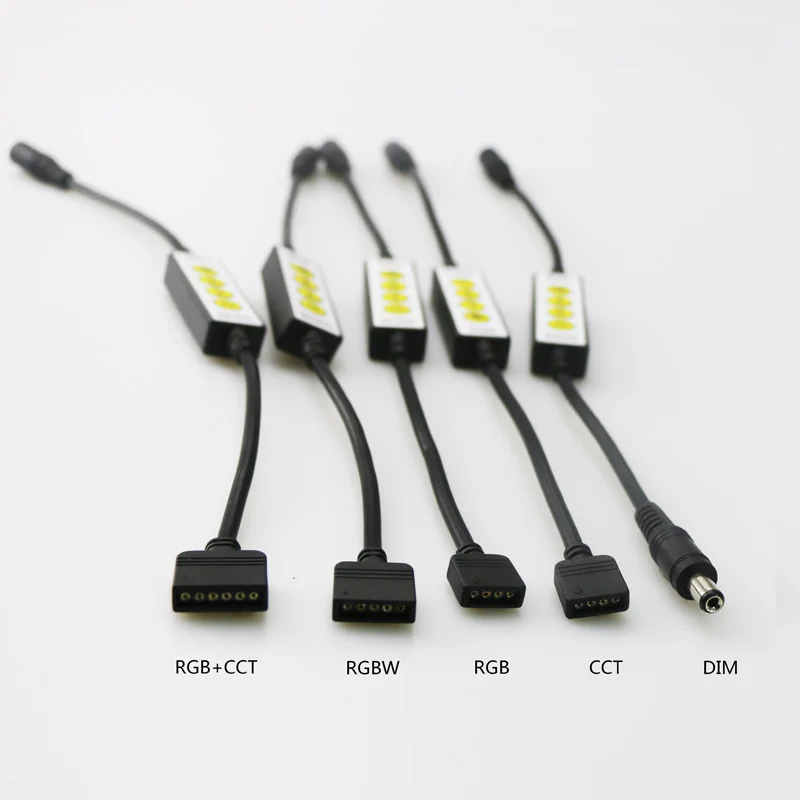

(DIM/ CCT/ RGB/ RGBW/ RGB+CCT)

1. Product Description:

Mini 4 keys led controller has 5 types, which form a series. The products of this series can be used to control five types of light bars: Dimmer, color temperature, RGB, RGBW, RGB+CCT. It can realize fade, jump, fade in and fade out, flash, blasting flash etc. dynamic lighting effects according to customers' actual needs. And a variety of static colors can be chosen from. The main features of the controller are: 1. Compact body and convenient wiring; 2. Simple and clear operation, comfortable button feel; 3. Diversified dynamic mode; 4. Soft dimming effect.

2. Technical Parameters:

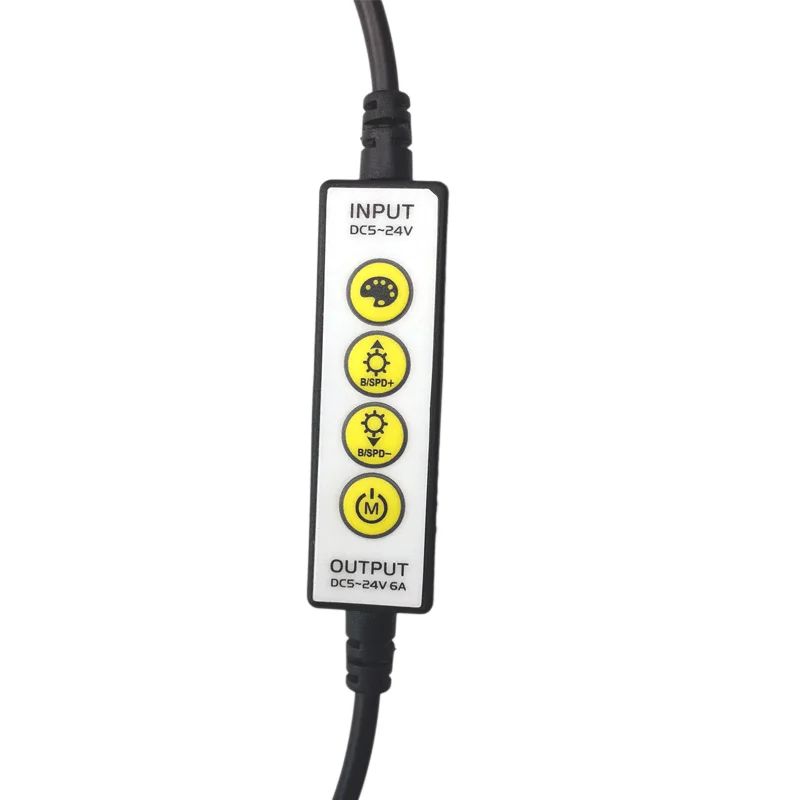

Product name: Mini 4 Keys LED Controller

Model No.:K01~05

Working temperature:-20-60℃

Input voltage:DC5-24V

Connection mode:Common anode

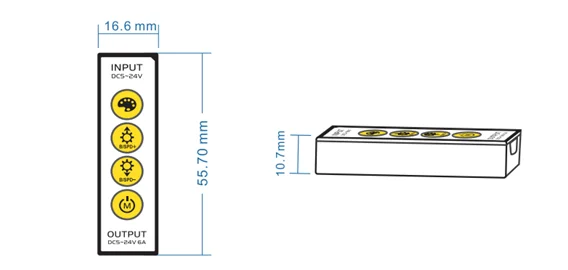

controller size:L55.7×W16.6×H10.7mm

Net weight:18g

Gross weight:25g

Static power consumption:<0.5W

Output current:<2A/CH (each circuit) max:6A

Output power: Max: 5V:<30W,12V:<72W, 24V:<144W

DIM : 1Channel *6A

CCT: 2 chanel *3A

RGB: 3 channel *2A

RGBW: 4 Channel * 2A

RGB+CCT: RGB 3*2A+CCT 2*2A

3. Technical Parameters:

4. Connection description:

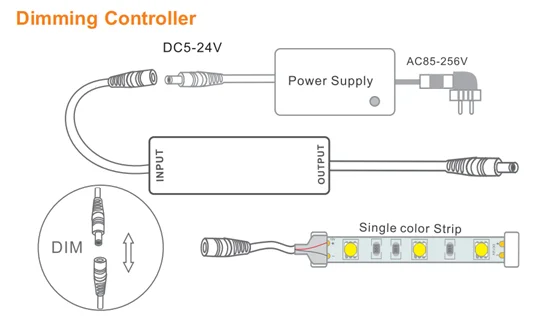

(1) Dim

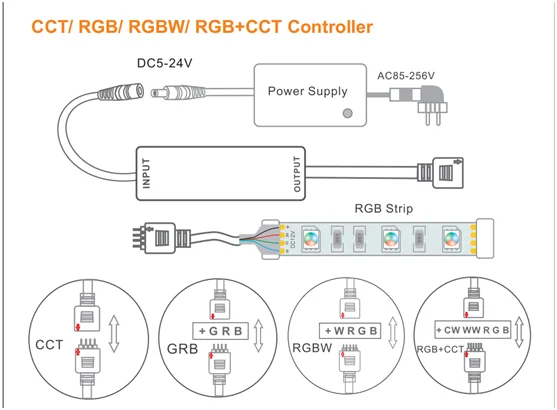

(2)  RGB/CCT/RGBW/RGB+CCT

Note: If the controller's output wire sequence which you get are different from above, please according to the actual controller’s wire sequence to corresponding led lights, just make sure the arrows of controller and light are inserted accordingly.

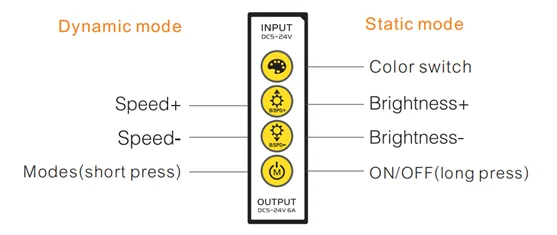

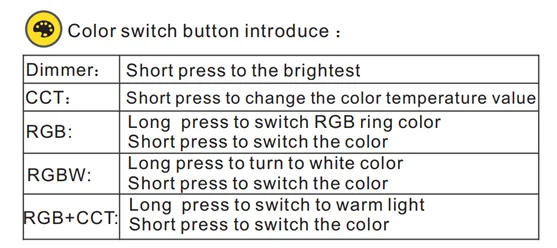

5. Product button function chart:

S+S-/ B+B- button introduce:

(1) In static color mode, it is brightness up or down (totally 10 levels)

(2) In dynamic mode, it is speed up or down (totally 10 levels)

(3) The brightness of dynamic mode is changed according to that of static mode.

6. Mode list

(1) Dimmer

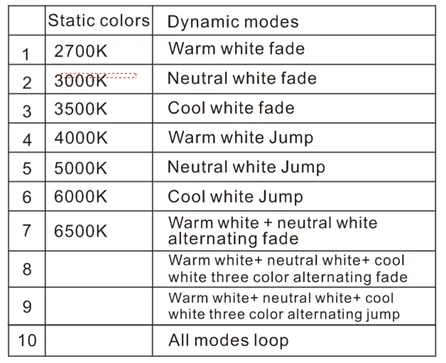

(2) CCT Controller

(3) RGB Controller

Static colors (10) : Red, Green, Blue, Yellow, Purple,Cyan, White, Light green, Purplish red, Light blue.

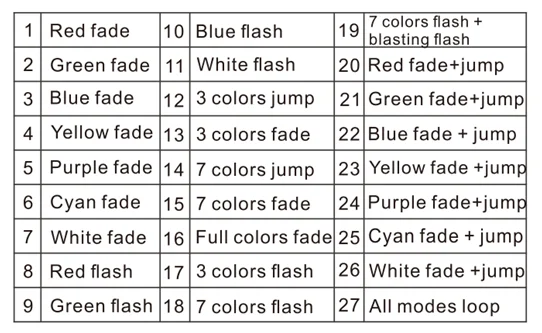

Dymamic mode list (27):

(4) RGBW Controller

Static colors (15) : Red, Green, blue, Yellow, Purple, Cyan, White (RGB Mixed), W(1CH), W+red, W+green, W+blue, W+yellow, W+purple, W+cyan, W+Orange.

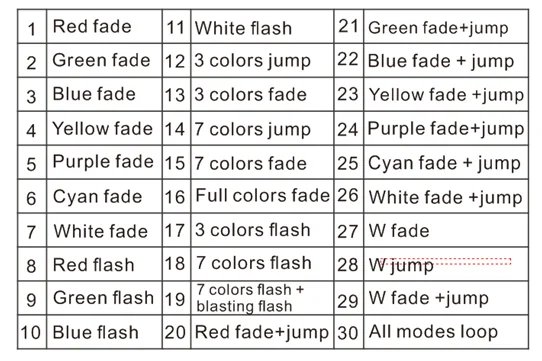

Dymamic mode list (30):

(5) RGB+CCT Controller

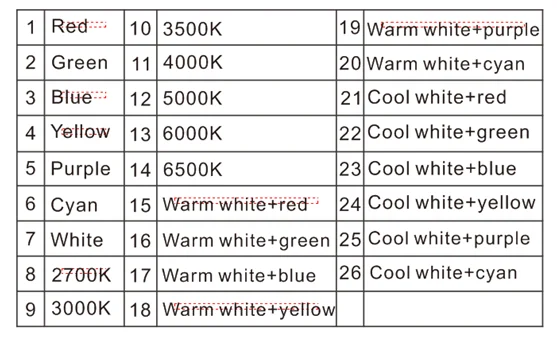

Static color list (26):

Dymamic mode list (33):

Note: Can not adjust the speed of mode named “7 colors flash + blasting  flash” in RGB, RGBW and RGB+CCT mode sheets.

8.Attention:

1. Controller’s input voltage is DC5-24V, other input voltage are not allowed, Please do not overload, the total max output current is 6A;

2. Please connecting the power input and LEDs in power off, and power on in correct connection.

3. Please don’t reverse the power input connection of both cathode and anode, please switch on again only when it is in right connection and no short circuit.

4. Please power off the device if you don’t use it for a quit long time, don’t place in high dust, high temperature environment

Package:

Option 1.Neutral packing (Antistatic bag, white box, brown box)

Option 2.Neutral packing + your own labels (MOQ: 1000units)

Option 3.Customized paid design packing (OEM color boxes)

Shipping & Delivery:

A: Production time:

1. For sample order, usually 3-5 days

2. For bulk order, usually 10-20 days

B: Shipping Way:
1. For sample order, usually DHL, UPS, FedEx, TNT, EMS available, door to door.

2. For bulk order, usually by Sea, by Air available.

3. Delivery Time: 3-5 days for samples; 10-15 days for bulk goods.
