Various styles hydraulic bits well drilling soil drill for rig
- Category: >>>
- Supplier: Shanghai Vostosun Industrial Co. Ltd. [Shanghai China]Shanghai
Share on (62571360117):
Product Overview
Description
Various styles hydraulic bits well drilling soil drill for rig
Application
Key Specifications/Special Features:
Product feature and advantages
Option half-automatic or manual mechanic bottom open system, built-in ventilation pipe;
Cast pilot with rock drilling bits, arc guide plate teeth arrangement, double unlocking system;
Staggered arrangement of rock drilling bits;
Applicable layers: Gravel, pebble, highly or medium weathered rock;
Option half-automatic or manual mechanic bottom open system, built-in ventilation pipe;
Cast pilot with rock drilling bits, arc guide plate teeth arrangement, double unlocking system;
Staggered arrangement of rock drilling bits;
Applicable layers: Gravel, pebble, highly or medium weathered rock;
| Cutting diameter | Shell height | Shell thickness | Fixed bottom thickness | Rotate bottom thickness | Teeth quantity | Weight |
| 600 | 1200 | 16 | 40 | 40 | 6 | 650 |
| 800 | 1200 | 16 | 40 | 50 | 9 | 950 |
| 900 | 1200 | 16 | 40 | 50 | 10 | 1100 |
| 1000 | 1200 | 16 | 40 | 50 | 11 | 1230 |
| 1200 | 1200 | 16 | 40 | 50 | 13 | 1580 |
| 1500 | 1200 | 16 | 40 | 50 | 16 | 2060 |
| 1600 | 1200 | 16 | 40 | 50 | 17 | 2430 |
| 1800 | 1000 | 20 | 50 | 50 | 21 | 3400 |
| 2000 | 800 | 20 | 50 | 50 | 22 | 3900 |
| 2200 | 800 | 20 | 50 | 50 | 23 | 4400 |
| 2500 | 800 | 25 | 50 | 50 | 27 | 5800 |
| 2800 | 800 | 25 | 50 | 50 | 33 | 6800 |
| 3000 | 800 | 25 | 50 | 50 | 35 | 7700 |

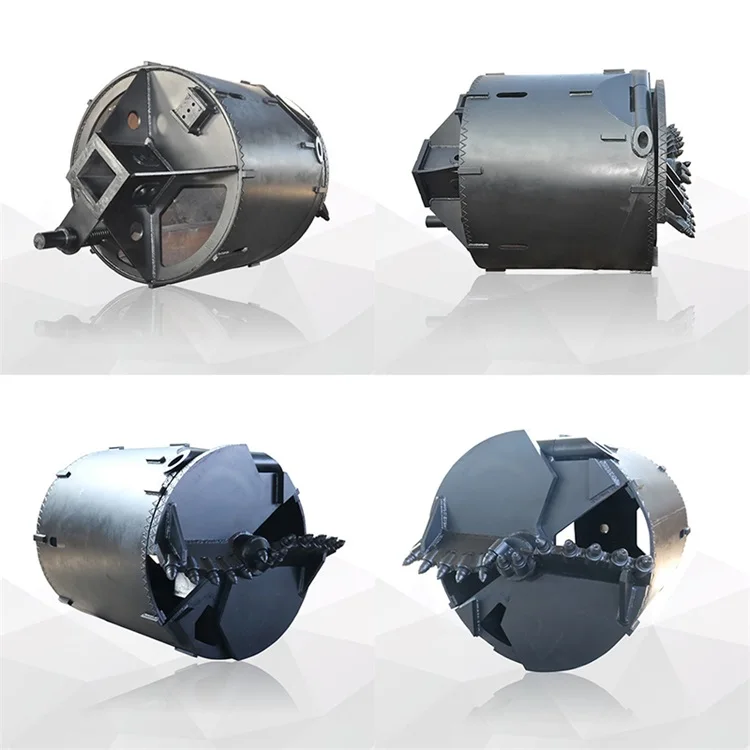

GoldTi driling buckets Production:
GoldTi drilling rigs and drilling buckets at site:
Some parts and accessoires available for different drilling rigs:
Production Type
